P7TF-OS16 DC24V Overview

relay sockets & hardware relay blck,out base only

P7TF-OS16 DC24V Parametric

Parameter Name	Attribute value
Manufacture	Om
Product Category	Relay Sockets & Hardware
RoHS	N

Preview

Download Datasheet

View All

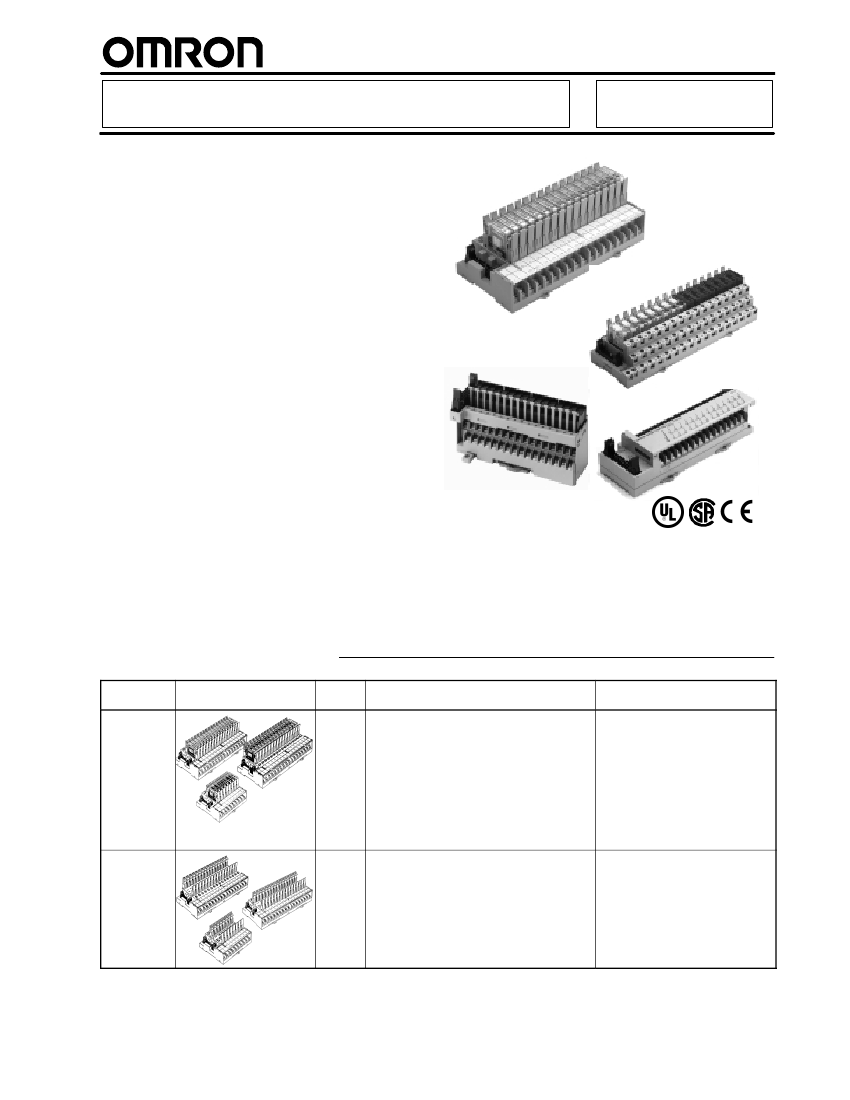

Relay I/O Blocks

Consolidate Wiring and Reduce

Installation Time

Omron relay I/O blocks provide high

performance switching used with

controllers from any manufacturer

G7jj

G7TC blocks come with G7T input or

output relays installed

16-point models measure 180 W x 85 H x 68 D mm

8-point models measure 102 W x 85 H x 68 D mm

P7TF bases let you mix and match G7T

relays and G3TA SSRs so long as the coil

voltage matches the base voltage

G70A bases let you mix and match

higher capacity (10-amp) G2R Form C

relays and G3R SSRs

16-point models measure 234 W x 75 H x 64 D mm

G70D blocks come with highly reliable

G6D relays or G3DZ power MOS FET

relays installed

Compact models measure 156 W x 54 H x 39 D mm

G70D-V models measure 135 W x 50 H x 81 D mm

Ordering Information

Product

Relay I/O

Blocks

Appearance

Stan-

dards

CSA

Specifications

Input block, 16 points, 24 VDC

Input block, 16 points, DeviceNet

Input block, 16 points, 110/120 VAC

Input block, 16 points, DeviceNet

Input block, 16 points, 220/240 VAC

Output block, 16 points, NPN, 12 VDC

Output block, 16 points, NPN, 24 VDC

Output block, 16 points, PNP, 24 VDC

Output block, 8 points, NPN, 12 VDC

Output block, 8 points, NPN, 24 VDC

Output block, 8 points, PNP, 24 VDC

Input base, 16 points, NPN AC coil

Input base, 16 points, NPN, DC coil

Output base, 16 points, NPN, 12 VDC

Output base, 16 points, NPN, 24 VDC

Output base, 16 points, PNP, 24 VDC

Output base, 8 points, NPN, 12 VDC

Output base, 8 points, NPN, 24 VDC

Output base, 8 points, PNP, 24 VDC

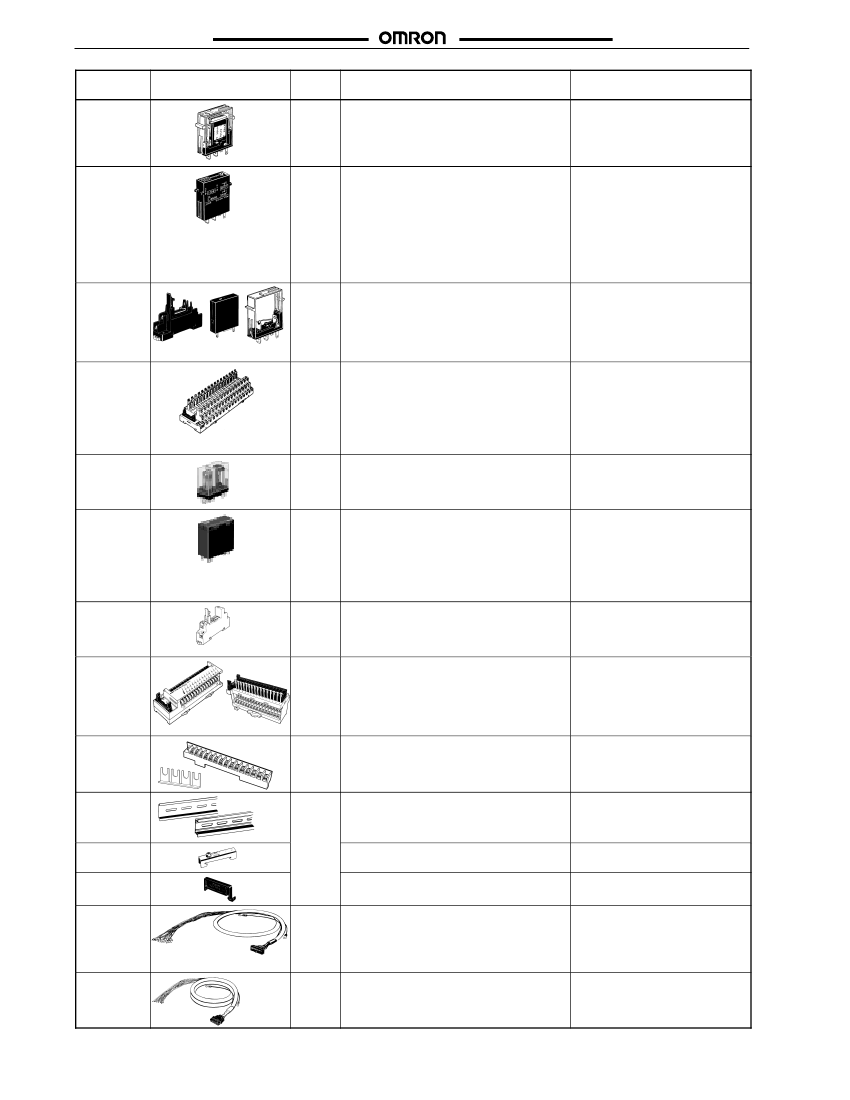

(This table continues on the next page.)

Part number

G7TC-ID16 DC24V

G7TC-IA16-5 AC100/110V

G7TC-IA16 AC110/120V

G7TC-IA16-5 AC100/110V

G7TC-IA16 AC200/240V

G7TC-OC16 DC12V

G7TC-OC16 DC24V

G7TC-OC16-1 DC24V

G7TC-OC08 DC12V

G7TC-OC08 DC24V

G7TC-OC08-1 DC24V

P7TF-IS16 AC110/120V

P7TF-IS16 DC24V

P7TF-OS16 DC12V

P7TF-OS16 DC24V

P7TF-OS16-1 DC24V

P7TF-OS08 DC12V

P7TF-OS08 DC24V

P7TF-OS08-1 DC24V

Relay Block

Bases

CSA

305
