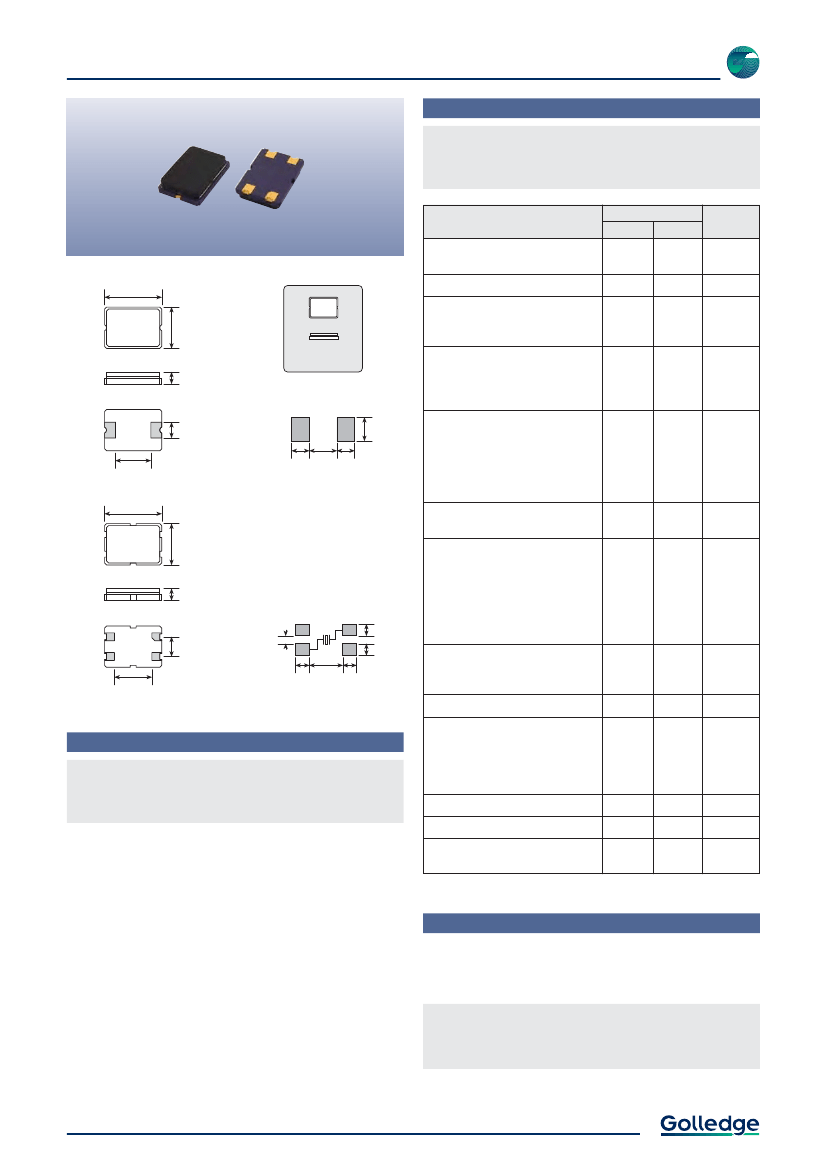

SM Crystal - Ceramic Lid
Specifications
GSX-752A: 2 pads
GSX-752B: 4 corner pads
GSX-752
Parameters
Package:
7.15
(max)
Variant
A
GSX-752A
GSX-752B
6.0 ~ 60.0MHz
B
Option
Codes
Frequency range:
5.15
(max)
Calibration tolerance:
±30ppm
±50ppm
Other values (±20ppm ~ ±100ppm)
±30ppm
±50ppm
±100ppm
Other values (±20ppm ~ ±100ppm)
3
5
specify
3
5
C
specify
1
2
3
4
specify
1.60
(max)
ACTUAL SIZE
SOLDER PAD LAYOUT
Temperature stability:
2.00
GSX 752A
2.25 3.50 2.25
TOP VIEW
3.00
4.50
7.15
(max)
Operating temperature range:
-10 to +60°C
-20 to +70°C
-30 to +80°C
-40 to +85°C
Other values
Storage temperature range:
-40 to +90°C
5.15
(max)
Circuit condition:
1.60
(max)
SOLDER PAD LAYOUT
4
3
2
1.40
1.40
1
4
4.60
2
3
12pF
16pF
18pF
20pF
30pF
Series resonant
Other values
B
D
E
F
J
S
specify
F
3
2.54
GSX 752B
1.14
1
1.60 4.20 1.60
TOP VIEW
Oscillation mode:
Fundamental (6.0 ~ 40.0MHz)
3rd overtone (30.0 ~ 60.0MHz)
Static capacitance (C
0
):
7pF max
Scale 2:1
Features
«
«
Ceramic body & lid
Glass seal for best price / performance
Equivalent series resistance (max):
80 (6.0 ~ <10.0MHz)
60 (10.0 ~ <16.0MHz)
50 (16.0 ~ 40.0MHz, fundamental)
80 (30.0 ~ 60.0MHz, 3rd OT)
Ageing:
±3ppm max first year
100µW
Test drive level:
Soldering condition:
260°C, 10 sec x2 max
Standard.
Optional - Please specify required code(s) when ordering
Ordering Information
Product name + variant + option codes + frequency
eg:
GSX-752A/551EF 16.0MHz
50/50/10/18-F
GSX-752B/5C4S3 48.0MHz
50/100/40/S-3
Option code X (eg GSX-752B/X) denotes a custom specification.
±30ppm temperature stability may not be available over -40+85°C.
Check with our sales office before ordering.
Available on T&R - 1k pcs per reel.
WARNING
- EOL approaching: Do not use for new designs.
