The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
1250 VA
10 mA at 5 V DC
5 A AC/DC
<= 22 VA 400 V AC 50 Hz
183...528 V voltage AC
DC-14 conforming to IEC 60947-5-1
DC-13 conforming to IEC 60947-5-1
DC-12 conforming to IEC 60947-5-1
AC-15 conforming to IEC 60947-5-1
AC-14 conforming to IEC 60947-5-1
AC-13 conforming to IEC 60947-5-1
AC-12 conforming to IEC 60947-5-1
Complementary
Reset time
Maximum switching voltage
[Us] rated supply voltage
Supply voltage limits
Voltage detection threshold
Control circuit frequency
Output contacts
Nominal output current
Measuring cycle
Hysteresis
Delay at power up
Measurement accuracy
Repeat accuracy
Measurement error
Response time
Marking
Overvoltage category
Insulation resistance
[Ui] rated insulation voltage
Aug 15, 2014
1500 ms for time delay
250 V AC/DC
208...480 V AC
183...528 V AC
183 V
50...60 Hz +/- 10 %
1 C/O
5A
<= 150 ms measurement cycle as true rms value
2%
<= 650 ms
+/- 10 % of the full scale value
+/- 1 % for time delay
+/- 0.5 % for input and measurement circuit
0.05 %/°C with temperature variation
< 1 % over the whole range with voltage variation
< 200 ms in the event of a fault
CE : 73/23/EEC
CE : EMC 89/336/EEC
III conforming to IEC 60664-1
> 500 MOhm at 500 V DC conforming to IEC 60664-1
> 500 MOhm at 500 V DC conforming to IEC 60255-5
400 V conforming to IEC 60664-1
1
Supply frequency
Operating position
Connections - terminals
50/60 Hz +/- 10 %
Any position without derating
Screw terminals 2 x 0.2...2 x 1.5 mm² - AWG 24...AWG 16, flexible cable with ca-
ble end
Screw terminals 1 x 0.2...2 x 2.5 mm² - AWG 24...AWG 12, flexible cable with ca-
ble end
Screw terminals 2 x 0.5...2 x 2.5 mm² - AWG 20...AWG 14, solid cable without
cable end
Screw terminals 1 x 0.5...1 x 4 mm² - AWG 20...AWG 11, solid cable without ca-
ble end
0.6...1 N.m conforming to IEC 60947-1
Self-extinguishing plastic
1 LED yellow for relay ON
1 LED green for power ON
35 mm symmetrical DIN rail conforming to EN/IEC 60715
100000 cycles
<= 30000000 cycles
<= 360 operations/hour under full load
17.5 mm
0.08 kg
Tightening torque
Housing material
Status LED
Mounting support
Electrical durability
Mechanical durability
Operating rate
Width
Product weight
Environment
Electromagnetic compatibility
Immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Emission standard for residential, commercial and light-industrial environments
conforming to EN/IEC 61000-6-3
Emission standard for industrial environments conforming to EN/IEC 61000-6-4
EN/IEC 60255-1
CSA
C-Tick
GL
GOST
UL
-40...70 °C
-20...50 °C
95 % at 55 °C conforming to IEC 60068-2-30
1 gn (f = 57.6...150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1
0.35 mm (f = 5...57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1
5 gn conforming to IEC 60068-2-27
IP30 (casing) conforming to IEC 60529
IP20 (terminals) conforming to IEC 60529
3 conforming to IEC 60664-1
2 kV AC 50 Hz, 1 min
4 kV
Standards
Product certifications
Ambient air temperature for storage
Ambient air temperature for operation
Relative humidity
Vibration resistance
Shock resistance
IP degree of protection
Pollution degree
Dielectric test voltage
Non-dissipating shock wave
2

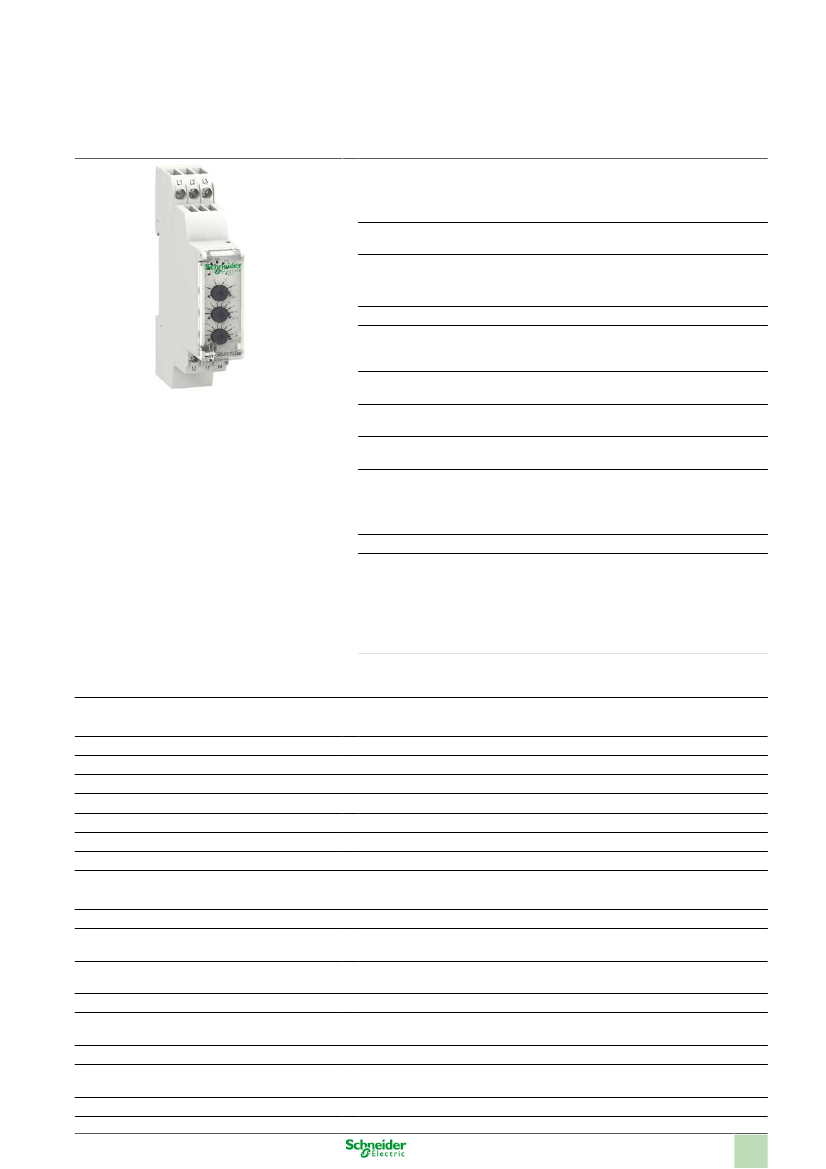

Product data sheet
Dimensions Drawings
RM17UB310
3-Phase Voltage Control Relays
Dimensions and Mounting
3
Product data sheet
Connections and Schema
RM17UB310
3-Phase Voltage Control Relays
Wiring Diagram
4
Product data sheet
Technical Description
RM17UB310
Function Diagrams
Phase Failure Detection (U measured < 0.7 x nominal supply voltage)
Un
L1,
L2,
L3
R
Nominal supply voltage
Phases of the supply voltage monitored
Output relay
Relay status: black color = energized.
Control of Overvoltage and Undervoltage
Tt
Overvoltage and undervoltage threshold delay (adjustable on front panel from 0.3 to 30 s)
H
Hysteresis
U> Overvoltage threshold
U< Undervoltage threshold
L1, Phases of the supply voltage monitored
L2,
L3
11-12,
Output relay connections (refer to Connections and Schema)
11-14
Relay status: black color = energized.
The overvoltage and undervoltage thresholds are adjustable from 2…20% of Un (nominal supply voltage):
