D2W Series
• SIP SSR
• Ratings to 3.5A @ 280 VAC
• DC control
• Zero-crossing (resistive loads) output
• Internal snubber network
PRODUCT SELECTION
Control Voltage
3-32 VDC
2A
D2W202F
3A
D2W203F
3.5A
D2W203F-11
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (3)
Maximum Load Current [Arms]
Minimum Load Current [Arms]
Maximum Surge Current (16.6ms) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Minimum Power Factor (with Maximum Load)
24-280
600
8
200
2
0.06
28
1.4
0.5
24-280
600
8
200
3
0.06
70
1.4
0.5
24-280
600
8
200
3.5
0.06
80
1.4
0.5
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Typical Input Current @ 5 VDC
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
3-32 VDC
3.0 VDC
1.0 VDC
3.0 mAdc
1500 Ohm
1/2 Cycle
1/2 Cycle
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)(2)
Minimum Insulation Resistance (@ 500 VDC)(2)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Parameters
4000 Vrms
10
9
Ohm
10 pF
-30 to 80°C
-30 to 125°C
0.6 oz. (17g)
Thermally Conductive Epoxy

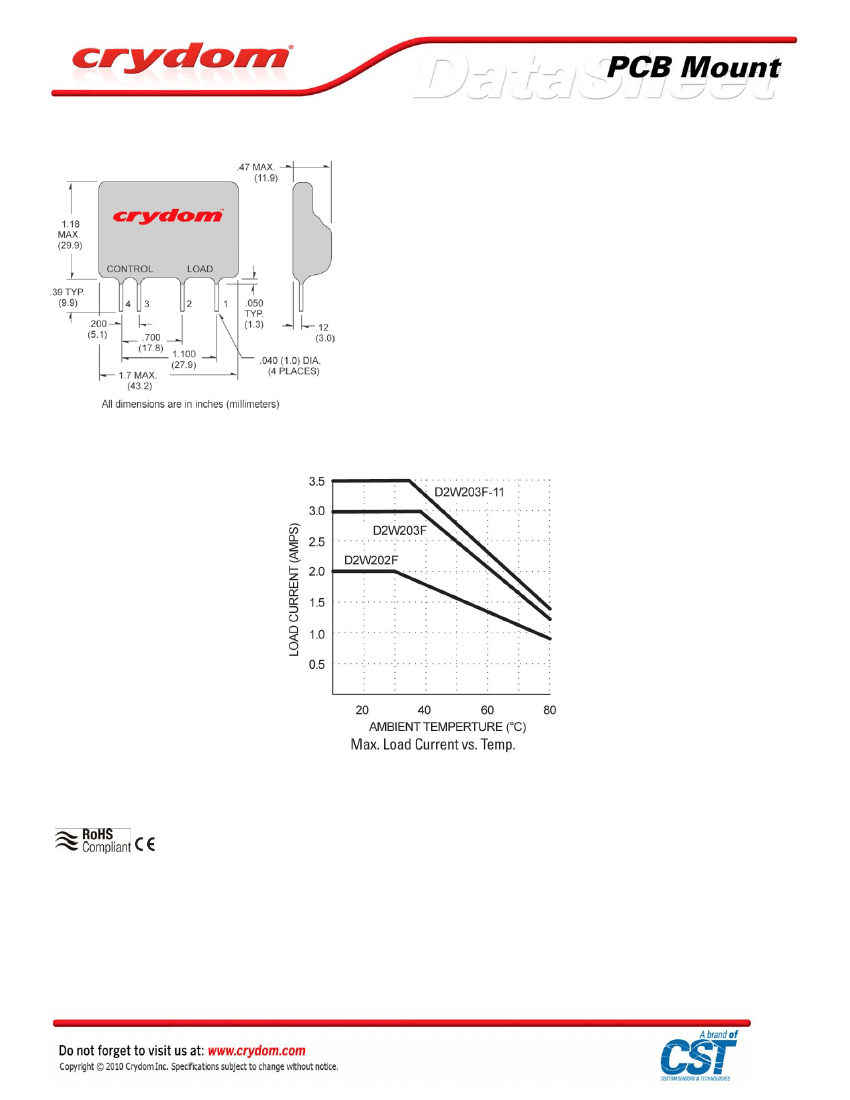

GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) Dielectric and insulation resistance are measured between input and output
3) Off-State dv/dt test method per EIA/NARM standard RS
