832HA-1C-F-S 12 Vdc datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 832HA-1C-F-S 12 Vdc

832HA-1C-F-S 12 Vdc: Descriptiongeneral purpose relays 12vdc 40a Hi-pow.; CategoryTopical application Mechanical and electrical/engineering/automation; File Size104KB，5 Pages; ManufacturerSong Chuan; Environmental Compliance

Download Datasheet Parametric Compare View All

832HA-1C-F-S 12 Vdc Overview

general purpose relays 12vdc 40a Hi-pow.

832HA-1C-F-S 12 Vdc Parametric

Parameter Name	Attribute value
Manufacture	Song Chu
Product Category	General Purpose Relays
RoHS	Yes
Factory Pack Quantity	50

Preview

Download Datasheet

View All

SONG CHUAN

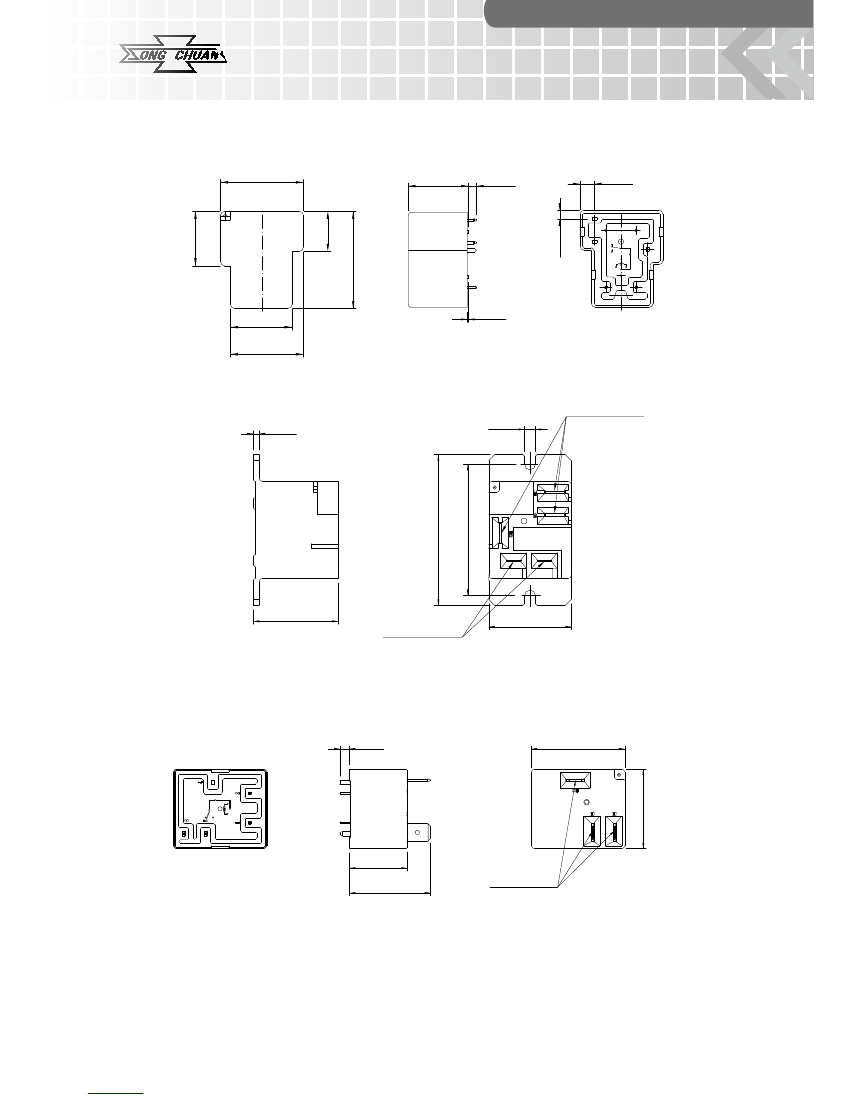

832HA

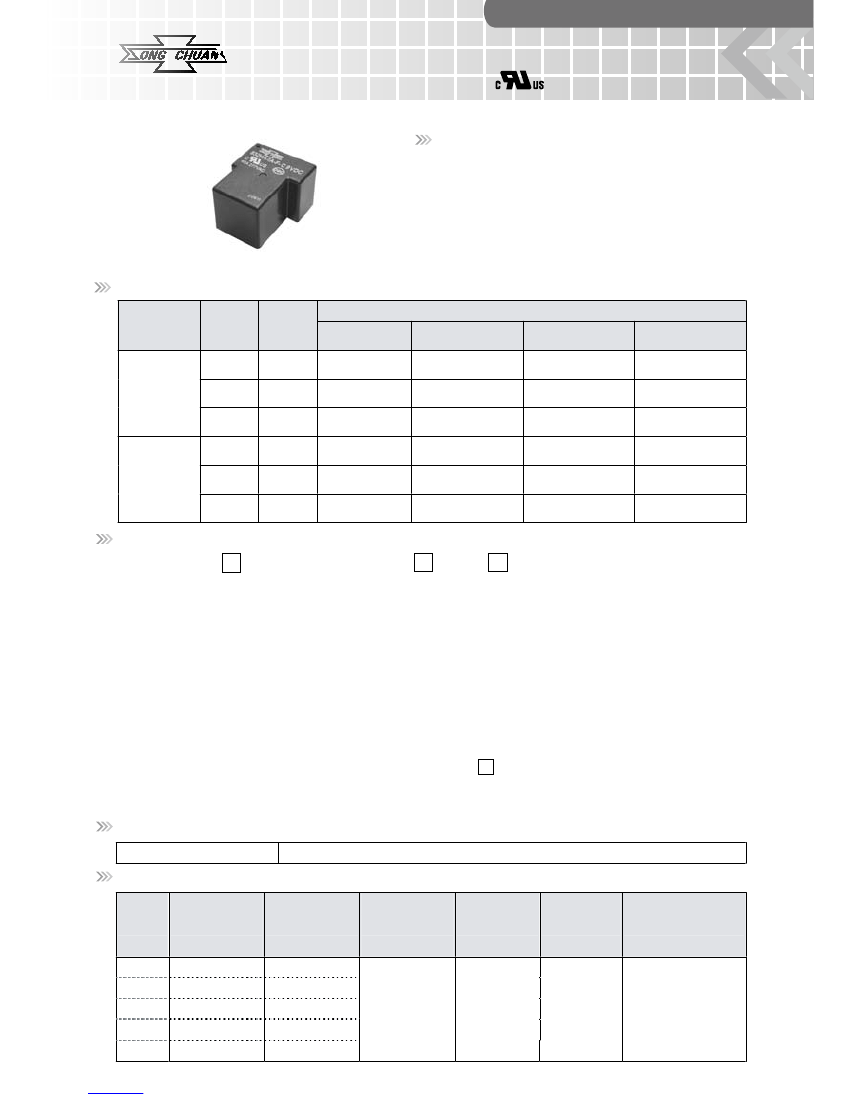

Features

Heavy duty 40A general purpose PCB Power Relay.

Available for top faston, flux tight, sealed versions.

UL Class F as standard.

Special design for UPS, power supply of high rating

application.

Comply with RoHS-Directive

2011/65/EU.

Type List

Terminal

style

Contact Insulation

form

(SPNO)

(SPNC)

(SPDT)

(SPNO)

(SPNC)

(SPDT)

system

Open type

832HA-1A-F

832HA-1B-F

832HA-1C-F

Flux tight

832HA-1A-F-C

832HA-1B-F-C

832HA-1C-F-C

Designation

Sealed type

832HA-1A-F-V

832HA-1B-F-V

832HA-1C-F-V

Sealed type

washable

832HA-1A-F-S

832HA-1B-F-S

832HA-1C-F-S

PCB terminal

WP (PCB

terminal &

Quick

terminal)

832HAWP-1A-F 832HAWP-1A-F-C 832HAWP-1A-F-V 832HAWP-1A-F-S

832HAWP-1B-F 832HAWP-1B-F-C 832HAWP-1B-F-V 832HAWP-1B-F-S

832HAWP-1C-F 832HAWP-1C-F-C 832HAWP-1C-F-V 832HAWP-1C-F-S

Ordering Information

832

1. 832

2. HA

6. Blank

-- Open type

-- Flux tight

-- Sealed type

-- Sealed type washable

-- With flanged cover

-- Sealed type washable with flanged

cover

-- Coil voltage (please refer to the

coil rating data for the availability)

-- Basic series designation

-- High power type

3. Blank -- PCB terminal

-- Quick terminal

-- PCB terminal & Quick terminal

4. 1A

5. F

-- Single pole normally open

-- Single pole normally closed

-- Single pole double throw

-- Class F

Contact Rating

Resistive load

NO: 40A 240VAC ; NC: 40A 240VAC

Coil Rating (DC)

Rated

voltage

(V)

Rated current

±10 % at 23

(mA)

185

150

Coil resistance Max. continuous

±10 % at 23

( )

155

660

2560

voltage

at 70

110 % of

rated

voltage

Pick up

Drop out

Power consumption

at rated

voltage

voltage(Max.) voltage(Min.)

at 23

80 % of

rated

voltage

at 23

10 % of

rated

voltage

approx. 0.93W

Downloaded from

DatasheetLib.com

- datasheet search engine

171
