NISSEI-ARCOTRONICS
Bulk
Taped

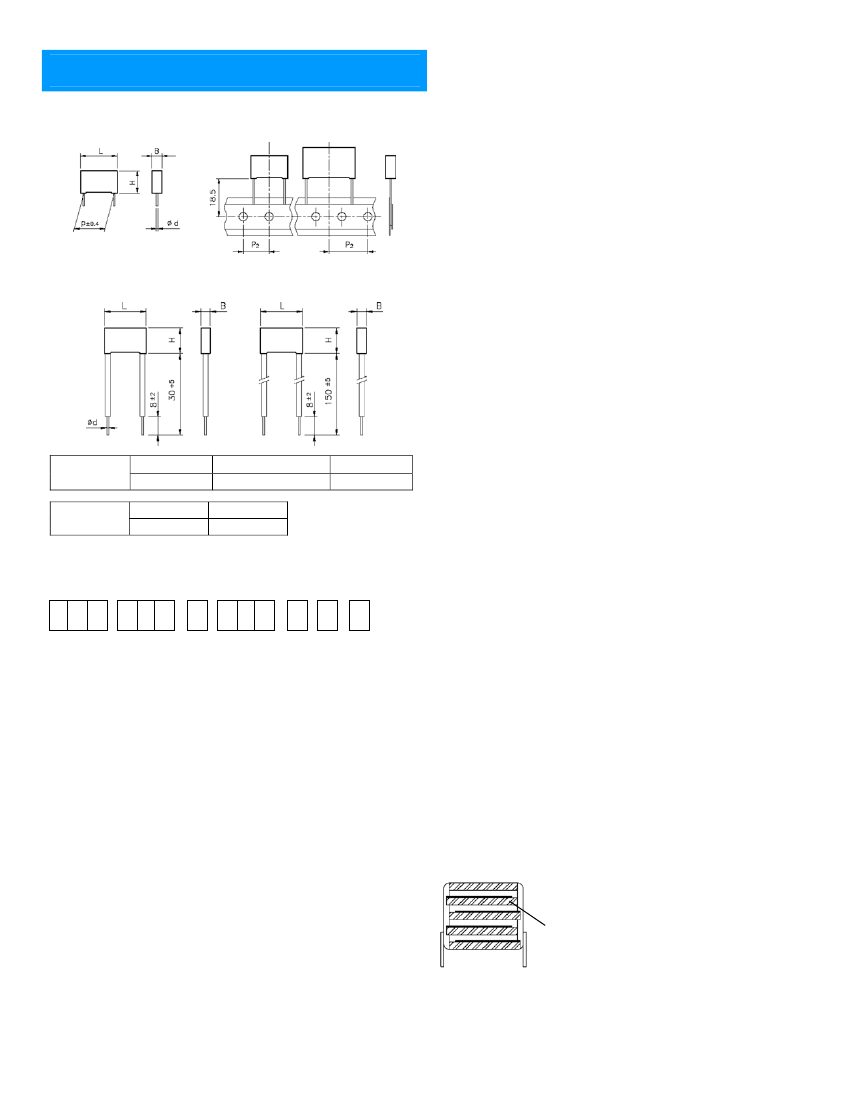

Fig. 1
Fig. 2
R46
X2 CLASS (EN132400) – MKP Series
METALLIZED POLYPROPYLENE FILM
CAPACITOR
SELF-HEALING PROPERTIES
Typical applications:
Interference suppression and
across-the-line applications. Suitable for use in situations
where failure of the capacitor would not lead to danger of
electric shock.
SERIES CODE:
R46
Insulated rigid leads
Insulated flexible leads 0.5mm
2
Ød
±0.05
P
2
p
≤
15
0.6
22.5≤p≤27.5
0.8
Fig 2.
19.05
p = 37.5
1
Fig. 1
12.70
All dimensions are in mm
1
2
3
GENERAL TECHNICAL DATA
4
5
6
7
8
PART NUMBERING SYSTEM
R4 6
1.
2.
3.
4.
5.
6.
7.
8.
2 75
[ ]
Series code
Capacitance value in pico farads. First 2 digits
are significant and 3
rd
digit indicates number of
zeros.
Capacitance tolerance
K = 10%
M = 20%
A.C. voltage
Packaging code
B = bulk
F = 10
R = 27.5
L = 24-27
V = 2.7-3.3
A = ammo
I = 15
W = 37.5
S = 4.0-6.0
R = reel
N = 22.5
T = 3.5-4.0
Lead spacing (mm)
Lead length (mm)
Internal code
polypropylene film
metal layer deposited by evaporation under
vacuum
Winding:
non-inductive type
Leads:
tinned wire
Protection:
plastic case, epoxy resin filled. Box material
is solvent resistant and flame retardant
according to UL94 V0
Marking:
manufacturer’s logo, series, capacitance,
tolerance, rated voltage, capacitor class,
dielectric code, climatic category, passive
flammability category, manufacturing date
code, approvals, manufacturing plant
Climatic category:
40/110/56 IEC 60068-1
Operating temperature range:
-40 to +110°C
Related documents:
IEC 60384-14 2
nd
edition 1993;
EN 1324
Dielectric:
Plates:
WINDING SCHEME
Contact NAA for part number sequence on parts
with insulated leads.
single sided metallized
polypropylene film
NISSEI-ARCOTRONICS
METALLIZED POLYPROPYLENE FILM
CAPACITOR
SELF-HEALING PROPERTIES
SERIES CODE:
R46
Rated
Cap. (*)
Max dv/dt
At 390Vdc
(V/µs)
500
500
500
500
500
400
400
400
400
400
400
400
400
400
400
400
400
400
400
200
200
200
200
200
200
150
150
150
150
150
150
150
100
100
100
R46
X2 CLASS (EN132400) – MKP Series
275Vac
Part Number
TYPICAL GRAPHS
Z = f(f) (lead length 2 mm). Typical values.
B
H
L
P
5.0 11.0 13.0 10.0
R46103-275-F-
0.010
µF
5.0 11.0 13.0 10.0
R46153-275-F-
0.015
µF
5.0 11.0 13.0 10.0
R46223-275-F-
0.022
µF
5.0 11.0 13.0 10.0
R46333-275-F-
0.033
µF
6.0 12.0 13.0 10.0
R46473-275-F-
0.047
µF
5.0 11.0 18.0 15.0
R46103-275-I-
0.010
µF
5.0 11.0 18.0 15.0
R46153-275-I-
0.015
µF
5.0 11.0 18.0 15.0
R46223-275-I-
0.022
µF
5.0 11.0 18.0 15.0
R46333-275-I-
0.033
µF
5.0 11.0 18.0 15.0
R46473-275-I-
0.047
µF
5.0 11.0 18.0 15.0
R46683-275-I-
0.068
µF
5.0 11.0 18.0 15.0
R46104M275-I-
0.10
µF
6.0 12.0 18.0 15.0
R46104-275-I-[U]
0.10
µF
6.0 12.0 18.0 15.0
R46154M275-I-
0.15
µF
7.5 13.5 18.0 15.0
R46154-275-I-[U]
0.15
µF
7.5 13.5 18.0 15.0
R46224M275-I-
0.22
µF
8.5 14.5 18.0 15.0
R46224-275-I-[U]
0.22
µF
10.0 16.0 18.0 15.0
R46334-275-I-
0.33
µF
11.0 19.0 18.0 15.0
R46474-275-I-
0.47
µF
6.0 15.0 26.5 22.5
R46154-275-N-
0.15
µF
6.0 15.0 26.5 22.5
R46224-275-N-
0.22
µF
7.0 16.0 26.5 22.5
R46334-275-N-
0.33
µF
8.5 17.0 26.5 22.5
R46474-275-N-
0.47
µF
10.0 18.5 26.5 22.5
R46684-275-N-
0.68
µF
13.0 22.0 26.5 22.5
R46105-275-N-
1.0
µF
9.0 17.0 32.0 27.5
R46474-275-R-
0.47µF
9.0 17.0 32.0 27.5
R46684-275-R-
0.68
µF
11.0 20.0 32.0 27.5
R46105-275-R-
1.0
µF
13.0 22.0 32.0 27.5
R46155-275-R-
1.5
µF
14.0 28.0 32.0 27.5
R46225-275-R-
2.2
µF
18.0 33.0 32.0 27.5
R46335-275-R-
3.3
µF
22.0 37.0 32.0 27.5
R46475-275-R-
4.7
µF
13.0 24.0 41.5 37.5
R46225-275-W-
2.2
µF
16.0 28.5 41.5 37.5
R46335-275-W-
3.3
µF
19.0 32.0 41.5 37.5
R46475-275-W-
4.7
µF
Tolerance: K (± 10%); M (±20%)
Packaging code: B (bulk); A (ammo); R (reel)
Lead length (mm): L (24-27); S (4-6); T (3.5-4.0); V (2.7-3.3)
Low Profile Version for Fluorescent Ballasts
Rated
Cap. (*)
275Vac
B
H
L
9.0 12.0 18.0
R46224-275-I-[H]
0.22
µF
13.0 12.0 18.0
R46334-275-I-[H]
0.33
µF
Tolerance: K (± 10%); M (±20%)
Packaging code: B (bulk); A (ammo); R (reel)
Lead length (mm): L (24-27); S (4-6); T (3.5-4.0); V (2.7-3.3)
Max dv/dt
At 390Vdc
P
(V/µs)
15.0
400
15.0
400
Part Number
All dimensions are in mm.
(*) E12 series available up to 5.6µF upon request
Note:
The .1, .15 and .22µF are available with 15mm lead
spacing and in 2 different box sizes. In each case
the capacitance tolerance in the smaller size is
limited to
±20%.
Please use the larger box size if
10% tolerance is required.
NISSEI-ARCOTRONICS
METALLIZED POLYPROPYLENE FILM
CAPACITOR
SELF-HEALING PROPERTIES
SERIES CODE:
R46
R46
X2 CLASS (EN132400) – MKP Series
ELECTRICAL CHARACTERISTICS
Rated voltage (V
R
):
Capacitance range:
Capacitance values:
275Vac; 50/60Hz
0.01µF to 4.7µF
E6 series (IEC 60063 Norm)
TEST METHOD AND PERFORMANCE
Damp heat, steady state:
Test conditions 1st
Temperature:
Relative humidity (RH):
Test duration:
Test conditions 2nd
Temperature:
Relative humidity (RH):
Test duration:
Performance
Dielectric strength:
+40°C
±
2°C
93%
±
2%
56 days
+60°C
±
2°C
95%
±
2%
500 hours
no dielectric breakdown or
flashover at 4.3 x V
R
(d.c.) /1 min
≥
50% of initial limit
Capacitance tolerances
(measured at 1 kHz):
10% (K); 20% (M).
Dissipation factor (DF):
tgδ×10 at +25°C
±
5°C:
*Typical value
Insulation resistance:
Test conditions
Temperature:
Voltage charge time:
Voltage charge:
Performance
5
5
-4
≤
10 (6)* at 1kHz
Capacitance change (∆C/C):
≤
5%
+25°C
±
5°C
1 min
100Vdc
Insulation resistance:
Endurance:
Test conditions
Temperature:
Test duration:
Voltage applied:
Performance
Dielectric strength:
+110°C
±
2°C
1000 h
1.25×V
R
+ 1000Vac 0.1 s/h
no dielectric breakdown or
flashover at 4.3 x V
R
(d.c.) /1 min
≥
1 x 10 MΩ (5 x 10 MΩ)* for C
≤0.33µF
≥30000
s
(150000 s)*
*Typical value
for C>0.33µF
Test voltage between terminals
(on all pieces):
1500Vac for 1 s + 2200Vdc for 1 s at +25°C
±
5°C
Insulation resistance:
≥
50% of initial limit
Resistance to soldering heat:
Test conditions
Solder bath temperature:
+260°C
±
5°C
Dipping time (with heat screen): 10 s
±
1 s
Performance
Capacitance change (∆C/C):
≤
2%
File No. V4413
Capacitance change (∆C/C):
≤
10%
APPROVALS
ENEC-IMQ
EN 132400
(*)
CB
CSA C22.2 N°1
(up to 1µF)
UL 1414
(up to 1µF)
UL 1283
(310 VAC)
CCEE IEC60384-14
Class X2
File No. IT-1524
Across-the-line
Across-the-line
Electromagnetic
Interference
Filters
Class X2
File No. LR83890
File No. E 97797
File NO. E85238
File No. CH0045034-2000
CSA and UL 1414 for 250Vac only.
nd
Approved according to EN 132400 (IEC 60384-14 2 edition 1993 plus Amendment A1: 1995).
According to IEC 60065.
(*) ENEC mark has replaced all of the following European National marks:
