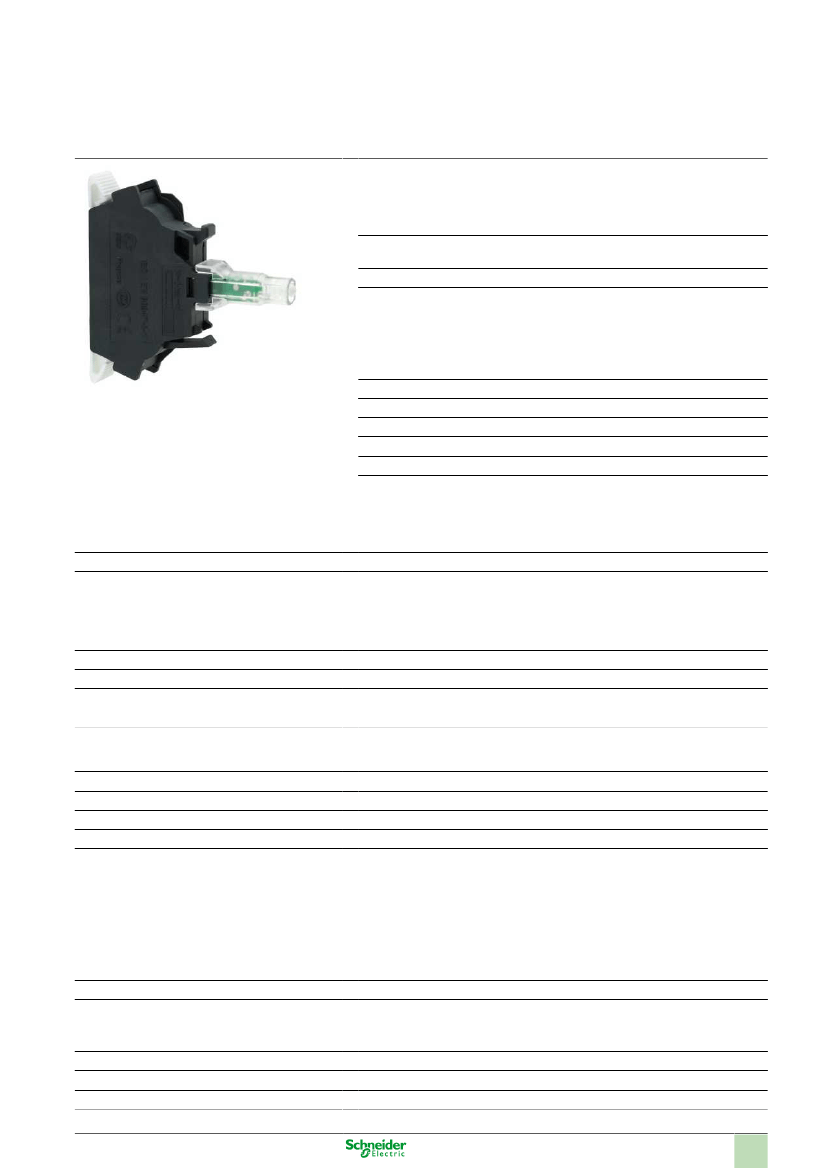

Product data sheet
Characteristics
ZBVG5
orange light block for head Ø22 integral LED
110...120V screw clamp terminals
Main
Range of product
Product or component
type
Device short name
Sale per indivisible
quantity
Connections - terminals
Harmony XB4
Harmony XB5
Light block
ZBV
5
Screw clamp terminals: <= 2 x 1.5 mm² with cable
end conforming to EN 60947-1
Screw clamp terminals: >= 1 x 0.22 mm² without
cable end conforming to EN 60947-1
Steady
Integral LED
Direct
Orange
110...120 V AC, 50/60 Hz
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Signalling type
Light source
Bulb base
Light block supply
Light source colour
[Us] rated supply
voltage
Protected LED
Complementary
Product weight
Tightening torque
Shape of screw head
0.017 kg
0.8...1.2 N.m conforming to EN 60947-1
Cross head compatible with Philips no 1 screwdriver
Cross head compatible with pozidriv No 1 screwdriver
Slotted head compatible with flat Ø 4 mm screwdriver
Slotted head compatible with flat Ø 5.5 mm screwdriver
14 mA
100000 h at rated voltage and 25 °C
1 kV conforming to IEC 61000-4-5
Front mounting
Current consumption
Service life
Surge withstand
Mounting of block
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
IP degree of protection
Standards
TH
-40...70 °C
-25...70 °C
IP20 conforming to IEC 60529
CSA C22-2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508
CSA
UL listed
2 kV conforming to IEC 61000-4-4
10 V/m conforming to IEC 61000-4-3
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Class B conforming to IEC 55011
Compliant
0720
Product certifications
Resistance to fast transients
Resistance to electromagnetic fields
Resistance to electrostatic discharge
Electromagnetic emission
RoHS EUR status
RoHS EUR conformity date
26/12/2011
1
