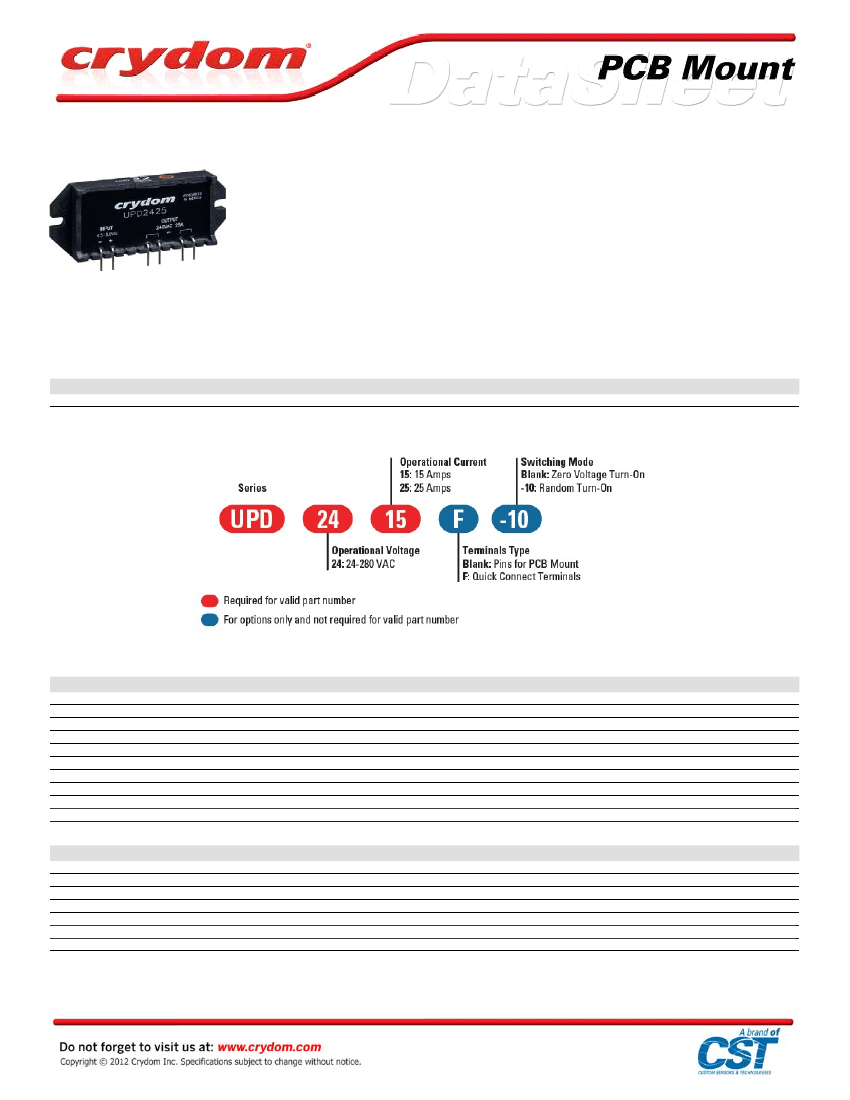

UPD24 Series
• SIP SSR
• Single Channel Ratings of 15A and 25A @ 280 VAC
• PCB Mount Package or Panel Mount quick connect terminals (F option)
• SCR output for heavy industrial loads
• Zero-crossing (resistive loads) or random-fire (inductive loads) output
• Low Leakage (snubberless) output
PRODUCT SELECTION
Control Voltage
3-32 VDC
15A
UPD2415
15A
UPD2415-10
25A
UPD2425
25A
UPD2425-10
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (47-440Hz) [Vrms]
Maximum Load Current [Arms](3)
Transient Overvoltage [Vpk]
Maximum 1 Cycle Surge Current (50/60Hz) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case [°C/W]
Maximum I² t for fusing (50/60Hz, 1/2 cycle) [A² sec]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)
Minimum Power Factor (with Maximum Load)
UPD2415
24-280
15
600
115/120
1.4
1.2
66/60
0.1
500
0.5
UPD2415-10
24-280
15
600
115/120
1.4
1.2
66/60
0.1
500
0.5
UPD2425
24-280
25
600
239/250
1.4
0.7
285/259
0.1
500
0.5
UPD2425-10
24-280
25
600
239/250
1.4
0.7
285/259
0.1
500
0.5
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Typical Input Current @ 12 VDC
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
UPD2415
3-32 VDC
3.0 VDC
1.0 VDC
10 mAdc
See note 4
1/2 Cycle
1/2 Cycle
UPD2415-10
3-32 VDC
3.0 VDC
1.0 VDC
10 mAdc
See note 4
0.02
1/2 Cycle
UPD2425
3-32 VDC
3.0 VDC
1.0 VDC
10 mAdc
See note 4
1/2 Cycle
1/2 Cycle
UPD2425-10
3-32 VDC
3.0 VDC
1.0 VDC
10 mAdc
See note 4
0.02
1/2 Cycle
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Parameters
2500 Vrms
10
9
Ohm
10 pF
-40 to 80°C
-40 to 125°C
1.5 oz. (42.5g)
GENERAL NOTES
1) All parameters at 25°C and per section unless otherwise specified.
2) Off-state dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
3) Heat sinking required, see following pages for derating curves.
4) Input circuit incorporates active current limiter.

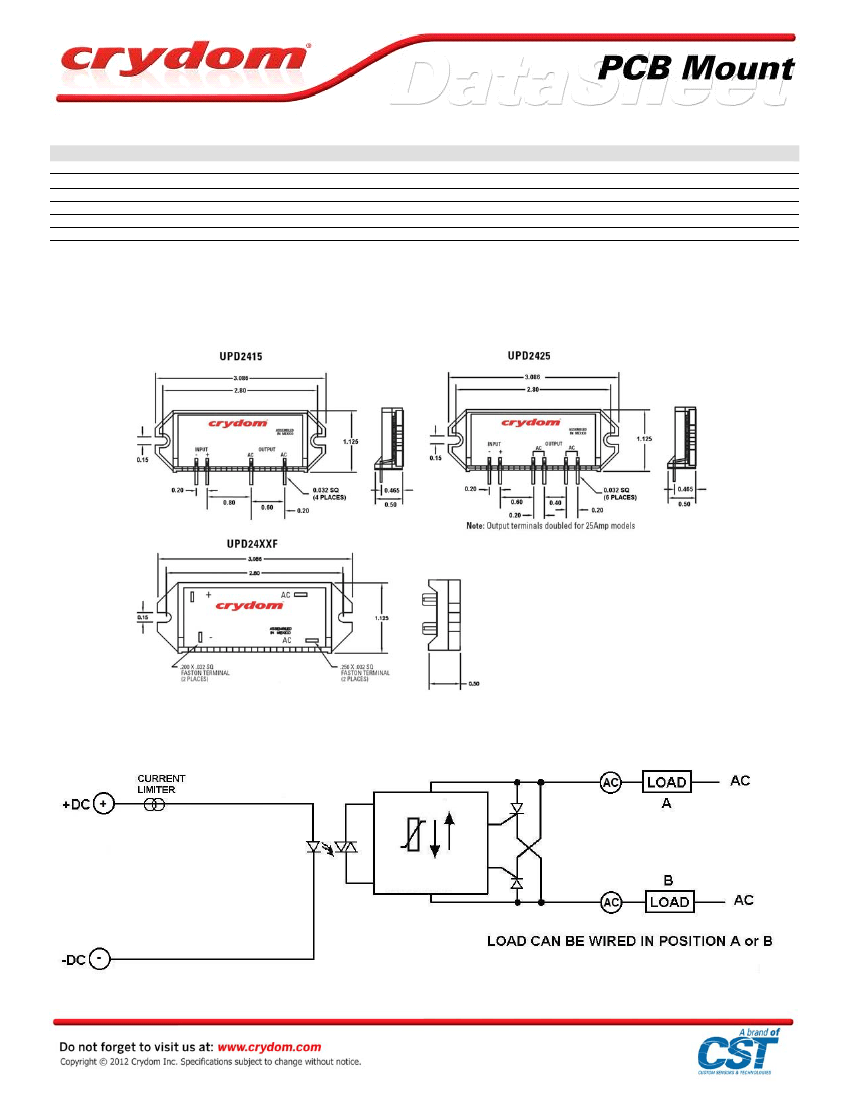

MECHANICAL SPECIFICATIONS
WIRING DIAGRAM

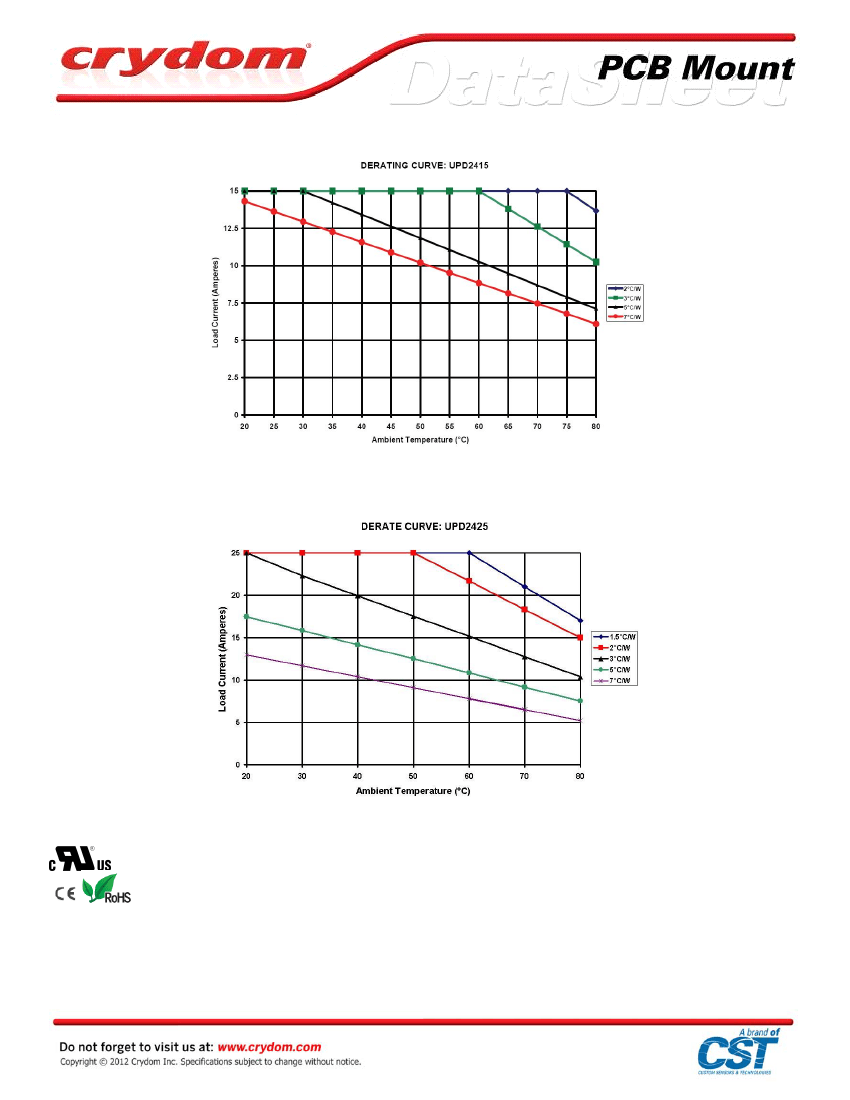

THERMAL DERATE INFORMATION
THERMAL DERATE INFORMATION
AGENCY APPROVALS

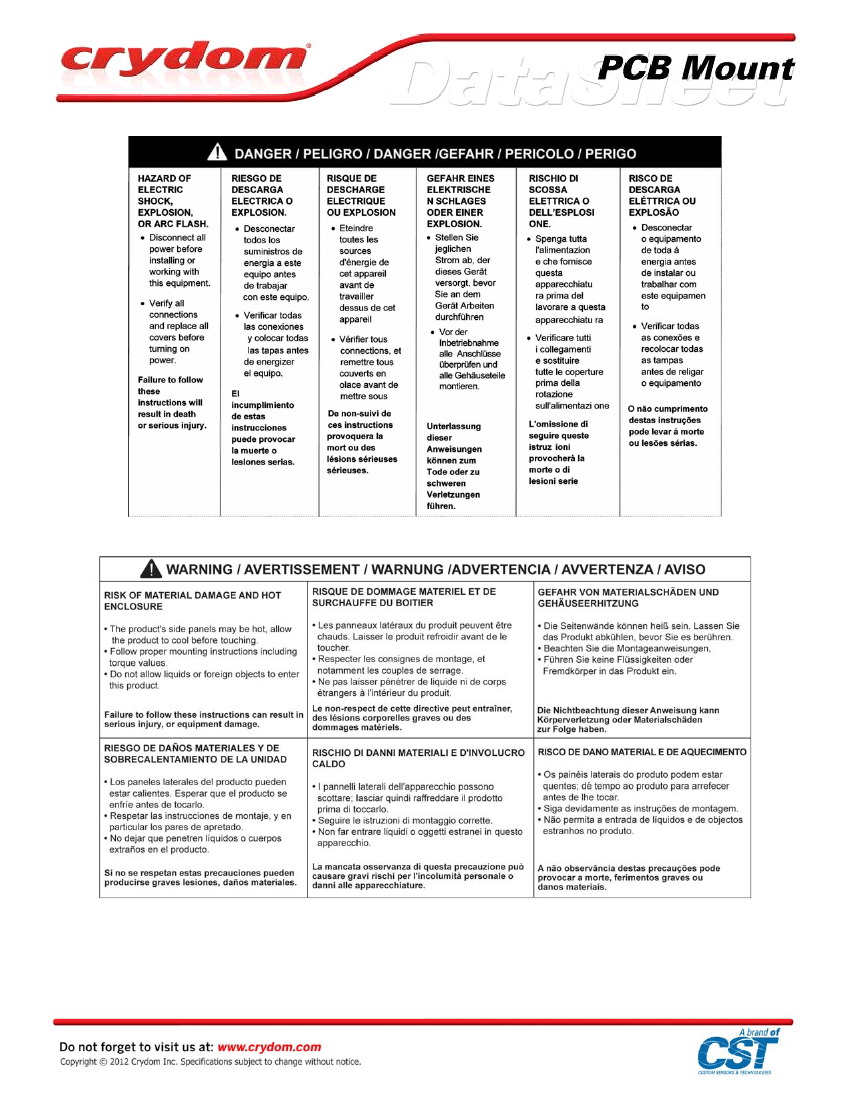

Designed in accordance with the requirements of IEC 62314
