DRA1-CX240A5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> DRA1-CX240A5

DRA1-CX240A5: Descriptionsolid state relays - industrial mount spst-NO 12vac 280vac 250a; CategoryTopical application Mechanical and electrical/engineering/automation; File Size753KB，5 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

DRA1-CX240A5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DRA1-CX240A5	-	-	View	Buy Now

DRA1-CX240A5 Overview

solid state relays - industrial mount spst-NO 12vac 280vac 250a

DRA1-CX240A5 Parametric

Parameter Name	Attribute value
Manufacture	Crydom
Product Category	Solid State Relays - Industrial Mou
RoHS	Yes
Control Voltage Range	90 VAC to 140 VAC
Load Voltage Rating	12 VAC to 280 VAC
Load Current Rating	5 A
Contact Form	1 Form A (SPST-NO)
Output Device	AC Outpu
Mounting Style	DIN Rail
Factory Pack Quantity	5
Termination Style	Screw

Preview

Download Datasheet

View All

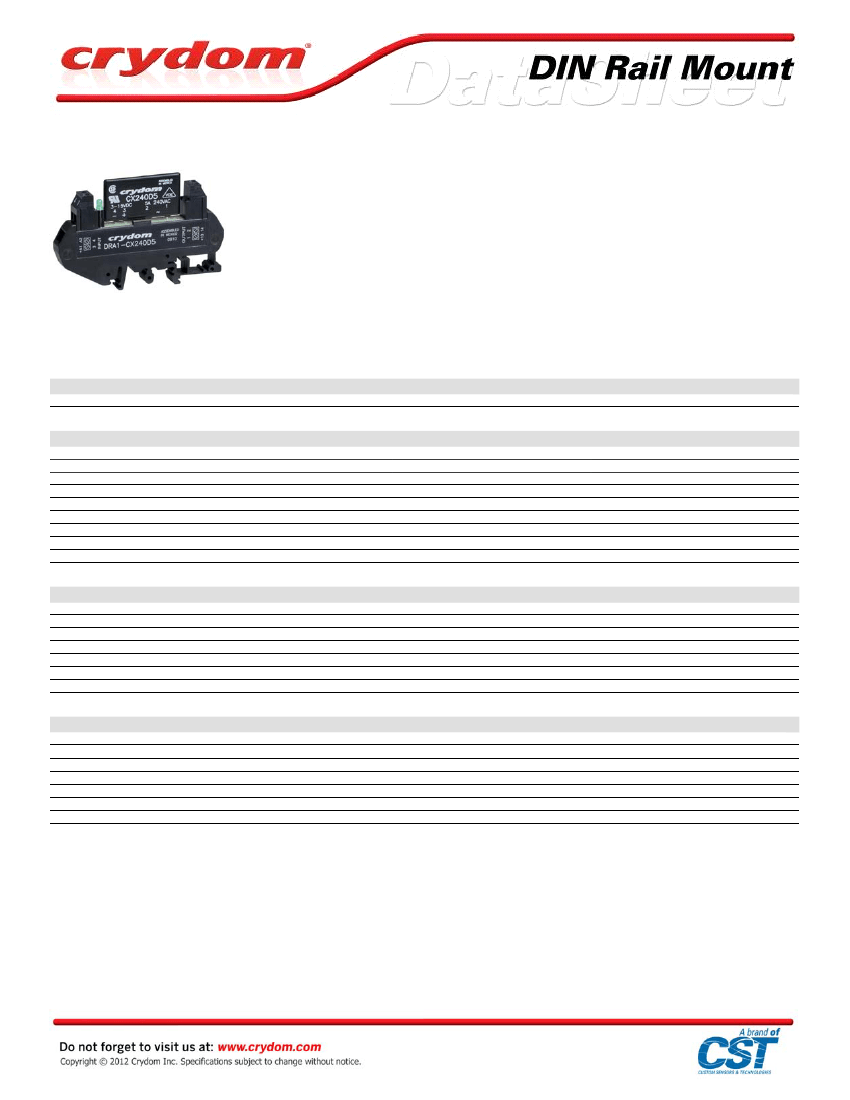

DRA1 CX Series

• 10mm Single Channel DIN Rail Mount SSR Assembly

• AC Ratings up to 280 VAC and 5 Amps

• 90-140VAC control

• Cage style screw terminals for easy connection

• Fits standard 35mm DIN rail

• Includes LED Status indicator

PRODUCT SELECTION

Description

90-140 Vrms Control

DRA1-CX240A5

DRA1-CX240A5R

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage [VAC]

Transient Overvoltage [Vpk]

Maximum Load Current [Arms] (2)

Minimum Load Current [Arms]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum off-state dv/dt @ maximum rated voltage [V/µsec] (3)

Maximum 1 Cycle Surge Current (50/60 Hz) [Apk]

Maximum I²t for fusing (50/60 Hz, 1/2 cycle) [A² sec]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

DRA1-CX240A5(R)

12-280

600

0.06

0.1

500

239/250

285/260

1.4

INPUT SPECIFICATIONS (1)

Description

Control Voltage Range

Must Turn On Voltage

Must Turn Off Voltage

Typycal Input Current

Nominal Input Impedance

Maximum Turn-On Time [msec]

Maximum Turn-Off Time [µsec]

DRA1-CX240A5(R)

90-140 Vrms

90 Vrms

10 Vrms

10 mA

14.1K Ohm

GENERAL SPECIFICATIONS

Description

Dielectric Strength, Input/Output/Base (50/60Hz)

Minimum Insulation Resistance (@ 500 VDC)

Maximum Capacitance, Input/Output

Ambient Operating Temperature Range

Ambient Storage Temperature Range

Weight (typical)

Encapsulation

Parameters

4000 VRMS

Ohms

10 pF

-30 to 80°C

-30 to 125 °C

0.063 lb (28.6g)

Themally Conductive Epoxy

GENERAL NOTES

1) All parameters at 25°C unless otherwise specified.

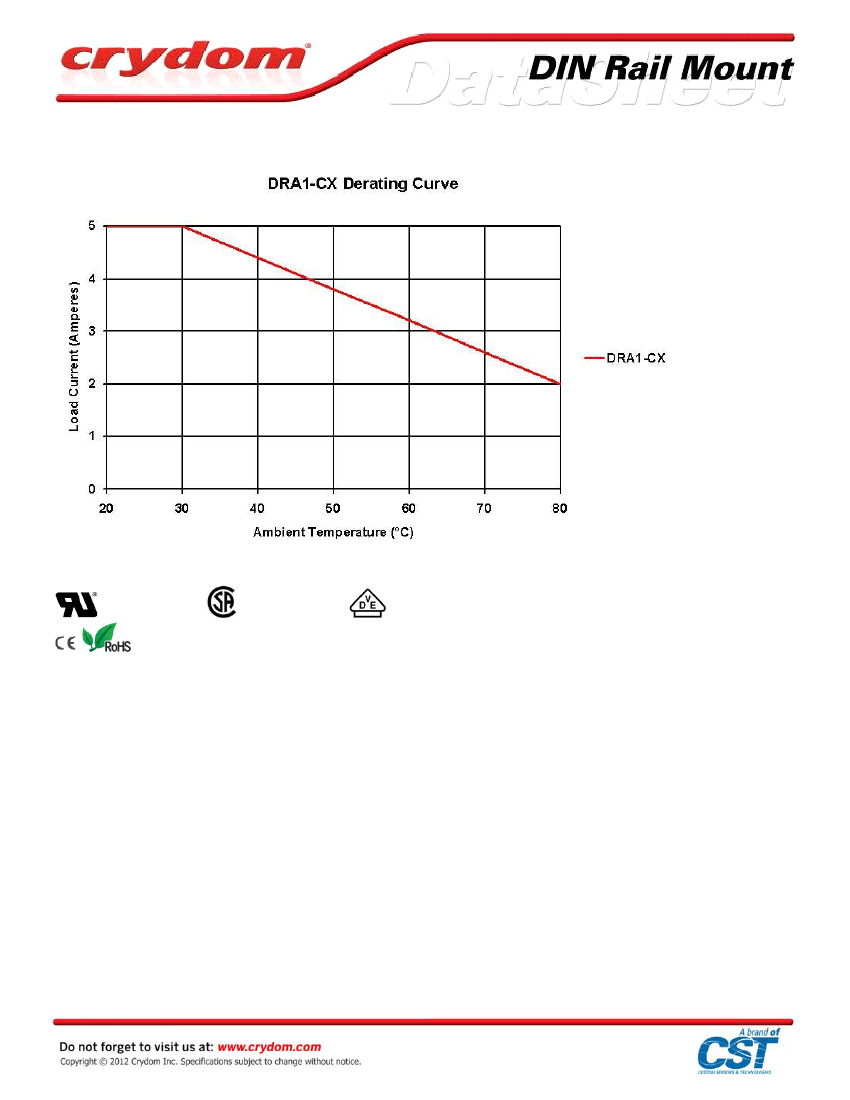

2) See Derating chart on page 3.

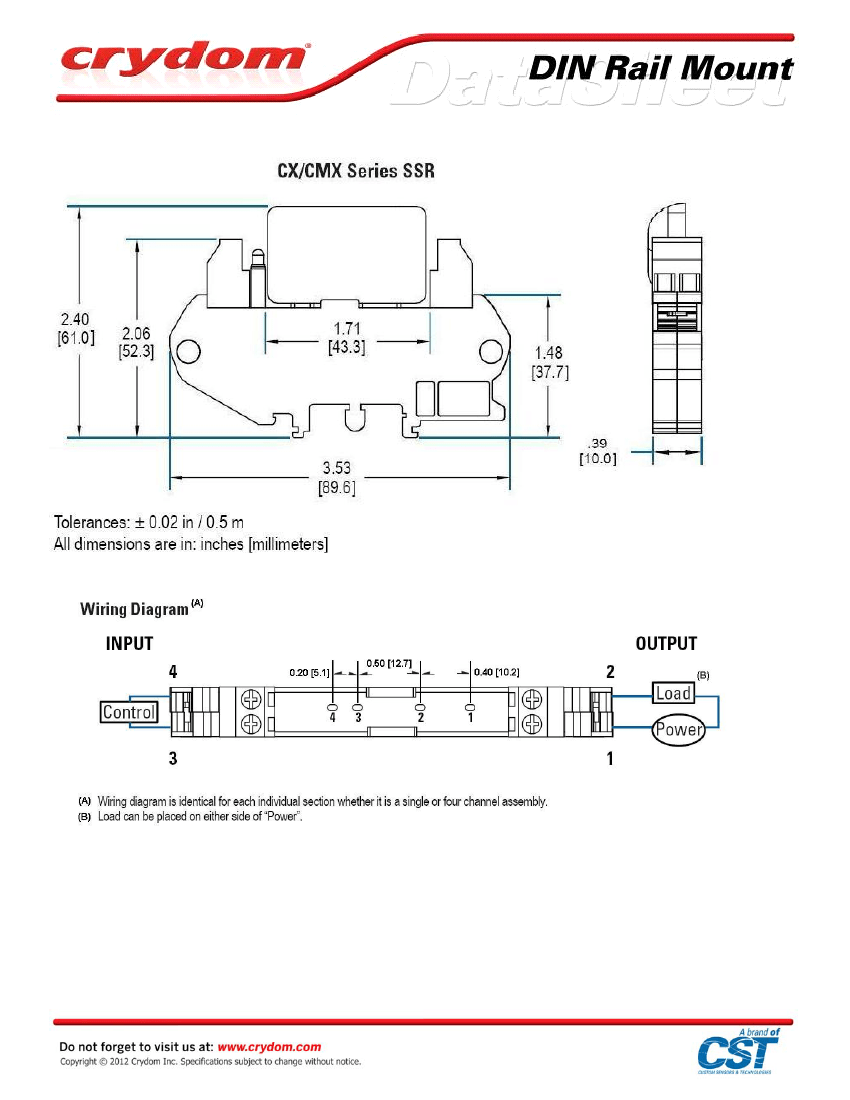

3) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
