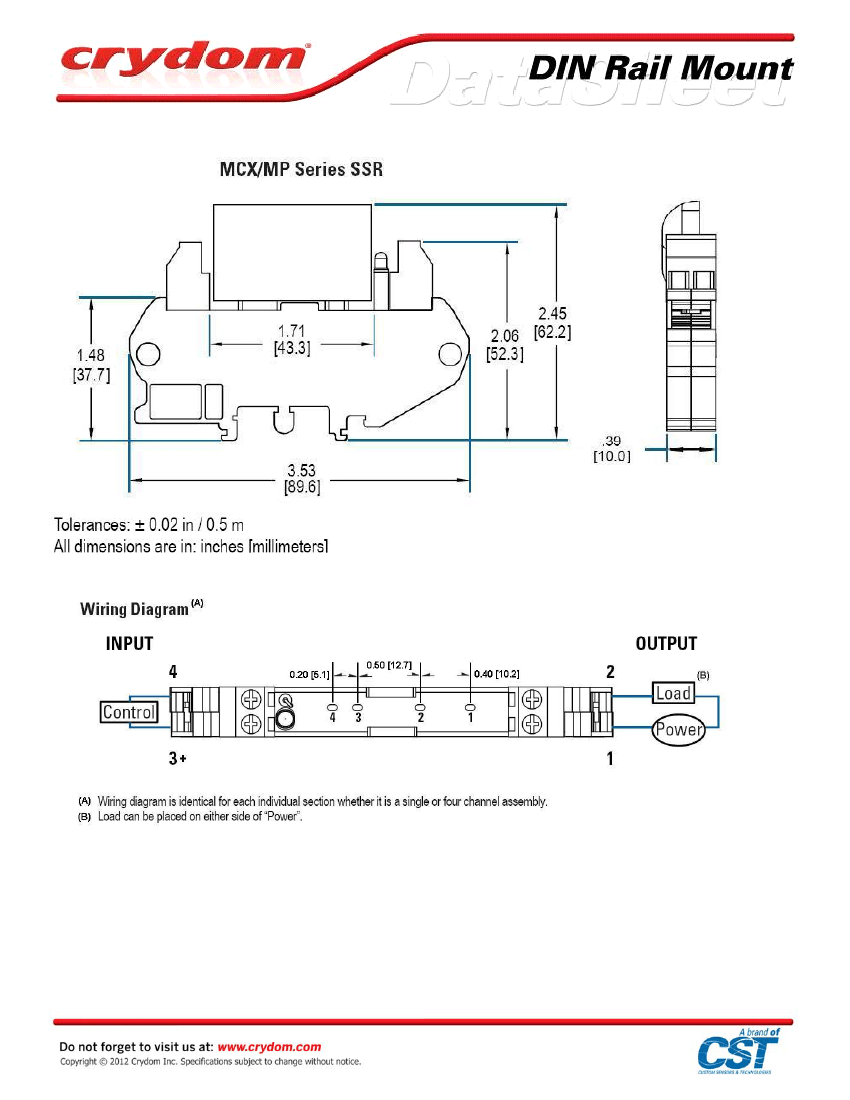

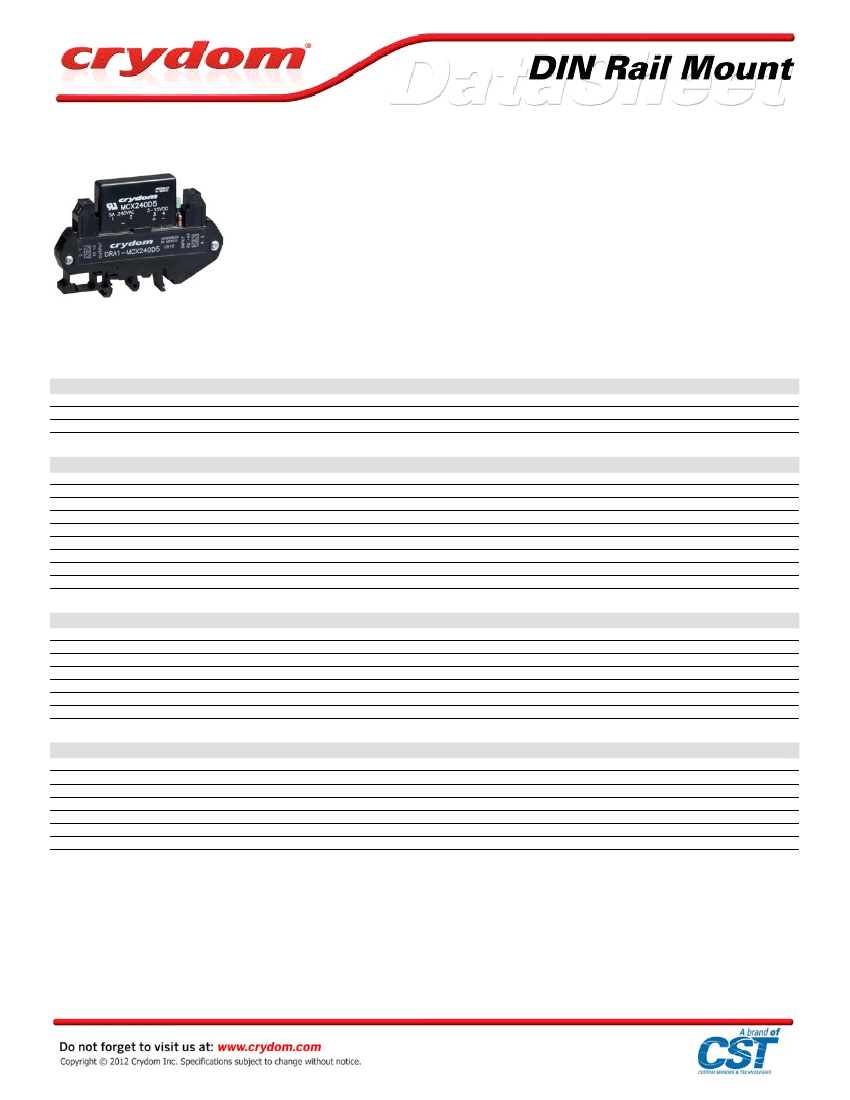

DRA1 MCX Series
• 10mm Single Channel DIN Rail Mount SSR Assembly
• AC Ratings up to 380 VAC and 5 Amps
• 3-15 and 15-32VDC control
• Cage style screw terminals for easy connection
• Fits standard 35mm DIN rail
• Includes LED Status indicator
PRODUCT SELECTION
Description
3-15 VDC Control
4-15 VDC Control
15-32 VDC Control
5A
DRA1-MCX240D5
DRA1-MCXE240D5
5A
DRA1-MCX380D5
DRA1-MCXE380D5
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage [VAC]
Transient Overvoltage [Vpk]
Maximum Load Current [Arms] (2)
Minimum Load Current [Arms]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum off-state dv/dt @ maximum rated voltage [V/µsec] (3)
Maximum 1 Cycle Surge Current (50/60 Hz) [Apk]
Maximum I²t for fusing (50/60 Hz, 1/2 cycle) [A² sec]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
MCX(E)240x5
12-280
600
5
0.06
0.1
500
239/250
285/260
1.4
MCX(E)380x5
48-380**
1200
5
0.06
0.1
500
239/250
285/260
1.4
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Typycal Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [µsec]
DRA1-MCX
3-15 VDC
3.0 VDC
1 .0 VDC
15 mAdc
300 Ohm
1/2 Cycle
1/2 Cycle
DRA1-MCX380D5
4-15 VDC
4.0 VDC
1 .0 VDC
15 mAdc
240 Ohm
1/2 Cycle
1/2 Cycle
DRA1-MCXE
15-32 VDC
15.0 VDC
1 .0 VDC
15 mAdc
1500 Ohm
1/2 Cycle
1/2 Cycle
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Parameters
4000 VRMS
10
9
Ohms
10 pF
-30 to 80°C
-30 to 125 °C
0.08 lb (36.4g)
Themally Conductive Epoxy
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.

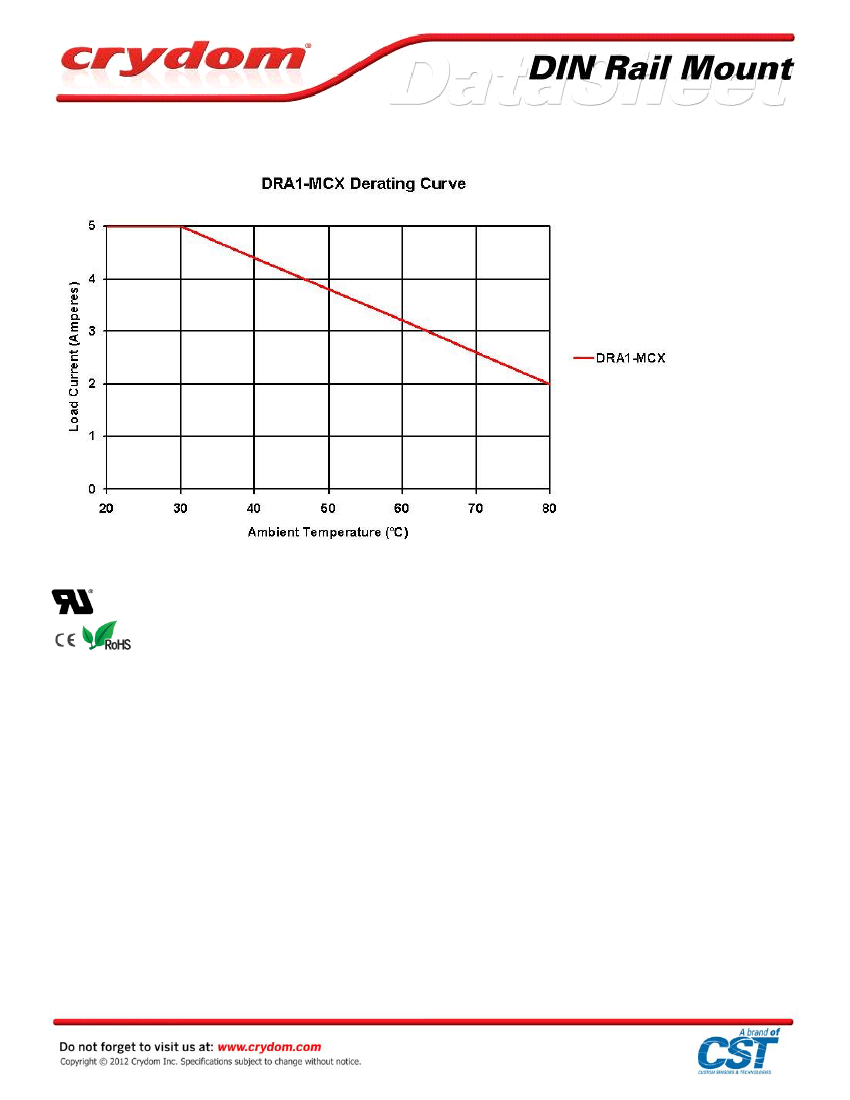

2) See derating chart on page 3.
3) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
**
NOTE: Voltages in excess of 380V will damage output terminals.
