LS Series
• SIP SSR
• Ratings to 12A @ 280 VAC
• SCR output for heavy industrial loads
• DC control
• Zero-crossing (resistive loads) or random-fire (inductive loads) output

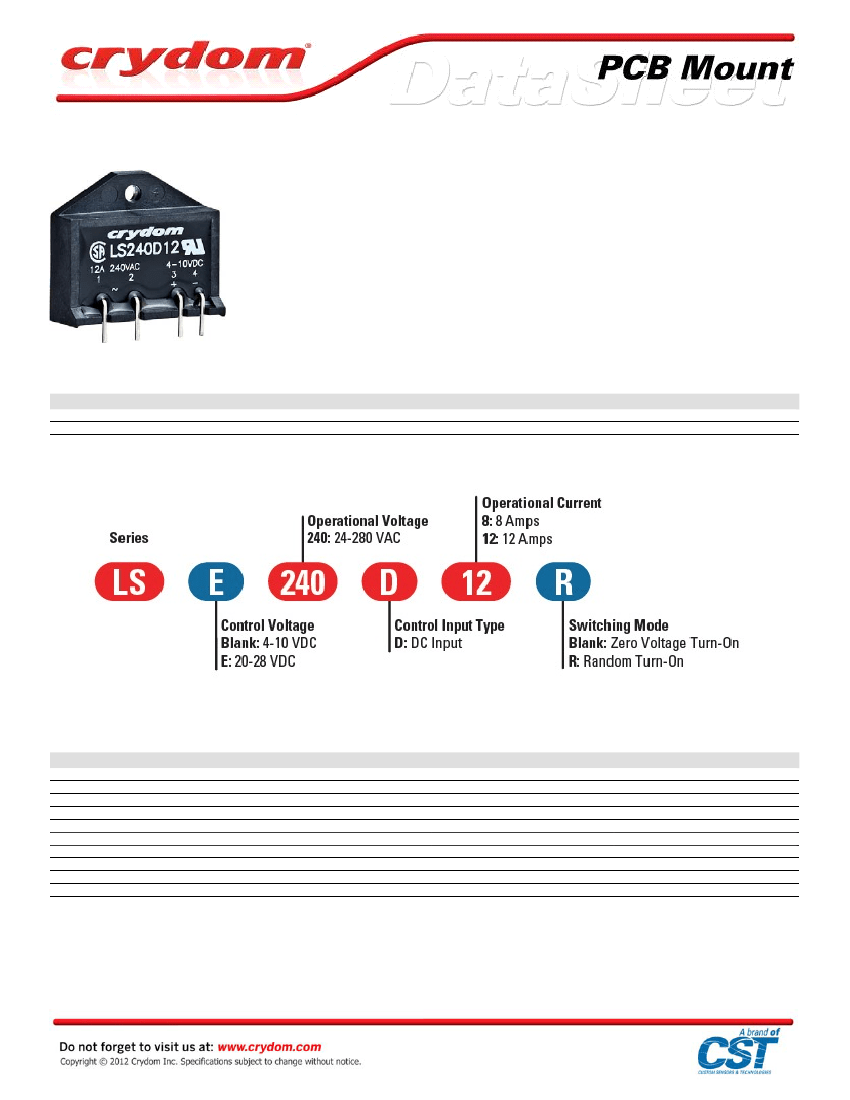

PRODUCT SELECTION
Control Voltage
4-10 VDC
20-28 VDC
8A
LS240D8
LSE240D8
12A
LS240D12
LSE240D12
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)
Maximum Load Current [Arms](3)
Minimum Load Current [Arms]
Maximum Surge Current (16.6ms) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Minimum Power Factor (with Maximum Load)
LS240D8
24-280
600
0.1
500
8
0.15
80
1.6
2.2
0.5
LS240D12
24-280
600
0.1
500
12
0.15
120
1.6
2.0
0.5
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Minimum Turn On Voltage
Minimum Turn-Off Voltage
Typical Input Current @ Nominal Voltage
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
LS
4-10 VDC
4.0 VDC
1.0 VDC
15 mAdc
270 Ohm
1/2 Cycle
1/2 Cycle
LSE
20-28 VDC
20 VDC
1.0 VDC
15 mAdc
1500 Ohm
1/2 Cycle
1/2 Cycle
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Parameters
2500 Vrms
10
9
Ohm
10pF
-30 to 80°C
-30 to 125°C
0.6 oz. (17g)
Therminally Conductive Epoxy
3) See current derating curve.
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1

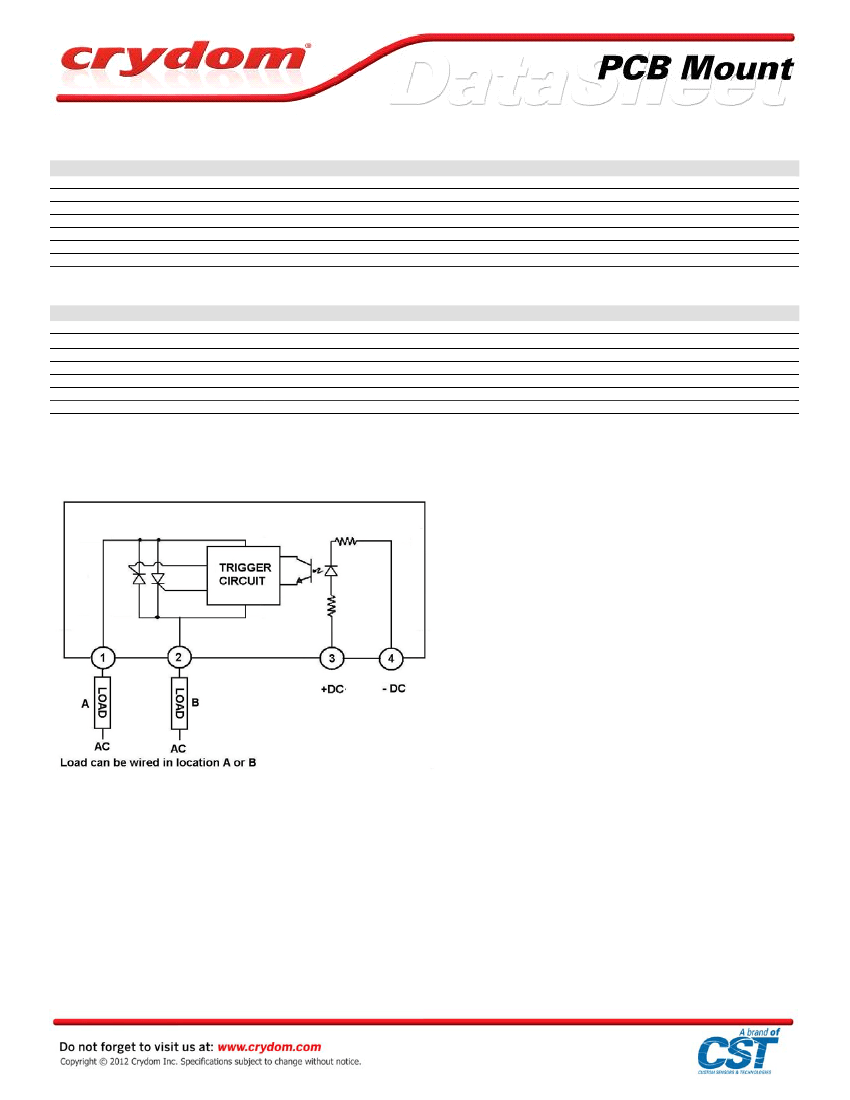

WIRING DIAGRAM

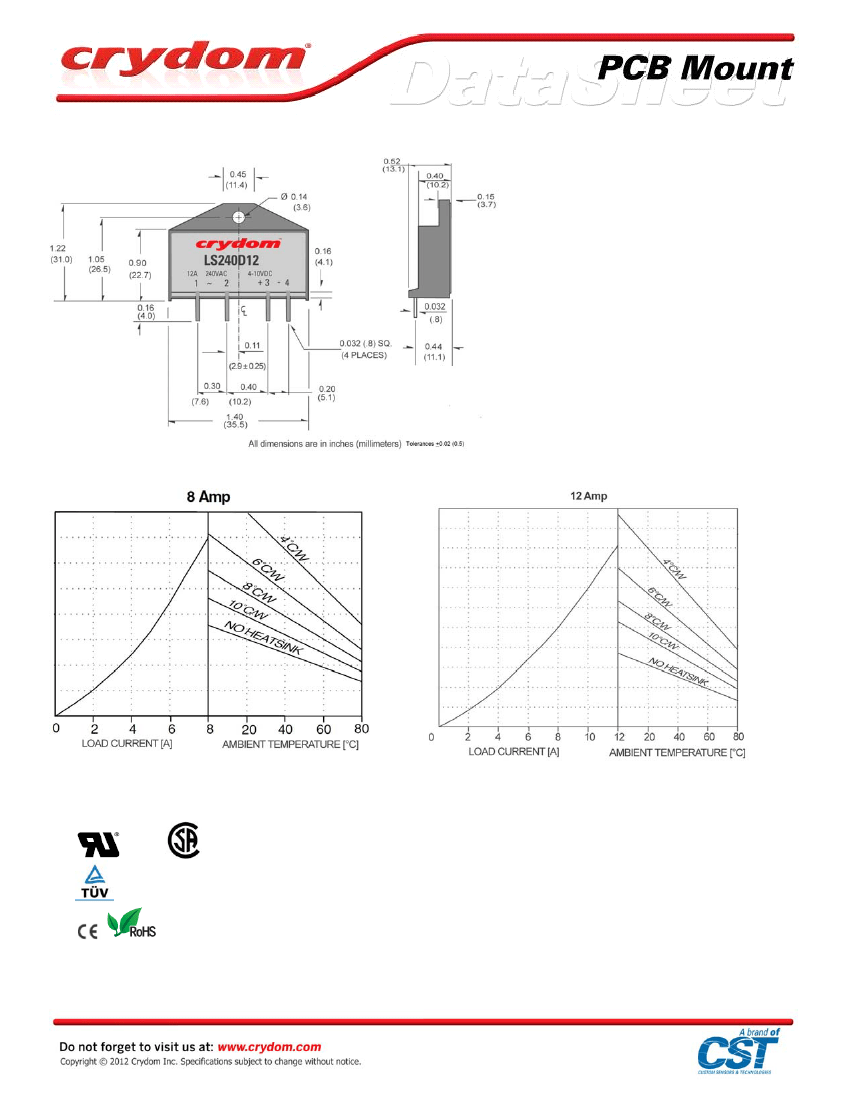

MECHANICAL SPECIFICATIONS
THERMAL DERATE INFORMATION
AGENCY APPROVALS
E116950
LR816889 (For 12A models only)
R72060707
Rev. 111611

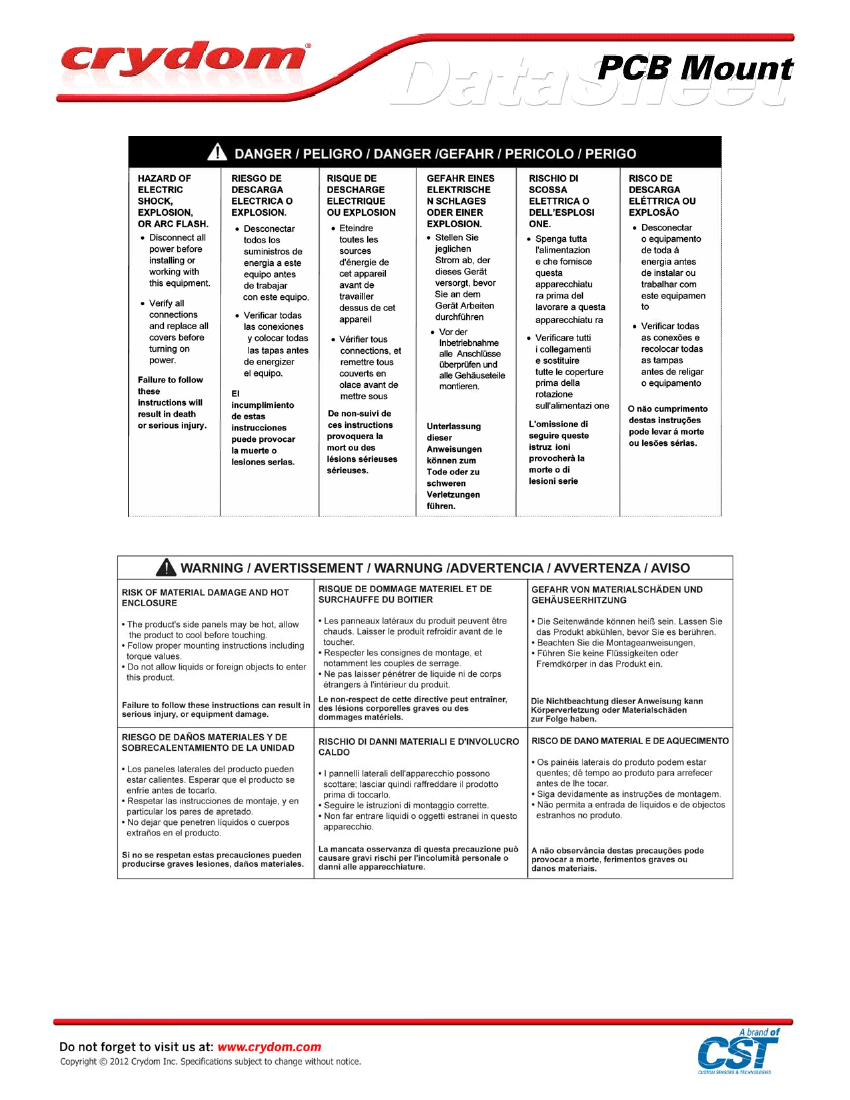

ANNEX - ENVIROMENTAL INFORMATION
