SeriesOne DR Dual Series
• Dual Output with Ratings of 6 Amps each channel
• Load voltage ratings of 24-280VAC and 48-600VAC
• Fits standard 35mm DIN-RAIL
• LED input status indicator
• DC control (4-32V)
• Zero-crossing (resistive loads) or random turn-on (inductive loads) output
• UL and cUL Listed, HP Rated (General Purpose and Motor Control)
• CE & RoHS Compliant
• UL 508 Endurance Rating for Enhanced Reliability

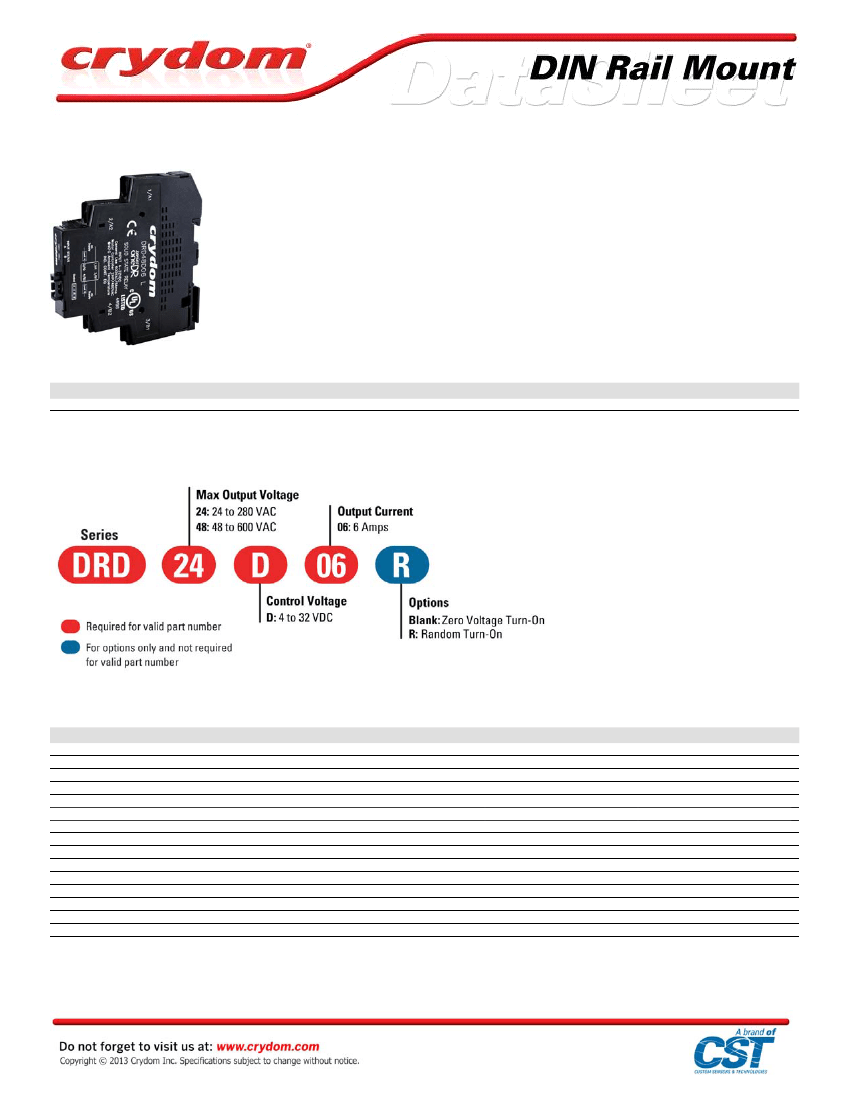

PRODUCT SELECTION
Description
4-32 VDC Control
280V, 6A
DRD24D06
600V, 6A
DRD48D06
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Load Current per channel, resistive [Arms] (2)
Minimum Load Current [Arms]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (3)
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Maximum Surge Current (50/60 Hz, 1 cycle) [Apk]
Maximum I²t for Fusing (50/60 HZ, 1/2 cycle) [A² sec]
HP Rating UL 508/IEC60947 [HP (KW)] @ 240V
HP Rating UL 508/IEC60947 [HP (KW)] @ 380V
HP Rating UL 508/IEC60947 [HP (KW)] @ 480V
Minimum Power Factor (with Maximum Load)
Min/Max stranded wire
Min/Max solid wire
DRD24D06
24-280
600
6
0.15
0.1
500
1.3
715/750
2560/2330
1/2 (.37)
1 (.75)
2 (1.5)
0.5
22/14 AWG
22/14 AWG
DRD48D06
48-600
1200
6
0.15
0.25
500
1.3
715/750
2560/2330
1/2 (.37)
1 (.75)
2 (1.5)
0.5
22/14 AWG
22/14 AWG
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range [Vdc] (4)
Minimum Turn-Off Voltage [Vdc]
Minimum Input Current [mA] (5)
Maximum Input Current [mA] (5)
Minimum Turn-On Voltage [Vdc]
Maximum Turn-On Time (6)
Maximum Turn-Off Time
Min/Max stranded/solid wire
DRDxxD06
4.0-32
1.0
9
11
4.0
1/2 Cycle
1/2 Cycle
22/16 AWG
GENERAL SPECIFICATIONS (1)
Description
Dielectric Strength, Input to Output (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Recommended Terminal Screw Torque Range:
Weight (typical)
Parameters
2500Vrms
10
9
Ohms
10 pF
-30ºC to 80ºC
-30ºC to 100ºC
4.4-7.0 in lb (0.5-0.8 Nm)
3.17 oz. (90g)
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.

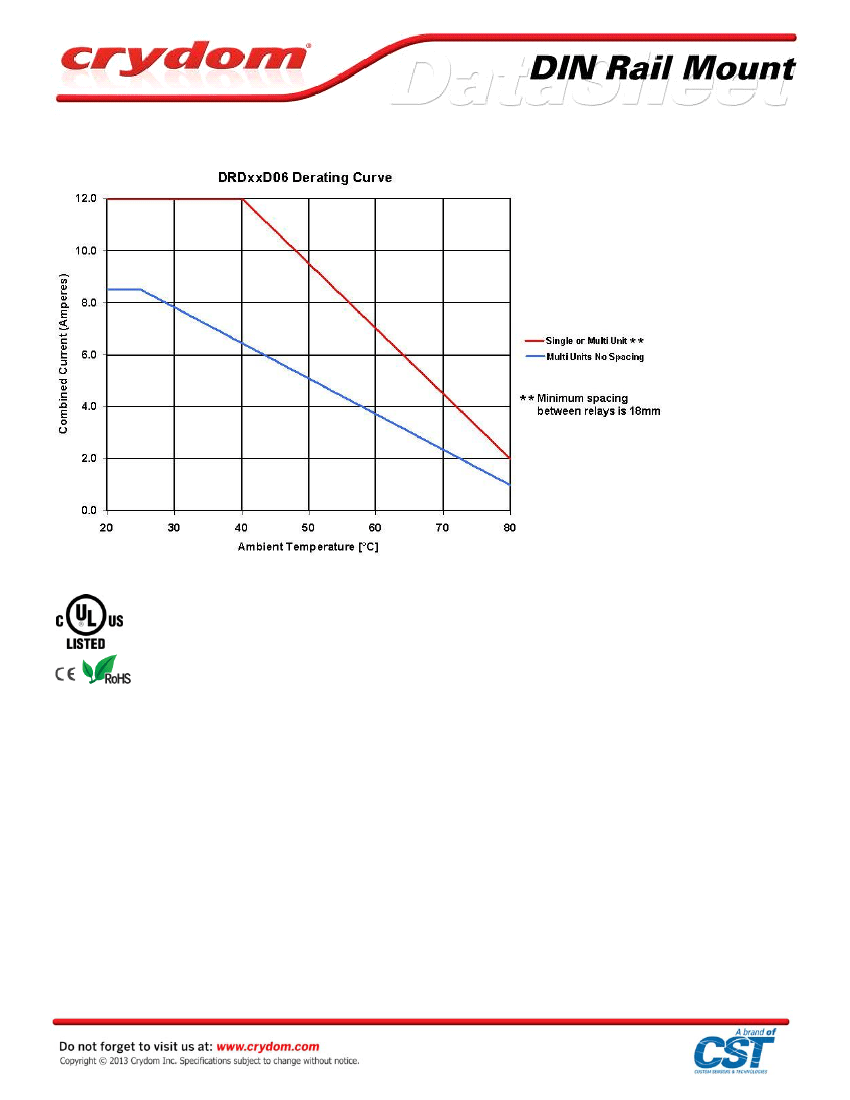

2) See Derating Curves
3) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
4) DC control includes reverse polarity protection.
5) Input circuitry incorporates active current limiter.
6) Turn-on time for DC control random turn-on versions is 0.1 msec
Standards of Compliance
IEC 62314
LC A, Resistive or Slightly Inductive Load Ratings: 12A @ 40C ambient for DR24x12, 12A @ 40C ambient for DR48x12
LC A, Resistive or Slightly Inductive Load Ratings: 6A @ 40C ambient for DR24x06, 6A @ 40C ambient for DR48x06
LC A, Resistive or Slightly Inductive Load Ratings: 6A per channel @ 40C ambient for DRD24D06, 6A per channel @ 40C ambient for DRD48D06
LC B, Motor Loads Ratings: 0.75KW @ 240VAC for DR24x12 and 2.2KW @ 480VAC DR48x12
LC B, Motor Loads Ratings: 0.375KW @ 240VAC for DR24x06 and 1.5KW @ 480VAC DR48x06
LC B, Motor Loads Ratings: 0.375KW @ 240VAC for DRD24x06 and 1.5KW @ 480VAC DRD48x06
Shock and Vibration
(Applies to all part numbers)
Vibration Resistance according to IEC 60068-2-6:
0.35mm and 0.75mm Amplitude over 10-55 Hz
Shock Resistance according to IEC 60068-2-27:
15g/11ms
EMC
(Applies to all part numbers)
IEC 61000-4-2 : Electrostatic Discharge – Level 3
IEC 61000-4-4 : Electrically Fast Transients – Level 3
IEC 61000-4-5 : Electrical Surges – Level 3
