UPD2415DF: Descriptionsolid state relays - pcb mount upd dual output 240v 15a ZC panel Mt; CategoryTopical application Mechanical and electrical/engineering/automation; File Size748KB，5 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

UPD2415DF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UPD2415DF	-	-	View	Buy Now

UPD2415DF Overview

solid state relays - pcb mount upd dual output 240v 15a ZC panel Mt

UPD2415DF Parametric

Parameter Name	Attribute value
Manufacture	Crydom
Product Category	Solid State Relays - PCB Mou
RoHS	Yes
Control Voltage Range	3 VDC to 32 VDC
Load Voltage Rating	24 VAC to 280 VAC
Load Current Rating	15 A
Output Device	SCR
Factory Pack Quantity	10
Termination Style	Quick Connec

Preview

Download Datasheet

View All

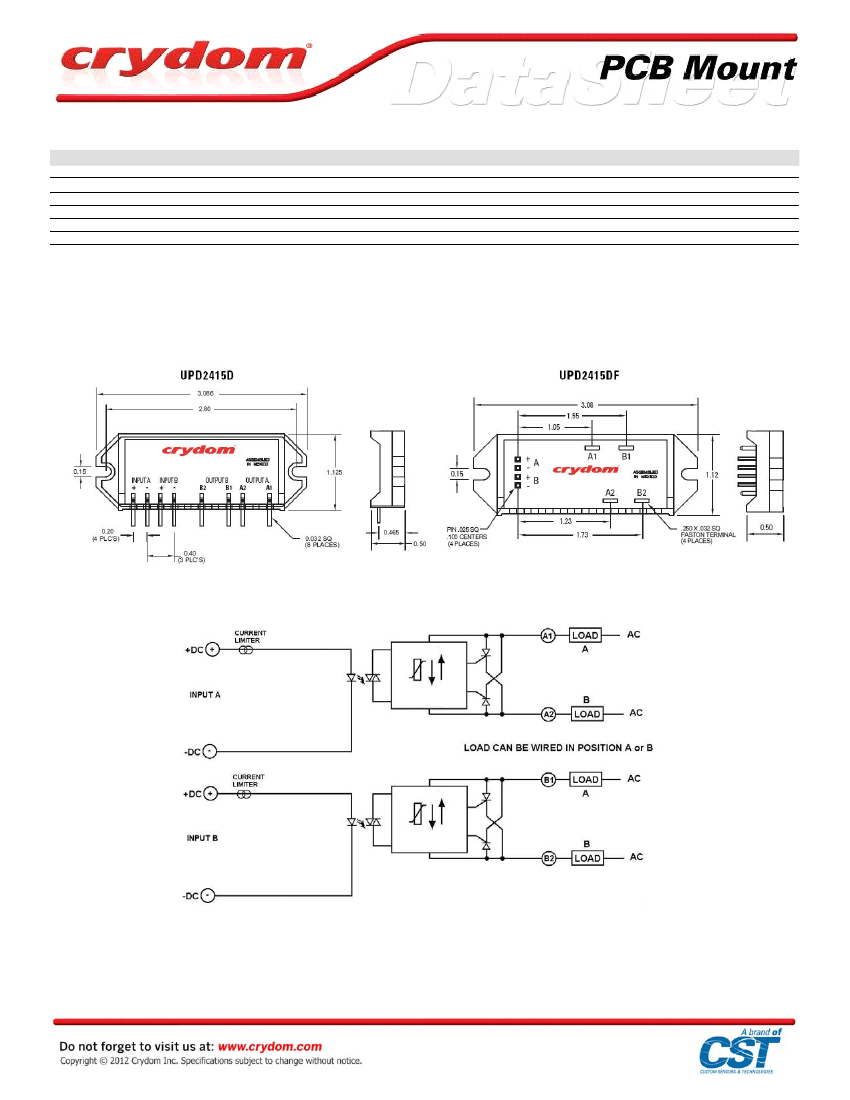

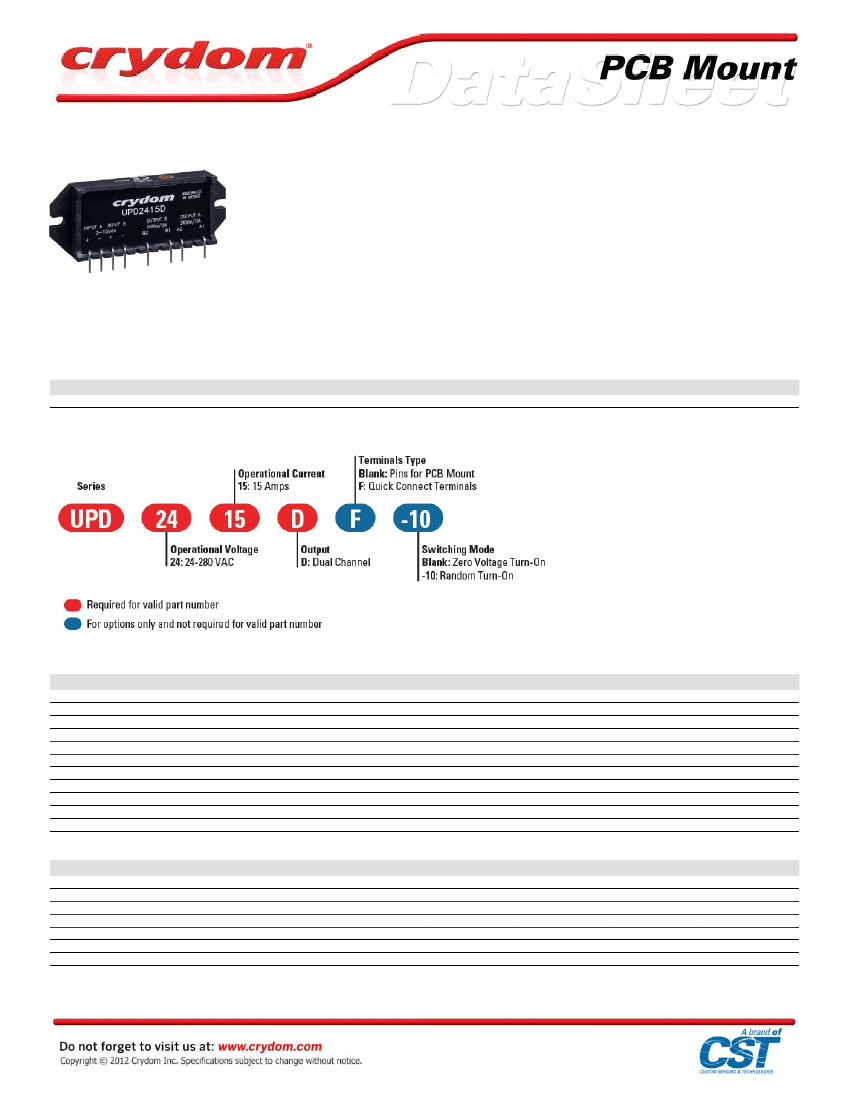

UPD24D Series

• SIP SSR

• 2 Relays in one package with independent control input

• Ratings per channel of 15A @ 280 VAC

• PCB Mount Package or Panel Mount quick connect terminals (F option)

• SCR output for heavy industrial loads

• Zero-crossing (resistive loads) or random-fire (inductive loads) output

• Low Leakage (snubberless) output

PRODUCT SELECTION

Control Voltage

3-15 VDC

15A

UPD2415D

15A

UPD2415D-10

AVAILABLE OPTIONS

OUTPUT SPECIFICATIONS (1)

Description (Per Channel)

Operating Voltage (47-440Hz) [Vrms]

Maximum Load Current [Arms](3)

Minimum Load Current [mArms]

Transient Overvoltage [Vpk]

Maximum 1 Cycle Surge Current (50/60Hz) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Thermal Resistance Junction to Case [°C/W]

Maximum I² t for fusing (50/60Hz, 1/2 cycle) [A² sec]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)

Minimum Power Factor (with Maximum Load)

UPD2415D

24-280

150

600

115/120

1.4

1.2

66/60

0.1

500

0.5

UPD2415D-10

24-280

150

600

115/120

1.4

1.2

66/60

0.1

500

0.5

INPUT SPECIFICATIONS (1)

Description

Control Voltage Range

Must Turn On Voltage

Must Turn Off Voltage

Typical Input Current @ 12 VDC

Nominal Input Impedance

Maximum Turn-On Time [msec]

Maximum Turn-Off Time [msec]

UPD2415D

3-15 VDC

3.0 VDC

1.0 VDC

36 mAdc

300 Ohm

1/2 Cycle

UPD2415D-10

3-15 VDC

3.0 VDC

1.0 VDC

36 mAdc

300 Ohm

0.02

1/2 Cycle
