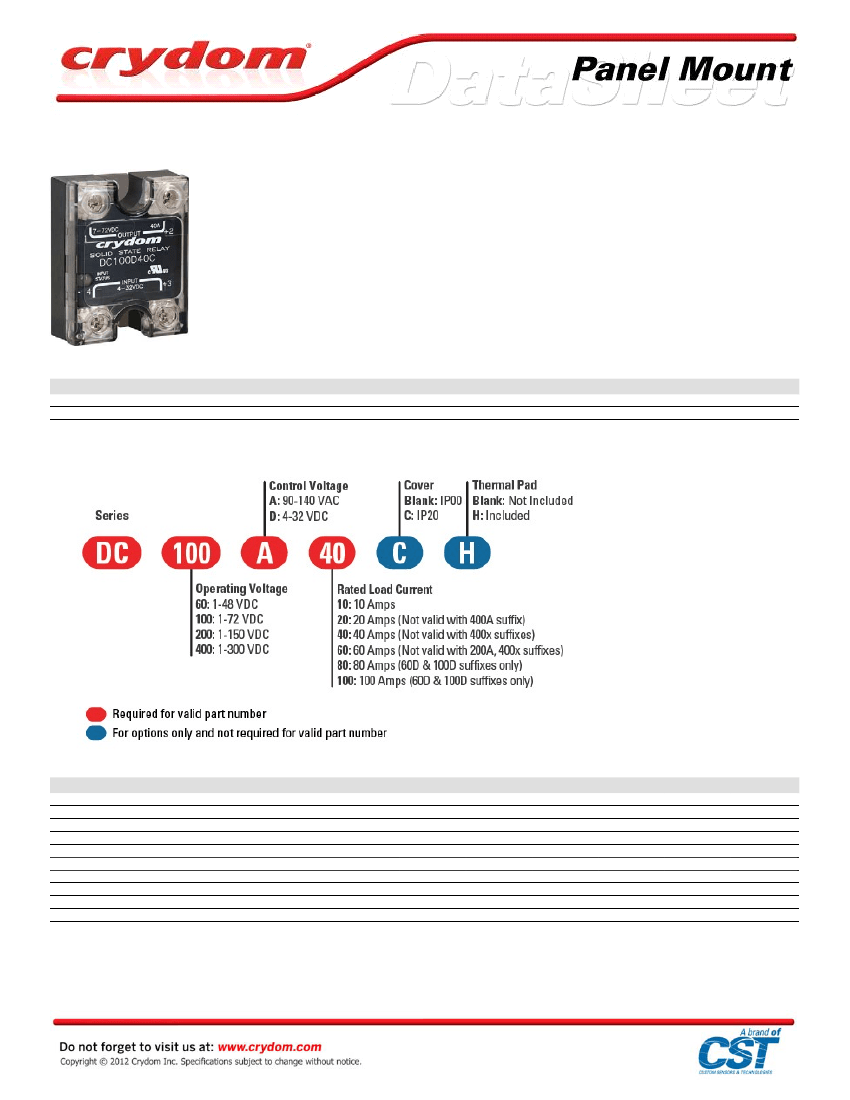

PowerPlus DC
• Optically Isolated MOSFET output
• Ratings from 10A to 100A @ 48 VDC
• AC or DC control
• Relays are easily paralleled for higher-current applications
• LED Status Indicator
• Optional IP20 Cover
• UL Recognized, CE and RoHS Compliant
• PWM to 1K Hz
PRODUCT SELECTION
Control Voltage
4-32 VDC
90-140 VAC
10A
DC60D10
DC60A10
20A
DC60D20
DC60A20
40A
DC60D40
DC60A40
60A
DC60D60
DC60A60
80A
DC60D80
100A
DC60D100
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage [Vdc] (2)
Blocking Voltage
Rated Load Current [Adc] (3)
Minimum Load Current [mA] (4)
Maximum Surge Current [Adc] (10ms)
Maximum On-State Voltage Drop @ Rated Current [Vdc]
Maximum Off-State Leakage Current @ Rated Voltage [mA]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum On-State Resistance @ Rated Current [RDS-ON][mOhms]
Maximum PWM [Hz] (5)
10A
1-48 VDC
60
10
2.5
78
0.33
0.1
2.1
33.4
1K
20A
1-48 VDC
60
20
2.5
108
0.35
0.1
1.2
17.6
1K
40A
1-48 VDC
60
40
2.5
163
0.62
0.1
1.1
15.6
900
60A
1-48 VDC
60
60
2.5
200
0.62
0.1
0.8
10.4
900
80A
7-48 VDC
60
80
2.5
258
0.75
0.1
0.7
9.4
700
100A
7-48 VDC
60
100
2.5
326
0.59
0.1
0.53
5.9
700
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Minimum Input Current @ min Control Voltage [mA]
Maximum Input Current @ max Control Voltage [mA]
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
DCxxDxx
4-32 VDC
11
12
Current Regulated
0.075
0.32
DCxxAxx
90-140 VAC
11
13
Current Regulated
10
10
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range (6)
Ambient Storage Temperature Range
Housing Material
Weight (typical) (7)
Encapsulation (8)
Terminal Finish
Recommended Terminal Screw Torque (6-32) [in lbs/Nm]
Recommended Terminal Screw Torque (8-32) [in lbs/Nm]
Parameters
2500 Vrms
10
9
Ohm
10 pF
-30 to 80°C
-40 to 125 °C
Valox 420 SEO Black, UL 94 V-0
2.65 oz (75g)
Epoxy Free
Electroless Nickel
10/1.1
20/2.2
GENERAL NOTES
1) All parameters at 40°C and per section unless otherwise specified.
2) Maximum voltage is 60VDC
3) Heat sinking required, see derating curves.
4) Low current loads and high ambient temperature can affect turn-on time.
5) @ a minimum of 8VDC control. See PWM Derating Information page 3.
6) Maximum Ambient Operating Temperature for the AC control relays is 65°C.
7) Typical weight for the AC control relays is 2.99 oz/85g.
8) AC controlled relays contain thermal conductive epoxy.

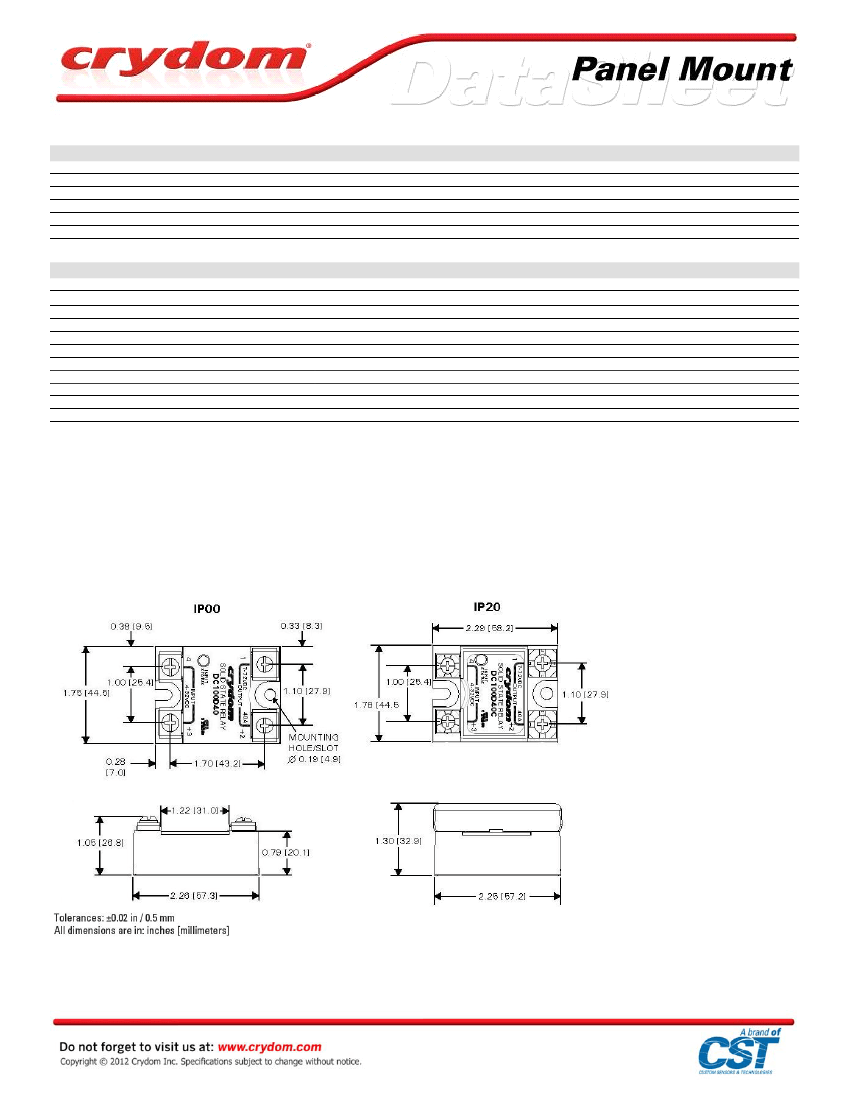

MECHANICAL SPECIFICATIONS

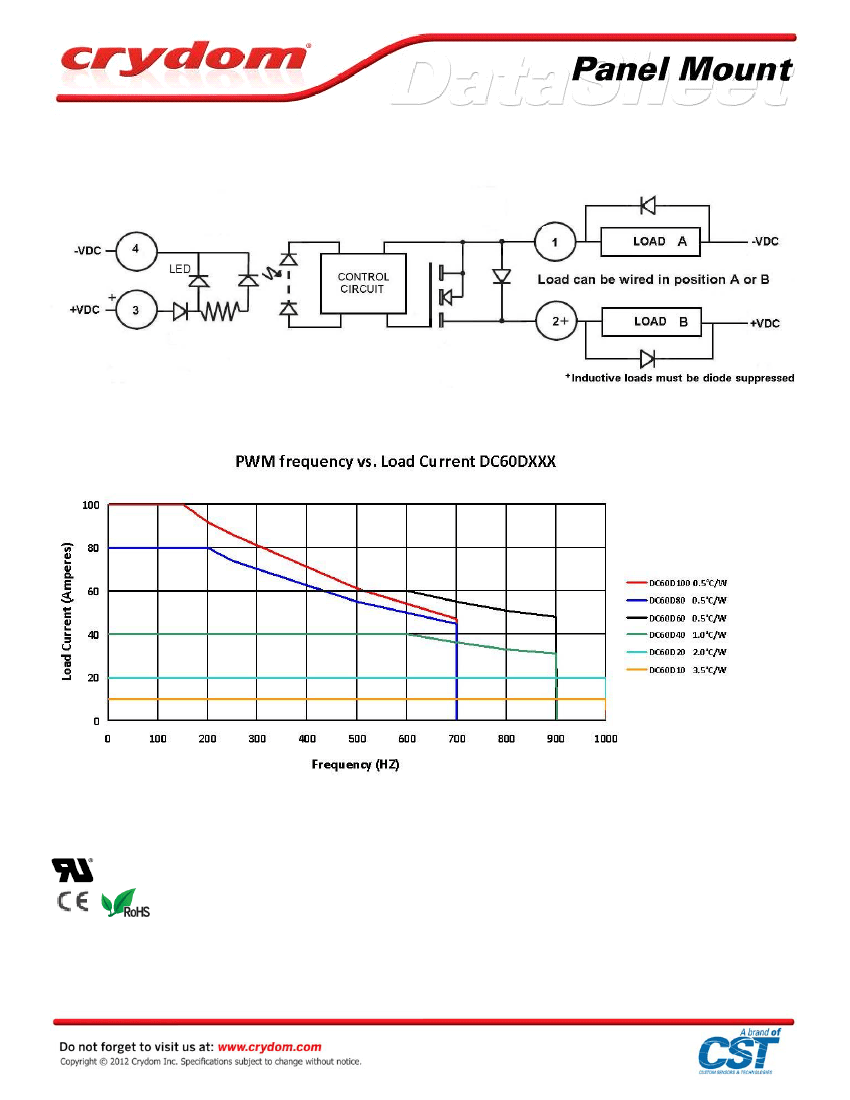

WIRING DIAGRAM

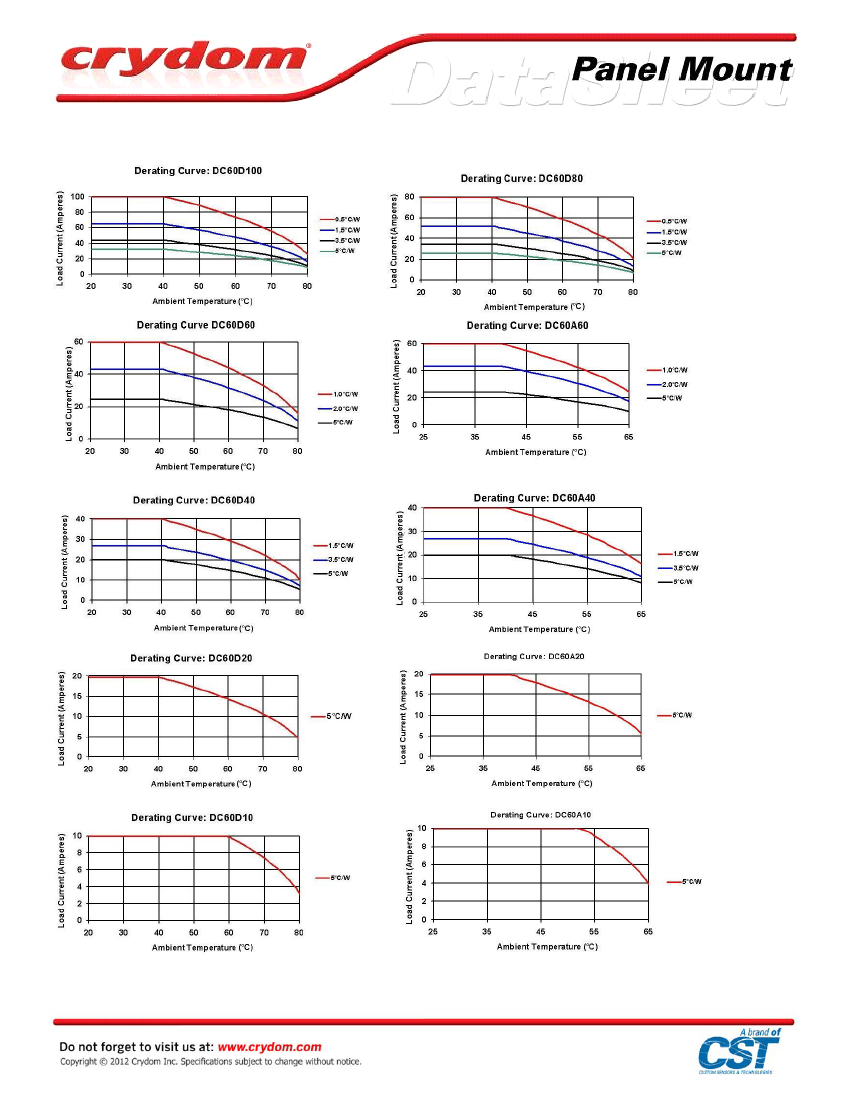

PWM DERATE INFORMATION
AGENCY APPROVALS
IEC 61000-4-2 Electrostatic Discharge
Level 3, Criteria A
IEC 61000-4-4 Electrically Fast Transients Level 3, Criteria A
IEC 61000-4-5 Electrical Surges
Level 3, Criteria A
E116950
072312
