• Compact construction (10 x 10 mm and 12 x 12 mm with
11 mm height) with bright and uniform illumination.
• Three-color illumination (red LED + green LED = orange).
• Standard force (160 gf) and high-force (230 gf) models.
• RoHS Compliant
Features

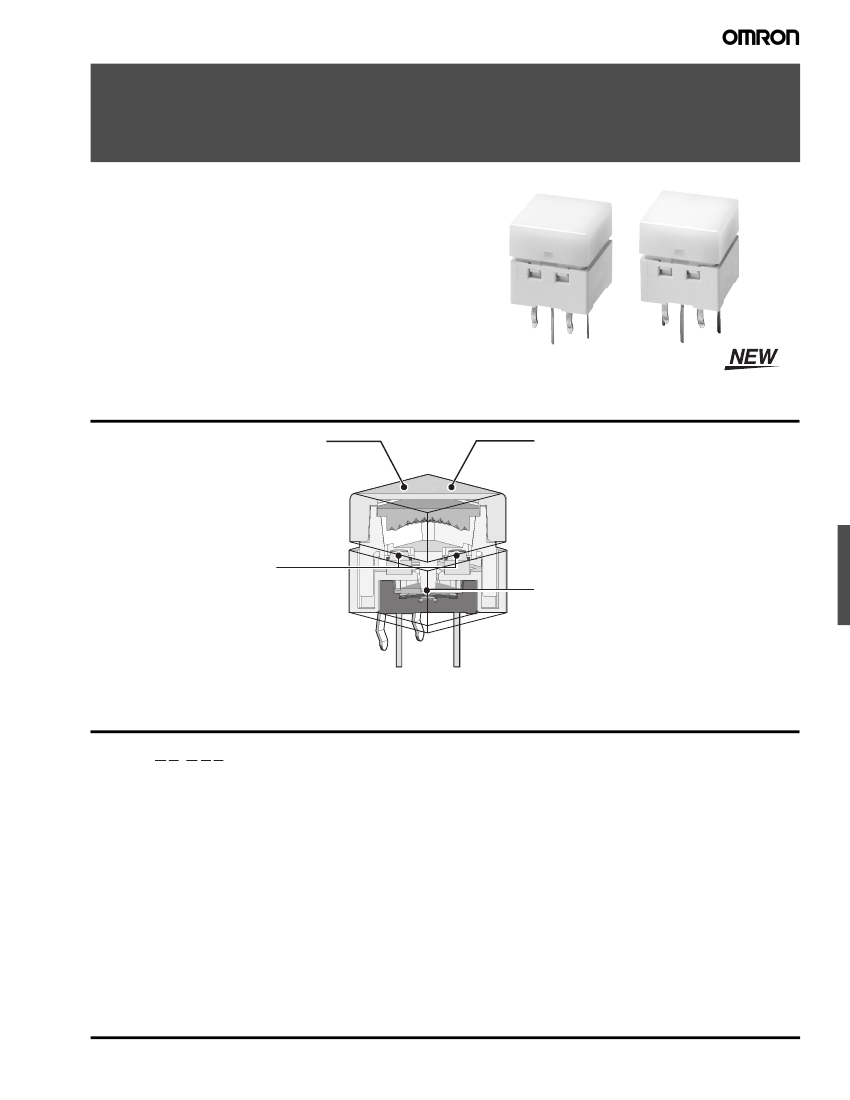

Bright and uniform illumination
•
Compact construction 10
×
10
×
11 mm
(W
×
D
×
H) and 12
×
12
×
11 mm (W
×
D
×
H) equipped
with
2 LEDs.
•
Uniquely constructed diffusion panel.
Snap-action contact construction
for a positive click action.
•
Models available
with
two different
operating forces, standard force (160 gf)
and high-force (230 gf).
Three-color illumination
•
Simultaneous
use
of red and green
LEDs create a third color (orange).
High contact reliability
•
Sealed construction provides high
contact reliability.
Model Number Structure
B3W-90@@-@@@
1 2
3 4 5
4. No. of LEDs
1:
1
2:
2
5. Cap
R:
Red
G:
Green
Y:
Yellow
B:
Blue
C:
Transparent
N:
Milky white
Note: 1.
Switches with two LEDS are only available with Transparent
or Milky White caps.
2.
If a tricolour operation is required, use the Red+Green (RG)
combination with the milky white cap. Simultaneous illumi-
nation of these two LEDs will produce Orange.
1. Cap width
0:
10 x 10 mm
1:
12 x 12 mm
2. Operating force
0:
Standard (OF = 160 gf)
2:
High-force (OF = 230 gf)
3. LED color
R:
Red
G:
Green
HG: Green (high brightness)
Y:
Yellow
B:
Blue
RG: Red + Green (Combination of LED colors)
RB: Red + Blue (Combination of LED colors)
Illuminated Tactile Switches
B3W-9
257
Ordering Information
■
10 x 10 mm Switches
Standard force
Force
LED
Colour
No. of
LEDs
1
Cap color
Blue
Milky white
2
Blue
Milky white
Green
1
Green
Milky white
2
Green
Milky white
Green
1
(High
brightness)
2
Green
Milky white
Green
Milky white
Red
1
Red
Milky white
2
Red
Milky white
Yellow
1
Yellow
Milky white
2
Yellow
Milky white
Red + Blue 2
Red+
Green
2
Model
B3W-9000-B1B
B3W-9000-B1N
B3W-9000-B2B
B3W-9000-B2N
B3W-9000-G1G
B3W-9000-G1N
B3W-9000-G2G
B3W-9000-G2N
B3W-9000-HG1G
B3W-9000-HG1N
B3W-9000-HG2G
B3W-9000-HG2N
B3W-9000-R1R
B3W-9000-R1N
B3W-9000-R2R
B3W-9000-R2N
B3W-9000-Y1Y
B3W-9000-Y1N
B3W-9000-Y2Y
B3W-9000-Y2N
Red + Blue 2
Red +
Green
2
2
Yellow
1
2
Red
1
Green
1
(High
brightness)
2
2
Green
1
2
High-force
Force
LED
Colour
No. of
LEDs
1
Cap color
Blue
Model
B3W-9002-B1B
Standard
Blue
force
(OF = 160 gf)
Transparent
B3W-9000-B1C
High-force
Blue
(OF = 230 gf)
Transparent
B3W-9002-B1C
Milky white
B3W-9002-B1N
Blue
B3W-9002-B2B
Transparent
B3W-9002-B2C
Milky white
B3W-9002-B2N
Green
B3W-9002-G1G
Transparent
B3W-9002-G1C
Milky white
B3W-9002-G1N
Green
B3W-9002-G2G
Transparent
B3W-9002-G2C
Milky white
B3W-9002-G2N
Green
B3W-9002-HG1G
Transparent
B3W-9002-HG1C
Milky white
B3W-9002-HG1N
Green
B3W-9002-HG2G
Transparent
B3W-9002-HG2C
Milky white
B3W-9002-HG2N
Red
B3W-9002-R1R
Transparent
B3W-9002-R1C
Milky white
B3W-9002-R1N
Red
B3W-9002-R2R
Transparent
B3W-9002-R2C
Milky white
B3W-9002-R2N
Yellow
B3W-9002-Y1Y
Transparent
B3W-9002-Y1C
Milky white
B3W-9002-Y1N
Yellow
B3W-9002-Y2Y
Transparent
B3W-9002-Y2C
Milky white
B3W-9002-Y2N
Transparent
B3W-9002-RB2C
Transparent
B3W-9002-RG2C
Milky white
B3W-9002-RG2N
Transparent
B3W-9000-RHG2C
Transparent
B3W-9000-B2C
Transparent
B3W-9000-G1C
Transparent
B3W-9000-G2C
Transparent
B3W-9000-HG1C
Transparent
B3W-9000-HG2C
Transparent
B3W-9000-R1C
Transparent
B3W-9000-R2C
Transparent
B3W-9000-Y1C
Transparent
B3W-9000-Y2C
Transparent
B3W-9000-RB2C
Transparent
B3W-9000-RG2C
Milky white
B3W-9000-RG2N
Transparent
B3W-9000-RHG2C
Red+High 2
Brightness
Green
Red+High 2
Brightness
Green
258
Illuminated Tactile Switches
B3W-9
■
12
×
12-mm Switches
Standard force
Force
LED
Colour
No. of Cap color
LEDs
1
1
2
2
Green
1
1
2
2
Green
1
(High
1
brightness)
2
2
Red
1
1
2
2
Yellow
1
1
2
2
Red+Blue
2
Red+Green 2
Red+High 2
Brightness
Green
Blue
Blue
Green
Green
Green
Green
Red
Red
Yellow
Yellow
Model
B3W-9010-B1B
B3W-9010-B2B
B3W-9010-G1G
B3W-9010-G2G
B3W-9010-HG1G
B3W-9010-HG2G
B3W-9010-R1R
B3W-9010-R2R
B3W-9010-Y1Y
B3W-9010-Y2Y
Red+Blue
Yellow
Green
High-force
Force
High-force
(OF = 230 gf)
LED
Colour
Blue
No. of Cap color
LEDs
1
1
2
2
1
1
2
2
Green
1
(High
1
brightness)
2
2
Red
1
1
2
2
1
1
2
2
2
Red+Green 2
Red+High 2
Brightness
Green
Blue
Blue
Green
Green
Green
Green
Red
Red
Yellow
Yellow
Model
B3W-9012-B1B
B3W-9012-B2B
B3W-9012-G1G
B3W-9012-G2G
B3W-9012-HG1G
B3W-9012-HG2G
B3W-9012-R1R
B3W-9012-R2R
B3W-9012-Y1Y
B3W-9012-Y2Y
Standard force Blue
(OF = 160 gf)
Milky white
B3W-9010-B1N
Milky white
B3W-9010-B2N
Milky white
B3W-9010-G1N
Milky white
B3W-9010-G2N
Milky white
B3W-9010-HG1N
Milky white
B3W-9010-HG2N
Milky white
B3W-9010-R1N
Milky white
B3W-9010-R2N
Milky white
B3W-9010-Y1N
Milky white
B3W-9010-Y2N
Milky white
B3W-9010-RB2N
Milky white
B3W-9010-RG2N
Milky white
B3W-9010-RHG2N
Milky white
B3W-9012-B1N
Milky white
B3W-9012-B2N
Milky white
B3W-9012-G1N
Milky white
B3W-9012-G2N
Milky white
B3W-9012-HG1N
Milky white
B3W-9012-HG2N
Milky white
B3W-9012-R1N
Milky white
B3W-9012-R2N
Milky white
B3W-9012-Y1N
Milky white
B3W-9012-Y2N
Milky white
B3W-9012-RB2N
Milky white
B3W-9012-RG2N
Milky white
B3W-9012-RHG2N
Specifications
■
Characteristics - initial
(Same for Both Standard and High-force Switches)
Contact form
Switching capacity
Contact resistance
Insulation resistance
Dielectric strength
Bounce time
Vibration resistance
Shock resistance
Ambient operating temperature
Ambient operating humidity
Life expectancy
SPST-NO Momentary
1 to 50 mA, 5 to 24 VDC (resistive load)
100 mΩ max. (initial value) (rated: 1 mA, 5 VDC)
100 MΩ min. (at 250 VDC)
500 VAC, 50/60 Hz for 1 min
5 ms max.
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
Destruction: 1,000 m/s
2
(approx. 100 G) max.
Malfunction: 100 m/s
2
(approx. 10 G) max.
-25°C to 70°C (at 60% RH max.) with no icing or condensation
35% to 85% (at 5° to 35°C)
Switch section
160 gf (standard force): 1,000,000 operations min.
230 gf (high-force): 300,000 operations min.
■
Operating Characteristics
Item
Operating force (OF) max.
Releasing force (RF) min.
Pretravel (PT)
160 gf
20 gf
0.2
Standard-force (B3W-90@0)
230 gf
50 gf
0.25+ /
-0.1
mm
High-force (B3W-90@2)
Illuminated Tactile Switches
B3W-9
259
LED Specifications
LED color
Maximum Forward current I
FM
Recommended operating current I
F
Forward voltage (typical value) V
F
Maximum reverse voltage V
R
Ambient operating temperature
Red
27 mA
20 mA
1.8 V
5V
Green
27 mA
20 mA
2.1 V
5V
Green (high brightness)
27 mA
10 mA
3.7 V
5V
-25°C to 70°C
Yellow
45 mA
20 mA
2.4 V
5V
Blue
27 mA
10 mA
3.7 V
5V
Note:
For Switches with two LEDs, red and green, the recommended operating current is 12 mA for the red and 20 mA for the green LED for ap-
plication with three-color illumination.
LEDs
■
Ambient Temperature vs Maximum Forward Current
Forward current I
F
(mA)
50
Yellow
40
Red, Green
30
20
High brightness
Green and Blue
10
0
0
20
60
80
40
Ambient temperature Ta (°C)
■
Forward Current and Forward Voltage Curves
(Condition: T
a
=25°C)
Forward current I
F
(mA)
Forward current I
F
(mA)
300.0
200.0
100.0
50.0
20.0
100
90
80
70
60
Red
10.0
5.0
2.0
Green
50
40
30
1.0
0.5
0.2
0.1
20
10
0
0
0.5
1
1.5
2
2.5
3
3.5
0
0.5
1
1.5
2
Forward voltage V
F
(V)
Forward current I
F
(mA)
Forward current I
F
(mA)
2.5
3
3.5
Forward voltage V
F
(V)
100
35
30
80
25
Green (High brightness), Blue
20
60
Yellow
40
15
10
20
5
0
1.0
1.5
2.0
2.5
3.0
Forward voltage V
F
(V)
0
0
1
2
3
4
5
Forward voltage V
F
(V)
Note: 1.
Pay attention to the polarity of each LED. The anode and cathode can be identified by finding the cathode mark, as indicated on the Dimensions page.
2.
Connect limiting resistors to the LEDs. The Switch does not have built-in limiting resistors, so satisfy the LED characteristics by obtaining the limiting
resistance according to the following formula based on the voltage to be used.
Limiting resistance (R)=
(Voltage used (E) – LED forward voltage (VF))
(
Ω
)
LED forward current (IF)
E
V
F
R
I
F
260
Illuminated Tactile Switches
B3W-9

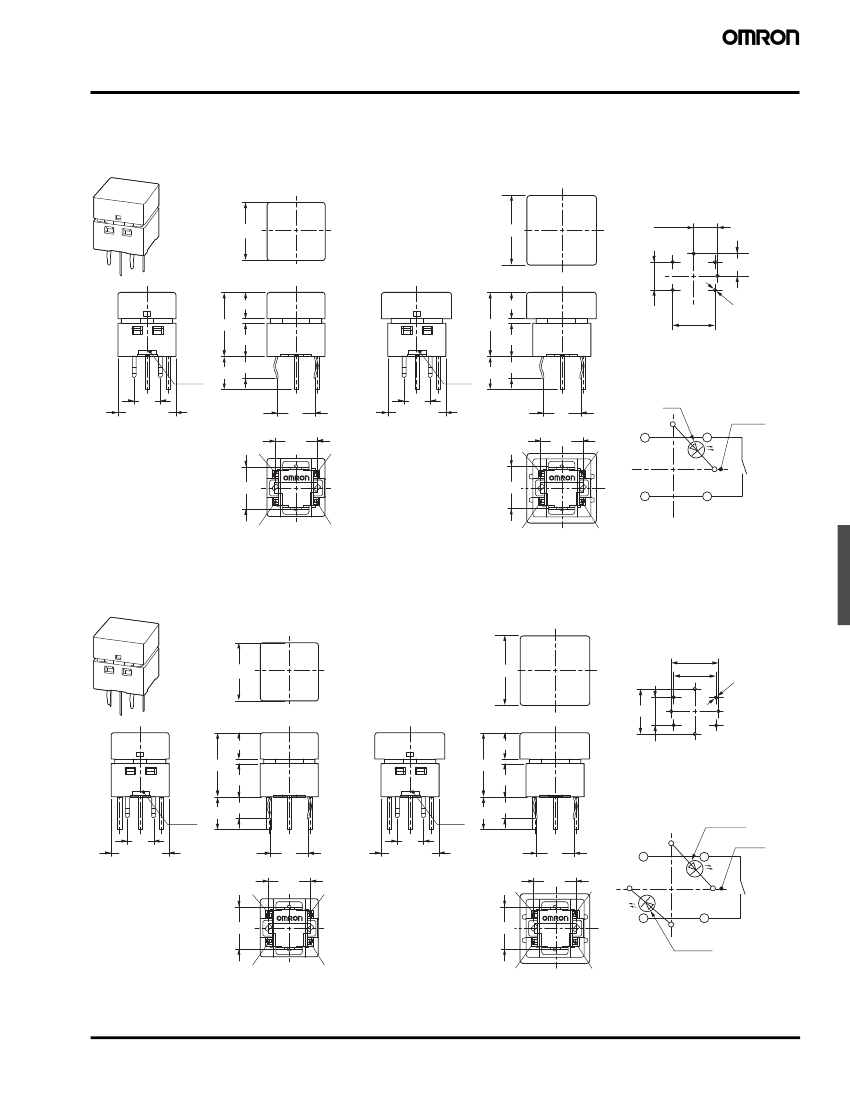

Dimensions
Note:
Unless otherwise specified, all units are in millimeters and a tolerance of
±
0.4 mm applies to all dimensions.
■
1 LED Types
B3W-900@-@1@
B3W-901@-@1@
<B3W-900@-@1@>
<B3W-901@-@1@>
PCB Mounting (Top View)
3.6±0.1
10×10±0.2
12×12±0.2
3.6±0.1
4.4
11
5.8
11
4.4
4.5±0.1
6.5±0.1
Six,
1±0.1 dia.
holes*
5.8
Cathode
(5.5)
mark
4.5
10×10±0.2
3.5
Cathode
(5.5)
mark
4.5
10×10±0.2
3.5
Terminal Arrangement/
Internal Connections (Top View)
LED
6.5
4
6.5
+
3
Cathod
(7.2)
(2)
(1)
(2)
(7.2)
(1)
−
(7.2)
B3W
(7.2)
B3W
2
1
(4)
(3)
(4)
(3)
Note:
Terminal numbers are not printed on the Switch itself.
Note:
If the poles of the LED are set inc
it may result in malfunction.
■
2 LED Types
B3W-900@-@2
@
B3W-901
@
-
@
2
@
<B3W-900@-@2@>
<B3W-901@-@2@>
PCB Mounting (Top View)
7.2
±
0.1
10×10±0.2
12×12±0.2
6.5
±
0.1
Eight,
1
±
0.1 dia
holes*
7.2
±
0.1
4.4
11
5.8
11
4.4
4.5
±
0.1
5.8
Cathode
(5.5)
mark
4.5
10×10±0.2
3.5
Cathode
(5.5)
mark
4.5
10×10±0.2
3.5
Terminal Arrangement/
Internal Connections (Top View)
LED 1
+
6.5
4
3
Catho
6.5
(7.2)
(2)
(1)
(2)
(7.2)
(1)
−
−
2
1
(7.2)
B3W
(7.2)
B3W
+
LED 2
(4)
(3)
(4)
(3)
Note 1:
If the poles of the LED are set inco
it may result in malfunction.
2:
For models with two-color LEDs, th
of LED 1 is at position LED 1.
The color of LED 2 is at the position
B3W-90@@-RG2@
Note:
Terminal numbers are not printed on the Switch itself.
I wrote rtp initialization like this RTPAppSession *rtp; //RTPAppSession inherits from RTPSession and uses OnRTPPacket to process received data RTPSessionParams sessParams; RTPUDPv4TransmissionParams ...
For cost, integration and performance, it is necessary to use high-speed serial data interfaces and reduce semiconductor manufacturing layout. However, such smaller devices are more susceptible to ele...
CLA is a floating point processor, but unfortunately, it is 32-bit. Using 32-bit floating point to represent a number has very limited precision. How can we use 32-bit instructions to complete 64-bit ...
[i=s]This post was last edited by hydralisk on 2017-8-10 14:53[/i] [b]1. Configuration of Qt Creator under Linux[/b][p=24, null, left][color=rgb(0, 0, 0)][font=微软雅黑, 宋体, Arial][size=15px]Find Qt Creat...
The TIA Portal software's shift instructions shift the contents of an accumulator bit by bit to the left or right. The number of bits shifted is determined by N. A left shift of N bits multiplies t...[Details]
On August 23rd, Geely's subsidiary, Jiyao Tongxing, announced it has the industry's largest advanced production capacity for tandao
batteries
, with eight production bases across China. Jiy...[Details]
How do you know if a machine is operating properly? The answer: by leveraging deep learning to detect anomalies in routine vibration data from industrial machines. Anomaly detection has many uses, ...[Details]
When you are happily watching NBA or football, your wife asks you to turn off the lights in the bedroom. Would you be depressed? Of course, unless you are not afraid of your wife.
Now you are ...[Details]
The most significant feature of IPS panels is that both electrodes are located on the same surface, unlike other LCD panels, which have electrodes arranged on top and bottom surfaces in a three-dim...[Details]
We are entering a new era where people are increasingly affordably equipped with more electronic gadgets. Electronics have become essential to our lives. For example, the average consumer now owns ...[Details]
On August 25th, Apple's expansion in India encountered new troubles. According to Bloomberg, Foxconn Technology Group has recalled approximately 300 Chinese engineers from India, further hindering ...[Details]
1 Introduction
In the mid-1960s, American scientist Maas conducted extensive experimental research on the charging process of open-cell batteries and proposed an acceptable charging curve for ...[Details]
Based on a survey of more than ten intelligent robot companies, this article sorts out and analyzes the current development status of the intelligent industry and the challenges and differences it ...[Details]
On August 21st, Zhiyuan Robotics revealed at its first partner conference that it expects shipments to reach thousands of units this year and tens of thousands next year. The company hopes to reach...[Details]
Reflow soldering is one of the most commonly used methods in electronics manufacturing, allowing for the soldering of large numbers of components in a relatively short time. However, any experience...[Details]
Batteries, at the core of new energy vehicles, are crucial to vehicle performance and range. Existing automotive batteries are categorized into lead-acid and lithium batteries. Currently, new energ...[Details]
The range of an electric vehicle is crucial to the driving experience, and range anxiety is a common headache when driving an electric vehicle. Although the latest electric vehicles can achieve a r...[Details]
On August 21, according to a report by Korean media SEDaily yesterday, according to semiconductor industry sources, the HBM4 samples provided by Samsung to Nvidia last month have passed initial tes...[Details]
New version helps developers build secure and trustworthy embedded systems
Shanghai, China—August 21, 2025—
QNX, a division of BlackBerry Ltd., today announced the release of QNX...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
