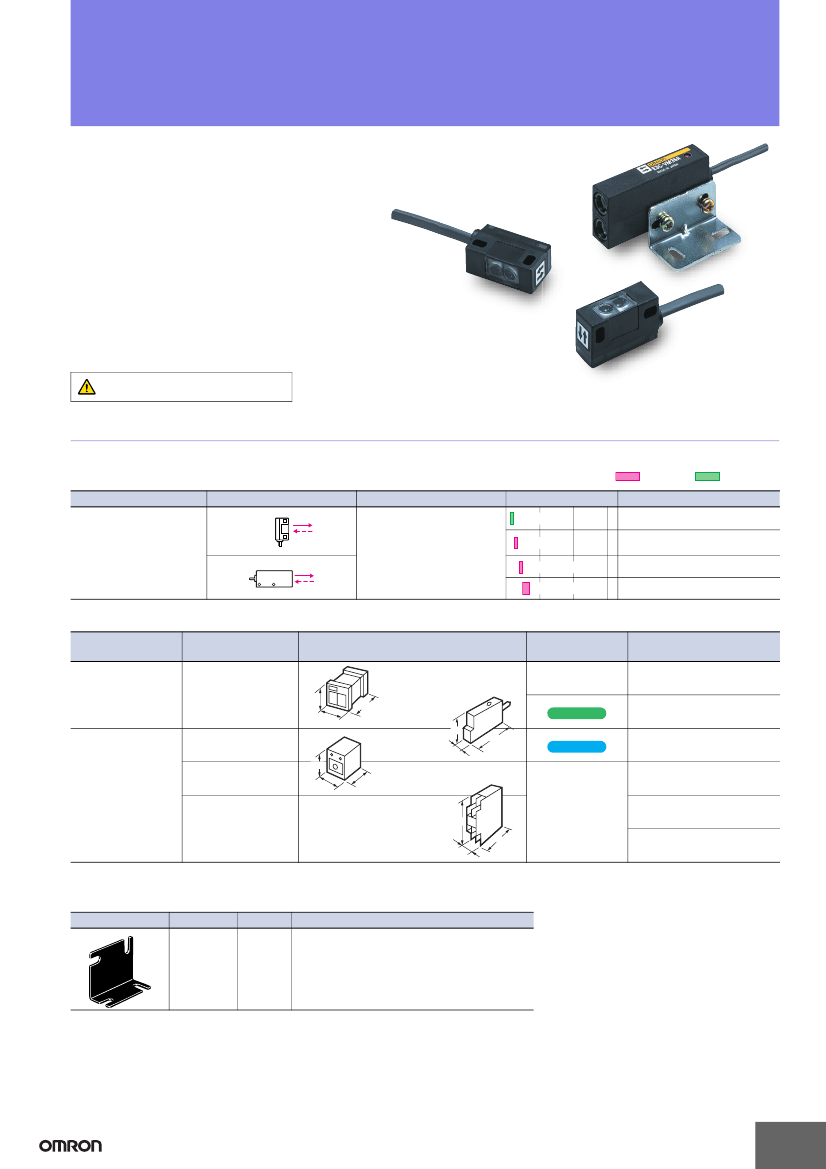

E3C-VS/VM
Ratings and Specifications
Sensor Head
Sensing
method
Item
Model
E3C-VS1G
10±2 mm
0.7 mm at central sensing
distance
Green LED (565 nm)
Sensing distance
Minimum detectable
object (black mark
on white)
Light source
(wavelength)
Ambient illumination
Ambient
temperature range
Ambient
humidity range
Dielectric strength
Vibration resistance
(destruction)
Shock resistance
(destruction)
Connection method
Weight
(packed state)
Case
Material
Lens
Mounting
Bracket
Accessories
Instruction manual
Reflective model (for mark detection)
E3C-VS3R
30±5 mm
2 mm at central sensing
distance
Red LED (680 nm)
E3C-VM35R
35±5 mm
0.2 mm at central sensing
distance
Red LED (660 nm)
E3C-VS7R
7±10 mm
0.6 mm at central sensing
distance
Incandescent lamp: 1,000 lx max. (on light-receiving side)
Sunlight: 3,000 lx max. (on light-receiving side)
Operating:
−10
to 70°C (with no icing or condensation)
Storage:
−25
to 70°C (with no icing or condensation)
Operating/storage:
−25
to 70°C
(with no icing or condensation)
Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance
20 MΩ min. (at 500 VDC)
500 VAC, 50/60 Hz for 1 min
10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
500 m/s
2
3 times each in X, Y, and Z directions
IEC IP50 (indoors only)
Degree of protection
IEC IP64 (indoors only)
Pre-wired cable (standard length: 2 m)
Approx. 50 g
Polycarbonate
Polycarbonate
---
Approx. 60 g
Heat-resistant ABS
Glass
Steel
Mounting Bracket, Slotted/
Phillips screws M3
×
16,
Spring washer, Flat washer,
M3 nuts
Mounting Bracket, Slotted/
Phillips screws M3
×
16,
Spring washer, Flat washer,
M3 nuts, Instruction manual
Amplifier Units
Refer to
E3C.
I/O Circuit Diagrams
Refer to
E3C.
Connection
Refer to
E3C.
Connectors
Refer to
E3C.
2
