XVP Illuminated Indicating Banks
Characteristics
CHARACTERISTICS
Environment
Product certifications
UL Listed, CSA Certified
File E164353
CCN NKCR
Conforming to standards
Protective Treatment
Ambient Air Temperature (Storage)
Operation
Illuminated lens unit, steady,
with LED or 7 W incandescent bulb
Flashing Units with LED or
7 W incandescent bulb
Units with Strobe
Audible Sounder Units
Electric Shock Protection
conforming to IEC 536
Degree of Protection
Material
Tube mounting
Direct mounting on base unit
To IEC 60529 and NF C 20-010
To UL 50 and CSA 22.2 No. 94
Illuminated lens unit
Base unit and top cover
Ring on lens and base
Tube mounting
Tulip
Class 1
Class 2
IP 65
Type 1, 12, 13
Polycarbonate
ABS + Polycarbonate
Polyamide
Aluminum
ABS + Polycarbonate
CE Marked
File LR 44087
Class 3211 03
File E164353
CCN NKCR 2
IEC/EN 60947-5-1. UL 508
“TC”
–40 to + 158 °F
–40 to +70 °C
–13 to +122 °F (–25 to +50 °C)
Electrical Characteristics
Rated Insulation Voltage (UL)
Consumption
Conforming to IEC 60947-1
LED unit
Steady Incandescent bulb 7W
Flashing
Unit with strobe (on energization)
Audible sounder units
Rated Impulse withstand voltage
Bulb type
Illuminating Power
Audible sounder units

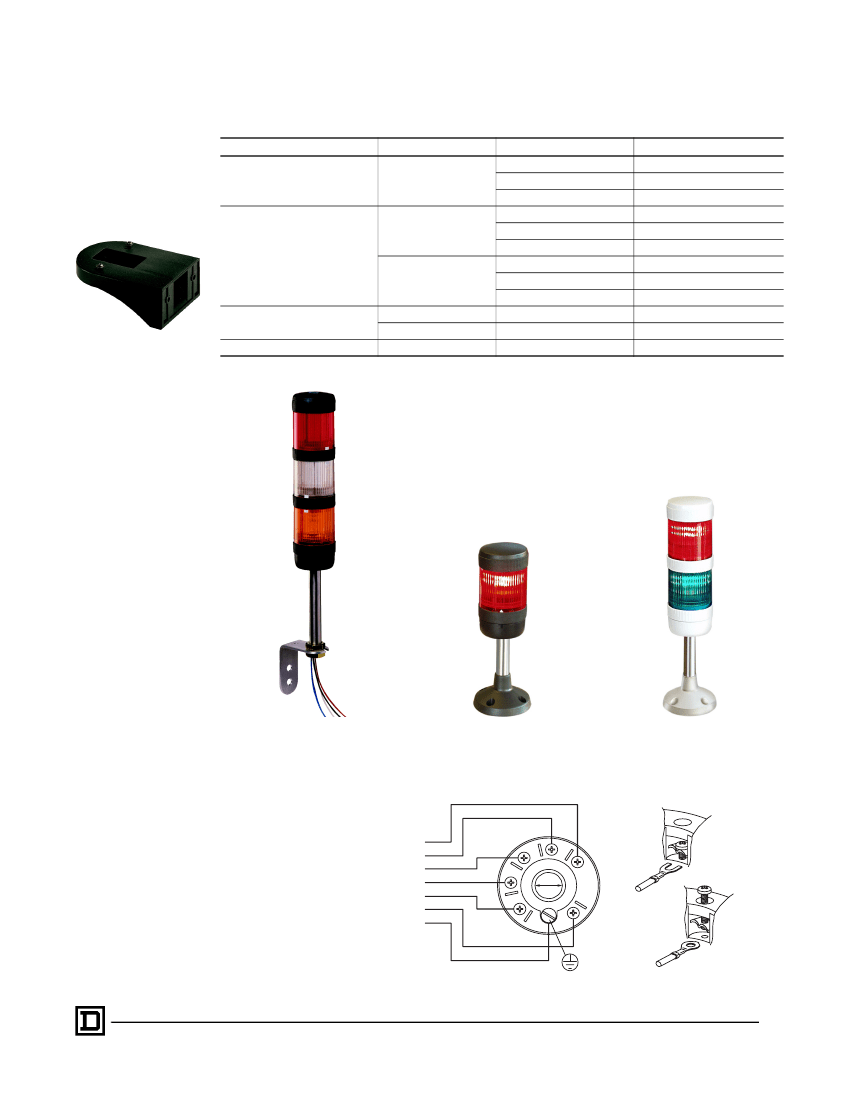

Terminal marking
Conforming to IEC 60947-1
Illuminated units, steady or flashing
Strobe Units
Signal
Common
Depending on type of units
Ground
Cable size
Terminals
Ring tongue connectors
Maximum wire size
Torque requirement
Burndy YAV14RL33
250 Vac
24 Vac/Vdc: <60 mA
120–230 Vac: <20 mA
24 Vac/Vdc: <300 mA; 120–230 Vac: 65–35 mA
24 Vac or 24 Vdc <250 mA; 120–230 Vac < 30mA
24 Vdc: 0.3 Joules, 40 mA; 120 Vac: 0.6 Joules, 20mA;
230 Vac: 0.6 Joules, 11mA
24 Vdc, 12 mA; 120 Vac, 15 mA; 230 Vac, 15 mA
U imp = 4 kV
Bayonet type BA 15d; 5 W minimum power; 7 W maximum power
0.3 Joules, 24 Vdc, 1.2 cd; 0.6 Joules, 120 Vac, 5.0 cd;
0.6 Joules, 230 Vac, 5.0 cd
At one meter: 75–85 dB
1 terminal marked –/N
1 to 5 terminals marked 1+/L to 5+/L
Marked with grounding symbol
2 x #16 AWG (1.5 mm
2
) with cable end
Removable and captive screw terminals: 4.4 lb-in (0.5 Nm)
Wire: 20–14 AWG
Studs: 4–6
Width: 0.25 in.
0.7 Hz–2.0 Hz
Frequency of Illuminated units
Strobe Units
Specific Characteristics of Protected LED Bulbs
Voltage limits
Nominal voltage
24 V: 19.2 to 30 Vdc; 21.6 to 24.6 Vac
120 V: 100 to 132 Vac
240 V: 200 to 264 Vac
24 Vac/Vdc supply: 24 mA
120 Vac supply: 18 mA
240 Vac supply: 18 mA
100,000 hours
1 kV (differential)
2 kV
10 V/m
8/6 kV
Class B
Current consumption
Applicable to all colors
Service life
Surge withstand
Resistance to fast transients
Resistance to electromagnetic fields
Resistance to electrostatic discharges
Electromagnetic emission
At nominal voltage and at an ambient temperature of 77 °F (25 °C)
Conforming to IEC 61000-4-5
Conforming to IEC 61000-4-4
Conforming to IEC 61000-4-3
Conforming to IEC 61000-4-2
Conforming to EN 55011
2
©
2001 Schneider Electric All Rights Reserved
11/01

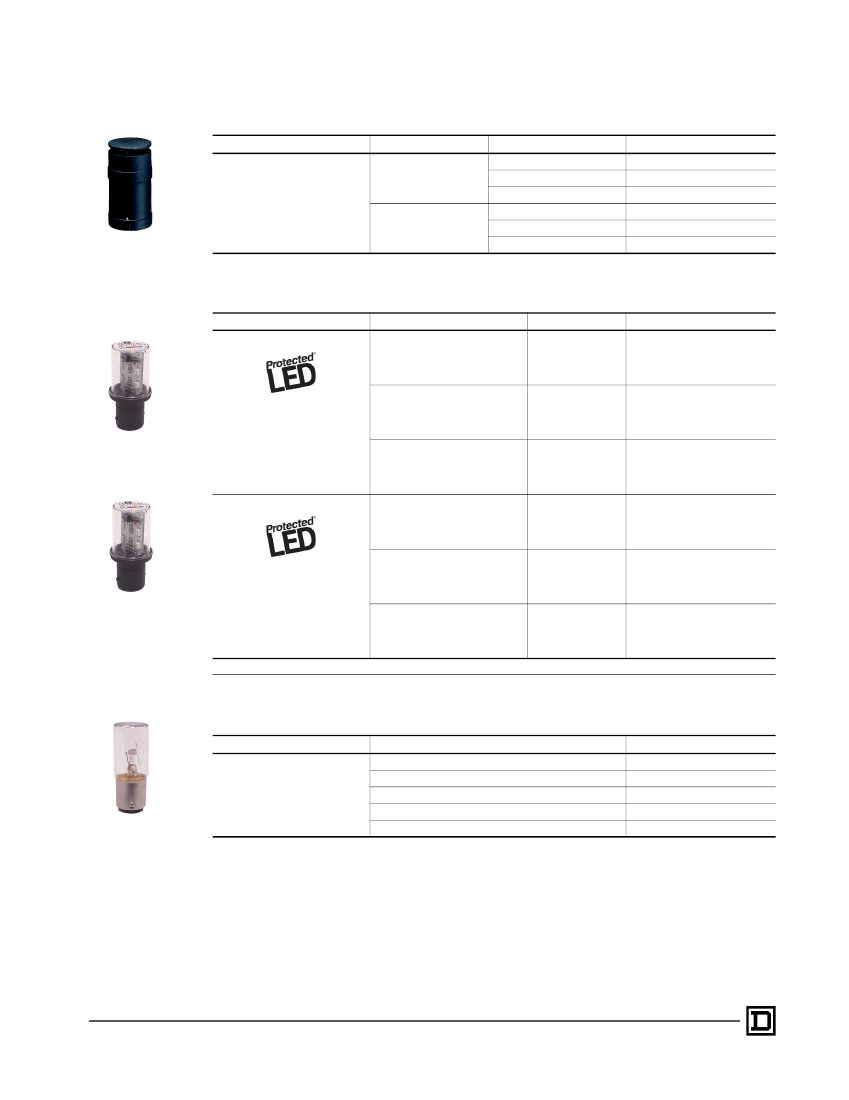

XVP Illuminated Indicating Banks

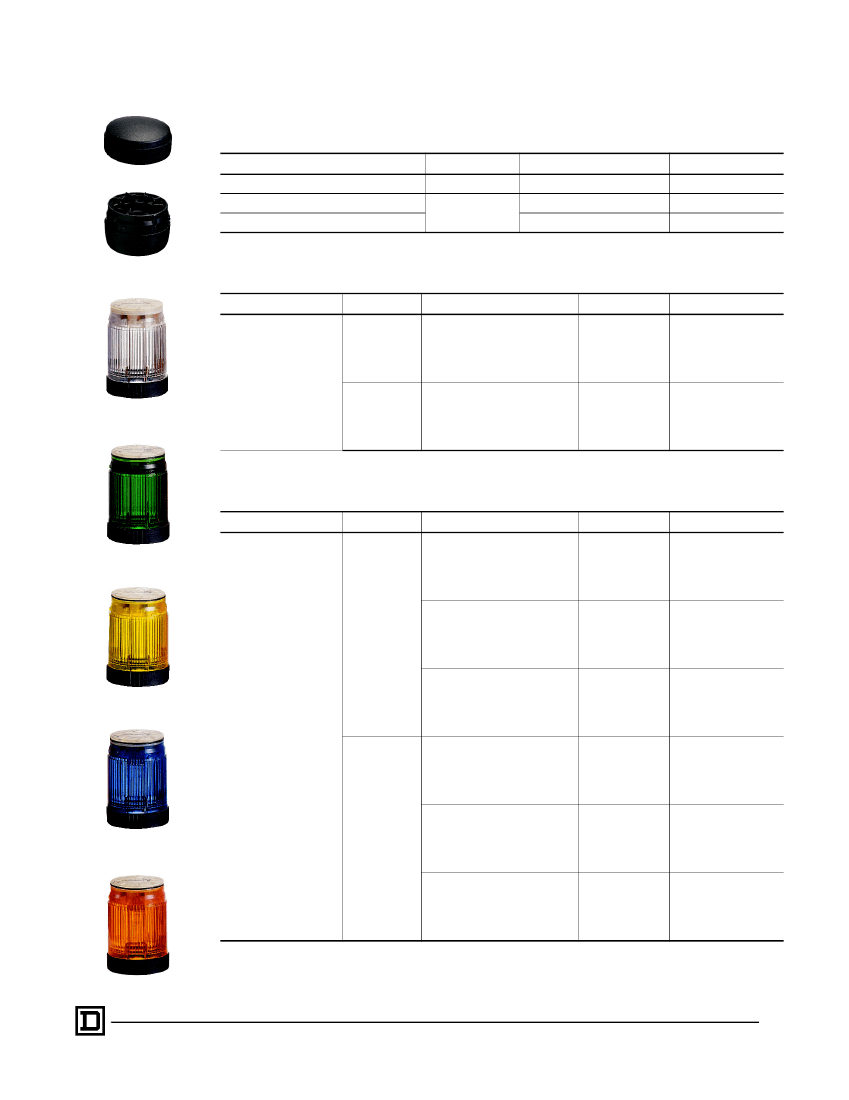

Components
COMPONENTS
Base Units with Cover (for direct or tube mounting)
Description
50 mm base unit
50 mm base unit
50 mm base unit with ring-tongue compatible terminal
Color
Black
Off-white
For use with Indicating Banks
50 mm diameter only
50 mm diameter only
50 mm diameter only
Catalog Number
XVPC21
XVPC21W
XVPC21WR
XVPC21
Illuminated Lens Units (Steady or Flashing)
Description
50 mm steady lens unit
(See part numbers under
“LEDs” on page 4 to select
steady or flashing mode)
Ring Color
Black
Light Source and Voltage
Bulb (7 W max)
not included
250 V max
Lens Color
Green
Red
Amber
Blue
Clear
Yellow
Green
Red
Amber
Blue
Clear
Yellow
Catalog Number
XVPC33
XVPC34
XVPC35
XVPC36
XVPC37
XVPC38
XVPC33W
XVPC34W
XVPC35W
XVPC36W
XVPC37W
XVPC38W
Off-white
XVPC37
Bulb (7 W max)
not included
250 V max
Illuminated Lens Units with Strobe
Description
50 mm strobe lens unit
XVPC33
Ring Color
Black
Light Source and Voltage
Strobe 24 Vdc
0.3 Joule
Lens Color
Green
Red
Amber
Blue
Clear
Yellow
Green
Red
Amber
Blue
Clear
Yellow
Green
Red
Amber
Blue
Clear
Yellow
Green
Red
Amber
Blue
Clear
Yellow
Green
Red
Amber
Blue
Clear
Yellow
Green
Red
Amber
Blue
Clear
Yellow
Catalog Number
XVPC6B3
XVPC6B4
XVPC6B5
XVPC6B6
XVPC6B7
XVPC6B8
XVPC6G3
XVPC6G4
XVPC6G5
XVPC6G6
XVPC6G7
XVPC6G8
XVPC6M3
XVPC6M4
XVPC6M5
XVPC6M6
XVPC6M7
XVPC6M8
XVPC6B3W
XVPC6B4W
XVPC6B5W
XVPC6B6W
XVPC6B7W
XVPC6B8W
XVPC6G3W
XVPC6G4W
XVPC6G5W
XVPC6G6W
XVPC6G7W
XVPC6G8W
XVPC6M3W
XVPC6M4W
XVPC6M5W
XVPC6M6W
XVPC6M7W
XVPC6M8W
Strobe 120 Vac
0.6 Joule
Strobe 230 Vac
0.6 Joule
XVPC6B8
Off-white
Strobe 24 Vdc
0.3 Joule
Strobe 120 Vac
0.6 Joule
XVPC6G6
Strobe 230 Vac
0.6 Joule
XVPC6M5
3
11/01
©
2001 Schneider Electric All Rights Reserved
