Product data sheet
Characteristics
ZCMD21L2

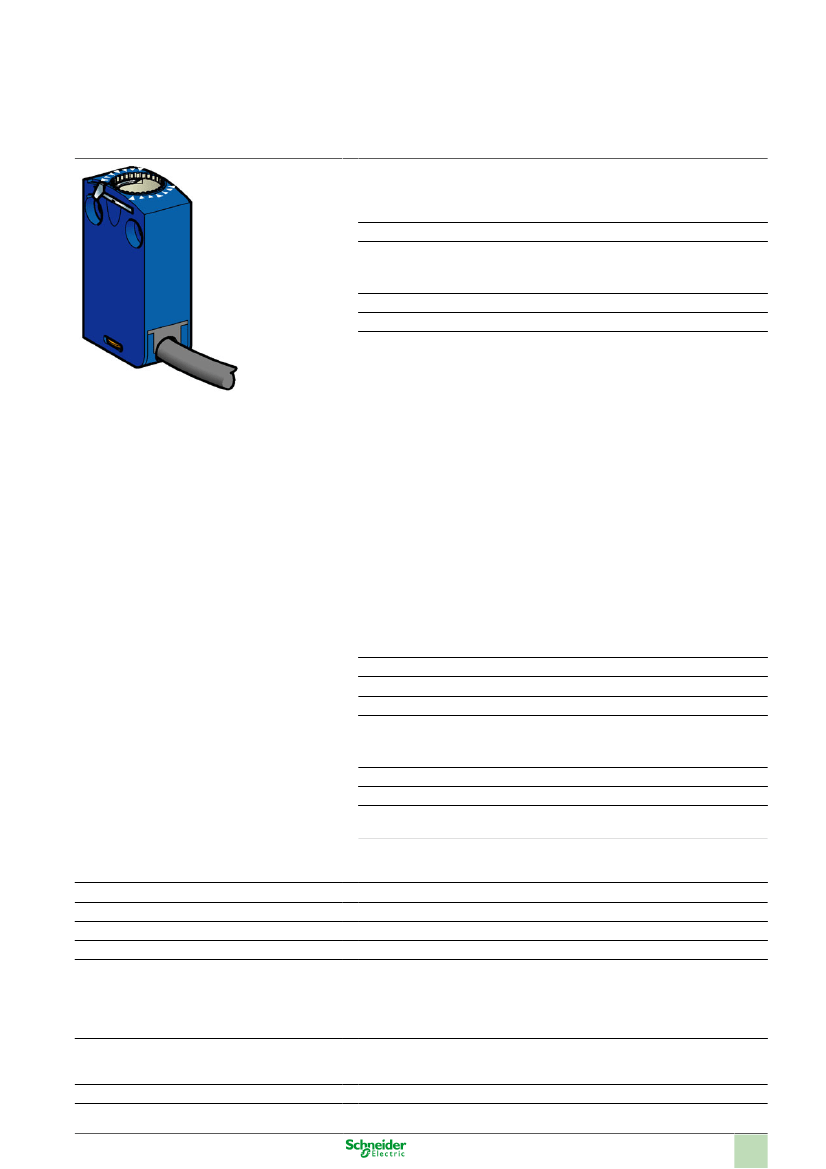

limit switch body ZCMD - 1NO+1NC - silver -
snap action - connection - 2m
Main
Range of product
Series name
Product or component
type
Device short name
Body type
Product compatibility
Associated head
OsiSense XC
Standard format
Limit switch body
ZCMD
Fixed
XCMD
ZCE01
ZCE02
ZCE06
ZCE07
ZCE08
ZCE09
ZCE10
ZCE11
ZCE13
ZCE14
ZCE21
ZCE24
ZCE27
ZCE28
ZCE29
ZCE62
ZCE63
ZCE64
ZCE65
ZCE66
ZCE67
ZCEF0
ZCEF2
ZCEG1
Removable cable
2m
2
1 NO + 1 NC
Snap action
Silver plated contacts
With
0.01 m/min
Electrical connection
Cable length
Number of poles
Contacts type and com-
position
Contacts operation
Contacts material
Positive opening
Minimum actuation
speed
Complementary
Design
Body material
Cable composition
Wire insulation material
Contacts insulation form
Contact code designation
Miniature
Zamak
5 x 0.75 mm²
PvR
Zb
B300 , AC-15 (Ue = 240 V , Ie = 1.5 A) conforming to EN/IEC 60947-5-1 ap-
pendix A
R300 , DC-13 (Ue = 250 V , Ie = 0.1 A) conforming to EN/IEC 60947-5-1 ap-
pendix A
300 V degree of pollution 3 conforming to UL 508
300 V degree of pollution 3 conforming to CSA C22-2 No 14
400 V degree of pollution 3 conforming to IEC 60947-5-1
< 25 mOhm conforming to IEC 60255-7 category 3
[Ui] rated insulation voltage
Resistance across terminals
Mar 13, 2014
1
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
[Uimp] rated impulse withstand voltage
Short circuit protection
Electrical durability
4 kV conforming to IEC 60947-1
4 kV conforming to IEC 60664
6 A by gG cartridge fuse
5000000 cycles , DC-13 (Uc = 24 V), 4 W , load factor: 0.5 , operating rate: < 60
cyc/mn conforming to IEC 60947-5-1 appendix C
5000000 cycles , DC-13 (Uc = 48 V), 3 W , load factor: 0.5 , operating rate: < 60
cyc/mn conforming to IEC 60947-5-1 appendix C
5000000 cycles , DC-13 (Uc = 120 V), 3 W , load factor: 0.5 , operating rate: < 60
cyc/mn conforming to IEC 60947-5-1 appendix C
30 mm
50 mm
16 mm
0.065 kg
Width
Height
Depth
Product weight
Environment
Ambient air temperature for operation
Ambient air temperature for storage
RoHS EUR conformity date
RoHS EUR status
-25...70 °C
-40...70 °C
4Q2009
Will be compliant
2
