HYBRID IC

M57182N-315

UNINSULATED DC-DC CONVERTER

DESCRIPTION

M57182N-315 is an un-insulated type DC-DC converter with

that voltages obtained from rectifying 200VAC can be directly

inputted.

This hybrid IC gives +15V, 200mA with several external

components such as electrolytic capacitors and choke coil.

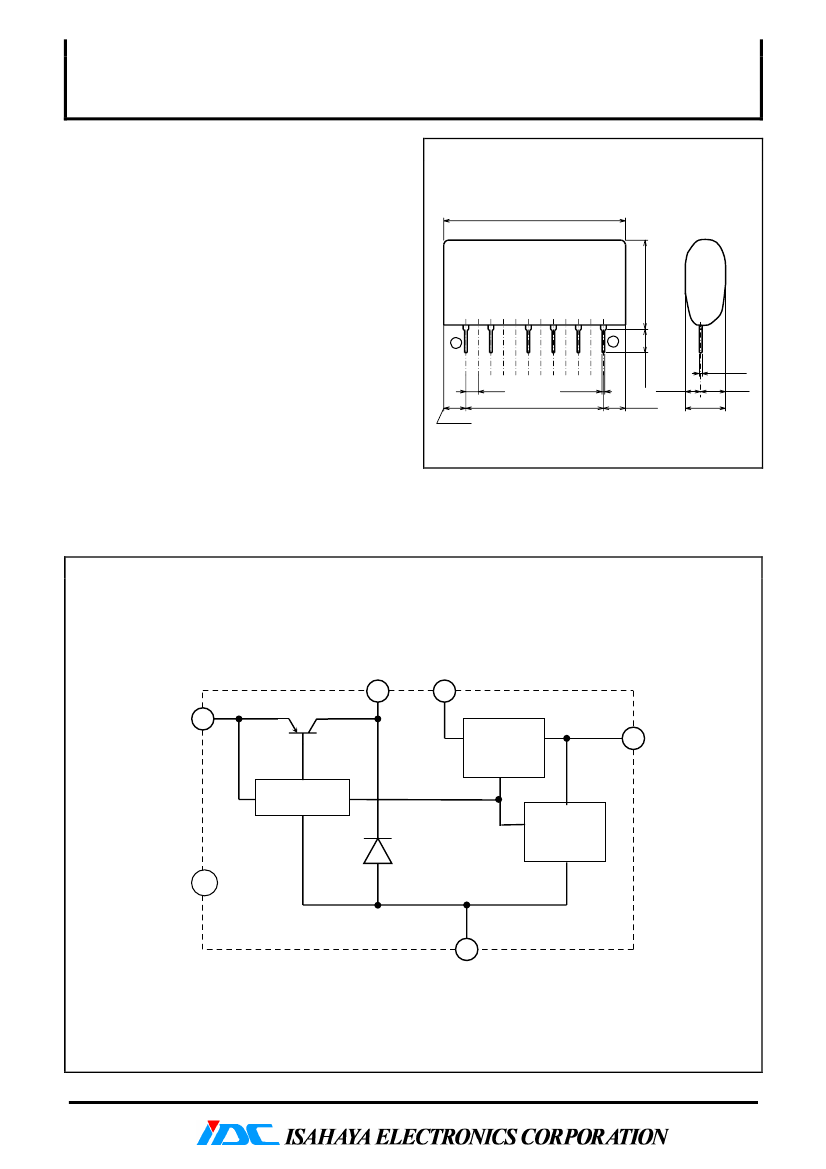

OUTLINE DRAWING

Dimensions: mm

35.0 MAX

FEATURES

•Input voltage rage ··································· DC 220V ~ 380V

•Output specifications······························· 15V, 200mA

M57182N-315

●

XXXX

4.5+/-1.5

20.0 MAX

APPLICATIONS

DIP-IPM driving power supply using for electric household

appliances and so on.

3.5 MAX

0.35+/-0.2

3.8 MAX

8.5 MAX

5 MAX

2.54

0.55+/-0.1

2.54 x 11 = 27.94

3.5 MAX

BLOCK DIAGRAM

Vin

Current

detector

Base driver

Voltage

detector

COMMON

HYBRID IC

M57182N-315

UNINSULATED DC-DC CONVERTER

FOR SAFETY USING

Great detail and careful attention are given to the production activity of Hics, such as the development, the quality of production,

and in it’s reliability. However the reliability of Hics depends not only on their own factors but also in their condition of usage.

When handling Hics, please note the following cautions.

CAUTIONS

Packing

The materials used in packing Hics can only withstand normal external conditions.

When exposed to outside shocks, rain and certain environmental contaminators, the packing

materials will deteriorates. Please take care in handling.

Carrying

Don’t stack boxes too high. Avoid placing heavy materials on boxes.

Boxes must be positioned correctly during transportation to avoid breakage.

Don't throw or drop boxes.

Keep boxes dry.

Avoid rain or snow.

Minimal vibration and shock during transportation is desirable.

Storage

When storing Hics, please observe the following notices or possible deterioration of their electrical

characteristics, risk of solderability, and external damage may occur.

Devices must be stored where fluctuation of temperature and humidity is minimal, and must

not be exposed to direct sunlight. Store at the normal temperature of 5 to 30 degrees Celsius

with humidity at 40 to 60%.

Avoid locations where corrosive gasses are generated or where much dust accumulates.

Storage cases must be static proof.

Avoid putting weight on boxes.

Extended storage

When extended storage is necessary, Hics must be kept non-processed. When using Hics which

have been stored for more than one year or under severe conditions, be sure to check that the

exterior is free from flaw and other damages.

Maximum ratings

To prevent any electrical damages, use Hics within the maximum ratings.

current, voltage, etc. must not exceed these conditions.

The temperaqture,

Polarity

To protect Hics from destruction and deterioration due to wrong insertion, make sure of polarity in

inserting leads into the board holes, conforming to the external view for the terminal arrangement.

HYBRID IC

M57182N-315

UNINSULATED DC-DC CONVERTER

Marketing division, Marketing plannning department

6-41 Tsukuba, Isahaya, Nagasaki, 854-0065 Japan

Keep safety first in your circuit designs!

- ISAHAYA Electronics Corporation puts the maximum effort into making semiconductor products better and more reliable,

but there is always the possibility that trouble may occur with them. Trouble with semiconductors may lead to personal

injury, fire or property damage. Remember to give due consideration to safety when making your circuit designs, with

appropriate measures such as (1)placement of substitutive, auxiliary circuits, (2)use of non-flammable material or

(3)prevention against any malfunction or mishap.

Notes regarding these materials

- These materials are intended as a reference to assist our customers in the selection of the ISAHAYA products best suited

to the customer's application; they don't convey any license under any intellectual property rights, or any other rights,

belonging ISAHAYA or a third party.

- ISAHAYA Electronics Corporation assumes no responsibility for any damage, or infringement of any third party's rights,

originating in the use of any product data, diagrams, charts or circuit application examples contained in these materials.

- All information contained in these materials, including product data, diagrams and charts, represent information on products

at the time of publication of these materials, and are subject to change by ISAHAYA Electronics Coporation without notice

due to product improvements or other reasons. It is therefore recommended that customers contact ISAHAYA Electronics

Corporation or an authorized ISAHAYA products distributor for the latest product infomation before purchasing product listed

herein.

- ISAHAYA Electronics Corporation products are not designed or manufactured for use in a device or system that is used

under circumstances in which human life is potentially at stake. Please contact ISAHAYA electronics corporation or an

authorized ISAHAYA products distributor when considering the use of a product contained herein for any specific purposes,

such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater use.

- The prior written approval of ISAHAYA Electronics Corporation is necessary to reprint or reproduce in whole or in part these

materials.

- If these products or technologies are subject to the Japanese export control restrictions, they must be exported under a

lisence from the Japanese government and cannot be imported into a country other than the approved destination.

Any diversion or reexport contrary to the export control laws and regulations of Japan and/or the country of destination is

prohibited.

- Please contact ISAHAYA Electronics Corporation or an authorized ISAHAYA products distributor for further details on these

materials or the products contained therein.

Nov.2002
