Standard TS35 DIN Rail in accordance with EN 60715
Sound Pressure Level (SPL) < 25dBA
2
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (June 2014, Rev. 01)

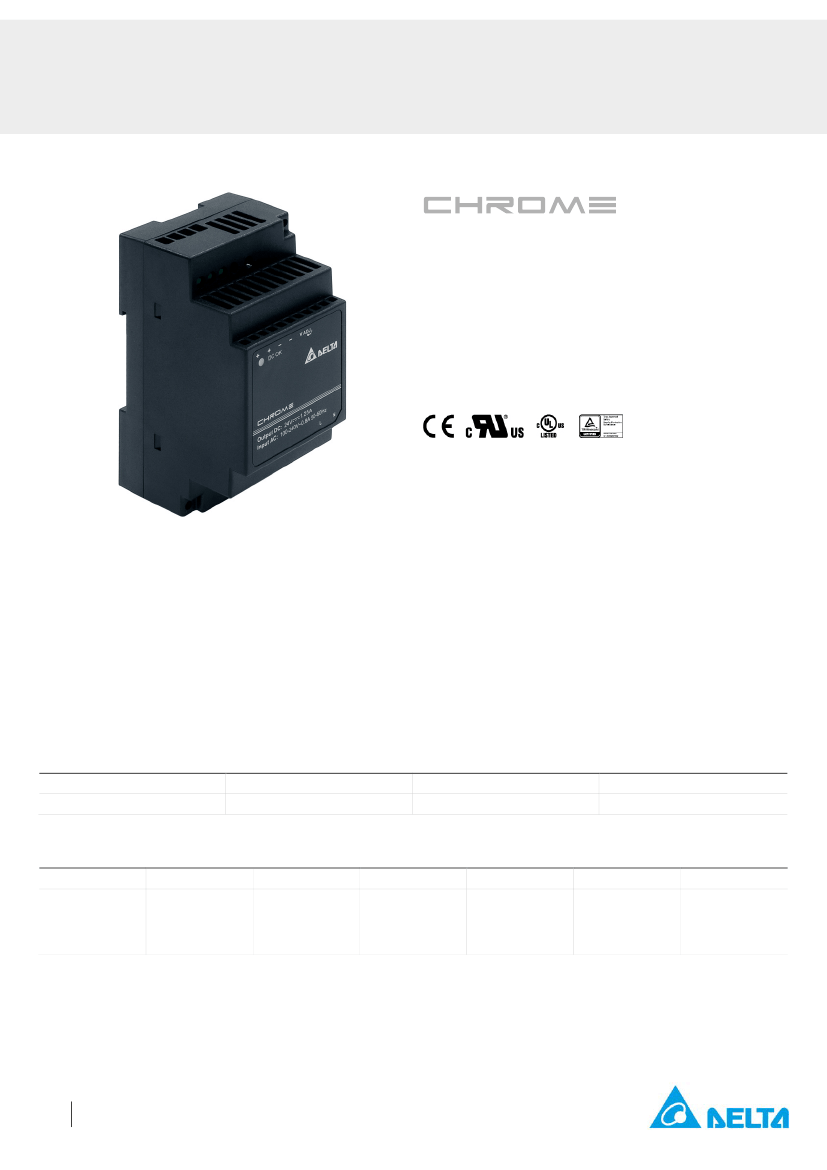

TECHNICAL DATASHEET
Chrome DIN Rail Power Supply
24V 30W 1 Phase (Class II & NEC Class 2) / DRC-24V30W1AZ
Environment
Surrounding Air Temperature
Power De-rating
Operating Humidity
Operating Altitude
Shock Test (Operating)
Vibration (Operating)
Pollution Degree
Operating
Storage
-25°C to +71°C
-25°C to +85°C
> 55°C de-rate power by 2.5% / °C
5 to 95% RH (Non-Condensing)
0 to 2,000 Meters
IEC 60068-2-27, Half Sine Wave: 4G for a duration of
22ms, 3 shocks for each 3 directions, 9 times in total
IEC 60068-2-6, Sine Wave: 10-500Hz @ 19.6m/S² (2G
peak); 10 min per cycle, 60 min for all X, Y, Z directions
2
Protections
Overvoltage
Overload / Overcurrent
< 34.8V, SELV Output, Latch-off Mode
> 130% of rated load current, Hiccup Mode,
Non-Latching (Auto-Recovery when the fault is
removed)
> 75°C Surrounding Air Temperature @ 100% load,
Latch-off Mode
Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)
IP20
Class II (No PE* connection is required)
Over Temperature
Short Circuit
Degree of Protection
Protection Against Shock
*PE: Primary Earth
Reliability Data
MTBF
Expected Cap Life Time
> 500,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C
10 years (115Vac & 230Vac, 50% load @ 40°C)
3
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (June 2014, Rev. 01)
TECHNICAL DATASHEET
Chrome DIN Rail Power Supply
24V 30W 1 Phase (Class II & NEC Class 2) / DRC-24V30W1AZ
Safety Standards / Directives
Electrical Safety
TUV Bauart to EN 60950-1, UL/cUL recognized to
UL 60950-1, CSA C22.2 No. 60950-1, CB scheme to
IEC 60950-1, Limited Power Source (LPS)
UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01
UL/cUL recognized to UL 60950-1, CSA C22.2
No. 60950-1
In conformance with EMC Directive 2004/108/EC and
Low Voltage Directive 2006/95/EC
RoHS Directive 2011/65/EU Compliant
Input to Output
3.0KVac
Industrial Control Equipment
Class 2 Power Supply
CE
Material and Parts
Galvanic Isolation
EMC
EMC / Emissions
Immunity to
Electrostatic Discharge
IEC 61000-4-2
CISPR 22, EN 55022, FCC Title 47: Class A*
EN 55024
Level 3 Criteria A
Air Discharge: 8kV
Contact Discharge: 4kV
Level 2 Criteria A
80MHz-1GHz, 3V/M with 1kHz tone / 80% modulation
Level 3 Criteria A
1kV
1)
1)
1)
Radiated Field
Electrical Fast Transient / Burst
Surge
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
Level 3 Criteria A
2)
Common Mode : 2kV
3)
Differential Mode : 1kV
Level 2 Criteria A
150kHz-80MHz, 3Vrms
Criteria A
1A/Meter
1)
1)
1)
Conducted
Power Frequency Magnetic Fields
Voltage Dips
Voltage Fluctuation and Flicker
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
> 95% dip; 0.5 cycle (10ms)
IEC/EN 61000-3-3
*Warning: This is a Class A product. In a residential, commercial or light industrial environment it may cause radio interference. This product is not intended to be installed in a
residential environment; in a commercial and light industrial environment with connection to the public mains supply, the user may be required to take adequate measures to
reduce interference.
4
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (June 2014, Rev. 01)
TECHNICAL DATASHEET
Chrome DIN Rail Power Supply
24V 30W 1 Phase (Class II & NEC Class 2) / DRC-24V30W1AZ

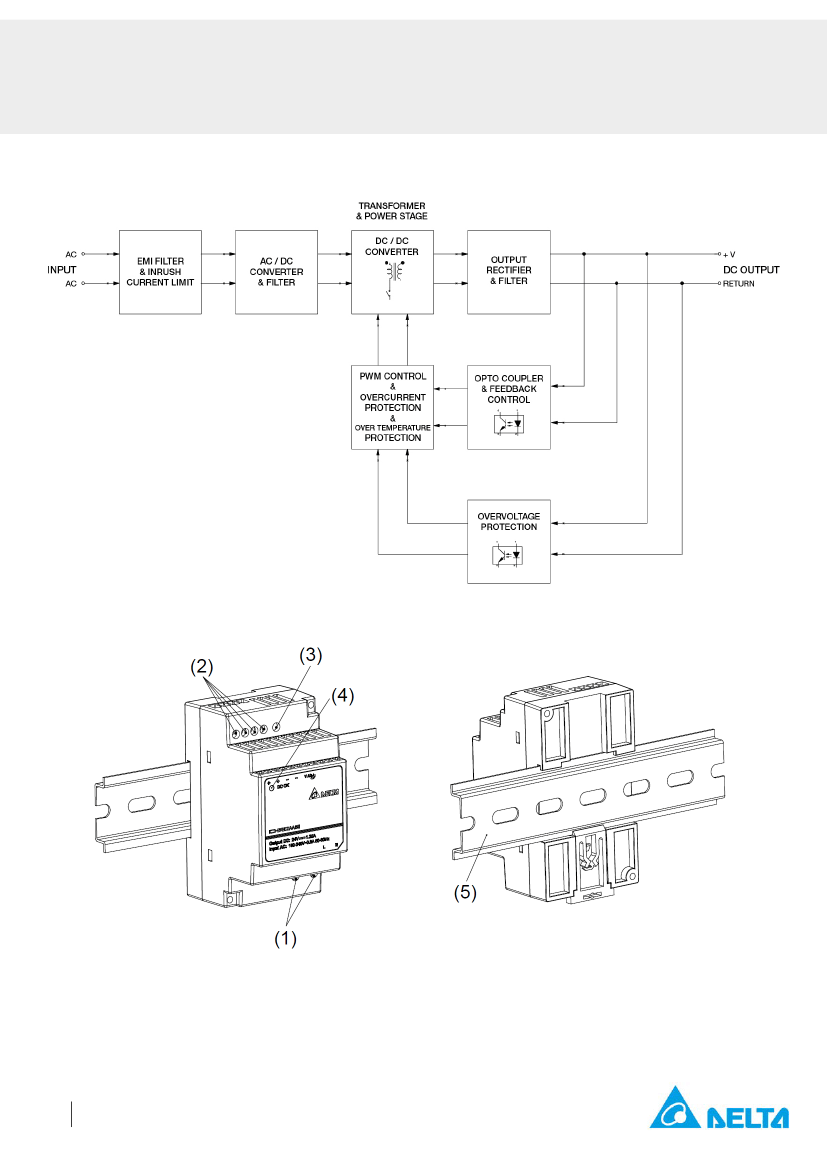

Block Diagram
Device Description
1)
2)
3)
4)
5)
Input terminal block connector
Output terminal block connector
DC voltage adjustment potentiometer
DC OK control LED (Green)
Universal mounting system
5
All parameters are specified at 25°C ambient unless otherwise indicated.
