Smart Slaves
Remote I/O Terminals with Transistors
DRT2-ID08(-1)/OD08(-1)/MD16(-1)
MIL Connector Terminals with Transistors
DRT2-ID16ML(-1)/OD16ML(-1)/ID16MLX(-1)/OD16MLX(-1)
Environment-resistive Terminals with Transistors (without detection functions)
DRT2-ID04CL(-1)/OD04CL(-1)/ID08CL(-1)/OD08CL(-1)/
MD16CL(-1)/HD16CL(-1)
Remote Maintenance
The lineup now includes a wide variety of Smart Slaves with different numbers of control
points that contribute to production site servicing and repair.
Use production site information in a variety of applications,
such as maintenance and quality control.
OMRON's DRT2-series Smart Slaves do not just input and output ON/OFF signals. They collect a variety
of value-added information to help increase the rate of operation without changing the wiring for
existing DeviceNet networks. In particular, they allow the separation of control systems and
maintenance systems so that maintenance systems can be created independently of control systems.
Control System
PLC
Maintenance is
required for
cylinder 23A in
inspection line A!
Control I/O
Maintenance System
2
Easy-to-view
Display
Configurator
Operating time, contact operation
counter
Maintenance information
DRT2-series
Smart Slave
1
Machine Operation
Monitored by Slave
3
Faster Maintenance
Work
Pneumatic valve
(Connected device
comment)
The Slave can hold comments, allowing
quick identification of fault locations and
faulty devices.
Measuring
The Slave Unit represents
machine operating time and
operational changes as data,
enabling monitoring without
increasing the load between
controllers.
Counting
By counting the number of
ON/OFF operations and the
total operating time, the Slave
Unit can provide notification
when maintenance is required.
Sensor
(Connected device
comment)
Cylinder
(Connected device comment)

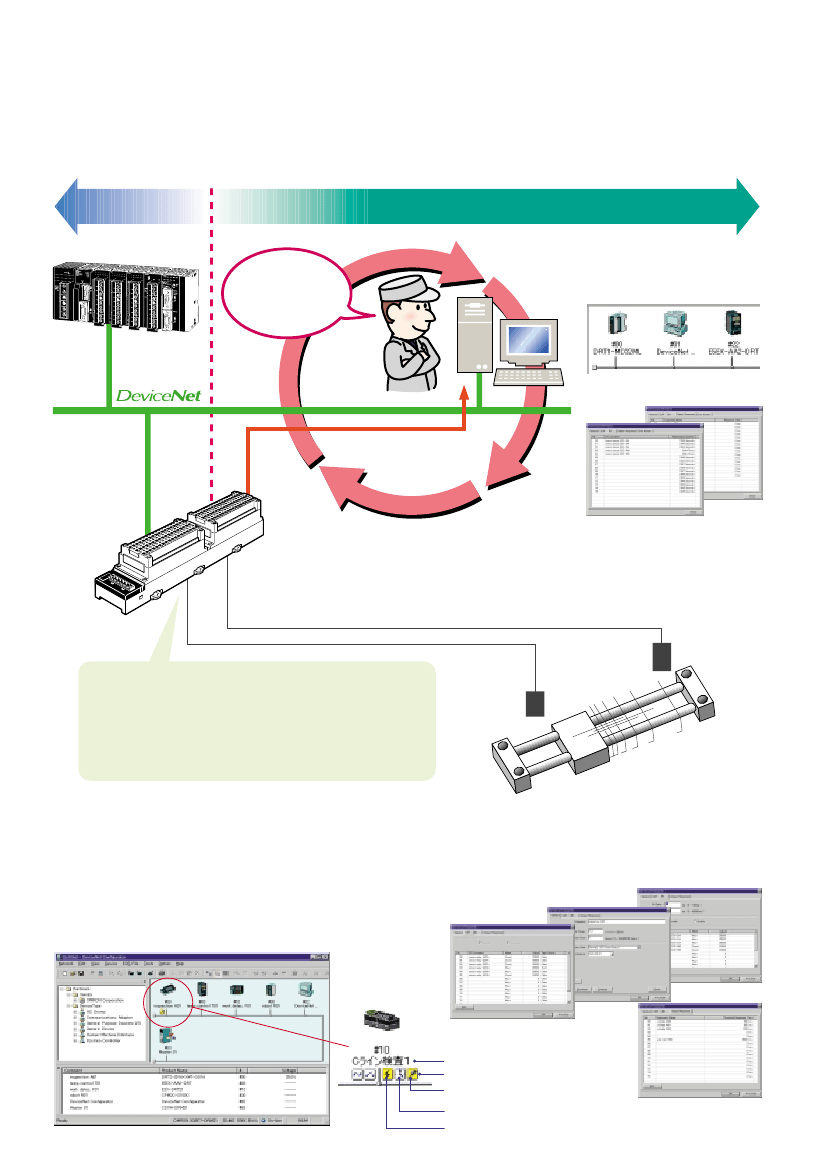

Collect a variety of data from maintenance systems without
influencing control systems and productivity.
All data can be converted to electronic format and,
by combining with an OMRON PLC (CS/CJ Series),
checked directly from Ethernet or the Internet to
allow remote maintenance.
Information monitoring for
each Slave
Slave comment
Status confirmation using the status icon
Operating time monitor error or contact
operation count monitor error
Unit conduction time monitor error
Communications power voltage monitor error
2
Control System
Maintenance System
DeviceNet
Configurator

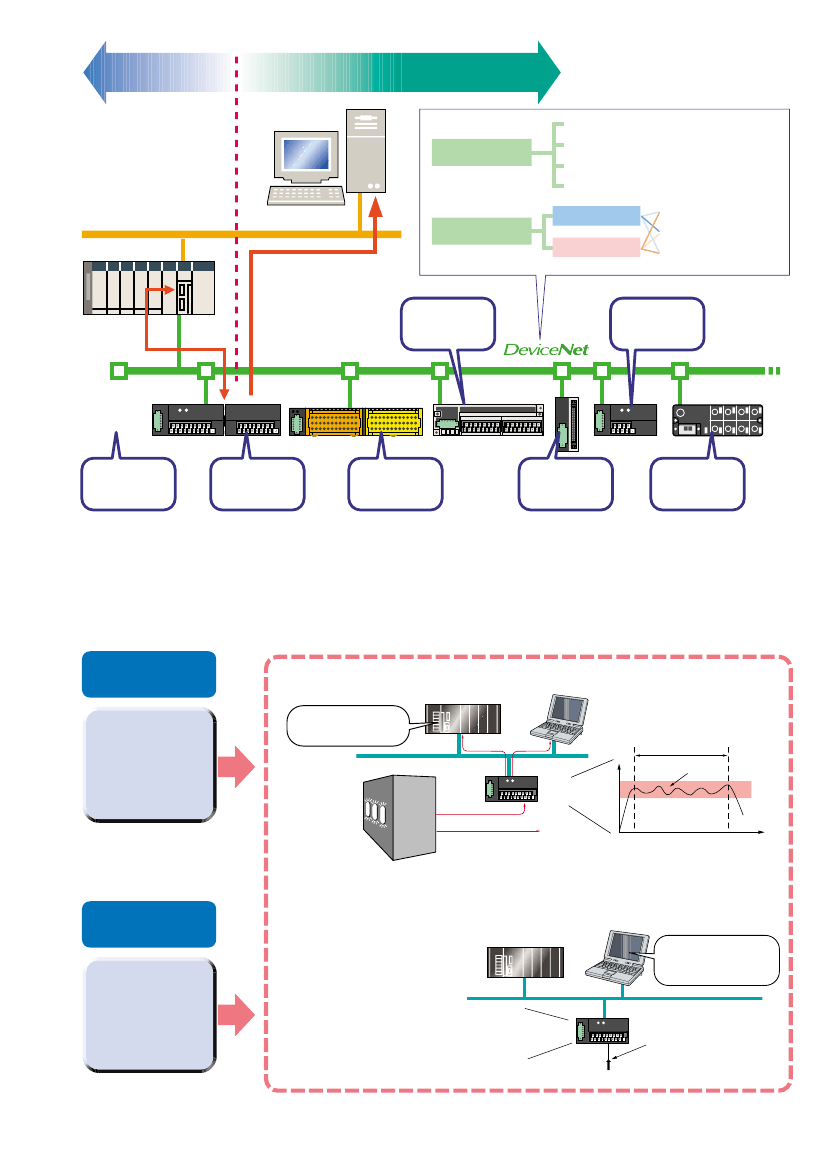

Preventive maintenance
of equipment
Operating time monitor
Contact operation counter
Unit conduction time monitor
Slave and connected component comments
I/O power status monitor
Network power voltage monitor
Ethernet
PLC
Maintenance information
Reduced startup time
Reliable equipment
startup
Reduced downtime
Communication error history
monitor
Control
information
Unit conduction
time monitor
(See note.)
It's time for
motor
maintenance!
What is the
present
communications
voltage?
Network power
voltage monitor
DRT2-series
Smart Slave
The wiring to
the I/O device is
short-circuited
or broken!
External load
short-circuit detection
The cylinder's
speed is
incorrect!
Operating time
monitor
It might be time
for a switch
inspection!
Contact operation
counter (See note.)
Is the I/O
power supply
turned ON?
I/O power status
monitor
What was the
cause
of the error?
Communication error
history monitor
Note:
The contact operation counter function and the unit conduction time monitor function cannot be used simultaneously.
Using OMRON Temperature Input Terminals for
Maintenance
Failure Prediction
and Maintenance
If prolonging the
time it takes to
reach a certain
temperature may
degrade
equipment:
The operating time of a preset temperature range is counted in 1-s units.
Slaves can notify the
Master when a setting
is exceeded.
Temperature
Indicator service
life control
Operating time
Input
Semiconductor
manufacturing equipment
Time
The peaks or valleys of temperature inputs that change in a regular pattern
are counted to predict when devices operating with severe temperature
swings are due for maintenance.
Short Startup
If it takes too long
to modify the
ladder program on
the Master when a
Temperature
Sensor is replaced:
Slaves internally
convert display values
to temperature input
values so the Controller
program no longer has
to be modified to
perform this task.
Scaling points for 0%
and 100% are set from
the Configurator
Scaling performed
inside the Slave
Sensor replaced by one
with a different input range
3
Wide variety of control and maintenance functions using DeviceNet.
Monitor network devices using
a DeviceNet Configurator.

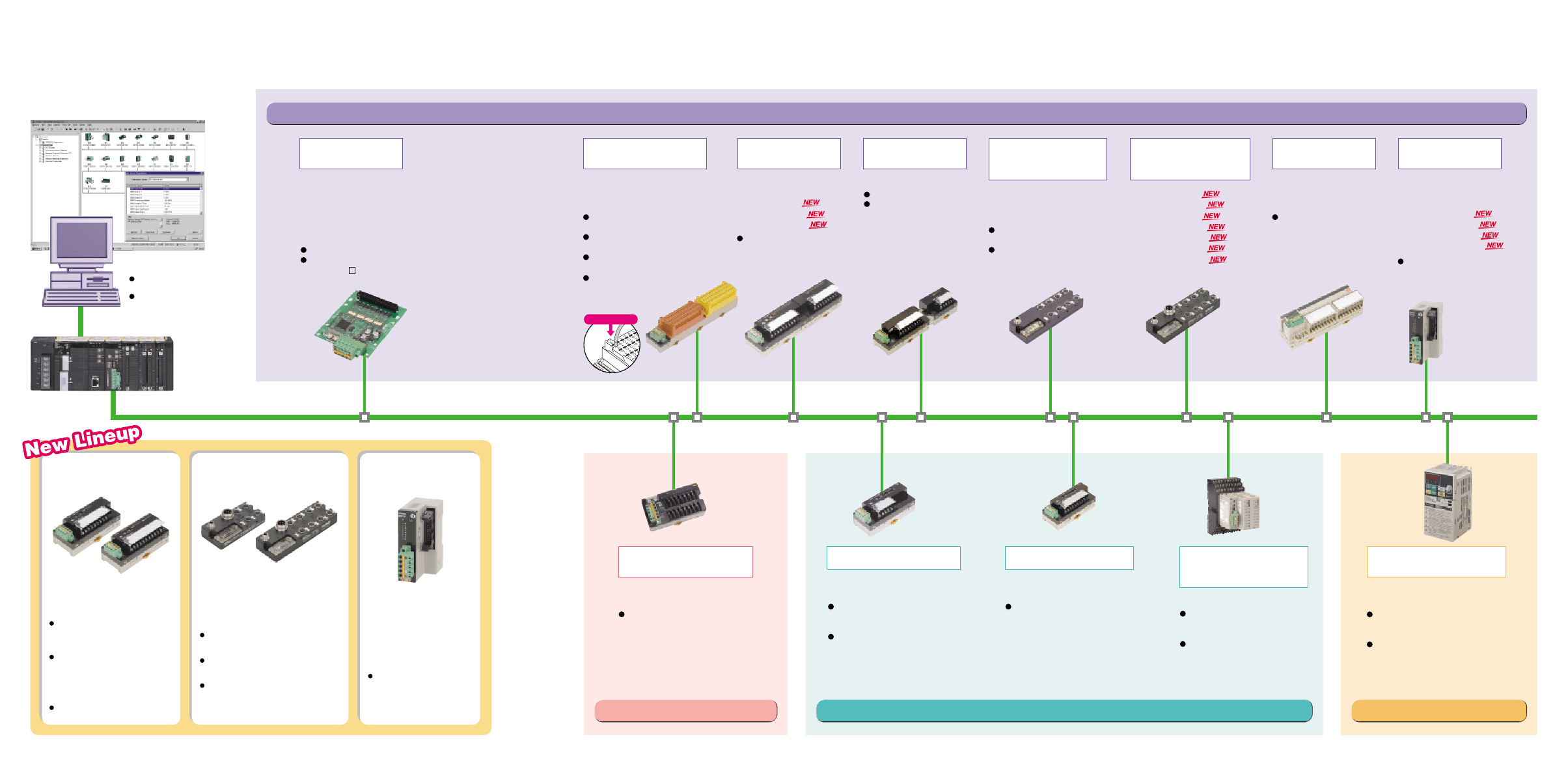

I/O Control and Maintenance
Board Terminals
with MIL Connectors
DRT2-ID32B(-1)
DRT2-OD32B(-1)
DRT2-MD32B(-1)
DRT2-ID32BV(-1)
DRT2-OD32BV(-1)
DRT2-MD32BV(-1)
Remote I/O Terminals with
Screw-less Clamps
DRT2-ID32SL(H)(-1)
DRT2-OD32SL(H)(-1)
DRT2-MD32SL(H)(-1)
Wiring is completed in a single
action.
No screw tightening required.
Removable terminal blocks.
Advanced models detect ground
faults and broken lines in I/O wiring.
Applicable wire sizes range
from AWG24 to AWG16 (0.2
to 1.25 mm
2
dia.)
Single action
Remote I/O Terminals
with Transistors
DRT2-ID16(-1)
DRT2-OD16(-1)
DRT2-ID08(-1)
DRT2-OD08(-1)
DRT2-MD16(-1)
I/O points can be
extended by adding
Expansion Units.
Remote I/O Terminal
with Relay Outputs
DRT2-ROS16
One-step relay exchange
Operation time monitor
function enabled by
combining Remote I/O
Terminals with
Expansion I/O Units.
Environment-resistive
Terminals with Transistors
(with detection functions)
DRT2-ID08C(-1)
DRT2-OD08C(-1)
DRT2-HD16C(-1)
High resistance to
environments (IP67).
Detecting shorts in the
sensor power supply is
also possible.
Environment-resistive
Terminals with Transistors
(without detection functions)
DRT2-ID04CL(-1)
DRT2-OD04CL(-1)
DRT2-ID08CL(-1)
DRT2-OD08CL(-1)
DRT2-MD16CL(-1)
DRT2-HD16CL(-1)
DRT2-WD16CL(-1)
Remote I/O Terminals
with 3-tier Terminal Blocks
DRT2-ID16TA(-1)
DRT2-OD16TA(-1)
DRT2-MD16TA(-1)
The 3-tier Terminal Block
means that wiring
locations are easy to find
with no wiring to
intermediate terminals.
MIL Connector
Terminals
DRT2-ID32ML(-1)
DRT2-OD32ML(-1)
DRT2-MD32ML(-1)
DRT2-ID16ML(-1)
DRT2-OD16ML(-1)
DRT2-ID16MLX(-1)
DRT2-OD16MLX(-1)
Ultra-small 32-point remote
terminals (35 x 60 x 80 mm
(W x D x H)).
DeviceNet Configurator
Settings and monitoring
for startup
Settings and monitoring
for maintenance
First Board-type Smart Slave Terminals
User boards attach easily to
the DRT2- D32V(-1) using screws.
CS/CJ-series
DeviceNet Unit
PLC
Models with 8 Input,
8 Output, or 16 I/O Points
Added to the Lineup
Remote I/O Terminals with
IP67 High Environmental
Resistance
Terminals with
16 Inputs or Outputs
e-CON Connector Terminals
Remote I/O Terminals
with Transistors
DRT2-ID08(-1)/OD08(-1)/
MD16(-1)
Collect a variety of data from
maintenance systems without
influencing control systems and
productivity.
Communications power supply
voltage monitor, deterioration due
to aging, operating time data, and
other information can be easily
collected and managed via the
network.
Locations of problems can be easily
identified.
Analog I/O Terminals
DRT2-AD04/DRT2-AD04H
DRT2-DA02
The DRT2-AD04H offers high
resolution at 1/30,000 (full scale) and
insulation between input channels.
The DRT2-AD04 and DRT2-DA02
support a wide variety of data
sampling function, including scaling,
peak/bottom hold, top/valley hold,
comparator, integral, and differential
operation functions.
Temperature Input
Terminals
DRT2-TS04T
DRT2-TS04P
Offers basically the same functions as
Analog Input Terminals, such as
scaling and comparators.
Also provides functions that are
available only from Temperature
Input Terminals, such as the time in a
preset temperature range and
temperature difference detection
between input channels.
Environment-resistive Terminals
with Transistors
DRT2-ID04CL(-1)/OD04CL(-1)/
ID08CL(-1)/OD08CL(-1)/MD16CL(-1)/
HD16CL(-1)/WD16CL(-1)
Smart Slave functions provide robust
support for effective maintenance and
monitoring device operation status.
The terminals conform to IP67 and use
materials selected for resistance to oil
and spattering.
Models with two-output connector are
also available to improve ease of
connection with hydraulic valve
devices.
DeviceNet Communications
Unit for E5ZN Digital
Temperature Controllers
E5ZN-DRT
Monitoring and setting of
Temperature Controller from
PLC.
Batch download of all
Temperature Controller
parameters from Configurator.
DeviceNet Communications
Units/Cards for Inverters
3G3MV-PDRT2 (for 3G3MV Series)
3G3RV-PDRT2 (for 3G3RV Series)
Frequencies and other
specifications can be designated
from PLC.
Monitor-related maintenance
possible, including output current
(torque) error detection/trace,
operation monitor, and general-
purpose I/O read.
MIL Connector Terminals
with Transistors
DRT2-ID16ML(-1)/
OD16ML(-1)/
ID16MLX(-1)/
OD16MLX(-1)
Connection with an array of
I/O interfaces is achieved by
combining adaptor boards
for D-Sub or other
interfaces.
DRT2-ID16S(-1)
DRT2-MD16S(-1)
Includes industry-standard
e-CON connector that can be
used to connect prewired
sensors without using special
tools.
(The OMRON XN2 Connector can
be used.)
Sensor Input and Maintenance
Analog Control and Maintenance
5
Monitor Control and Maintenance
6
4
Functions Supported by Smart Slaves
General-purpose Slaves
Slave name
Remote I/O Terminals
Type
Models with Transistors
DRT2-
@D16(-1)
DRT2-
@D08(-1)
DRT2-
MD16(-1)
Input/
output
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
---
---
❍
❍
---
---
❍
❍
---
---
---
---
❍
❍
❍
---
❍
---
---
---
❍
---
---
---
---
---
---
---
---
---
---
---
❍
---
---
---
❍
❍
---
---
❍
❍
❍
❍
---
❍
Model with
Relay Outputs
DRT2-
ROS16
Output
Models with 3-tier
Terminal Blocks
DRT2-@D16TA(-1)
MIL Connector
Terminals
Models with
Transistors
DRT2-@D32ML(-1)
DRT2-@D16ML(-1)
DRT2-@D16MLX(-1)
Board Terminals
Models with MIL
Connectors
DRT2-@D32B(-1)
DRT2-@D32BV(-1)
General-purpose Slaves
Screw-less Clamp Terminals
Environment-resistive Slaves
Environment-resistive Terminals
General-
purpose Slaves
e-con
Connector
Terminals
DRT2-
@D16S(-1)
Input
---
❍
❍
❍
❍
❍
❍
---
❍
❍
❍
---
❍
---
---
---
❍
❍
❍
---
---
---
❍
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
❍
❍
❍
---
---
---
❍
---
---
---
---
---
---
---
---
---
---
---
❍
❍
❍
❍
❍
---
---
---
---
❍
---
---
---
---
---
❍
---
---
❍
❍
❍
❍
❍
❍
Input/
output
❍
Analog Slaves
Temperature
Input
Terminals
Models with Transistors
Models with Transistors
Models with Transistors
Models with Transistors
With Detection Functions Without Detection Functions With Detection Functions Without Detection Functions
DRT2-@D32SLH(-1)
Input/
output
DRT2-@D32SL(-1)
Input/
output
DRT2-@D08C(-1)
DRT2-@D16C(-1)
Input
Output
---
❍
❍
❍
❍
❍
❍
❍
❍
---
---
---
---
---
---
❍
❍
❍
---
---
---
---
❍
---
---
---
---
---
---
---
---
---
---
---
❍
❍
❍
❍
❍
---
❍
---
---
DRT2-@D04CL(-1)
DRT2-@D08CL(-1)
DRT2-@D16CL(-1)
Input
Output
Input/
output
❍
Analog I/O Terminals
Model
DRT2- DRT2-
AD04 AD04H
Input
---
---
❍
---
❍
❍
❍
---
❍
---
---
---
---
---
---
❍
❍
❍
---
---
❍
❍
❍
❍
DRT2-
DRT2-TS04@
DA02
Output
Input
---
---
❍
---
❍
❍
❍
---
❍
---
---
---
---
---
---
❍
❍
❍
---
---
❍
❍
❍
❍
---
❍
---
❍
❍
❍
❍
---
❍
❍
❍
Function
I/O classification
Input Output Input Output
❍
(Inputs and
outputs only)
Input Output
❍
Input/
Input/
Input/
Input Output
Input Output
output
output
output
❍
❍
❍
❍
❍
❍
❍
❍
❍
---
---
---
---
---
---
---
❍
❍
---
---
---
---
❍
---
---
---
---
---
---
---
---
---
---
---
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
---
---
---
---
---
---
---
❍
❍
---
---
---
---
❍
---
---
---
---
---
---
---
---
---
---
---
❍
❍
Input
Output
❍
Input
Output
❍
Operating time monitor
Contact operation count monitor
Unit conduction time monitor
Total RUN (ON) time monitor
Unit comment
Connected device comment
Network power voltage monitor
I/O power status monitor
Communications error history monitor
Input filter
Prevention of malfunctions due to
sensor inrush current
Sensor power short-circuit detection
External load short-circuit detection
Sensor disconnection detection
External load disconnection detection
Removable terminal blocks
Automatic baud rate detection
Unit power supply wiring not required
Power supply wiring not required for
input devices
Expansion I/O Units mountable
Scaling
User calibration
Last maintenance date
Integral function
Moving average processing
Number of AD conversion points
setting (conversion cycle)
Peak/bottom hold
Top/valley hold
Change rate calculations
Comparator function
Setting output value for errors
Top/valley count
Operating time in a preset
temperature range
Temperature difference detection
between input channels
❍:
Yes, ---: No
---
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
---
❍
---
---
---
---
❍
❍
❍
❍
❍
❍
(See note.)
---
❍
Note:
The contact operation count monitor and the total RUN (ON) time monitor cannot be used at the same time for one contact.
External load detection is supported only by the DRT2-MD32SLH-1 and DRT2-OD32SLH-1.
7
DRT2-series
Smart Slave
DRT2-series
Smart Slave
8
京公网安备 11010802033920号
EEWORLD
