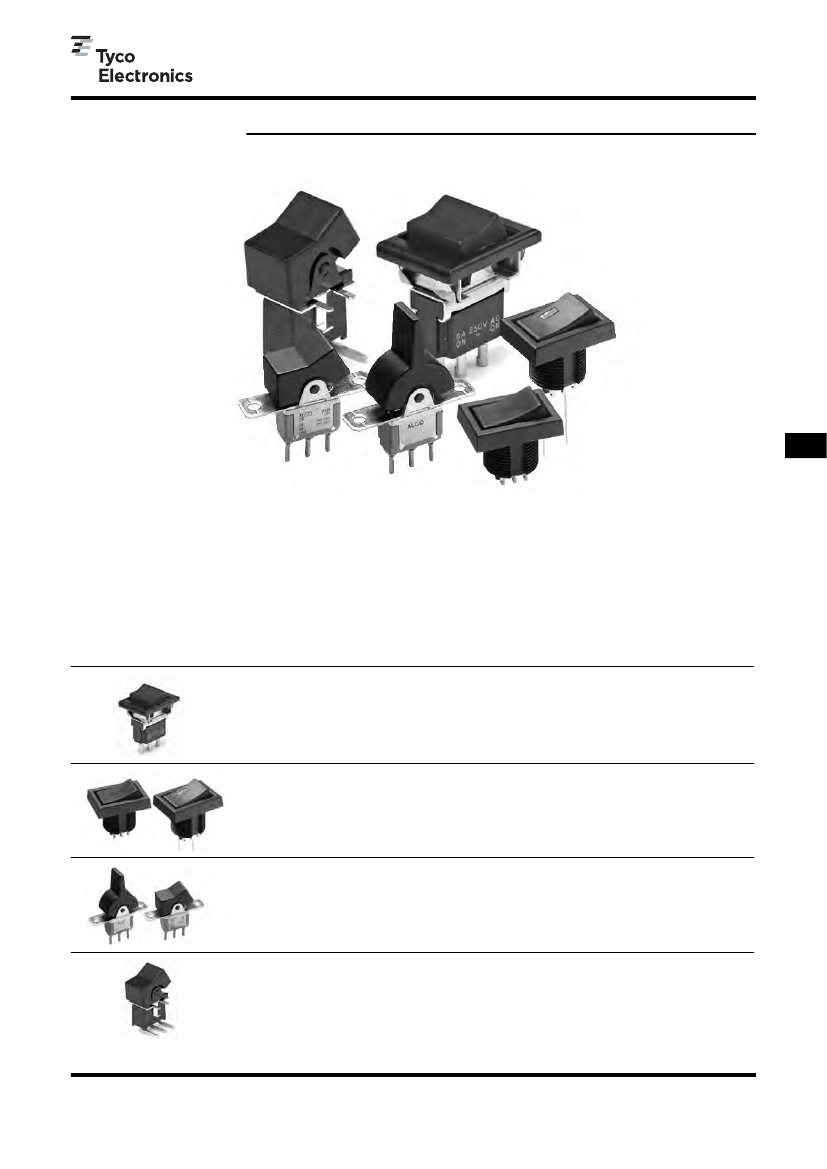

Rocker & Paddle Switches
Product Range
Rocker & Paddle Switches
Rocker & Paddle Switches
I
I
Rocker & Paddle Switches for Panel Mounting:
F, TRD and Gemini Series
Rocker & Paddle Switches for PCB Mounting:
Gemini Series
Main features:
I
I
I
I
I
I
Sealed or unsealed versions
Various switch functions
Gold or silver contacts
LED illumination available (also bi-color)
Multiple rocker/raddle colors available
Beveled frames available
F Series, Power Rocker, Panel Mounting, 6A . . . . . . . . . . . . . . . . . . . . . . . . . . . .page F2
TRD Series, Rocker/Paddle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page F4
Gemini A Series Rocker/Paddle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page F7
Gemini AE Series Rocker/Paddle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page F17
F1
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com
Rocker & Paddle Switches

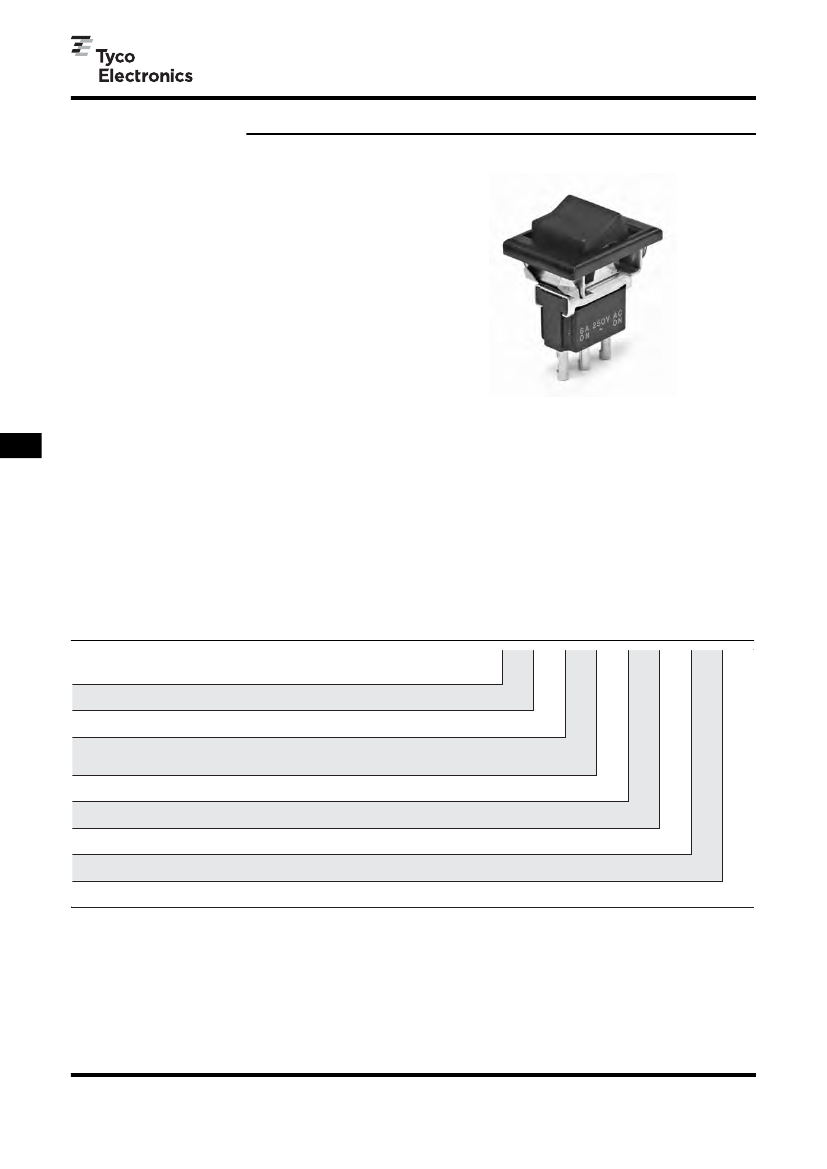

F Series, Rocker/Paddle, Panel Mounting, 6A
Features
I
I
Wide range switch functions available
Terminals are gold-flashed to prevent
oxidation and for ease of soldering
Typical performance characteristics
Environmental specification
Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20 to +70°C
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20 to +70°C
Vibration resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,5 mm 10-55 Hz
Shock resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 g for 11±1 msec
Terminal strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24,5 N
Rocker & Paddle Switches
Number of poles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 to 4 pole
Switch functions . . . . . . . . ON-ON, ON-(ON), ON-OFF-ON, ON-ON-ON,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ON-OFF-(ON), (ON)-OFF-(ON)
Contact rating . . . . . . . . . . . . . . . . . . . . . 6 A @250 VAC, 6 A @125 VAC;
. . . . . . . . . . . . . . . . . . . . . . . . . . . gold contact: 0,4 VA max 20 V AC/DC
Electrical life. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25,000 to 50,000 cycles
Mechanical life. . . . . . . . . . . . . . . . . . . . . . . . . 50,000 to 100,000 cycles
Contact resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max 10 mOhm
Insulation resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . min 1,000 MOhm
Dielectric strength . . . . . . . . . . . . . . . . . . . . . . . . . . 1,000 VAC for 1 min
Actuation force. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max 19,6 N
Panel cut-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ø 6,2 mm
Standards and specs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, CSA
Material specifications
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . brass silver alloy finished
Toggle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . brass chromium plated
Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . brass plate
Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . phenol resin
Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . steel zinc plated
Seal . . . . . . . . . . . . . . . . . . . . . . . . . . rubber seal, insert molded rubber
RoHS compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . compliant
Product key
Type
F
F Series power rocker switch
Model
L
snap-in lever & rocker
Switch function & poles
1 pole
D
ON-ON
Actuator
1
long rocker
Terminal type
9
leadwire hooking type
Contact material
blank
silver
Rocker color
red
red
black
Material
04
RoHS compliant
Typical product key
F
L
N
1
9
red 04
2 pole
N
ON-ON
2
small rocker
G
black
gold
white
white
F2
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com

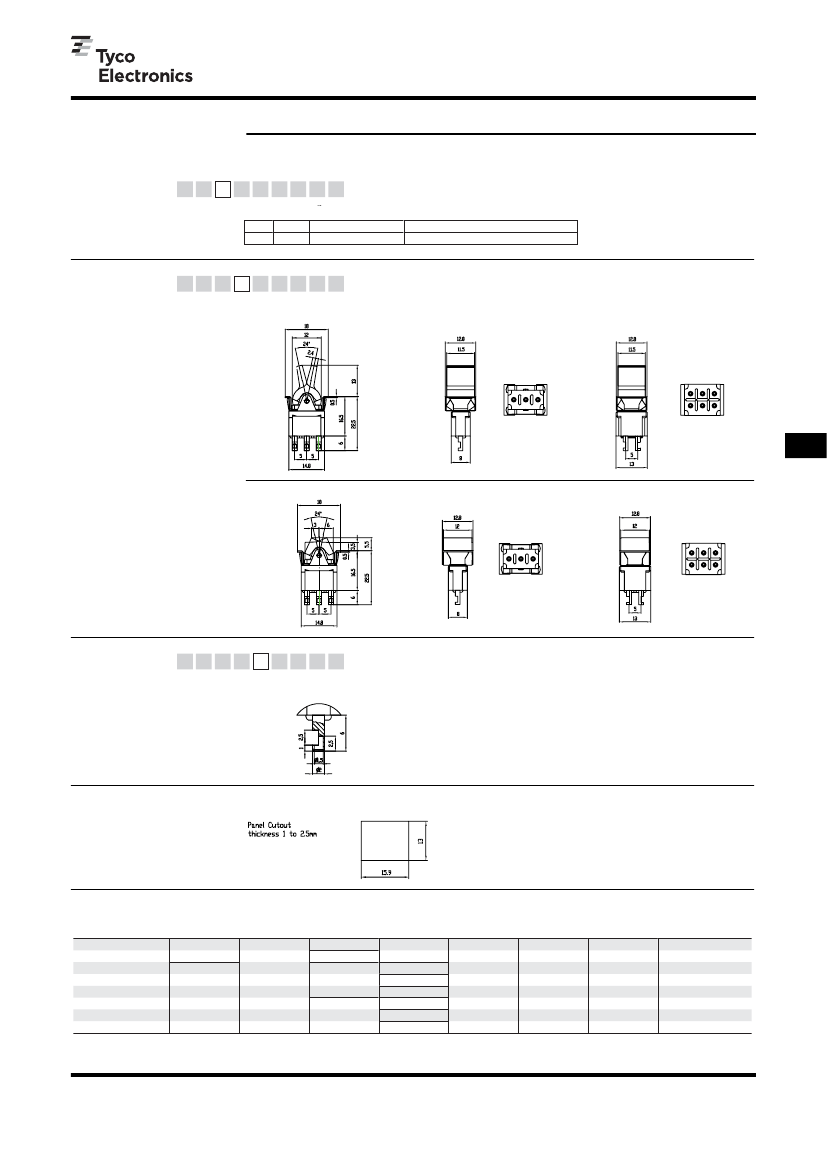

Rocker & Paddle Switches
F Series, Rocker/Paddle, Panel Mounting, 6A
(Continued)
Function
FunctionPoles
D
1
N
2
On
On
!
On
On
1-2
1-2, 4-5
1 pole
3
!
2-3
2-3, 5-6
2 1
indicates a mechanical position with
2 pole
no electrical connection
(On) indicates momentary connection
3 2 1
None indicates no mechanical position
Off
Actuator
Code 1
long rocker
1 pole
2 pole
3
2
1
3
2
1
6
5
4
Rocker & Paddle Switches
Code 2
small rocker
1 pole
3
2
1
2 pole
3
2
1
6
5
4
Terminal
Leadwire hooking type
Mounting
Product key
FLD19black04
FLD29black04
FLN19black04
FLN19red04
FLN19white04
FLN29black04
FLN29red04
FLN29white04
Poles
1 pole
2 poles
Switch func.
On - On
Actuator
long rocker
small rocker
long rocker
Act. Color
black
black
red
white
black
red
white
Terminal
leadwire
hooking
type
Contacts
silver
Material
RoHS
compliant
small rocker
Part Number
3-6437630-2
2-6437630-9
3-6437630-7
2-6437630-7
2-6437630-6
2-6437630-5
4-6437630-7
2-6437630-3
F3
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com
Rocker & Paddle Switches

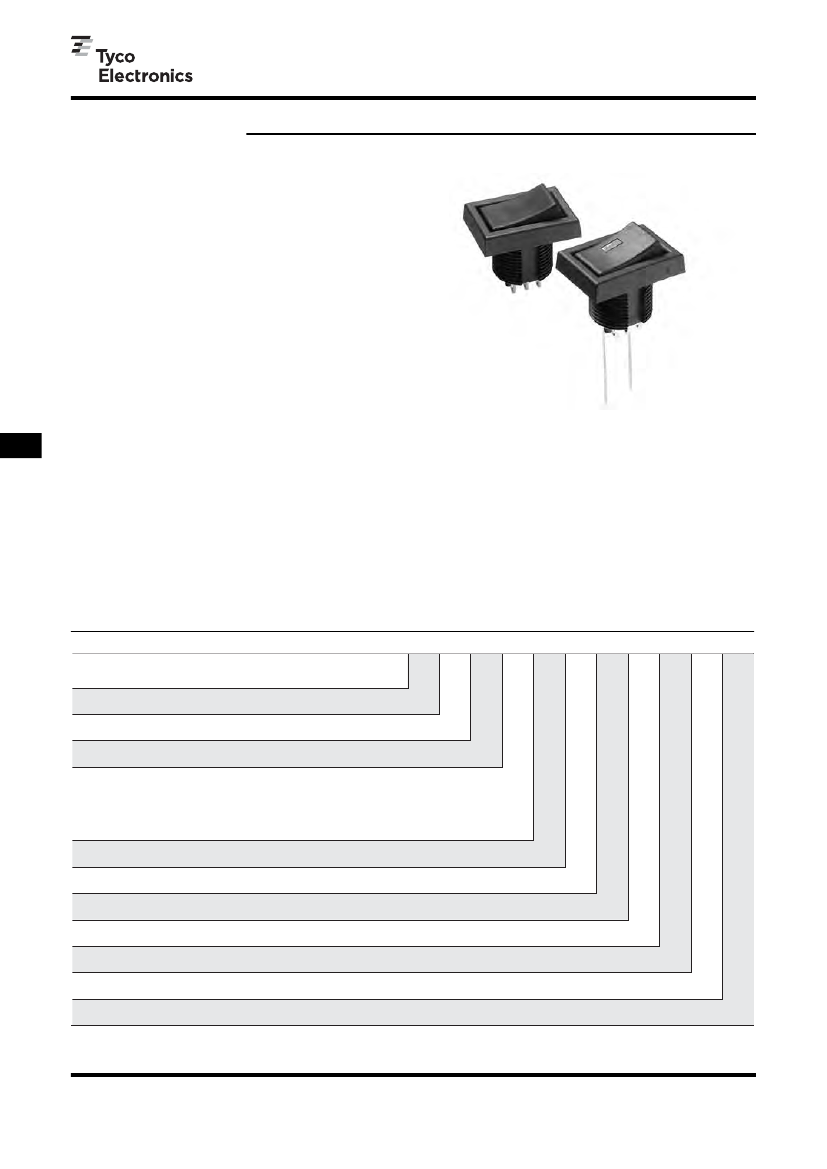

TRD Series, Rocker/Paddle
Features
I
I
I
Wire lug, quick connect, or PC terminals
LED both single and bi-colored available
Entire series epoxy sealed terminals
Typical performance characteristics
Contact configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPST, DPDT
Contact timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . break-before-make
Contact rating max . . . . . . . . . . 3 A @ 125 VAC with silver Option 3, 0.4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VA @ 20 VDC gold option 1
Electrical life. . . . . . . . . . . . . 2 Pos.: 20,000 cycles @ full rated 3 A load
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80,000 cycles @ 0.4 VA
. . . . . . . . . . . . . . . . . . . . . . . 3 Pos.: 10,000 cycles @ full rated 3 A load
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60,000 cycles @ 0.4 VA
Initial contact resistance. . . . . . . . . . . . . . . . . . . . . . . . . max.20 mOhms
Insulation resistance. . . . . . . . . . . . . . . . 1,000 MOhms min. @ 500 VDC
Dielectric strength. . . . . . . . . . . . . . . . . . . . . . 500 Volts rms @ sea level
Environmental specification
Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . -20°C to +80°C
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . -45°C to +93°C
Solder heat resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
wave solder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . capable to 265°C
hand solder . . . . . . . . . . . . . . . . max. 316°C for less than 5 seconds
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . with switch in the closed position
Seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . epoxy sealed terminals
Rocker & Paddle Switches
Material specifications
Contacts movable. . . . . . . . . . copper alloy w/silver inlay or gold plated
Actuator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . brass nickel plated
Terminals/fixed contacts . . . . . copper alloy w/silver inlay or gold plated
Housing/beveled frame . . . . . . . . . . . . . . polyamide, black matte finish
Terminal seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . epoxy
RoHS Directive 2002/95/EC . . . . . . . . . . . . . . . . . . . . . . . . . . . compliant
Product key
Type
TRD
Rocker/Paddle Switch
Number of poles
1
single pole
Rating
1
0.4 VA @20VDC (Gold)
Function
single pole
D
on-on
E
on-off-on
F
on-(on)
G
(on)-off-(on)
Actuator
1
rocker
Actuator color
0
black
Terminals
WL
wire lug
Mount
blank
11.91 mm (15/32”)
LED illumintion
blank
none
LED color
2
red
Material
blank
RoHS compliant
Typical product key
TRD 1
3
D
1
0
WL
04
2
3
double pole
3A @ 125VAC or 28VDC (Silver)
double pole
on-on
on-off-on
(on)-off-(on)
N
P
S
2
2
QC
paddle
red
quick connect
LR
5
04
LED integral w/rocker (TRD1 only)
green
RoHS compliant
25
bi-color red/green
F4
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com

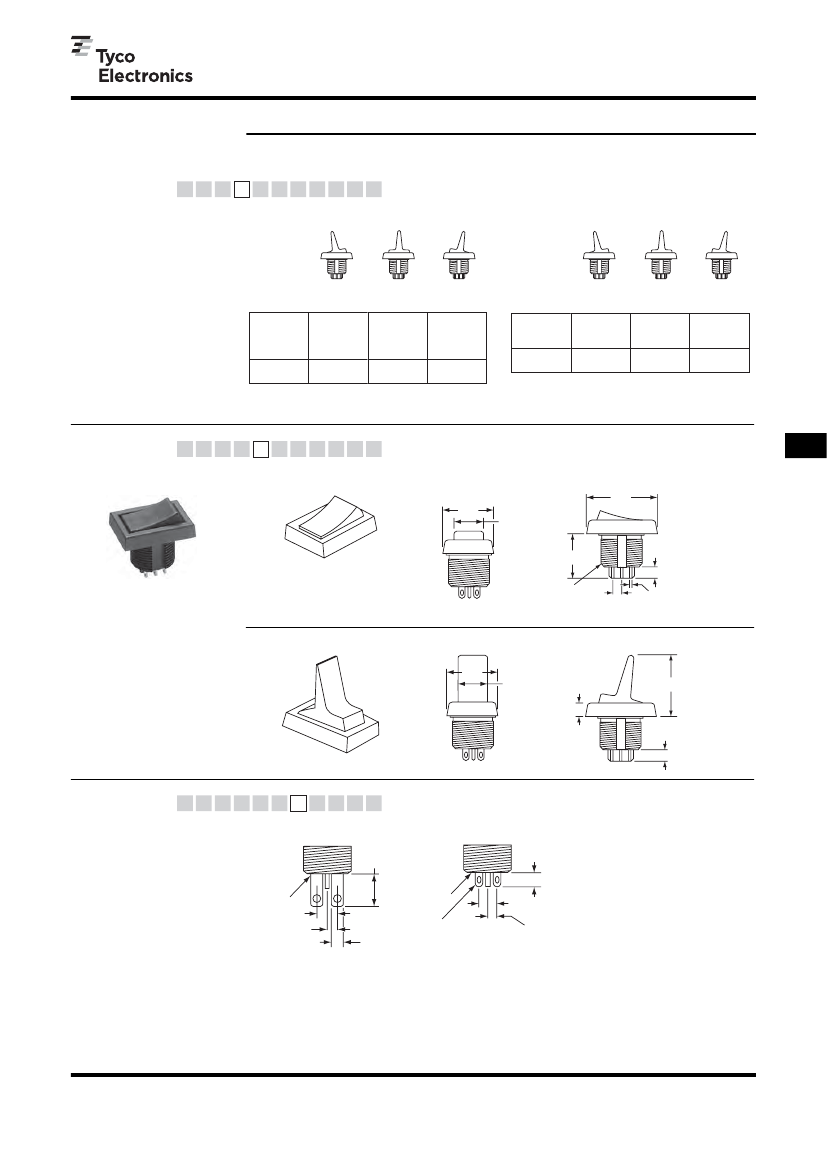

Rocker & Paddle Switches
TRD Series, Rocker/Paddle
(Continued)
Function
Codes 1, 2
1 and 2 pole
1 Single pole
Function
D
E
F
G
Terminals
connected
1-2-3
On
On
On
(On)
2-3
1-2-3
None
Off
None
Off
---
1-2-3
On
On
(On)
(On)
1-2
2 Double pole
1-2-3
Function
N
P
S
Terminals
connected
Off
(On)
None
1-2-3
None
Off
Off
---
---
1-2-3
On
On
(On)
1-2
4-5
On
On
(On)
2-3
5-6
mechanical position, no electrical connection
momentary mechanical position and electrical
connection
no mechanical position
Actuator
Rocker & Paddle Switches
1
rocker
.550
(14.0)
.345
(8.76)
.507
(12.90)
.130
(3.30)
.750
(19.1)
TRD21N10WL
15/32-32
.100
UNS-2A
(2.54)
THD.
TYP.
.020
(0.51)
TYP.
2
paddle
.550
(14.0)
.345
(8.76)
.150
(3.81)
.710
(18.0)
.130
(3.30)
Terminal
QC, WL
QC, quick connect
.280
(7.11)
WL, wire lug
.130
(3.30)
EPOXY
.160
(4.06)
.080
(2.03)
.095
(2.41)
EPOXY
.040 x .080
(1.02)W (2.03)L
OBLONG HOLE
TYP.
.160
(4.06)
.080 x
.020
(2.03)W (0.51) THK.
OBLONG HOLE TYP.
F5
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com
