07-26 RED datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 07-26 RED

07-26 RED: Descriptionpushbutton switches Pushbtn switch spdt bbm red btn; CategoryTopical application Mechanical and electrical/engineering/automation; File Size263KB，1 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric Compare View All

07-26 RED Overview

pushbutton switches Pushbtn switch spdt bbm red btn

07-26 RED Parametric

Parameter Name	Attribute value
Manufacture	Grayhill
Product Category	Pushbutton Switches
RoHS	Yes
Produc	Standard Switches
Contact Form	SPDT
Switch Functi	ON - (OFF)
Current Rating	10 A
Voltage Rating AC	220 V
Mounting Style	Panel
Mounting Type	Bushing
Termination Style	Solder Lug
Contact Plating	Chrome over Zinc
Actu	Round
Cap Col	Red
Body Shape	Round
Col	Red
Features	Audible click
Heigh	49.94 mm
Housing Material	Thermoset Plastic
Length	22.35 mm
Material	Thermoset Plastic
Mounting Hole	Round
Mounting Hole Diamete	12.3 mm
Width	22.35 mm

Preview

Download Datasheet

View All

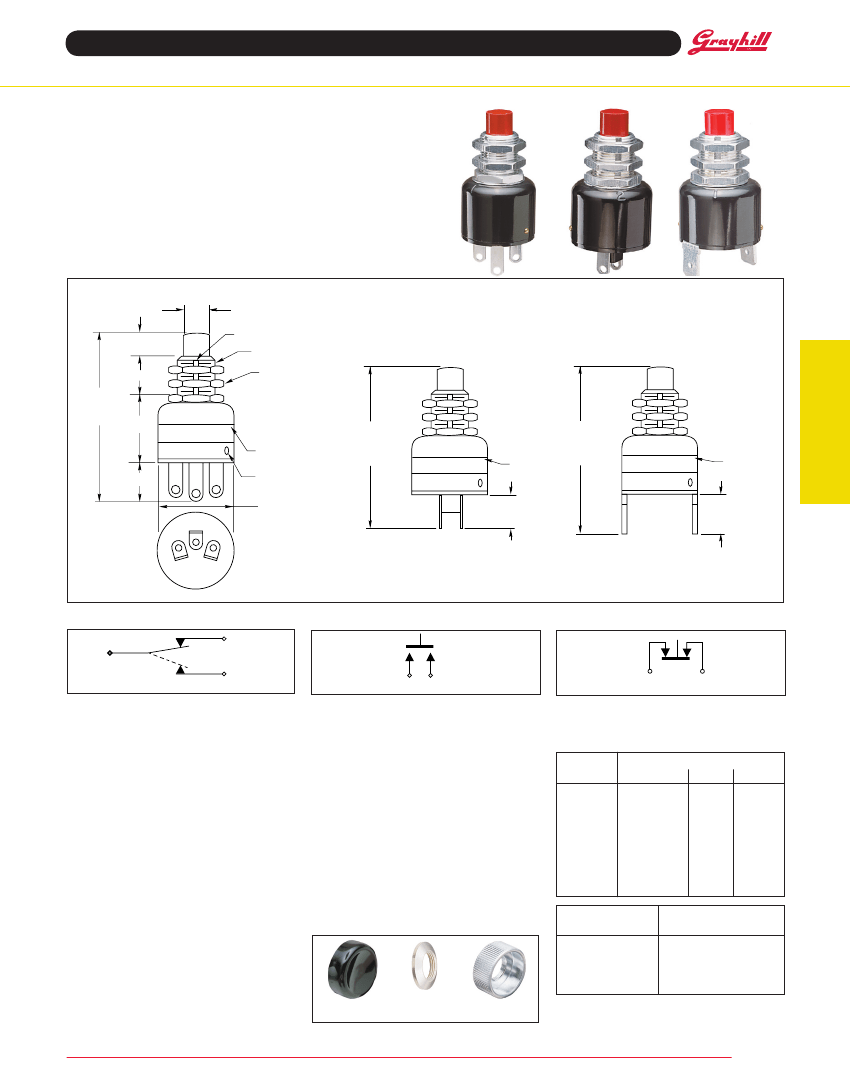

Snap Action Miniature Pushbutton Switches

SerieS 07

SerieS 2000

SPSt and SPdt, 10 amp

FeatureS

• Momentary Contact

• Extremely Fast Make-and-Break

• Audible Click

diMenSiOnS

in Inches (and millimeters)

SPdt Solder Lug terminal

07-26*

.312 ± .005

(7,92 ± 0,13)

KEYWAY

.068 (1,72) WIDE

15/32-32 UNS-2A

THREAD

HEX MOUNTING

NUTS (2)

.094 ± .010

(2,39 ± 0,25) THICK

.562 ± .010

(14,27 ± 0,25)

ACROSS FLATS

LABEL*

.95 (24,13) MAX.

OVER PIN HEADS

.880 ± .010 DIA.

(22,35 ± 0,25)

N.C.

*PART NUMBER

AND E.I.A. DATE

CODE LABEL

*PART NUMBER

AND E.I.A. DATE

CODE LABEL

.380 – .015

(9,65 – 0,38)

• 25,000 Cycles of

Operation

SPSt–Solder Lug terminals

2201

2202

07-7

07-8

SPSt–Faston terminals

07-21

07-22

1.966

(49,94)

REF.

Pushbutton Switches

1.903

(48,34)

REF.

All dimensions

not shown are

same as

part no. 7-26.

1.910

(48,51)

REF.

All dimensions

not shown are

same as

part no. 7-26.

LABEL*

A = .273 ±.020

(6,93 ± 0,51)

B = .454 ± .015

(11,53 ± 0,38)

C = .796 ± .015

(20,22 ± 0,38)

D = .443 ± .015

(11,25 ± 0,38)

.387 – .015

(9,83 – 0,38)

N.O

TERMINALS TO

ACCOMMODATE

1/4 INCH PUSH-ON

TERMINATION

*PART NUMBER

AND E.I.A. DATE

CODE LABEL

CirCuitry

n.C.

n.O.

SPdt - BBM

SPSt n.O.

SPSt n.C.

SPeCiFiCatiOnS

rating Criteria

rated: To make and break 10 Amps at 115 Vac,

or 5 Amps at 220 Vac resistive load for 25,000

operations

Contact resistance: 25 milliohms or less on

a new switch

Voltage Breakdown: 1,000 Vac between

mutually insulated parts

insulation resistance: 1,000 megohms

minimum

Materials and Finishes

Operating Features

Housing, Button and internal Bridge:

Thermoset plastic

Mounting nuts, Bushings, and internal

Bracket: Brass, tin zinc

Fixed and Moving Contacts: Fine silver

internal Spring, Link and Contact Carrier:

Beryllium, copper

Cover-to-Base Mounting Pins: Brass

Faston terminals: Brass, tin over nickel

Solder Lug terminals:

Brass,

zinc trivalent chromate-plated

OrderinG inFOrMatiOn

2201

SPST–N.O. Red Solder

07-7

SPST–N.O. Black Solder

07-21

SPST–N.O. Red Faston

2202

SPST–N.C. Black Solder

07-8

SPST–N.C. Red Solder

07-22

SPST–N.C. Black Faston

07-26 red SPDT–BBM Red

Solder

07-26 BLK

SPDT–BBM Black Solder

Part

number

07Z1047-1 BLK

07Z1047-2 red

07C1040-1

10C1015-1

accessory

description

Black Button Cap

Red Button Cap

Decorative Nut

Button Guard

*Part

number

Circuitry

description

Button terminal

total Button travel: .065 (1,65) approximately

Overtravel: .008 (0,20) approximately

actuating Force:

24 ounces approximately

Mounting Hole: 31/64" (12,30) inches

terminal type: Solder Lug/Faston

Operating temperature: -40°C to +85°C

aCCeSSOrieS

decorative Mount-

Button Guard

ing nut

Button Cap

Part No. 07Z1047 Part No. 07C1040-1 Part No. 10C1015-1

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

07-26 RED Related Products

	07-26 RED	07-26 BLK
Description	pushbutton switches Pushbtn switch spdt bbm red btn	pushbutton switches Pushbtn switch spdt bbm black btn
Manufacture	Grayhill	Grayhill
Product Category	Pushbutton Switches	Pushbutton Switches
RoHS	Yes	Yes
Produc	Standard Switches	Standard Switches
Contact Form	SPDT	SPDT
Switch Functi	ON - (OFF)	ON - (OFF)
Current Rating	10 A	10 A
Voltage Rating AC	220 V	220 V
Mounting Style	Panel	Panel
Mounting Type	Bushing	Bushing
Termination Style	Solder Lug	Solder Lug
Contact Plating	Chrome over Zinc	Chrome over Zinc
Actu	Round	Round
Cap Col	Red	Black
Body Shape	Round	Round
Col	Red	Black
Features	Audible click	Audible click
Heigh	49.94 mm	49.94 mm
Housing Material	Thermoset Plastic	Thermoset Plastic
Length	22.35 mm	22.35 mm
Material	Thermoset Plastic	Thermoset Plastic
Mounting Hole	Round	Round
Mounting Hole Diamete	12.3 mm	12.3 mm
Width	22.35 mm	22.35 mm
