DTCXO-12A-32.0MHZ

Description
Oscillator,
CategoryPassive components    oscillator
File Size51KB,1 Pages
ManufacturerAVX
Download Datasheet Parametric Compare View All

DTCXO-12A-32.0MHZ Overview

Oscillator,

DTCXO-12A-32.0MHZ Parametric

Parameter NameAttribute value
MakerAVX
Reach Compliance Codecompli
Ageing0.5 PPM/YEAR
Frequency Adjustment - MechanicalYES
frequency stability0.1%
Installation featuresTHROUGH HOLE MOUNT
Number of terminals4
Nominal operating frequency32 MHz
Maximum operating temperature85 °C
Minimum operating temperature-35 °C
Oscillator typeCMOS
physical size30.0mm x 30.0mm x 10.0mm
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountNO
maximum symmetry70/30 %
Base Number Matches1

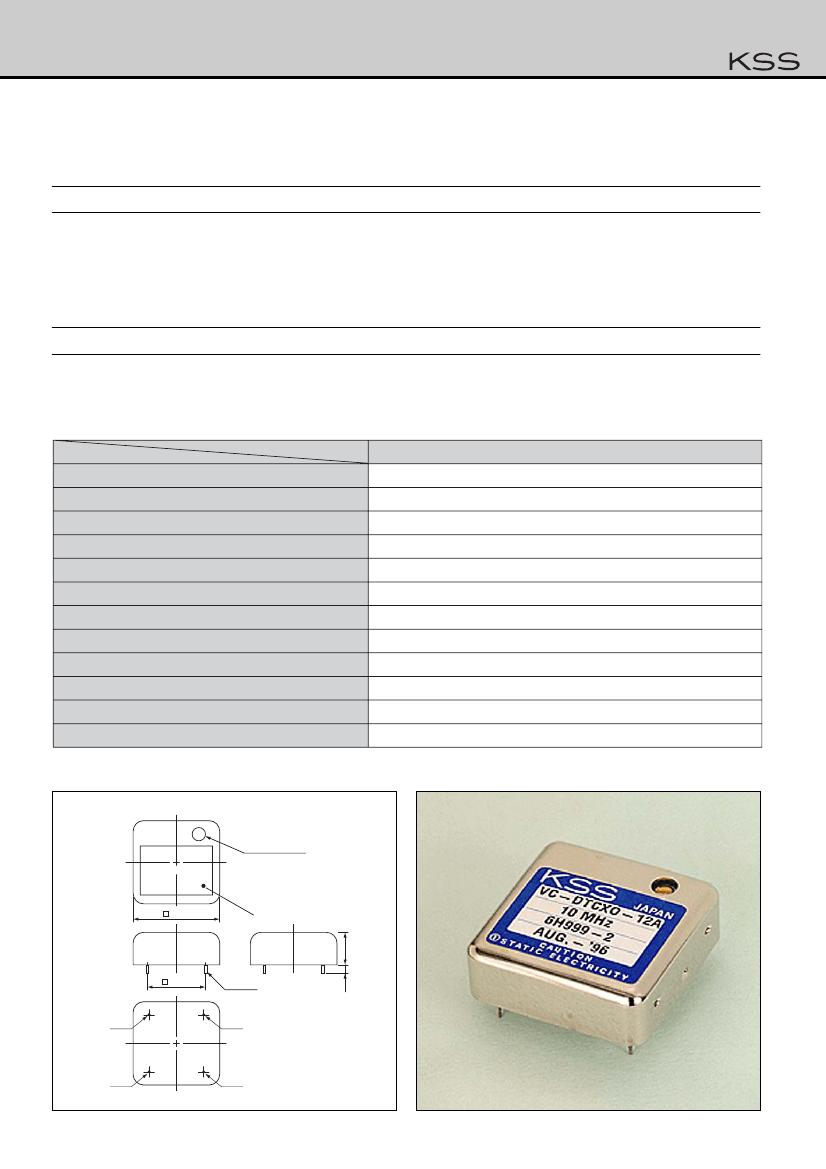

Crystal Oscillator
(VC-)DTCXO-12A
Digital TCXO
Features
¡Digital
processing Temperature Compensated Crystal
Oscillator.
¡Excellent
Frequency temperature characteristics and
Frequency aging.
¡C-MOS
output.
Typical Applications
¡Reference
Oscillator.
¡PLL
Oscillator.
Specifications
Item
Frequency Range
Frequency Temperature Characteristics
Frequency Tuning Range
Frequency Deviation/Control Voltage only VC
Operating Temperature Range
Storage Temperature Range
Frequency Aging
Supply Voltage Change
Power Supply
Output Level
Output Symmetry
Sub Harmonics
  
Type
DTCXO-12A
VC-DTCXO-12A
1~32MHz
±0.1×10
6
MAX./−35~+85: (DTCXO-12A/VC-DTCXO-12A : VC=Open)
±0.7×10
6
MIN. (internal trimmer)
±2×10
-6
MIN./2.5V±2.0V (VC-DTCXO-12A only)
−35~+85:
−40~+85:
±0.5×10
6
MAX./year
±0.05×10
6
MAX./5V±5%
30mA MAX./5V
C-MOS Level
45~55%/1~15MHz、30~70%/15~32MHz
−80dB
MAX.
Outline
(VC-)DTCXO-12A
φ4(tuning
hole)
KSS
DTCXO-12A
30±1
Example of Marking
10MAX.
#1
#2
#4
#3
Pin Connection
1:+DC5V
2: VC VC-DTCXO
NC DTCXO
3:GND
4:Output
Dimensions(mm)
5±1
22±0.5
4-φ0.5
