TPWDS-BBE-1 Overview

control switches tpwds discon switch

TPWDS-BBE-1 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Control Switches
RoHS	Yes
Packaging	Bulk
Factory Pack Quantity	5
Unit Weigh	453.592 mg

Preview

Download Datasheet

View All

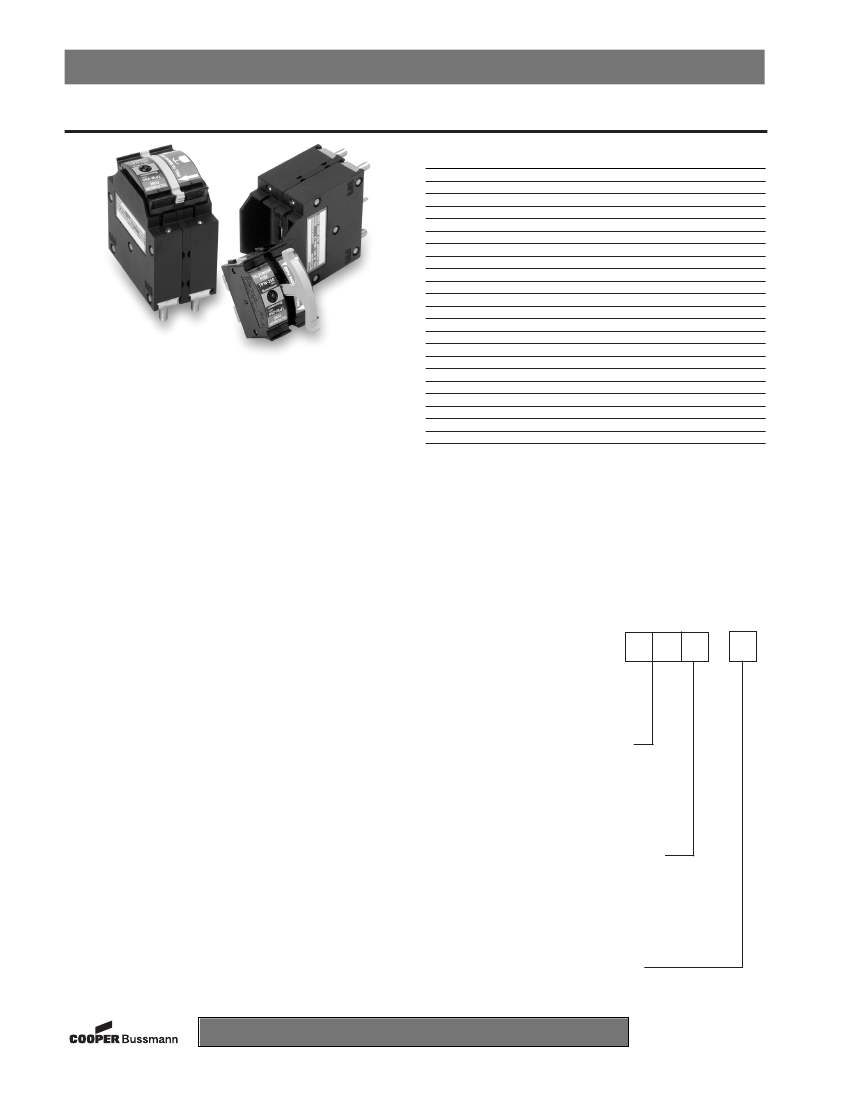

Telpower

DC Power Protection Systems

Bussmann

Telpower

Double - Wide Fused Disconnect Switch

Catalog Number

TPW-150

TPW-175

TPW-200

TPW-225

TPW-250

TPWDS-BBE-1

TPWDS-BBE-2

TPWDS-BBE-3

TPWDS-BBM-1

TPWDS-BBM-2

TPWDS-BBM-3

TPWDS-BSE-1

TPWDS-BSE-2

TPWDS-BSE-3

TPWDS-BSM-1

TPWDS-BSM-2

TPWDS-BSM-3

TPWDS-SSE-1

TPWDS-SSE-2

TPWDS-SSE-3

TPWDS-SSM-1

TPWDS-SSM-2

TPWDS-SSM-3

TPW & TPWDS

Ampere Rating

150A

175A

200A

225A

250A

150 - 250A

TPW & TPWDS

TPWDS -

Telpower

Double - Wide Fused Disconnect Switch

TPW -

Telpower

Double - Wide Fuse - Current Limiting

Ampere Ratings:

150 -250A

Available Ratings: 150, 175, 200, 225, 250A

Voltage Rating:

80Vdc

Interrupting Rating:

100,000A

Planned Submittal for Agency Recognition:

UL Recognition (investigated to UL 1801) as a

disconnect switch for the interruption of load current

by means of withdrawing the fuse pullout. Recognition

to U.S. and Canadian requirements under the component

recognition program of Underwriters Laboratories Inc.

Patents Pending

General Information:

• Fusible solution for replacement of existing dc Telecom

circuit breakers.

• Similar profile and mounting method as Telpower® TPC

Compact fuse and TPCDS Compact Fused Disconnect

Switch.

• TPW fuse handle provides for easy fuse extraction.

• AmpColor ID™ System for easy fuse replacement.

• Available in a variety of terminal styles.

• Local and remote open fuse indication.

Local alarm indication provided by LED on TPW fuse*.

• Remote alarm terminal available in three positions

commonly found in dc circuit protection devices.

• Recommended 1.50 inch center-to-center product spacing.

• Current-limiting capability

• Complete system coordination capability.

• High interrupting rating (100,000A)

• Custom load bus available. Please consult with Bussmann.

• No venting of arc or molten metals and gases during

fuse opening.

• Fuse material: Thermoplastic, UL rated 94 V-O, 170° C RTI.

• Housing material: Thermoplastic, UL rated 94 V-O, 120° C RTI.

* TPWDS alarm circuit schematic and description identical to TPCDS.

Reference TPCDS datesheet 5023.

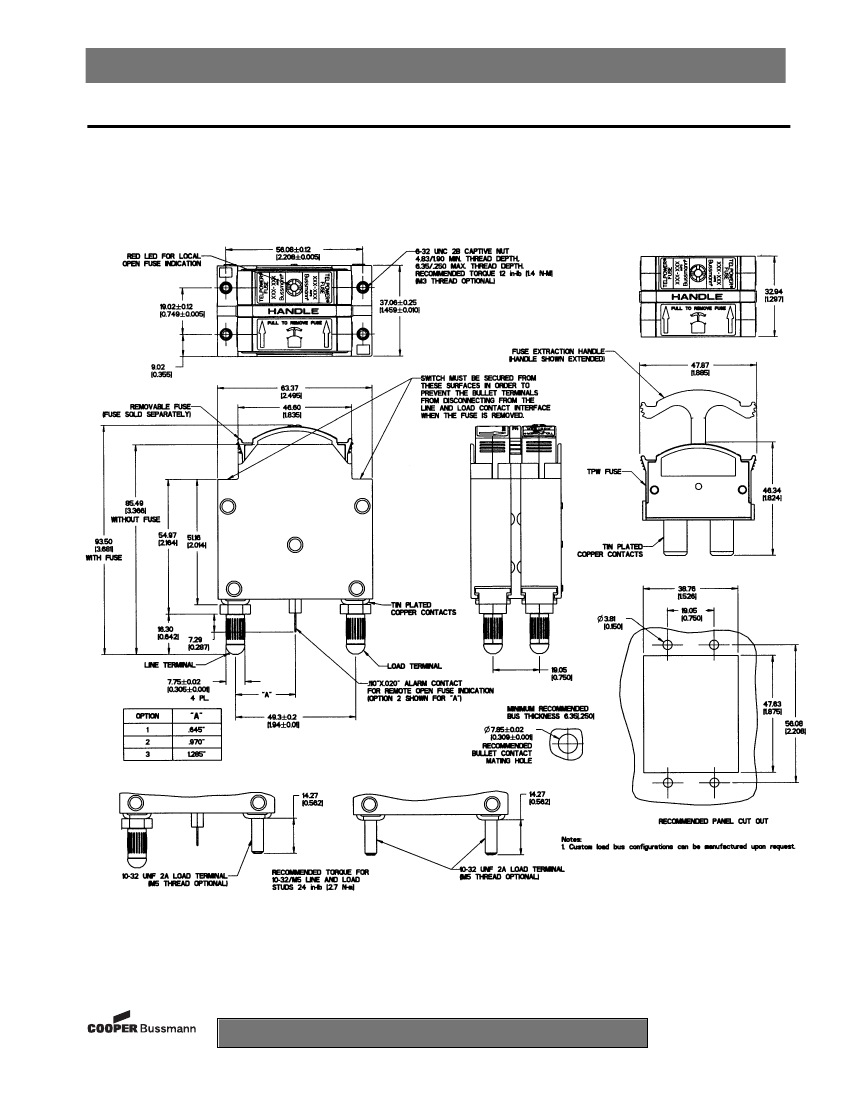

Description

Double – Wide Fuse

Double – Wide Disconnect

Part Number System --

Double - Wide Fused Disconnect Switch

To identify part number, replace block with appropriate suffix to

identify line and load terminals, thread type, and alarm terminal

distance.

TPWDS

TELPOWER®

Double -

Wide

Fused

Disconnect Switch

TPWDS -

Terminal Style (select one)

BB - Bullet

contact on the line

Bullet

contact on the load

BS - Bullet

contact on the line

Stud

terminal on the load

SS - Stud

terminal on the line

Stud

terminal on the load

Thread (select one)

M-

Metric

threads for panel mount

fasteners (M3) and stud (M5)

E-

English

threads for panel mount

fasteners (6-32) and stud (10-32)

Remote Alarm Terminal Distance

(select one)

.645 inch from line terminal

.970 inch from line terminal

1.285 inch from line terminal

Look for Telpower® BLUE™ fuses exclusively from Cooper Bussmann.

11-13-02

SB02424

Form No. TPW & TPWDS

Page 1 of 2

Data Sheet: 5028
