83123069.RB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 83123069.RB

83123069.RB: Descriptionbasic / snap action switches sldsw 5A ncbl rsdpbplsenvbt; CategoryTopical application Mechanical and electrical/engineering/automation; File Size139KB，3 Pages; ManufacturerCrouzet

Download Datasheet Parametric View All

83123069.RB Overview

basic / snap action switches sldsw 5A ncbl rsdpbplsenvbt

83123069.RB Parametric

Parameter Name	Attribute value
Manufacture	Crouze
Product Category	Basic / Snap Action Switches
Contact Form	SPDT
Switch Functi	ON - (OFF), OFF - (ON)
Actu	Bu
Current Rating	5 A
Operating Force	5.3 N
IP Rating	IP 66

Preview

Download Datasheet

View All

28/07/2014

www.crouzet.com

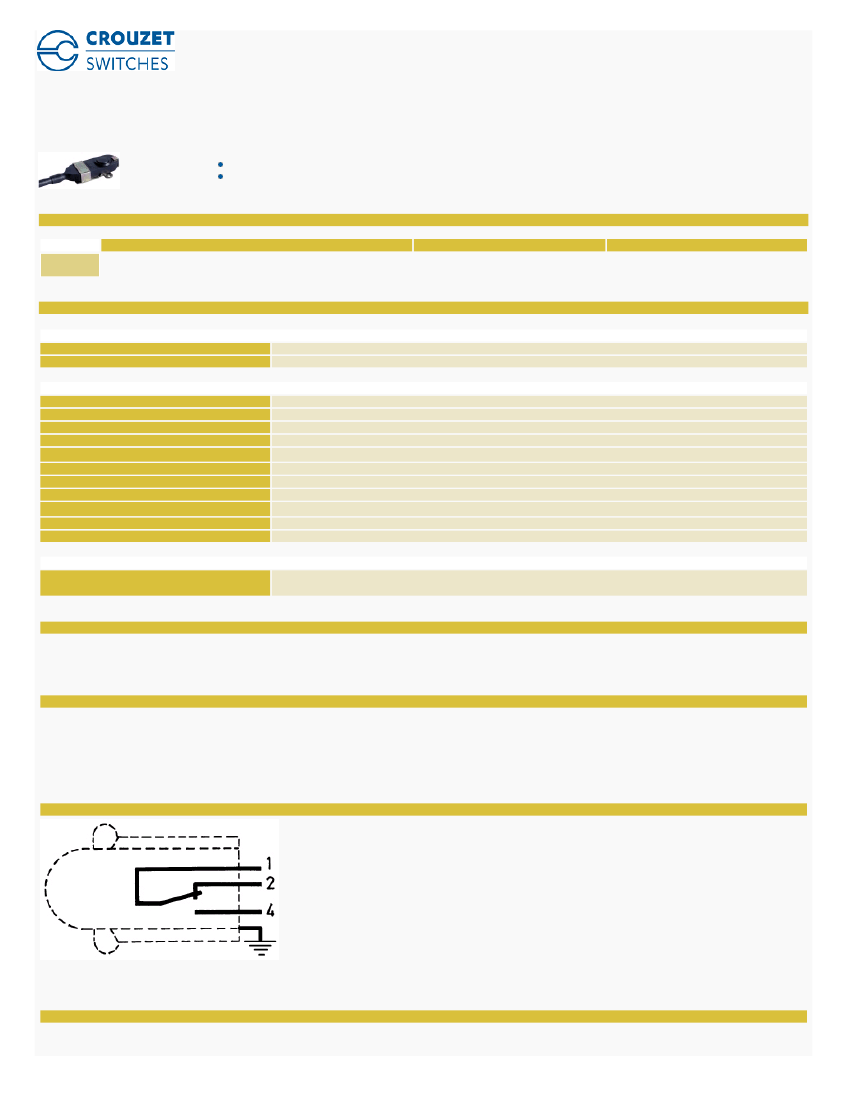

83123 Spherical cover 831230 Part number made to order

IP 66 protection

Compact dimensions

Part numbers

Type

MADE TO

ORDER

Spherical cover 831230

Function

I (changeover)

Connections

A05 VVF cable

Specifications

Electrical characteristics

Rating nominal / 250 VAC (A)

Rating thermal / 250 VAC (A)

Mechanical characteristics

Maximum operating force (N)

Min. Release force (N)

Maximum total travel force (N)

Max. permitted overtravel force (N)

Operating position (mm)

Maximum differential travel (mm)

Min. overtravel (mm)

Ambient operating temperature (°C)

Mechanical life (operations)

Contact gap (mm)

Weight (g)

7,5

1,5

16,5

±0,5

0,25

0,2

0 →+85

2 x 10

0,5

Connections

Connection

Cable 3 x 0.75 mm

in sheath Ø ext. 7.6 mm max.

Standard length 0.50 m

Comments

Common (1) : black

Normally closed (2) : brown

Normally open (4) : grey

Additional specifications

Components

Material

- Casing : nitrile

- Contacts : silver

- Contact holder : polyamide

- Mounting plate : passivated mild steel (zinc)

Principles

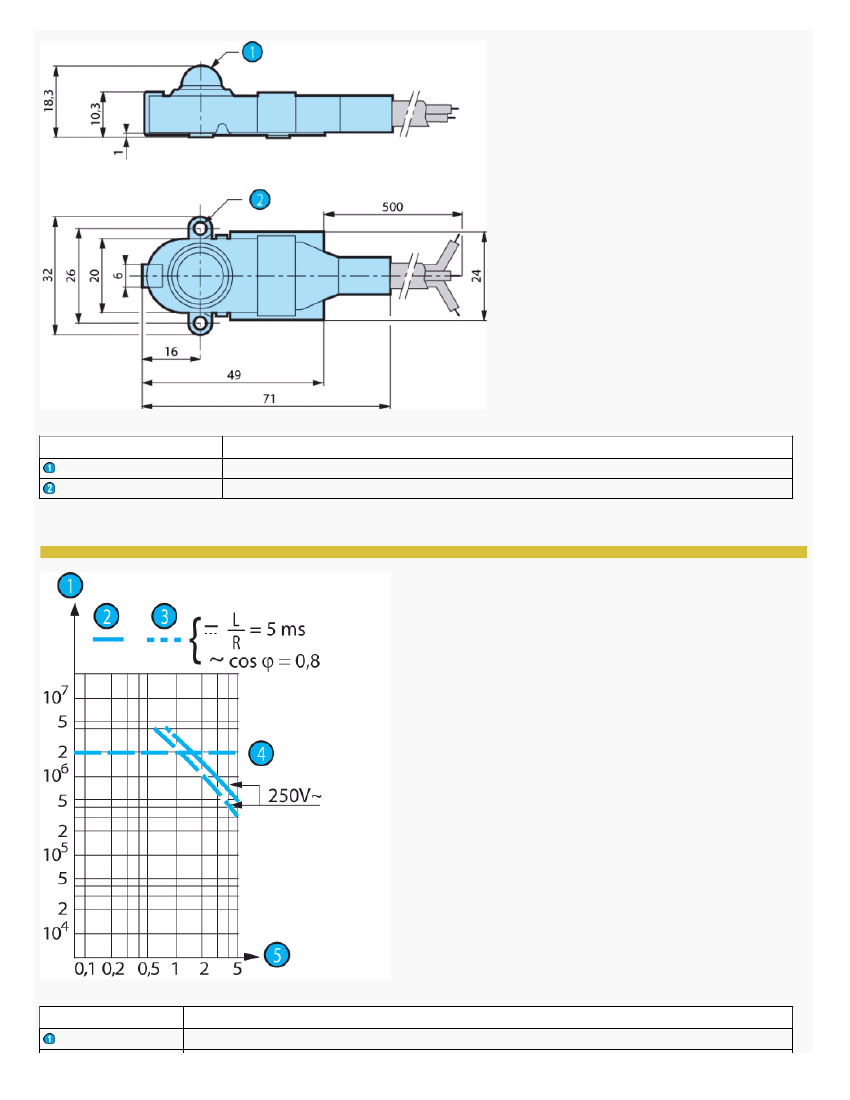

Dimensions (mm)

Product

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
