DSM K12G 1.5 3.5N C L130 PO PU datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> DSM K12G 1.5 3.5N C L130 PO PU

Preview

DSM K12G 1.5 3.5N C L130 PO PU: Descriptionpushbutton switches rkr switch module ip65 3.5N; CategoryTopical application Mechanical and electrical/engineering/automation; File Size165KB，3 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

DSM K12G 1.5 3.5N C L130 PO PU Overview

pushbutton switches rkr switch module ip65 3.5N

DSM K12G 1.5 3.5N C L130 PO PU Parametric

Parameter Name	Attribute value
Manufacture	C&K Components
Product Category	Pushbutton Switches
RoHS	Yes
Contact Form	DPST
Switch Functi	ON - OFF
Mounting Style	Panel
Termination Style	Wire Leads
Actu	Round
IP Rating	IP 65
Packaging	Bulk

Preview

Download Datasheet

View All

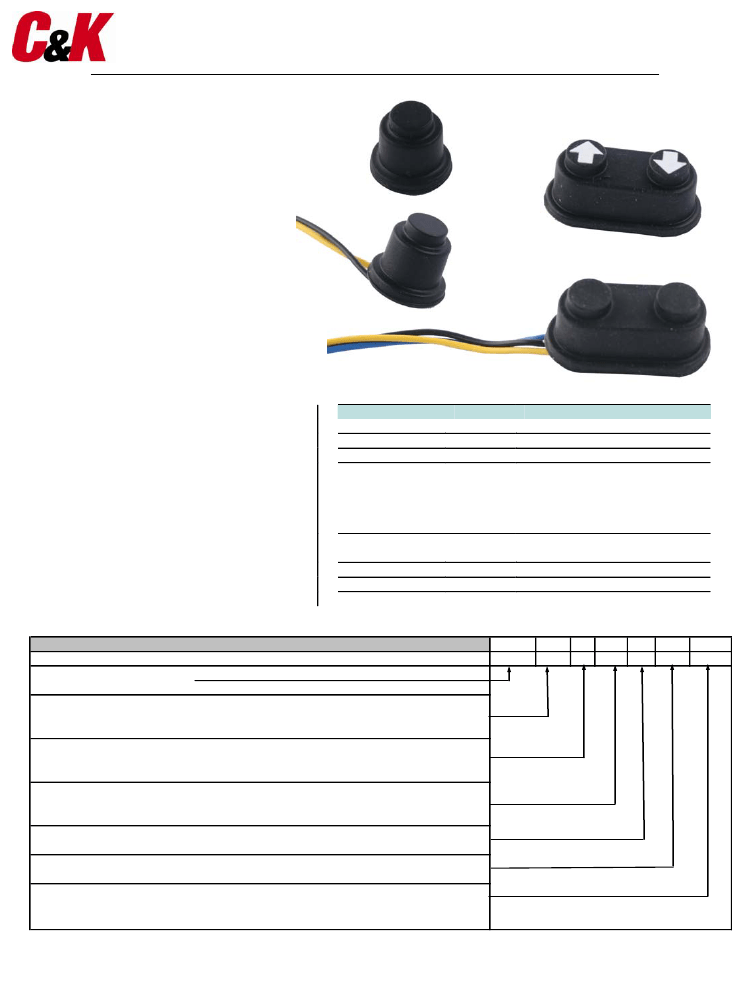

Single & Double Switch Modules – ESM / DSM

The single switch module ESM and

the double switch module DSM are

ready-to-install units, consisting of:

•

Switches:

K12 (for both ESM or DSM)

K12G (DSM only with two

switching-points)

PVA1H4 (ESM only)

PC board

Rubber cap

Optional cable or connector

ESM

DSM

•

The rubber cap offers the possibility

to use both switch modules under

severe ambient conditions where

dust, water, oil, solvents etc. can

effect or destroy the function of

standard switches.

With the rubber cap the two modules

are sealed to IP 65 when mounted.

Typical Applications

•

Tractors

•

Harvesting equipment

•

Industrial controls

Technical Data

Cap Material

Protection Level

Cable

Switches

Silicone rubber

IP 65 (with cap when mounted)

FLK/FLY 0.5 mm²

K12

(both ESM or DSM)

K12G

(DSM only, two

switching-points)

PVA1H4

(ESM only)

Operating

force

5N

3.5 / 7 N

3N

Travel (mm/inch)

1 / 0.039

1.5 / 0.0591

2.2 / 0.087

K12

K12G

PVA1H4

Ordering code

1

Designation

2

Switch

3

Travel of Switch

4

Operating force

6

Cap

7

Cable

8

Cap decals

(DSM)*

Exam ple

ESM = single switch module

DSM = double switch module

K12 = (for ESM and DSM)

K12G = with 2 switching-points (DSM only)

PVA

= PVA1H4 (ESM only)

1 = 1 mm (K12)

1.5 = 1.5 mm (K12G)

2.2 = 2.2 mm (PVA1H4)

5N

= 5 N (K12)

3.5N = 3.5 / 7 N (K12G)

3N

= 3 N (PVA1H4)

N = none

C = with cap

- = none

L130 = 130 mm cable length

- = none

P = arrows:

U (down), O (Up), L (left), R (right)

1

DSM

2

K12

3

1

4

5N

6

C

7

8

L130 Pu Po

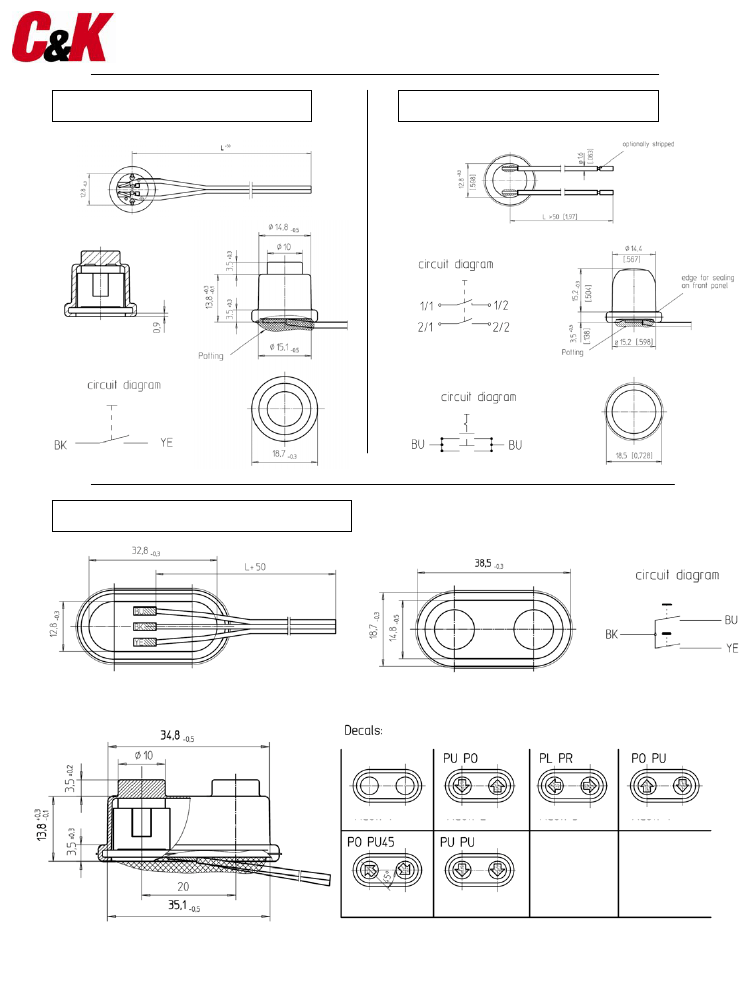

* see drawing overleaf

M-SM-0744

www.ck-components.com
