Series JF
Toggles
Ultra-Thin Process Sealed Tactiles
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Low/Logic Level:
50mA @ 24V DC
Pushbuttons
Other Ratings
Programmable Illuminated PB
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Total Travel:
50 milliohms maximum
500 megohms minimum @ 250V DC
250V AC minimum for 1 minute minimum
500,000 operations minimum
500,000 operations minimum
1.96N for sculptured actuator
2.0N for piano actuator
3.0N for square & round flush actuators
Flush Actuators .016” (0.4mm)
Sculptured & Piano Actuators .031” (0.8mm)
Keylocks
Materials & Finishes
Actuator:
Case:
Seal:
Base:
Movable Contact:
Stationary Contacts:
Terminals:
Polyamide
Glass fiber reinforced polyamide
Nitrile butadiene rubber
Glass fiber reinforced polyester
Phosphor bronze with silver plating
Brass with silver plating
Brass with silver plating
Slides
Rotaries
Environmental Data
Tactiles
J
Operating Temperature Range:
Humidity:
Vibration:
Shock:
–25°C through +85°C (–13°F through +185°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tilt
PCB Processing
Soldering:
Cleaning:
Wave Soldering Recommended. See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
Automated cleaning. See Cleaning specifications in Supplement section.
Touch
Standards & Certifications
Supplement
Accessories
Indicators
The JF Series tactiles have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
J34
www.nkk.com
Ultra-Thin Process Sealed Tactiles
Series JF
Toggles
Extremely low profile of 5mm from PCB to top of switch.
Rubber seal construction prevents contact contamination
and allows automated soldering and cleaning.
Minimal operating force and short stroke permit light
touch operation.
Dome contact gives crisp tactile and audible feedback
to positively indicate circuit transfer and assures high
reliability and long life.
Wide choice of body shapes and colors.
Crimped terminals provide a spring type action to ensure
secure mounting and prevent dislodging during wave soldering.
Space saving body dimensions provide for compact, side-by-side mounting
on a standard grid.
Terminal spacing conforms to standard .100” (2.54mm) PCB grid.
Actual Size

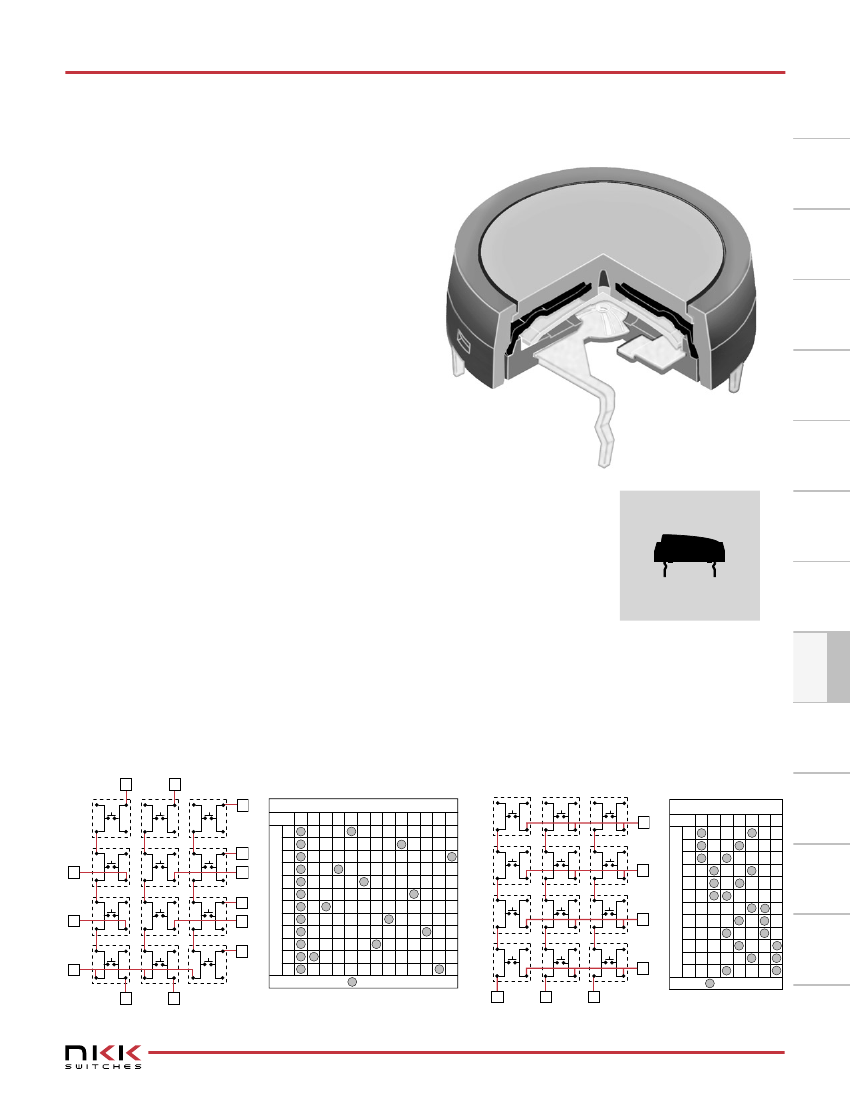

Common Bus Matrix
These single pole, single throw switches can be used in a key-
board matrix and, using strapped terminals, achieve a com-
mon bus electrical configuration on a single-sided PC board.
5
1
2
X-Y Matrix
These single pole, single throw switches can be
arranged on a single-sided PC board matrix
with strapped terminals to achieve an X-Y type
electrical interconnection.
1
2
3
J
9
3
13
Keys (Switches)
Keys (Switches)
4
7
8
6
11
8
12
2
7
8
9
9
A
0
B
A
0
B
1
2
7
7
= ON
5
4
3
Red = PCB Trace
Black = Switch Circuit
www.nkk.com
J35
Supplement
Accessories
3
6
Indicators
4
5
6
10
1
2
3
4
5
6
7
8
9
0
A
B
P C Te r m i n a t i o n s
1 2 3 4 5 6 7 8 9 10 11 12 13
1
4
5
6
P C Ter m ina t ions
1 2 3 4 5 6 7
1
2
3
4
5
6
7
8
9
0
A
B
= ON
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Distinctive
Characteristics
Series JF
Toggles
Ultra-Thin Process Sealed Tactiles
TYPICAL SWITCH ORDERING EXAMPLE
Rockers
JF
Pole & Circuit
15
SPST
OFF
(ON)
15
S
Terminals
P
Straight PC
P
2
C
Actuator Colors
C
D
F
G
Red
Orange
Green
Blue
Gray
Programmable Illuminated PB
Pushbuttons
( ) = Momentary
Housing Shapes
C
S
Round (with round
actuator only)
Square
1
2
3
4
Actuator Types
Square
Round
Sculptured
Piano
H
Rotaries
Keylocks
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
Slides
JF15SP2C
Tactiles
J
Square Housing with
Round Red Actuator
SPST
OFF-(ON) Circuit
Straight
PC Terminals
Touch
Tilt
Indicators
POLE & CIRCUIT
Actuator Position
( ) = Momentary
Normal
Pole
SP
Model
JF15
OFF
(ON)
Down
1
3
4
Switch Throw & Schematic
Accessories
SPST
2
Note: Terminal numbers are
shown on the switch.
Supplement
J36
www.nkk.com
Ultra-Thin Process Sealed Tactiles

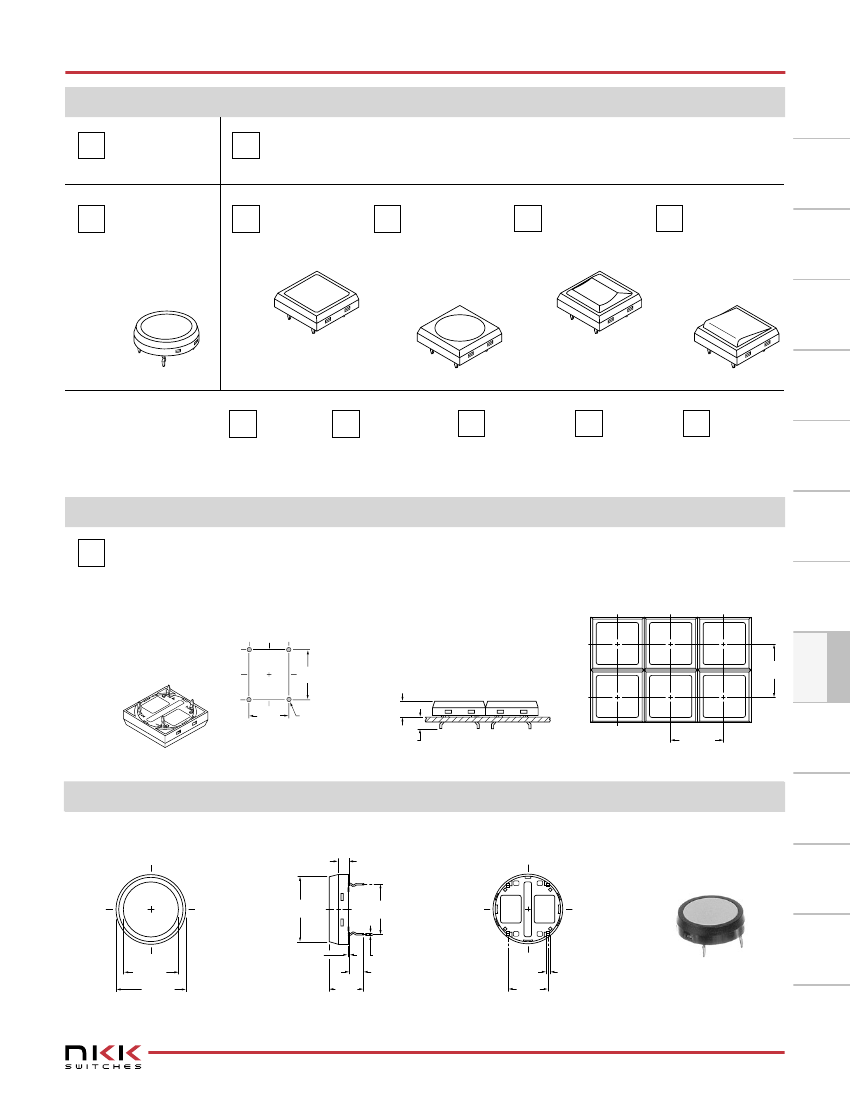

HOUSING SHAPES & ACTUATOR TYPES
C
Round Housing
Series JF
Toggles
(17.78)
.700
Housing is Black
P
Straight PC
Additional details in
Typical Switch Dimensions
3
1
Versatile panel arrangements
can be made to fit individual
design needs.
(12.7)
.500
J
4
2
(10.16)
.400
(1.0) Dia Typ
.039
(5.08)
.200
(3.6)
.142
(17.78) Typ
.700
Round Actuator
(3.0)
.118
3
1
(16.4) Dia
.646
(12.7)
.500
2
4
JF15CP2C
www.nkk.com
J37
Supplement
(14.0) Dia
.551
(17.7) Dia
.697
(0.3)
.012
(8.68)
.342
(0.3) Typ
.012
(3.6)
.142
(10.16)
.400
(0.8) Typ
.031
Accessories
Indicators
Touch
TYPICAL SWITCH DIMENSIONS
Tilt
Tactiles
Slides
Rotaries
TERMINALS & PANEL DESIGN
Keylocks
Actuator Colors
Available:
C
Red
D
Orange
F
Green
G
Blue
H
Gray
Programmable Illuminated PB
Pushbuttons
2
Round
Actuator
1
Square
Actuator
2
Round
Actuator
3
Sculptured
Actuator
4
Piano
Actuator
Rockers
S
Square Housing
Series JF
Toggles
Ultra-Thin Process Sealed Tactiles

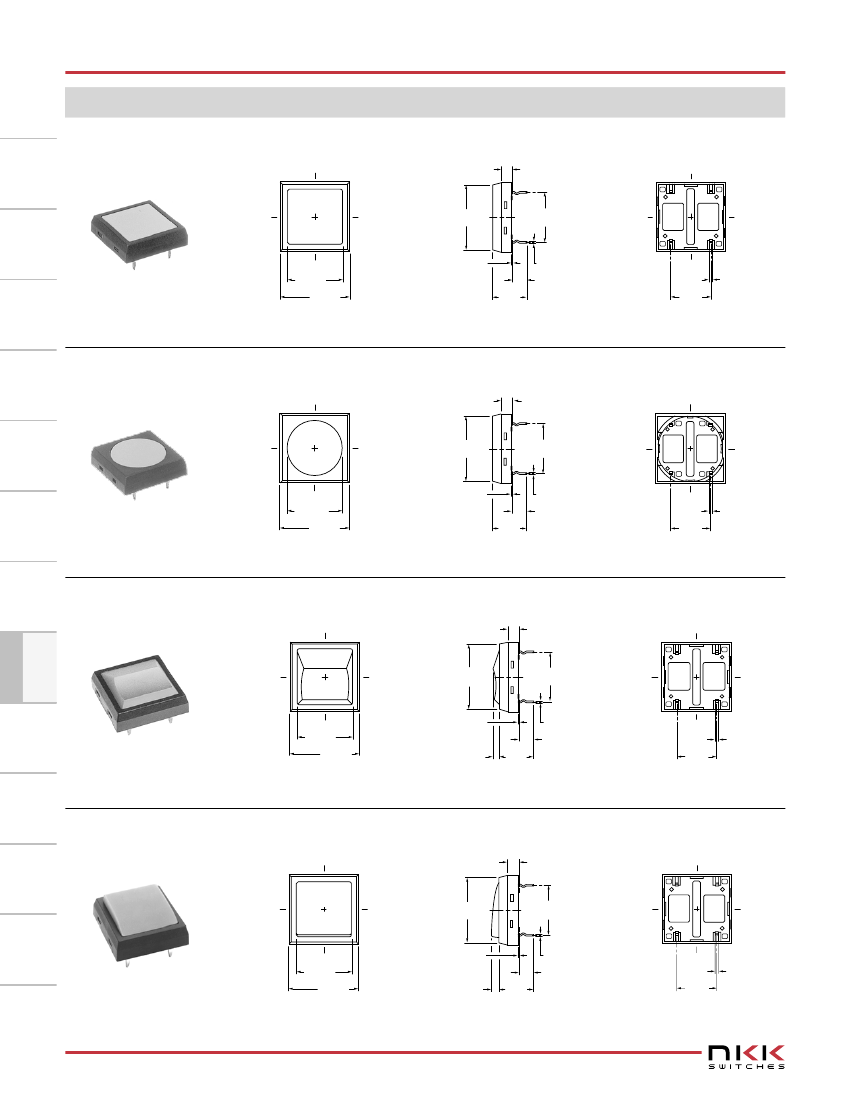

TYPICAL SWITCH DIMENSIONS
Square Actuator
Rockers
(3.0)
.118
3
1
Pushbuttons
(16.4) Sq
.646
(12.7)
.500
2
4
Programmable Illuminated PB
(14.0) Sq
.551
(17.7) Sq
.697
(0.3)
.012
(8.68)
.342
(0.3) Typ
.012
(3.6)
.142
(10.16)
.400
(0.8) Typ
.031
JF15SP1C
Round Actuator
(3.0)
.118
3
4
1
Keylocks
(16.4) Sq
.646
(12.7)
.500
2
Rotaries
(14.0) Dia
.551
(17.7) Sq
.697
(0.3)
.012
(8.68)
.342
(0.3) Typ
.012
(3.6)
.142
(10.16)
.400
(0.8) Typ
.031
JF15SP2C
Slides
Sculptured Actuator
(3.0)
.118
Tactiles
J
(14.0) Sq
.551
(17.7) Sq
.697
(16.4) Sq
.646
(12.7)
.500
2
4
(0.3)
.012
(1.7)
.067
(8.68)
.342
(0.3) Typ
.012
(3.6)
.142
Tilt
(10.16)
.400
Touch
JF15SP3C
Piano Actuator
(3.0)
.118
3
1
Indicators
(16.4) Sq
.646
(12.7)
.500
2
4
Accessories
Supplement
(14.0) Sq
.551
(17.7) Sq
.697
(0.3)
.012
(1.9)
.075
(8.68)
.342
(0.3) Typ
.012
(3.6)
.142
(10.16)
.400
JF15SP4C
J38
www.nkk.com
3
1
(0.8) Typ
.031
(0.8) Typ
.031
