831704C7.MB

Description
basic / snap action switches snsw 5A pcb 90deg mshrum
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size485KB,9 Pages
ManufacturerCrouzet
Download Datasheet Parametric View All

831704C7.MB Overview

basic / snap action switches snsw 5A pcb 90deg mshrum

831704C7.MB Parametric

Parameter NameAttribute value
ManufactureCrouze
Product CategoryBasic / Snap Action Switches

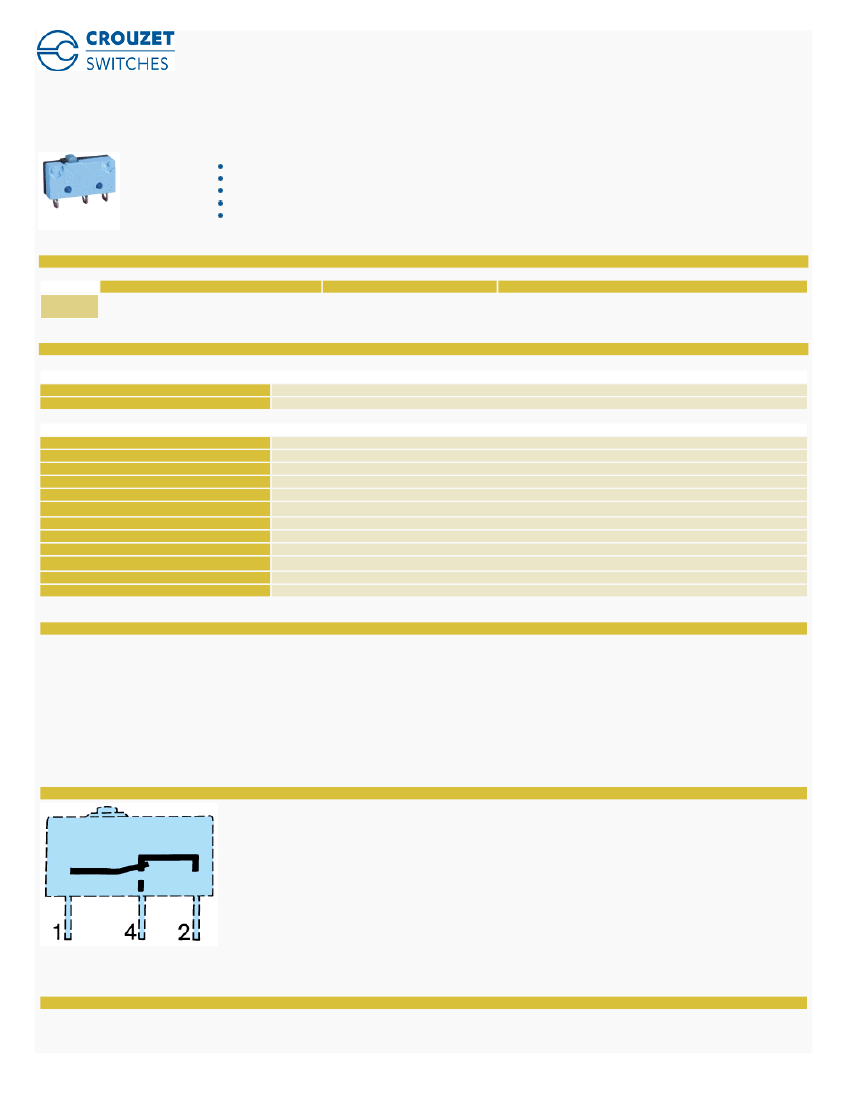

28/07/2014
www.crouzet.com
V4 83170 Low force 831704 Part number made to order
Nominal ratings 0.1 A to 10 A / 250 VAC
Minimum rating 1 mA / 4 VDC
Operating temperature up to +125 °C
Conforming to standards EN 61058 and UL 1054
Choice of actuators with 2 possible fixing positions
Part numbers
Type
MADE TO
ORDER
Low force 831704
Function
I (changeover)
Connections
X1S - X2 - X2S - X3 - X3S
Specifications
Electrical characteristics
Rating nominal / 250 VAC (A)
Rating thermal / 250 VAC (A)
5
6
Mechanical characteristics
Maximum operating force (N)
Min. Release force (N)
Maximum total travel force (N)
Max. permitted overtravel force (N)
Maximum rest position (mm)
Operating position (mm)
Max. differential travel mm
Min. overtravel (mm)
Ambient operating temperature (°C)
Mechanical life (operations)
Contact gap (mm)
Weight (g)
0,6
0,1
1
10
9,2
8,4
±0,3
0,15
0,5
-20 →+125
3.10
7
0,4
1,7
Additional specifications
Components
Material
- Case : polyester UL 94 VO
- Button : Glass-filled polyamide
- Contacts : AgNi, gold-plated AgNi (dual-current)
- Terminals : cupro-nickel (except W7A5 in brass)
Levers
- Flat : stainless steel
- Roller : stainless steel, polyamide roller
Approvals
NF - UL - cUL
Principles

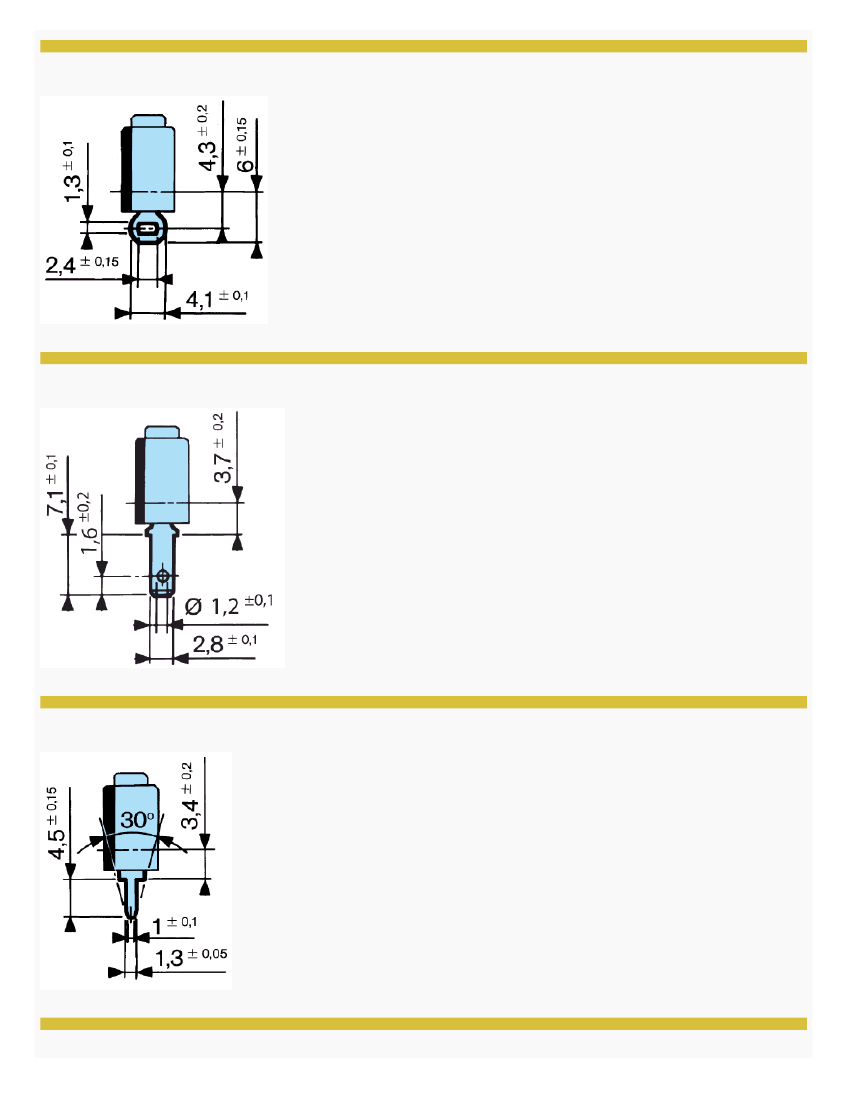

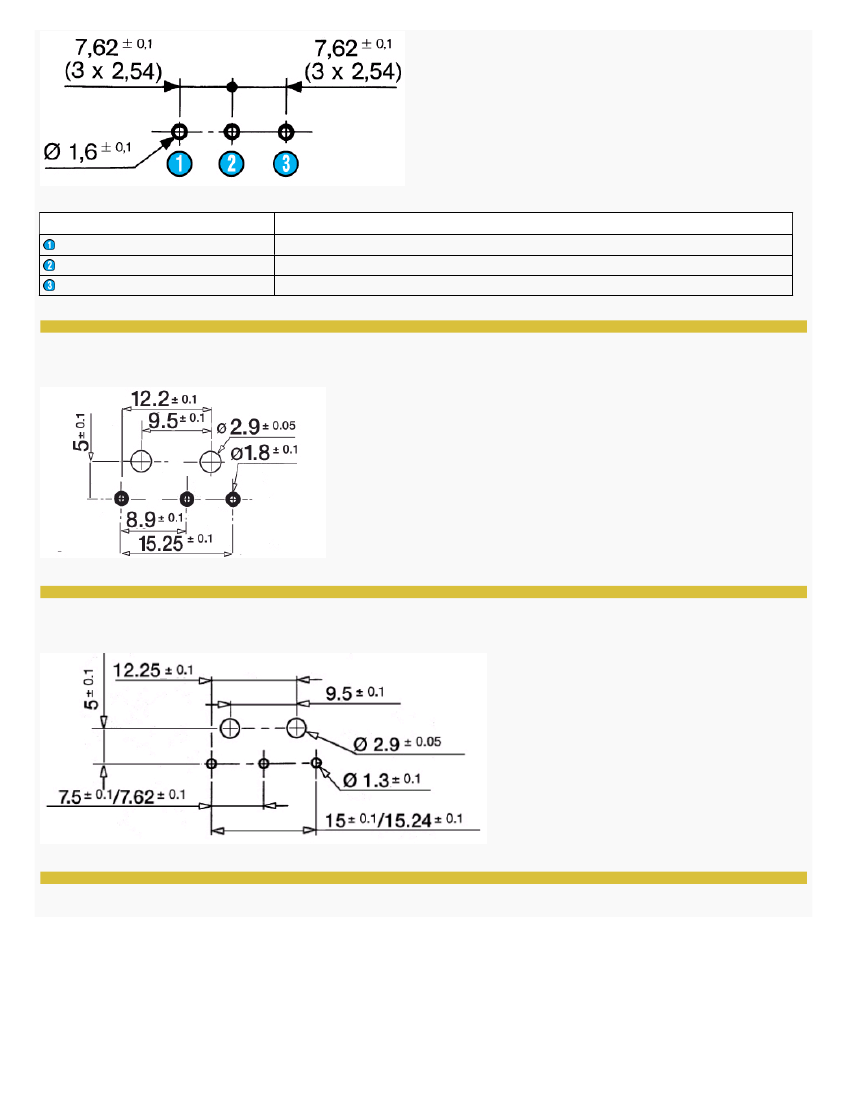

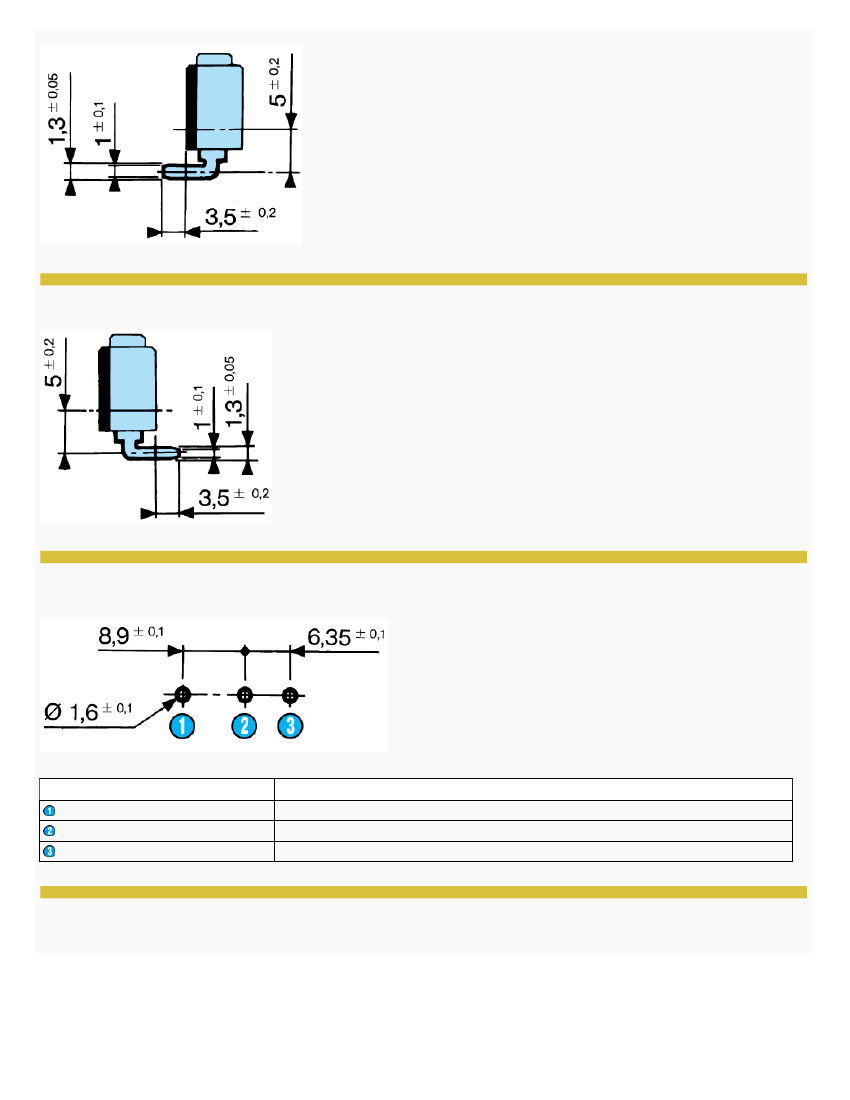

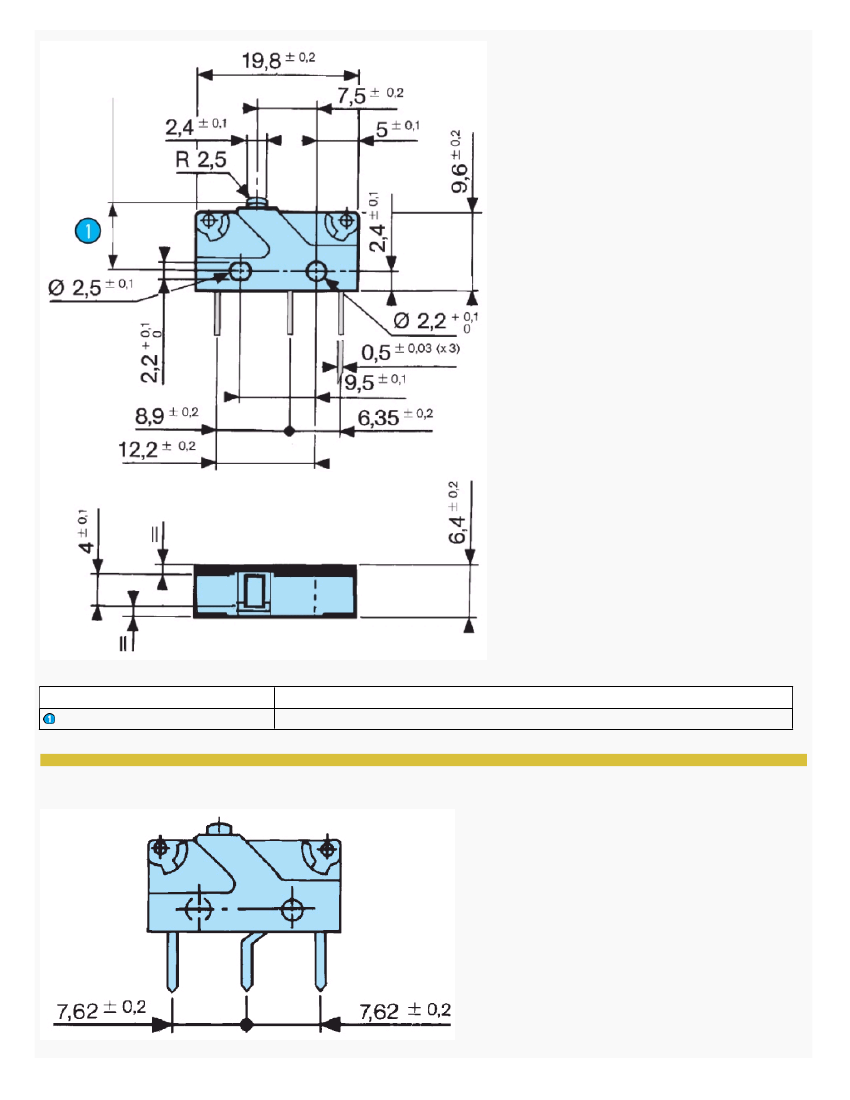

Dimensions (mm)
Product
83170
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
