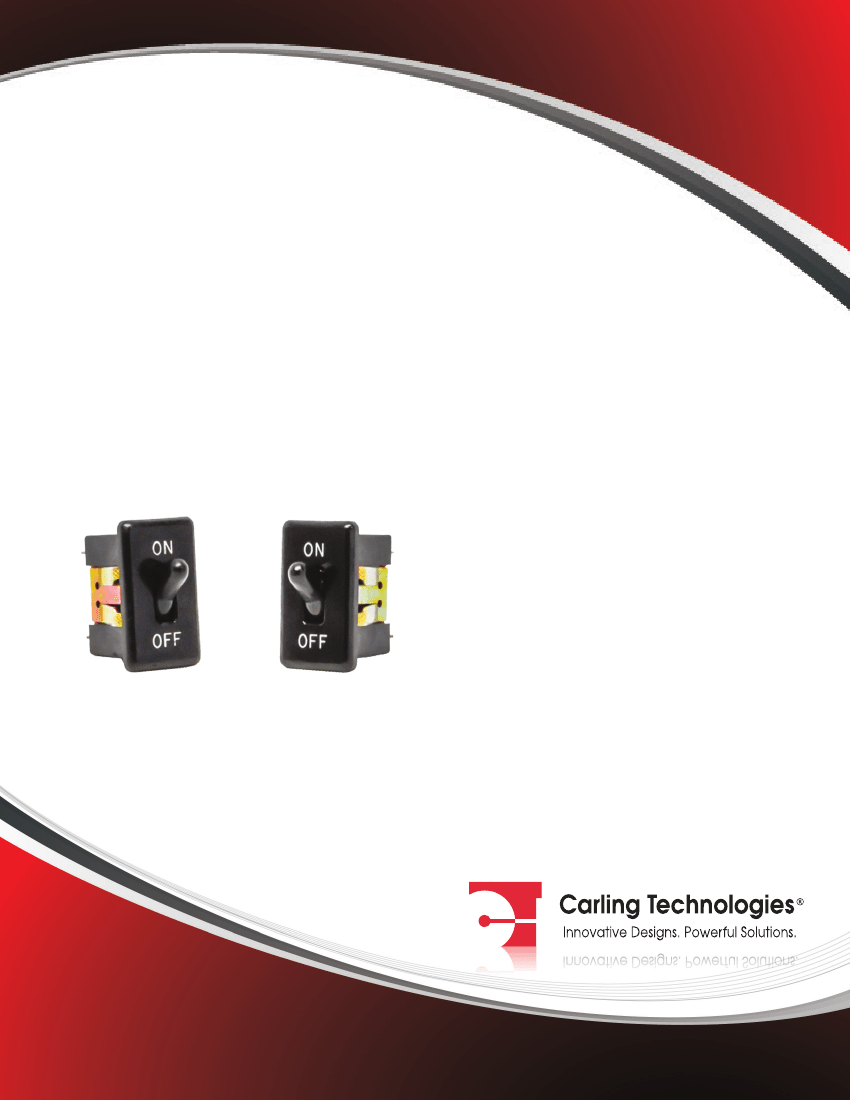

MAAOA/215-Series
Toggle Switches
The MAAOA/215-Series toggle switches are single pole, AC rated at 20 amps and 125
VAC. These switches are snap-in mounted, with a phenolic toggle and base, and are
suitable for high ambient temperature applications including Coffee Makers and
Food Warmers.
Carling Technologies, Inc.
60 Johnson Avenue • Plainville, CT 06062-1177
Phone: (860) 793-9281 • Fax: (860) 793-9231
Email: sales@carlingtech.com • www.carlingtech.com

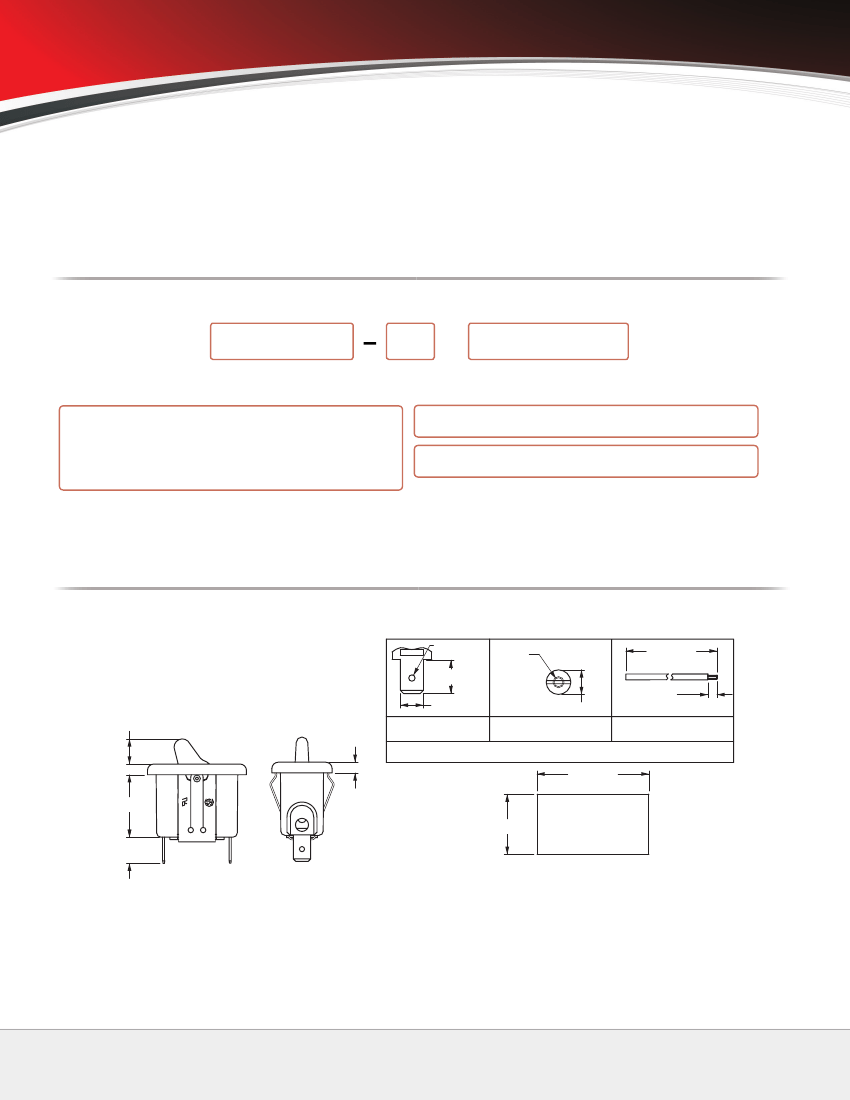

2 | MAAOA/215-Series Toggle Switches
Dielectric Strength
UL/CSA: 1000V - live to dead
metal parts & opposite polarity
Mechanical Life
100,000 cycles
Electrical Life
25,000 cycles
Operating Temperature
32°F to 185°F (0°C to 85°C)
1
Base Part Number
MAAOA
Wire Leads
215A
-
2
Color
BL / ON-OFF
3
Legend
1 BASE PART NUMBER: SERIES/CIRCUITRY/RATING/TERMINATION
10A 250 VAC, 20A 125 VAC, 1/2 HP 125-250 VAC
2.50 Tabs
Screw Terms.
Single Pole
On-Off
MAAOA
215
(On)-Off
MM-021
-
2 BASE & ACTUATOR COLOR
BL
Black
3 LEGEND
1
On-Off
BN
Brown
Notes:
Panel Cut-Out recommendations: For sheet metal panels, switch must enter panel in same
direction as the punch. (Burr on bottom.) Test cut hole in actual material.
1
Imprinting is available. ON-OFF legend is not standard and must be specified after
color. If not specified, switch will be manufactured with no legend.
( ) Indicates momentary function.
.075[1.90] DIA
.365[9.27]
.250[6.35]
.420[10.67]
.250 TAB (Q.C.)
#6-32NC-2
THREAD
6.000[152.4]
.500[12.70]
.270[6.86]
SCREW
(ASSEMBLED)
INTEGRATED WIRE LEAD
(no exposed conductors)
TERMINAL TYPE
1.218[30.94]
.906[23.01]
.156[3.96]
.656[16.66]
.379[9.63]
MOUNTING HOLE
Panel Thickness: .030[.762] min - .090 [2.28] max.
Specific cutout dimension range
dependent on panel thickness and material.
TEST CUT HOLE
IN ACTUAL
MATERIAL
*Manufacturer reserves the right to change product specification without prior notice.
REV_SW_MAAOA/215_0912
60 Johnson Avenue • Plainville, CT 06062–1177 • Phone: (860) 793–9281 • Fax: (860) 793–9231
Email: sales
@
carlingtech.com • www.carlingtech.com
