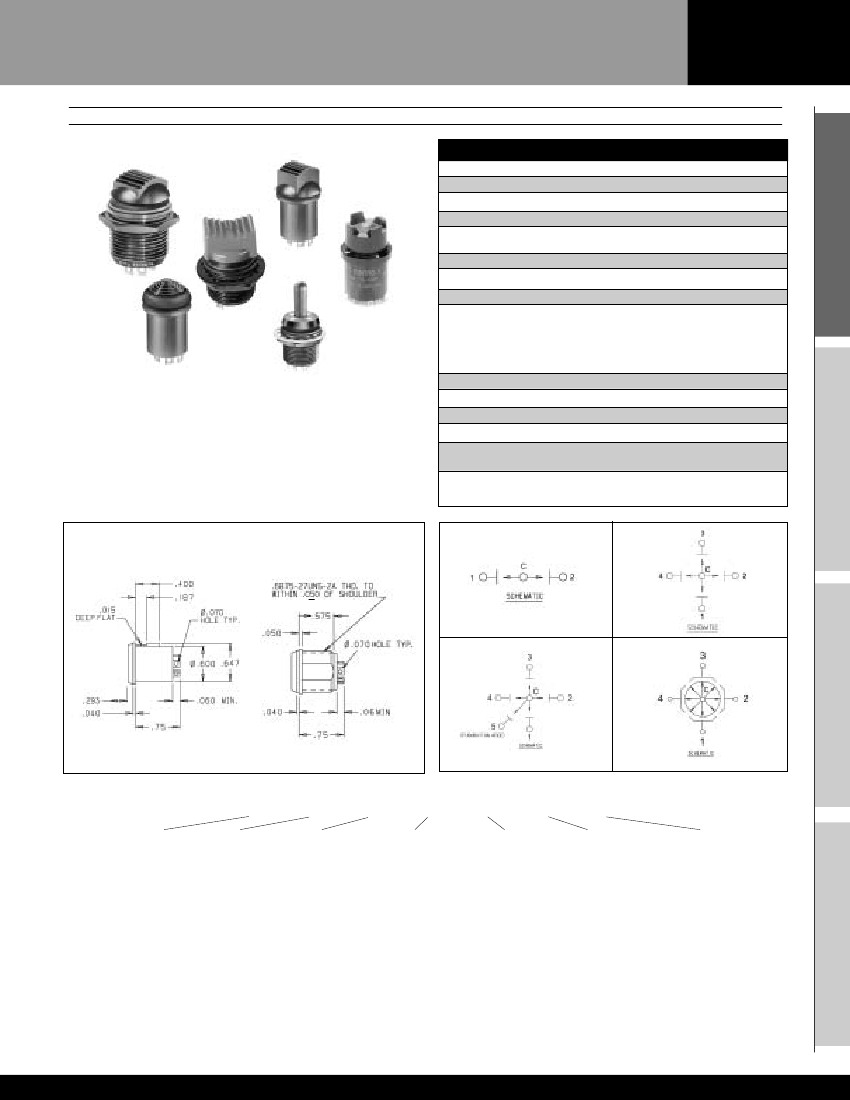

MT
MINI-TRIM SWITCHES
2-WAY, 4-WAY, 4-WAY PLUS PUSHBUTTON, AND 8-WAY TOGGLE SWITCHES
Standard Characteristics/Ratings:
ELECTRICAL:
Circuit:
Electrical:
Dielectric Withstand:
MINI TRIM
SWITCHES
TRIM SWITCHES
Contact made in opposite direction of lever travel
1 amp inductive @ 28VDC for 100,000 cycles
1050 Vrms
OPERATIONAL:
Temperature Range:
Lever Travel:
Actuating Force:
-55°C to +85°C
15° max. from center off
16 ± 8 oz.
Lever Pivot & Stop Strength:
Switch is capable of withstanding a force of 20 lbs. applied
to the actuating button. Button also withstands 15 lbs.
minimum pull force.
MATERIAL:
Switch Body:
Black thermoplastic
Black anodized aluminum
Thermoplastic
Stainless steel
Hex nut & internal tooth lockwasher
Moistureproof and dusttight to IP64 and M8805 Design 2
or watertight to IP68
OTTO Mini-Trims are toggle switches available in 2-way, 4-way, 4-
way plus pushbutton, and 8-way versions. Numerous button styles
are available on both the Military and Commercial Grade switch
versions. Mini-Trims are typically press-fit into control grips or panel
mounted using versions with an 11/16" threaded case. Mini-Trims are
also available with multiple sealing levels to fit all applications.
Threaded Case:
Button:
Bat Handles:
Mounting Hardware for
Threaded Case Versions:
Seal:
Typical Dimensions
T1
T4
T5
T8
Press Fit
Threaded Body
MINI-TRIM SERIES CATALOG CODE
XX
SERIES
T1-
2-Way
T4-
4-Way
T5-
4-Way Plus
Center
Pushbutton
T8-
8-Way
GRADE
M.
Military
C.
Commercial
–
X
X
X
CASE STYLE
1.
Press Fit
2.
Threaded
X
X
X
CURRENT RATING
1.
Standard
2.
Low Level
BUTTON COLOR
1.
Red
2.
Black
8.
Gray
N.
Not Applicable
Use When
Specifying
Button Styles
L, M, N, & P.
Consult Factory For
Colors Not Listed.
* Not available on T5
BUTTON STYLE
A.
2-Way Jog
*
B.
Tall Jog
C.
Rocker
D.
Cone
*
E.
LRUD Hat
*
F.
IOUD Hat
G.
Hat
H.
Stadium
J.
Castle
*
K.
4-Way Jog
*
L.
Short Bat
*
M.
Bat
*
N.
Post
*
P
4-40 Threaded Post
.
SEAL LEVEL
1.
Dusttight and
Moistureproof
Per IP64
2.
Watertight
Per IP68
3.
Mil. Watertight
Design 3
Specifications Subject To Change Without Notice
www.ottoexcellence.com
101
