4833.233: Descriptionpushbutton switches audio socket 6.3mm 3P pcb; CategoryTopical application Mechanical and electrical/engineering/automation; File Size271KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric View All

4833.233 Overview

pushbutton switches audio socket 6.3mm 3P pcb

4833.233 Parametric

Parameter Name	Attribute value
Manufacture	Schurte
Product Category	Pushbutton Switches
Factory Pack Quantity	500

Preview

Download Datasheet

View All

Audio Plug/Sockets

www.schurter.com/PG12

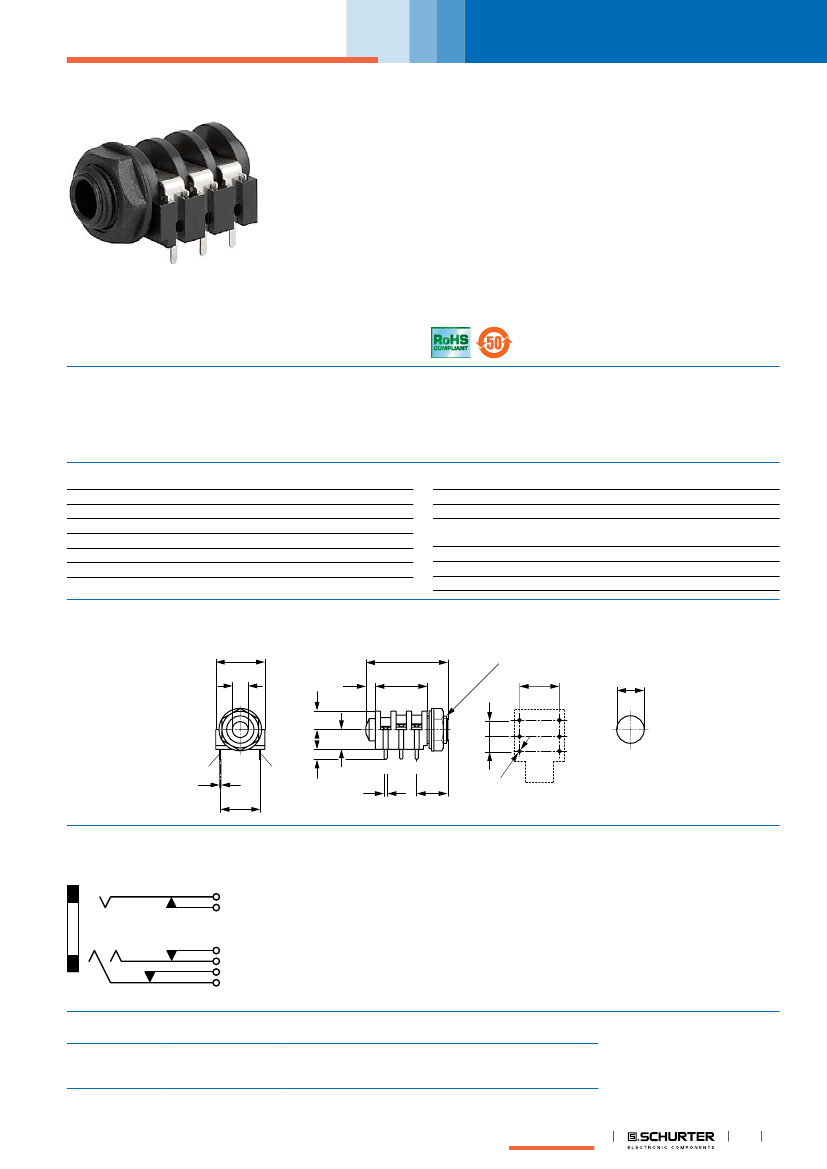

Audio Connector, Socket, 6.3 mm, 3-pole, solder terminals for PCB, insulated

4833.2330

Description

- PCB Mounting:

Screw-on mounting, from rear-side

- Audio entrances and exits

- Data and Signal transfer

- Audio Plug: 3-pole, insulated, straight

References

Weblinks

Alternative: Housing shielded

4833.2320

pdf-datasheet, html-datasheet, General Product Information, RoHS,

CHINA-RoHS, REACH, Mating Connectors, e-Shop, SCHURTER-

Stock-Check, Distributor-Stock-Check

Technical Data

Diameter

Number of Poles

Ratings DC

Ratings AC

Dielectric Strength

Insulation Resistance

6.3 mm

3-pole

1 A / 30 VDC

1 A / 30 VAC

500 VDC

> 50 MΩ␣ @ 500 VDC

Allowable Operation Temp.

Terminal

Mounting

Housing

Style

Lifetime

-20 °C to 70 °C

PCB terminals silver plated

Screw-on mounting

wall thickness max. 3.6 mm

insulated

straight

5000 Insertions

Dimensions

20.0

ø 6.5

3.8

33.2

7.5

ø

7/

16

21.0

”x

G

20

16.2

ø 11.3

4.0

F

0.4

16.2

S

3 2 1

1.3

12.6

Diagrams

S2

F2

F3

S3

F1

S1

All Variants

Product group

Audio Plug/Sockets

Diameter [mm]

6.3

Number of Poles

3-pole

Terminal

PCB terminals

Order Number

4833.2330

Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER

ø1

.6

6.3 6.3

8.0

Appliance inlet

1

Recommended Resources

STK0050II power amplifier circuit diagram

Simple second pulse generator circuit

LED tuning indication circuit

LC2210 output connection method

Simple short-circuit braking circuit for three-phase motor
