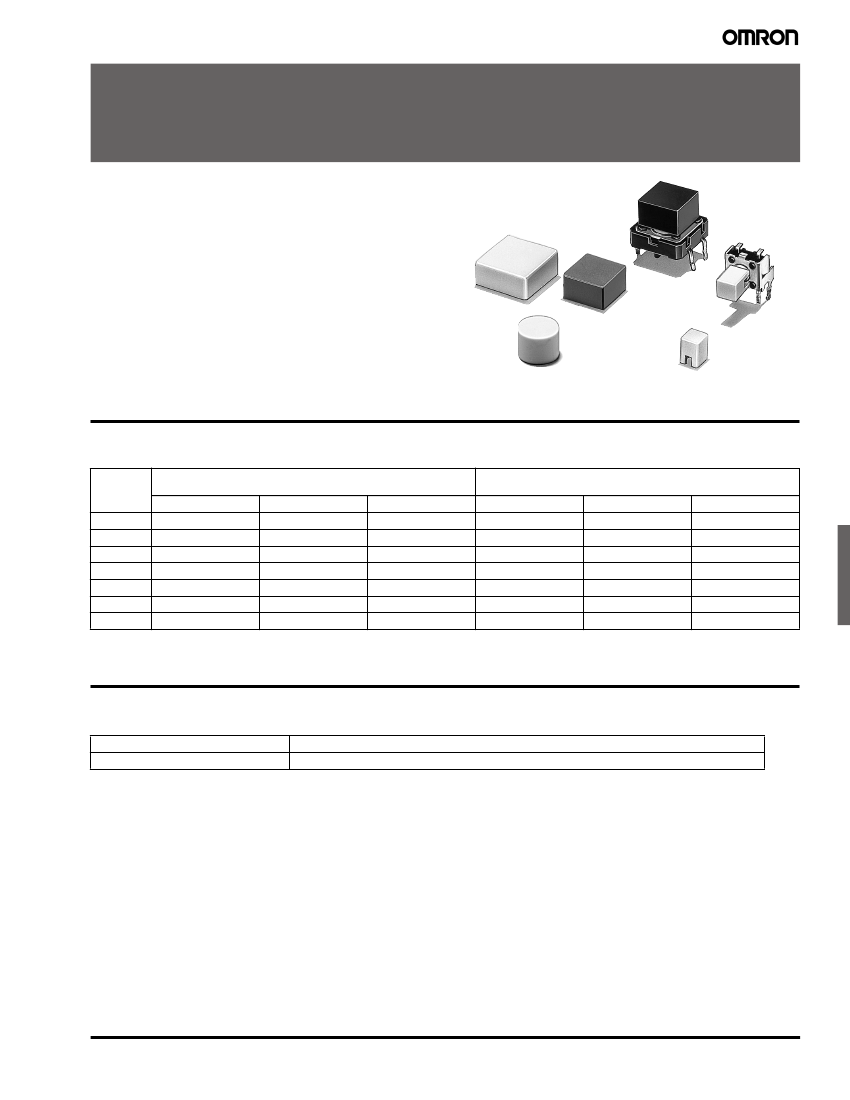

Tactile Switch Key Top
B32
Key Top Designed Specially for
Projected-plunger-type B3F, B3FS and
B3W Switches
• Available in a wide range of colors and sizes.
• RoHS Compliant.
Ordering Information
For B3F, B3FS and B3W Switches
6 x 6 mm Switches
(B3F-1000, B3F-3000, B3F-6000, B3W-1000, B3FS-1000)
4 x 4 mm Key Top 6 mm dia. Key Top
D-type Key Top
B32-1000
B32-2000
B32-2100
B32-1010
B32-1020
B32-1030
B32-1040
B32-1060
B32-1080
B32-2010
—
—
—
—
—
B32-2110
—
—
—
—
—
12 x 12 mm Switches
(B3F-4000, B3F-5000, B3W-4000, B3FS-4000)
9 x 9 mm Key Top 12 x 12 mm Key Top 9.5-mm dia. Key Top
B32-1200
B32-1300
B32-1600
B32-1210
B32-1220
B32-1230
B32-1240
B32-1260
B32-1280
B32-1310
B32-1320
B32-1330
B32-1340
B32-1360
B32-1380
B32-1610
B32-1620
B32-1630
—
—
—
Color
Ivory
Black
Orange
Yellow
Blue
White
Red
Specifications
■
Characteristics
Ambient operating temperature
Ambient operating humidity
–25°C to 70°C (at 60% RH max.) with no icing or condensation
35% to 85% (at 5 to 35°C)
Tactile Switch Key Top
B32
235

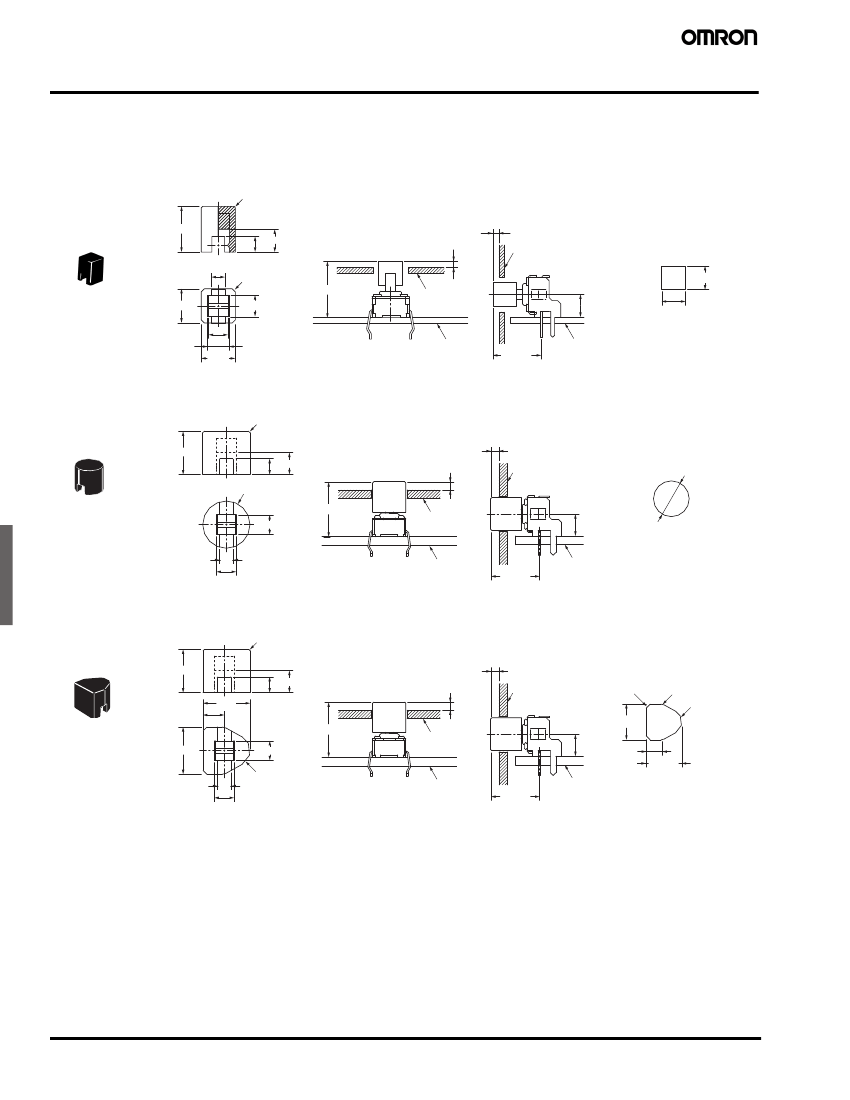

Dimensions
Note:
Unless otherwise specified, all units are in millimeters and a tolerance of
±
0.4 mm applies to all dimensions.
■
For 6 x 6 mm Tactile Switch
B32-10@0
R0.2
Reference Dimensions
1.0 to 2.0
Panel Cutout
5.5
2 2.8
1.6
R0.5
10.0
±0.4
4
±0.15
Panel
1.0 to 2.0
Panel
4.2
+0.05
0
4
2.5
+0.15
−0.05
4.2
+0.05
0
2.3
4
±0.15
2.5
+0.15
−0.05
PC
board
8.85
±0.2
PC
board
B32-2000
B32-2010
R0.2
Reference Dimensions
1.0 to 2.0
Panel Cutout
5.5
±0.1
2 2.8
6
±0.1
dia.
10
±0.4
2.5
Panel
4
1.0 to 2.0
Panel
6.5
+0.05
0
1.8
2.5
PC
board
8.85
±0.4
PC
board
B32-2100
B32-2110
R0.2
Reference Dimensions
1.0 to 2.0
Panel Cutout
5.5
±0.1
2 2.8
6
±0.1
2.7
10
±0.4
Panel
6
±0.1
2.5
R2
1.8
2.5
PC
board
8.85
±0.4
PC
board
4
1.0 to 2.0
Panel
Two, R0.75
+0.05
0
Two, R1.25
+0.05
0
R2.25
+0.05
0
6.5
+0.05
0
2.95
+0.05
0
6.5
+0.05
0

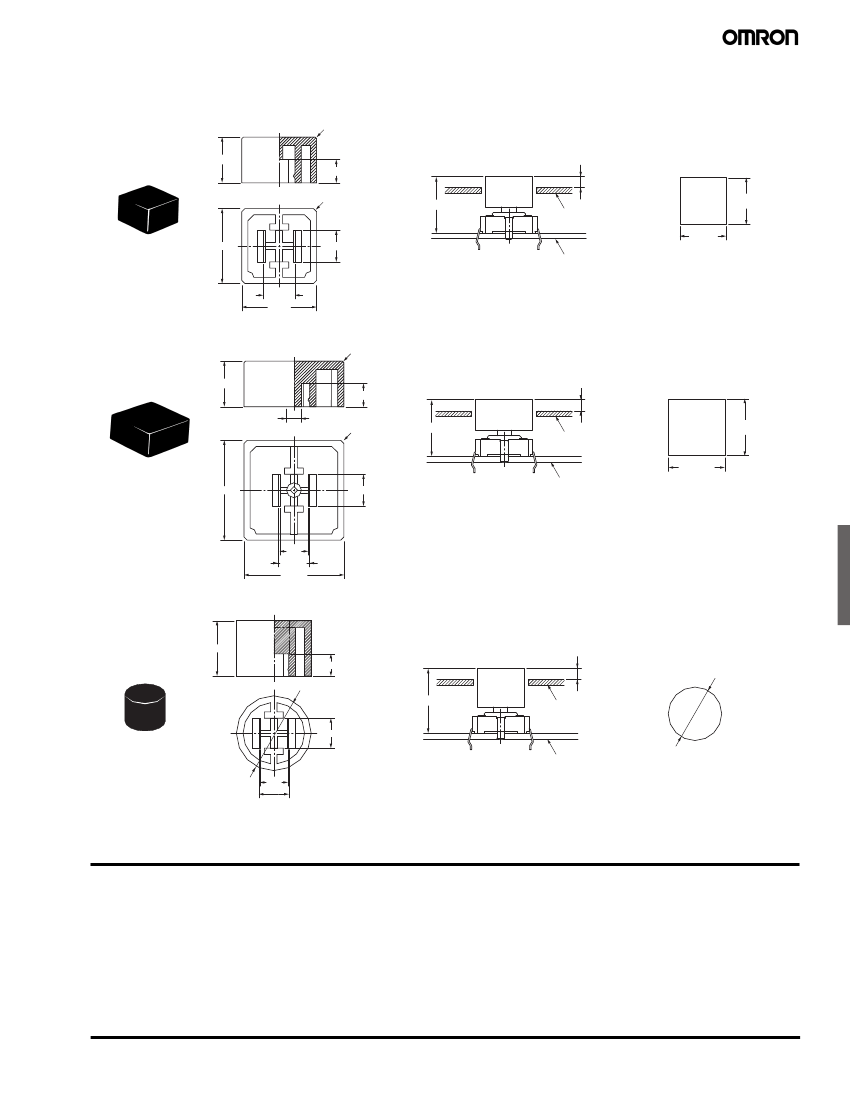

236
Tactile Switch Key Top
B32
■
For 12 x 12 mm Tactile Switch
B32-12@0
R0.2
Reference Dimensions
1.0 to 2.0
Panel Cutout
5.5
2.8
R0.5
10.0
±0.4
Panel
9.2
+0.05
0
9.2
+0.05
0
9
±0.15
3.8
±0.1
PC
board
3.8
±0.1
9
±0.15
B32-13@0
R0.2
Reference Dimensions
1.0 to 2.0
Panel Cutout
5.5
2.8
1.8 dia.
R0.5
10.0
±0.4
Panel
12.2
+0.05
0
12.2
+0.05
0
PC
board
12
±0.15
3.8
±0.1
3.5
3.8
±0.1
12
±0.15
B32-16@0
Reference Dimensions
7
2.8
9.5
±0.2
dia.
11.5
±0.4
Panel
1.0 to 2.0
Panel Cutout
9.7
+0.05
dia.
0
3.8
±0.1
PC
board
3.55
3.8
±0.1
Precautions
Mount the Key Top on to the Switch after soldering, otherwise the Key Top may be deformed by the soldering heat.
Tactile Switch Key Top
B32
237
All sales are subject to Omron Electronic Components LLC standard terms and conditions of sale, which
can be found at
http://www.components.omron.com/components/web/webfiles.nsf/sales_terms.html
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
OMRON ELECTRONIC
COMPONENTS LLC
55 E. Commerce Drive, Suite B
Schaumburg, IL 60173
OMRON ON-LINE
Global - http://www.omron.com
USA - http://www.components.omron.com
847-882-2288
Cat. No. X303-E-1b
09/13
Specifications subject to change without notice
Printed in USA
