NEW
Features/Benefits
•
4.2 x 3.2 mm footprint
•
2.5 mm thickness
•
High number of cycles
•
Color coded actuators
PTS 810 Series
Microminiature SMT Top Actuated
Typical Applications
•
Control panels
•
Nomad devices
•
Remote controls
•
Keyless entry system
B
Specifications
FUNCTION: momentary action
CONTACT ARRANGEMENT: 1 make contact = SPST N.O.
TERMINALS: J type for SMT
TRAVEL: For 160 & 260 gf: 0.15mm ± 0.1mm
For 400 & 600 gf: 0.20mm ± 0.1mm
Operating
Force (gf)
PTS810
PTS810
PTS810
PTS810
SJM 250 SMTR LFS
SJK 250 SMTR LFS
SJG 250 SMTR LFS
SJS 250 SMTR LFS
160 ± 50
260 ± 70
400 ± 100
600 ± 150
Electrical
Tactile Switches
MAXIMUM VOLTAGE:
MAXIMUM CURRENT DC:
DIELECTRIC STRENGTH:
CONTACT RESISTANCE:
INSULATION RESISTANCE:
BOUNCE TIME:
16 VDC
50 mA
250 VA C (1mn)
≤
500 mΩ
≥
100 MΩ
≤
10 ms
Operating Life
(operations)
150,000
50,000
100,000
150,000
Environmental
OPERATING TEMPERATURE:
-40˚C to 85˚C
Process
SOLDERING: This component is suited to the following methods:
Infrared Reflow Soldering in accordance with IEC61760-1
NOTE:
Specifications listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Packaging
Switches in reels of 2,900 pieces.
Dimensions of reels according to EIA 481B
External diameter 330 mm
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and place it in the appropriate box.
For any part number different from those listed above, please consult your local representative.
P
T
S
8
1
0
2
5
0
S M T
R
L
F
S
Actuator Type
S
Standard
Termination
J
J bend SMT
Packaging
SMTR
Tape & reel
Height
250
2.5 mm height
LFS
RoHS, silver plated
Actuation Force
M
160 gf; gray actuator
K
260 gf; white actuator
G
400 gf; blue actuator
S
600 gf; gray actuator

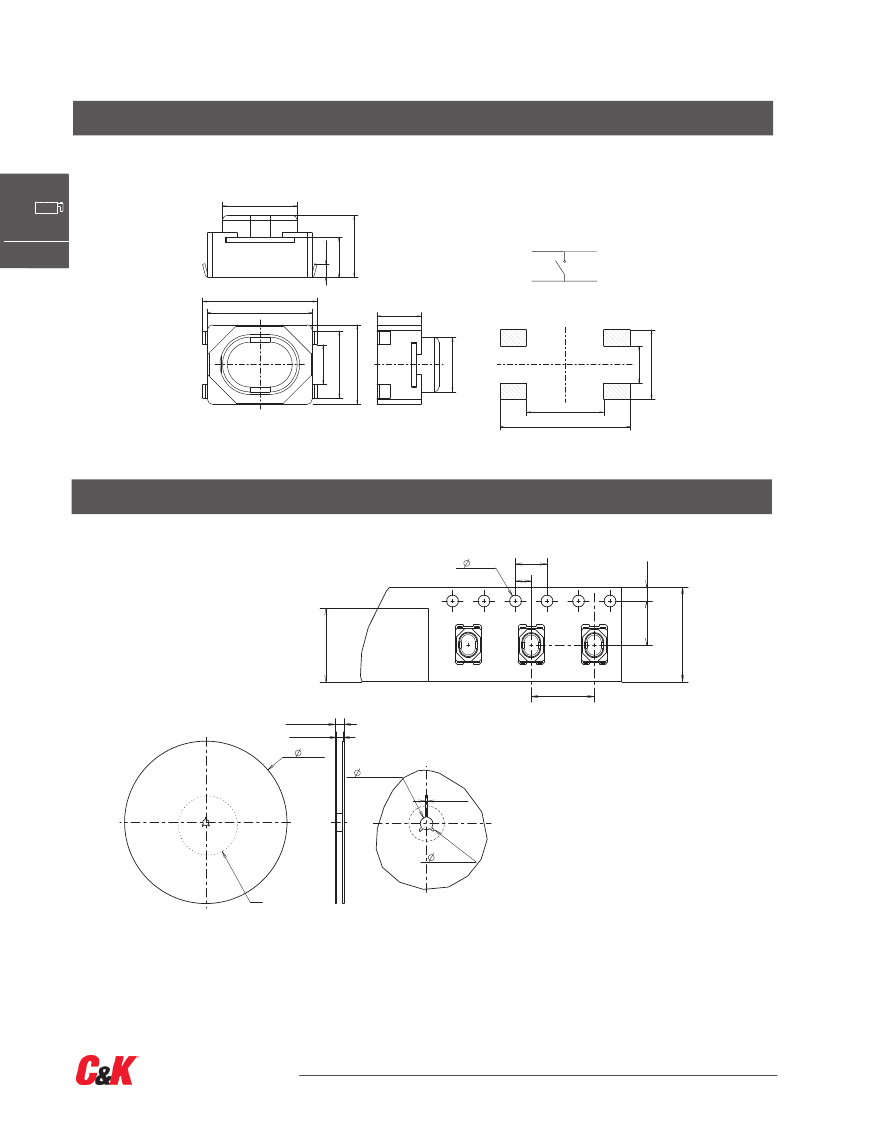

Dimensions are shown: mm
Specifications and dimensions subject to change
4 mar 13
B–19
www.ck-components.com
