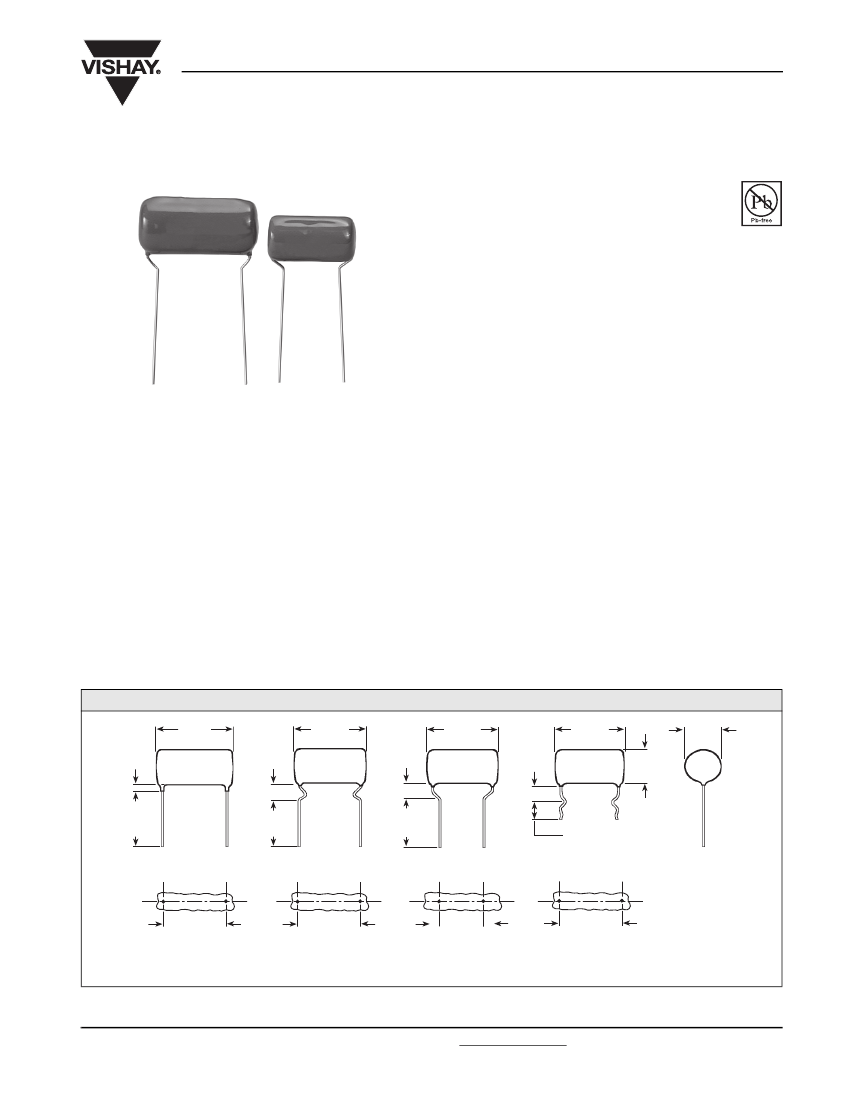

Type 715P HV
Vishay Sprague
Polypropylene Film/Foil Capacitors
High Voltage, ORANGE DROP
®
, 800 VAC
FEATURES
•
Designed for high AC voltage applications
requiring corona free performance
•
Very low dissipation factor
RoHS
COMPLIANT
•
Ideal in high frequency, high pulse current applications
•
Excellent stability, virtually linear temperature coefficient
•
Various lead lengths and crimp styles
APPLICATIONS
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C. To + 105 °C
with proper voltage derating
Capacitance Range:
0.001 µF to 0.01 µF
Capactiance Tolerance:
± 1 % to ± 20 %
Voltage Rating:
800 VAC/1800 VDC
Corona Start Voltage:
Typically 950 - 1000 volts rms
Dissipation Factor:
0.05 % at 20 kHz, maximum
Insulation Resistance:
400 000 Megohm minimum at
+ 25 °C. 20 000 Megohm minimum at + 85 °C. 2000 Megohm
minimum at + 105 °C
dv/dt:
1000 volts/microsecond minimum
•
Switching and high voltage power supplies, inverters,
snubbers, resonant converters and electronic lighting
ballasts.
PHYSICAL CHARACTERISTICS
Lead Wire:
Tinned copper-clad steel 0.032 [0.813] diameter,
No. 20 AWG.
Encapsulation:
Conformal coating of flame retardant
orange epoxy (meets UL94V-2 specifications).
Dielectric:
Polypropylene film; utilizing a floating common of
metalized polzproplyene, which provides self-healing
characteristics.
Construction:
Non-inductively wound with extended foil,
internal series-section design.
DIMENSIONS
in inches [millimeters]
L
Max.
0.250
[6.350]
Max.
0.250
[6.350]
Max.
L
Max.
0.250
[6.350]
Max.
L
Max.
0.250
[6.350]
Max.
L
Max.
D
Max.
H
Max.
1.250
[31.750]
Min.
Lead
Length
Lead
Length
0.156 ± 0.015
[3.962 ± 0.381]
0.886 ± 0.060
[22.504 ± 1.524]
0.886 ± 0.030
[22.504 ± 0.762]
0.590 ± 0.030
[14.986 ± 0.762]
0.886 ± 0.020
[22.504 ± 0.508]
Terminal A
Terminal B
Terminal D
Terminal C
Document Number: 42019
Revision: 09-Feb-06
For technical questions, contact: spresale@vishay.com
www.vishay.com
25
Type 715P HV
Polypropylene Film/Foil Capacitors
High Voltage, ORANGE DROP
®
, 800 VAC
PERFORMANCE CHARACTERISTICS AT + 85 °C
1000
1000
Vishay Sprague
800
Vrms MAX.
800
Vrms MAX.
VOLTS - rms
VOLTS - rms
0.0033 µF
100
100
0.0047 µF
10
10
10
1000
100
FREQUENCY (kHz)
1000
10
100
FREQUENCY (kHz)
1000
1000
800
Vrms MAX.
800
Vrms MAX.
VOLTS - rms
100
VOLTS - rms
100
0.0056 µF
10
10
100
FREQUENCY (kHz)
1000
10
10
0.01 µF
100
FREQUENCY (kHz)
1000
STANDARD MARKING FORMAT
SAMPLE MARKING
715P800 VAC
222J 9340
DESCRIPTION
Sprague
®
715P
800 VAC
222J
9340
Indentification
Type Number
AC Voltage Rating, Volts
Capacitance and Tolerance Code
Weekly Date Code
(i.e. 40th week for 1999)
TOLERANCE CODES
PER EIA STANDARDS
F=±1%
G=±2%
H=±3%
J=±5%
K = ± 10 %
M = ± 20 %
NOTE:
Complete application engineering service for optimum results in the use of the High Voltage Orange Drop
®
is available, including
additional performance data. Samples, price quotes and delivery information is also readily available. Please contact us today.
ORDERING INFORMATION
715P
TYPE
222
CAPACITANCE
5
CAPACITANCE
TOLERANCE
0 = ± 20 %
9 = ± 10 %
5=±5%
3=±3%
2=±2%
1=±1%
800
AC
VOLTAGE
L
CASE
CODE
B
TERMINAL
3
LEAD LENGTH
(XXXX)
SPECIAL
CONSTRUCTION
A suffix may
be added by the
factory to
denote special
constuction.
Identifies the
basic capacitor
design. Also
available in
Type 717 P,
pressed design.
Contact factory
for additional
information on
sizes.
This is expressed
in picofarads. The
first two digits are
the significant
figures, the third is
the number of
zeros to follow.
(i.e. 222 = 2200
pF = 0.0022 µF
This is
See
expressed Standard
in volts.
Ratings
table.
A = Straight lead
(1.25 [31.75]
minimum
lead length only)
B = Hairpin Crimp
C = Captive Crimp*
D = Hockey Stick
Crimp
1 = 0.187 ± 0.030
[4.75 ± 0.762]
2 = 0.250 ± 0.030
[ 6.35 ± 0.762]
3 = 1.250 [31.75]
minimum
(Custom lead
lengths available
upon request.)
* Terminal C has a lead length of 0.156" ± 0.015" [3.962 mm ± 0.381 mm] therefore is not necessary to indicate the lead length digit. The Captive
Crimp is designed for circuit boards with hole sizes 0.044" to 0.048" [1.118 mm to 1.219 mm] in diameter. Please consult us if you have a specific
requirement.
Document Number: 42019
Revision: 09-Feb-06
For technical questions, contact: spresale@vishay.com
www.vishay.com
27
