SUBMINIATURE
DB Series
Features
G
High-precision switch with
high repeat accuracy
Models available for operating
temperatures up to 120°C
Rated for currents up to
10 amp at 250VAC
Range of auxiliary actuators
available (can also be retrofitted);
two mounting positions
Variety of contact materials available
to suit your application
Mechanical life: up to 15 x 10
6
operations
Wide variety of terminal types available
Numerous approvals

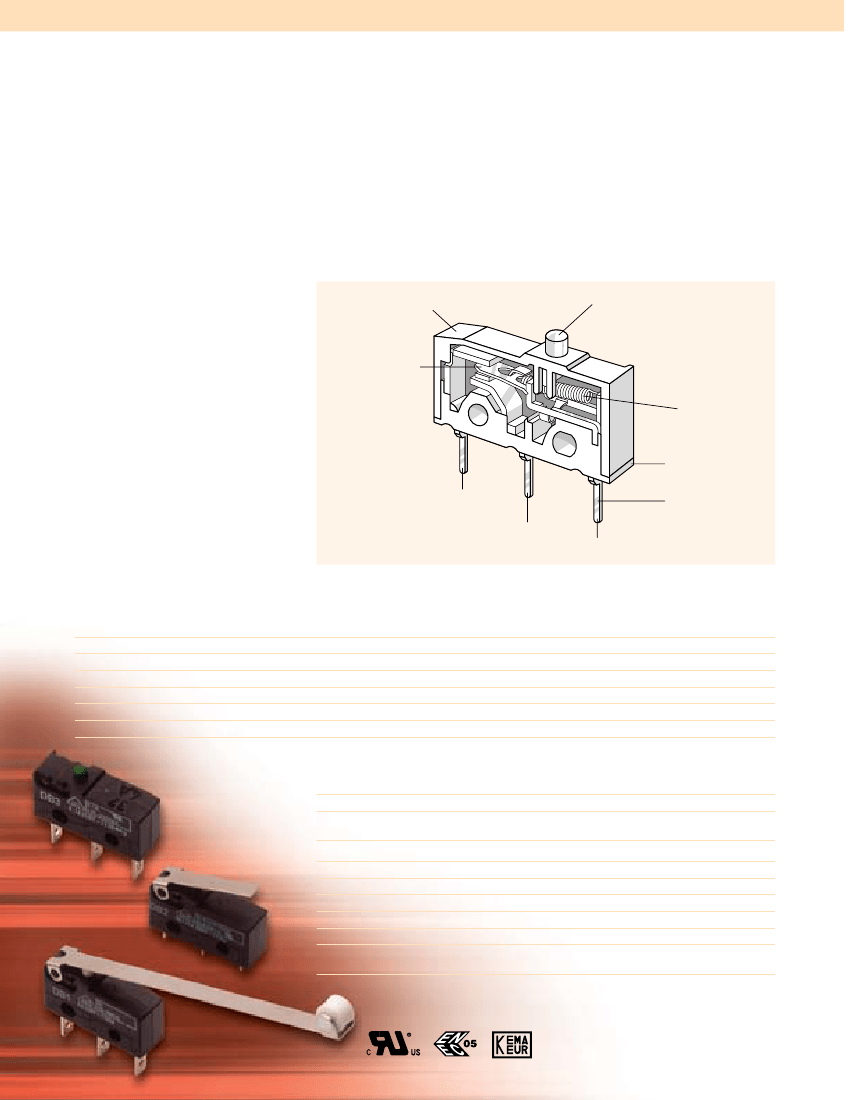

PBT cover
POM
actuating button
G
G
Silver-alloy
gold crosspoint
contacts
Stainless steel
spring
G
G
PET base
NC terminal
NO terminal
Common terminal
G
G
G
Silver-plated
copper-zinc
terminals
Electrical Ratings
Switch
Series
EN61058 Rating
UL1054 Rating
Electrical Life at Rated Load
According to EN
According to UL
(Min. Operations)
(Min. Operations)
DB1
DB2
DB3
DB5*
DB6*
DB7*
*85°C
6A, 250V~
10(1.5)A, 250V~
0.1A, 250V~
1A, 250V~
6A, 250V~
10(1.5A), 400V~
5A, 125/250VAC
10.1A, 125/250VAC; 1/4HP, 125VAC
0.1A,125/250VAC
1A, 125/250VAC
5A, 125/250VAC
10.1A, 125/250VAC; 1/4HP, 125VAC
10,000
10,000
50,000
50,000
50,000
50,000
6,000
6,000
6,000
6,000
6,000
6,000
Specifications
Electrical
Temperature Rating:
Flammability Rating:
Materials
-40°C to +85°C / +120°C
UL94V-O
(PBT, PET)
UL94HB
(POM)
PET
PBT
PBT, POM
Stainless Steel or Plastic
Silver-Plated Copper-Zinc
Silver Alloy
Gold Crosspoint
Base:
Cover:
Actuator:
Auxiliary Actuator:
Terminals:
Contacts:
PBT = Polybutyleneterephthalate • PET = Polyethyleneterephthalate • POM = Polyacetal

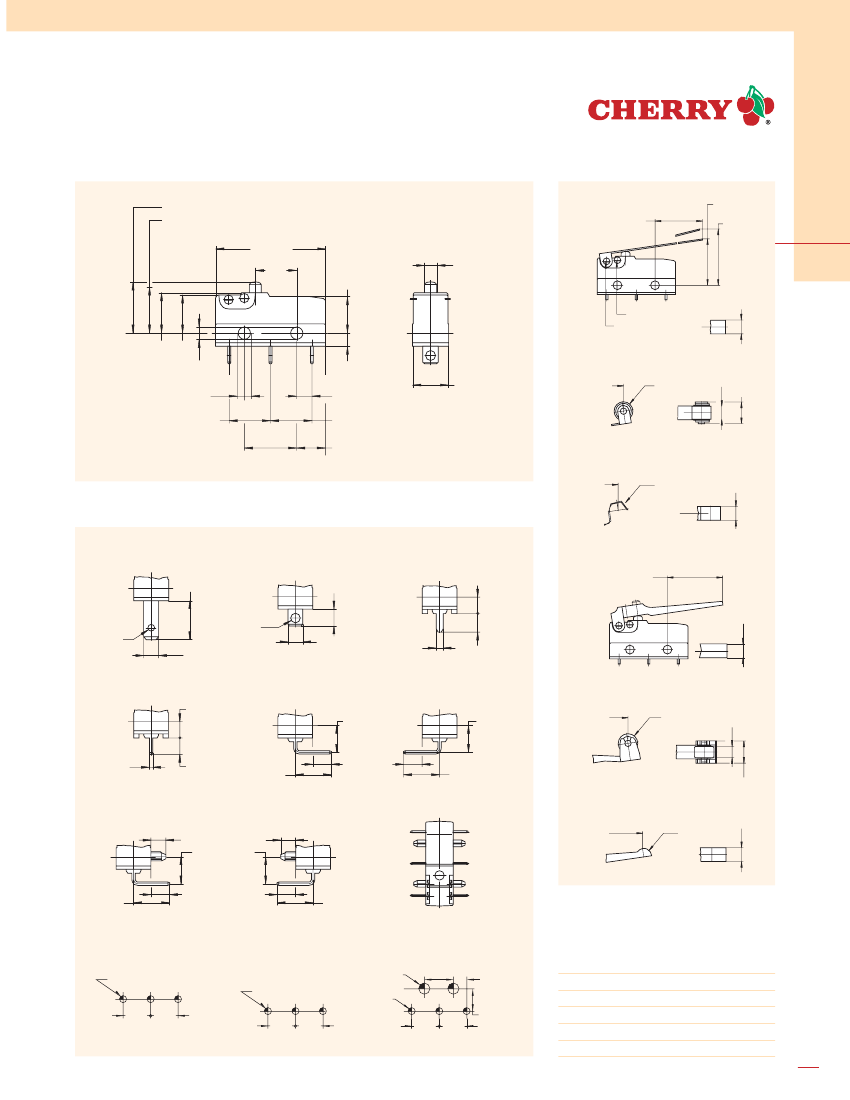

Dimensions
inches (mm)
Auxiliary Actuator
inches (mm)
Straight
»L«
±0.031
(0.8)
Rest position 0.366 (9.3 max.)
Operating point 0.331± 0.012 (8.4±0.3)
0.787 max.
(20.0)
0.262
(6.65)
0.295
(7.5)
Operating
Point
Rest
Position
ø 0.087
(2.2)
0.138
(3.5)
High Ratio (HR)
Standard Ratio (SR)
0.130
(3.3)
0.287
(7.3)
0.272
(6.9)
0.087
(2.2)
0.093
(2.35)
Roller
0.256
(6.5)
»L«
±0.031
(0.8)
ø0.189
(4.8)
0.098
(2.5)
0.295
(7.5)
0.374
(9.5)
0.107
(2.73)
0.295
(7.5)
0.205
(5.2)
Simulated Roller
»L«
±0.031
(0.8)
R 0.098
(2.5)
0.138
(3.5)
Inductive Load
L/R=3ms
DB1
DB2
Terminal Options
inches (mm)
QC Terminals
0.110 x 0.020 (2.8 x 0.5)
0.287
(7.3)
Solder Terminals – Short
0.126
(3.2)
PCB Terminals – Straight
0.051 x 0.020 (1.3 x 0.5)
0.122
(3.1)
Straight – Plastic
»L«
±0.031
(0.8)
0.138
(3.5)
0.110
(2.8)
PCB Terminals – Straight
0.024 x 0.020 (0.6 x 0.5)
0.122
(3.1)
PCB Terminals
RH Side w/o Location Pins
0.024 x 0.020 (0.6 x 0.5)
0.200
(5.08)
PCB Terminals
LH Side w/o Location Pins
0.024 x 0.020 (0.6 x 0.5)
0.200
(5.08)
»L«
±0.031
(0.8)
0.122
(3.1)
0.047
(1.2)
0.071
(1.8)
0.110
(2.8)
0.051
(1.3)
Roller – Plastic
0.114
(2.9)
ø0.197
(5.0)
0.110
(2.8)
0.200
(5.08)
0.110
(2.8)
0.200
(5.08)
Left
Right
»L«
±0.031
(0.8)
R2
0.266
(6.75)
0.138
(3.5)
0.138
(3.5)
0.266
(6.75)
Drilling Patterns
for PCB Terminals
0.051 x 0.020 (1.3 x 0.5)
Ø0.063 (1.6)
Drilling Patterns
for PCB Terminals
(Straight/Lateral
w/o Location Pins)
0.024 x 0.020 (0.6 x 0.5)
Ø0.051 (1.3)
Drilling Patterns
for PCB Terminals
(Lateral with Location Pins)
0.024 x 0.020 (0.6 x 0.5)
Ø0.067
(1.7)
Ø0.051
(1.3)
0.374 (9.5)
0.107
(2.73)
0.200
(5.08)
Contact Ratings
at Direct Voltage
Switching
Voltage
Switched Current
Resistive Load
DB1
DB2
0.295 0.295
(7.5) (7.5)
0.295 0.295
(7.5) (7.5)
0.295 0.295
(7.5) (7.5)
12V
24V
60V
110V
220V
6A
10A
3A
5A
1A
1A
0.5A 0.5A
0.25A 0.25A
6A 10A
2A
4A
0.5A 0.5A
0.2A 0.2A
0.1A 0.1A
13
0.138
(3.5)
PCB Terminals
RH Side with Location Pins
0.024 x 0.020 (0.6 x 0.5)
PCB Terminals
LH Side with Location Pins
0.024 x 0.020 (0.6 x 0.5)
Top-down View
of Lateral Terminals
Simulated Roller – Plastic
0.220
(5.6)
0.024
(0.6)
0.122
(3.1)
0.266
(6.75)
0.138
(3.5)
0.138
(3.5)
0.266
(6.75)
≤0.217
(5.5)
Actuator Specifications
— Standard Ratio
Actuator
Code
Switch
Type
Maximum
Operating Force
(gms.)
Maximum
Pre-Travel
inches (mm)
Operating
Point
inches (mm)
Minimum
Over-Travel
inches (mm)
Max. Movement
Differential
inches (mm)
Max. Rest
Position
inches (mm)
Actuation
Length
inches (mm)
AA
BA
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2/7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2/7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2/7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
70
150
150
250
280
70
150
250
250
280
30
60
60
100
115
25
50
50
85
100
9
18
18
—
30
65
65
110
125
25
55
55
95
110
9
20
20
—
30
65
65
110
125
25
55
55
95
110
9
20
20
—
24
50
50
85
100
18
38
38
63
75
25
55
55
90
105
25
55
55
90
105
0.039
0.039
0.039
0.039
0.039
0.039
0.039
0.039
0.039
0.039
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
LB
LC
LD
SB
SC
SD
RB
RC
RD
WB*
WC*
VB*
ZB*
0.157 (4.0)
0.157 (4.0)
0.157 (4.0)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.197 (5.0)
0.197 (5.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
—
0.157 (4.0)
0.157 (4.0)
0.157 (4.0)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.197 (5.0)
0.197 (5.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
—
0.157 (4.0)
0.157 (4.0)
0.157 (4.0)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.197 (5.0)
0.197 (5.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
—
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.236 (6.0)
0.236 (6.0)
0.236 (6.0)
0.236 (6.0)
0.236 (6.0)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.177 (4.5)
0.331±0.012 (8.4±0.3)
0.024 (0.6)
0.331±0.012 (8.4±0.3)
0.024 (0.6)
0.331±0.012 (8.4±0.3)
0.024 (0.6)
0.331±0.012 (8.4±0.3)
0.024 (0.6)
0.331±0.012 (8.4±0.3)
0.024 (0.6)
0.331±0.012 (8.4±0.3)
0.024 (0.6)
0.331±0.012 (8.4±0.3)
0.024 (0.6)
0.331±0.012 (8.4±0.3)
0.024 (0.6)
0.331±0.012 (8.4±0.3)
0.024 (0.6)
0.331±0.012 (8.4±0.3)
0.024 (0.6)
Auxiliary actuator, rear-mounted (RM)
0.421±0.051 (10.7±1.3)
0.079 (2.0)
0.421±0.051 (10.7±1.3)
0.079 (2.0)
0.421±0.051 (10.7±1.3)
0.079 (2.0)
0.421±0.063 (10.7±1.6)
0.059 (1.5)
0.421±0.063 (10.7±1.6)
0.059 (1.5)
0.437±0.059 (11.1±1.5)
0.079 (2.0)
0.437±0.059 (11.1±1.5)
0.079 (2.0)
0.437±0.059 (11.1±1.5)
0.079 (2.0)
0.437±0.071 (11.1±1.8)
0.059 (1.5)
0.437±0.071 (11.1±1.8)
0.059 (1.5)
0.512±0.138 (13.0±3.5)
0.157 (4.0)
0.512±0.138 (13.0±3.5)
0.157 (4.0)
0.512±0.138 (13.0±3.5)
0.157 (4.0)
—
—
0.630±0.051 (16.0±1.3)
0.079 (2.0)
0.630±0.051 (16.0±1.3)
0.079 (2.0)
0.630±0.051 (16.0±1.3)
0.079 (2.0)
0.630±0.063 (16.0±1.6)
0.059 (1.5)
0.630±0.063 (16.0±1.6)
0.059 (1.5)
0.646±0.059 (16.4±1.5)
0.079 (2.0)
0.646±0.059 (16.4±1.5)
0.079 (2.0)
0.646±0.059 (16.4±1.5)
0.079 (2.0)
0.646±0.071 (16.4±1.8)
0.059 (1.5)
0.646±0.071 (16.4±1.8)
0.059 (1.5)
0.720±0.138 (18.3±3.5)
0.157 (4.0)
0.720±0.138 (18.3±3.5)
0.157 (4.0)
0.720±0.138 (18.3±3.5)
0.157 (4.0)
—
—
0.622±0.051 (15.8±1.3)
0.079 (2.0)
0.622±0.051 (15.8±1.3)
0.079 (2.0)
0.622±0.051 (15.8±1.3)
0.079 (2.0)
0.622±0.063 (15.8±1.6)
0.059 (1.5)
0.622±0.063 (15.8±1.6)
0.059 (1.5)
0.638±0.059 (16.2±1.5)
0.079 (2.0)
0.638±0.059 (16.2±1.5)
0.079 (2.0)
0.638±0.059 (16.2±1.5)
0.079 (2.0)
0.638±0.071 (16.2±1.8)
0.059 (1.5)
0.638±0.071 (16.2±1.8)
0.059 (1.5)
0.713±0.138 (18.1±3.5)
0.157 (4.0)
0.713±0.138 (18.1±3.5)
0.157 (4.0)
0.713±0.138 (18.1±3.5)
0.157 (4.0)
—
—
0.437±0.059 (11.1±1.5)
0.079 (2.0)
0.437±0.059 (11.1±1.5)
0.079 (2.0)
0.437±0.059 (11.1±1.5)
0.079 (2.0)
0.437±0.059 (11.1±1.5)
0.079 (2.0)
0.437±0.059 (11.1±1.5)
0.079 (2.0)
0.480±0.071 (12.2±1.8)
0.118 (3.0)
0.480±0.071 (12.2±1.8)
0.118 (3.0)
0.480±0.071 (12.2±1.8)
0.118 (3.0)
0.480±0.071 (12.2±1.8)
0.118 (3.0)
0.480±0.071 (12.2±1.8)
0.118 (3.0)
0.469±0.055 (11.9±1.4)
0.079 (2.0)
0.469±0.055 (11.9±1.4)
0.079 (2.0)
0.469±0.055 (11.9±1.4)
0.079 (2.0)
0.469±0.055 (11.9±1.4)
0.079 (2.0)
0.469±0.055 (11.9±1.4)
0.079 (2.0)
0.630±0.055 (16.0±1.4)
0.059 (1.5)
0.630±0.055 (16.0±1.4)
0.059 (1.5)
0.630±0.055 (16.0±1.4)
0.059 (1.5)
0.630±0.055 (16.0±1.4)
0.059 (1.5)
0.630±0.055 (16.0±1.4)
0.059 (1.5)
0.004
0.004
0.006
0.004
0.006
0.004
0.004
0.006
0.004
0.006
(0.10)
(0.10)
(0.15)
(0.10)
(0.15)
(0.10)
(0.10)
(0.15)
(0.10)
(0.15)
0.366
0.366
0.366
0.366
0.366
0.366
0.366
0.366
0.366
0.366
(9.3)
(9.3)
(9.3)
(9.3)
(9.3)
(9.3)
(9.3)
(9.3)
(9.3)
(9.3)
—
—
—
—
—
—
—
—
—
—
0.189 (4.8)
0.189 (4.8)
0.189 (4.8)
0.189 (4.8)
0.189 (4.8)
0.276 (7.0)
0.276 (7.0)
0.276 (7.0)
0.276 (7.0)
0.276 (7.0)
1.654 (42.0)
1.654 (42.0)
1.654 (42.0)
on request
0.098 (2.5)
0.098 (2.5)
0.098 (2.5)
0.098 (2.5)
0.098 (2.5)
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
1.563 (39.7)
1.563 (39.7)
1.563 (39.7)
on request
0.098 (2.5)
0.098 (2.5)
0.098 (2.5)
0.098 (2.5)
0.098 (2.5)
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
1.563 (39.7)
1.563 (39.7)
1.563 (39.7)
on request
0.276 (7.0)
0.276 (7.0)
0.276 (7.0)
0.276 (7.0)
0.276 (7.0)
0.551 (14.0)
0.551 (14.0)
0.551 (14.0)
0.551 (14.0)
0.551 (14.0)
0.220 (5.6)
0.220 (5.6)
0.220 (5.6)
0.220 (5.6)
0.220 (5.6)
0.205 (5.2)
0.205 (5.2)
0.205 (5.2)
0.205 (5.2)
0.205 (5.2)
0.020 (0.5)
0.020 (0.5)
0.030 (0.75)
0.028 (0.70)
0.030 (0.75)
0.024 (0.6)
0.024 (0.6)
0.047 (1.2)
0.039 (1.0)
0.047 (1.2)
0.177 (4.5)
0.177 (4.5)
0.268 (6.8)
—
0.020 (0.5)
0.020 (0.5)
0.043 (1.1)
0.028 (0.7)
0.043 (1.1)
0.024 (0.6)
0.024 (0.6)
0.047 (1.2)
0.039 (1.0)
0.047 (1.2)
0.177 (4.5)
0.177 (4.5)
0.268 (6.8)
—
0.020 (0.5)
0.020 (0.5)
0.030 (0.75)
0.028 (0.7)
0.030 (0.75)
0.024 (0.6)
0.024 (0.6)
0.047 (1.2)
0.039 (1.0)
0.047 (1.2)
0.177 (4.5)
0.177 (4.5)
0.268 (6.8)
—
0.024 (0.6)
0.024 (0.6)
0.035 (0.9)
0.024 (0.6)
0.035 (0.9)
0.031 (0.8)
0.031 (0.8)
0.047 (1.2)
0.031 (0.8)
0.047 (1.2)
0.024 (0.6)
0.024 (0.6)
0.035 (0.9)
0.024 (0.6)
0.035 (0.9)
0.024 (0.6)
0.024 (0.6)
0.035 (0.9)
0.024 (0.6)
0.035 (0.9)
0.551 (14.0)
0.551 (14.0)
0.551 (14.0)
0.551 (14.0)
0.551 (14.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
1.063 (27.0)
1.063 (27.0)
1.063 (27.0)
—
0.748 (19.0)
0.748 (19.0)
0.748 (19.0)
0.748 (19.0)
0.748 (19.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
1.260 (32.0)
1.260 (32.0)
1.260 (32.0)
—
0.748 (19.0)
0.748 (19.0)
0.748 (19.0)
0.748 (19.0)
0.748 (19.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
1.260 (32.0)
1.260 (32.0)
1.260 (32.0)
—
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
0.669 (17.0)
0.669 (17.0)
0.669 (17.0)
0.669 (17.0)
0.669 (17.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
0.748 (19.0)
0.748 (19.0)
0.748 (19.0)
0.748 (19.0)
0.748 (19.0)
*For 85°C only
14
Actuator Specifications
— High Ratio
Actuator
Code
Switch
Type
Maximum
Operating Force
(gms.)
Maximum
Pre-Travel
inches (mm)
Operating
Point
inches (mm)
Minimum
Over-Travel
inches (mm)
Max. Movement
Differential
inches (mm)
Max. Rest
Position
inches (mm)
Actuation
Length
inches (mm)
MB
MC
MD
UB
UC
UD
TB
TC
TD
GB*
GC*
HB*
OB*
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2/7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2/7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2/7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
DB5
DB1/3
DB6
DB2
DB7
12
25
25
40
45
10
22
22
35
40
4
9
9
—
14
30
30
50
56
12
25
25
40
45
4
9
9
—
14
30
30
50
56
12
25
25
40
45
4
9
9
—
10
21
21
36
42
7
16
16
26
30
11
23
23
29
45
11
23
23
39
45
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
1.063 (27.0)
1.063 (27.0)
1.063 (27.0)
—
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
1.063 (27.0)
1.063 (27.0)
1.063 (27.0)
—
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
1.063 (27.0)
1.063 (27.0)
1.063 (27.0)
—
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
0.512 (13.0)
0.512 (13.0)
0.512 (13.0)
0.512 (13.0)
0.512 (13.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
0.354 (9.0)
Auxiliary actuator, front-mounted (FM)
0.472±0.098 (12.0±2.5)
0.138 (3.5)
0.472±0.098 (12.0±2.5)
0.138 (3.5)
0.472±0.098 (12.0±2.5)
0.138 (3.5)
0.472±0.118 (12.0±3.0)
0.138 (3.5)
0.472±0.118 (12.0±3.0)
0.138 (3.5)
0.492±0.118 (12.5±3.0)
0.157 (4.0)
0.492±0.118 (12.5±3.0)
0.157 (4.0)
0.492±0.118 (12.5±3.0)
0.157 (4.0)
0.492±0.138 (12.5±3.5)
0.157 (4.0)
0.492±0.138 (12.5±3.5)
0.157 (4.0)
0.709±0.315 (18.0±8.0)
0.394 (10.0)
0.709±0.315 (18.0±8.0)
0.394 (10.0)
0.709±0.315 (18.0±8.0)
0.394 (10.0)
—
—
0.677±0.098 (17.2±2.5)
0.138 (3.5)
0.677±0.098 (17.2±2.5)
0.138 (3.5)
0.677±0.098 (17.2±2.5)
0.138 (3.5)
0.677±0.118 (17.2±3.0)
0.138 (3.5)
0.677±0.118 (17.2±3.0)
0.138 (3.5)
0.697±0.118 (17.7±3.0)
0.157 (4.0)
0.697±0.118 (17.7±3.0)
0.157 (4.0)
0.697±0.118 (17.7±3.0)
0.157 (4.0)
0.697±0.138 (17.7±3.5)
0.157 (4.0)
0.697±0.138 (17.7±3.5)
0.157 (4.0)
0.913±0.315 (23.2±8.0)
0.394 (10.0)
0.913±0.315 (23.2±8.0)
0.394 (10.0)
0.913±0.315 (23.2±8.0)
0.394 (10.0)
—
—
0.669±0.098 (17.0±2.5)
0.138 (3.5)
0.669±0.098 (17.0±2.5)
0.138 (3.5)
0.669±0.098 (17.0±2.5)
0.138 (3.5)
0.669±0.118 (17.0±3.0)
0.138 (3.5)
0.669±0.118 (17.0±3.0)
0.138 (3.5)
0.689±0.118 (17.5±3.0)
0.157 (4.0)
0.689±0.118 (17.5±3.0)
0.157 (4.0)
0.689±0.118 (17.5±3.0)
0.157 (4.0)
0.689±0.138 (17.5±3.5)
0.157 (4.0)
0.689±0.138 (17.5±3.5)
0.157 (4.0)
0.906±0.315 (23.0±8.0)
0.394 (10.0)
0.906±0.315 (23.0±8.0)
0.394 (10.0)
0.906±0.315 (23.0±8.0)
0.394 (10.0)
—
—
0.508±0.102 (12.9±2.6)
0.118 (3.0)
0.508±0.102 (12.9±2.6)
0.118 (3.0)
0.508±0.102 (12.9±2.6)
0.118 (3.0)
0.508±0.102 (12.9±2.6)
0.118 (3.0)
0.508±0.102 (12.9±2.6)
0.118 (3.0)
0.571±0.142 (14.5±3.6)
0.157 (4.0)
0.571±0.142 (14.5±3.6)
0.157 (4.0)
0.571±0.142 (14.5±3.6)
0.157 (4.0)
0.571±0.142 (14.5±3.6)
0.157 (4.0)
0.571±0.142 (14.5±3.6)
0.157 (4.0)
0.531±0.098 (13.5±2.5)
0.098 (2.5)
0.531±0.098 (13.5±2.5)
0.098 (2.5)
0.531±0.098 (13.5±2.5)
0.098 (2.5)
0.531±0.098 (13.5±2.5)
0.098 (2.5)
0.531±0.098 (13.5±2.5)
0.098 (2.5)
0.693±0.098 (17.6±2.5)
0.079 (2.0)
0.693±0.098 (17.6±2.5)
0.079 (2.0)
0.693±0.098 (17.6±2.5)
0.079 (2.0)
0.693±0.098 (17.6±2.5)
0.079 (2.0)
0.693±0.098 (17.6±2.5)
0.079 (2.0)
0.047 (1.2)
0.047 (1.2)
0.071 (1.8)
0.059 (1.5)
0.071 (1.8)
0.055 (1.4)
0.055 (1.4)
0.083 (2.1)
0.071 (1.8)
0.083 (2.1)
0.236 (6.0)
0.236 (6.0)
0.354 (9.0)
—
0.047 (1.2)
0.047 (1.2)
0.071 (1.8)
0.059 (1.5)
0.071 (1.8)
0.055 (1.4)
0.055 (1.4)
0.083 (2.1)
0.071 (1.8)
0.083 (2.1)
0.236 (6.0)
0.236 (6.0)
0.354 (9.0)
—
0.047 (1.2)
0.047 (1.2)
0.071 (1.8)
0.059 (1.5)
0.071 (1.8)
0.055 (1.4)
0.055 (1.4)
0.083 (2.1)
0.071 (1.8)
0.083 (2.1)
0.236 (6.0)
0.236 (6.0)
0.354 (9.0)
—
0.055 (1.4)
0.055 (1.4)
0.083 (2.1)
0.055 (1.4)
0.083 (2.1)
0.071 (1.8)
0.071 (1.8)
0.083 (2.4)
0.071 (1.8)
0.094 (2.4)
0.055 (1.4)
0.055 (1.4)
0.083 (2.1)
0.055 (1.4)
0.083 (2.1)
0.055 (1.4)
0.055 (1.4)
0.083 (2.1)
0.055 (1.4)
0.083 (2.1)
0.709 (18.0)
0.709 (18.0)
0.709 (18.0)
0.709 (18.0)
0.709 (18.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
1.575 (40.0)
1.575 (40.0)
1.575 (40.0)
—
0.866 (22.0)
0.866 (22.0)
0.866 (22.0)
0.866 (22.0)
0.866 (22.0)
0.945 (24.0)
0.945 (24.0)
0.945 (24.0)
0.945 (24.0)
0.945 (24.0)
1.732 (44.0)
1.732 (44.0)
1.732 (44.0)
—
0.866 (22.0)
0.866 (22.0)
0.866 (22.0)
0.866 (22.0)
0.866 (22.0)
0.945 (24.0)
0.945 (24.0)
0.945 (24.0)
0.945 (24.0)
0.945 (24.0)
1.732 (44.0)
1.732 (44.0)
1.732 (44.0)
—
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.945 (24.0)
0.945 (24.0)
0.945 (24.0)
0.945 (24.0)
0.945 (24.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.787 (20.0)
0.906 (23.0)
0.906 (23.0)
0.906 (23.0)
0.906 (23.0)
0.906 (23.0)
0.276 (7.0)
0.276 (7.0)
0.276 (7.0)
0.276 (7.0)
0.276 (7.0)
0.370 (9.4)
0.370 (9.4)
0.370 (9.4)
0.370 (9.4)
0.370 (9.4)
1.713 (43.5)
1.713 (43.5)
1.713 (43.5)
on request
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
0.280 (7.1)
0.280 (7.1)
0.280 (7.1)
0.280 (7.1)
0.280 (7.1)
1.622 (41.2)
1.622 (41.2)
1.622 (41.2)
on request
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
0.185 (4.7)
0.280 (7.1)
0.280 (7.1)
0.280 (7.1)
0.280 (7.1)
0.280 (7.1)
1.622 (41.2)
1.622 (41.2)
1.622 (41.2)
on request
0.370 (9.4)
0.370 (9.4)
0.370 (9.4)
0.370 (9.4)
0.370 (9.4)
0.638 (16.2)
0.638 (16.2)
0.638 (16.2)
0.638 (16.2)
0.638 (16.2)
0.311 (7.9)
0.311 (7.9)
0.311 (7.9)
0.311 (7.9)
0.311 (7.9)
0.287 (7.3)
0.287 (7.3)
0.287 (7.3)
0.287 (7.3)
0.287 (7.3)
*For 85°C only
Ordering Information
DB
Series/Prefix
Code UL Rating 1054
1
5A,125/250VAC
2
10.1A, 125/250VAC
1/4HP, 125VAC
3
0.1A, 125/250VAC
5*
1A, 125/250VAC
6*
7*
5A, 125/250VAC
10.1A, 125/250VAC
1/4 HP, 125VAC
EN 61058 Rating
6A, 250V~
10(1.5)A, 250V~
0.1A, 250V
1A, 250V
6A, 250V
10 (1.5)A, 250V~
1
B
—
B1
Code
B1
A1
C1
D1
D2
D3
D4
D5
Terminal Type
inches (mm)
0.110 x 0.020 (2.8 x 0.5) QC, Straight
Solder, Short
0.051 x 0.020 (1.3 x 0.5) PCB, Straight
0.024 x 0.020 (0.6 x 0.5) PCB, Straight
0.024 x 0.020 (0.6 x 0.5) PCB, RH Side with Location Pins
0.024 x 0.020 (0.6 x 0.5) PCB, LH Side with Location Pins
0.024 x 0.020 (0.6 x 0.5) PCB, RH Side
0.024 x 0.020 (0.6 x 0.5) PCB, LH Side
AA
Code Actuator Type*
AA Spherical-head w/o
Auxiliary Actuator
BA Radius w/o
Auxiliary Actuator
*For further actuators see
Actuation Specifications table.
Code Contact Configuration
+120°C Operating Temp
A
SPST NO
B
SPST NC
C
SPDT
+85°C Operating Temp*
E
SPST NO
F
SPST NC
G
SPDT
*85°C versions use plastic levers
*85°C only
Specifications subject to change without notice.
15
京公网安备 11010802033920号
EEWORLD
