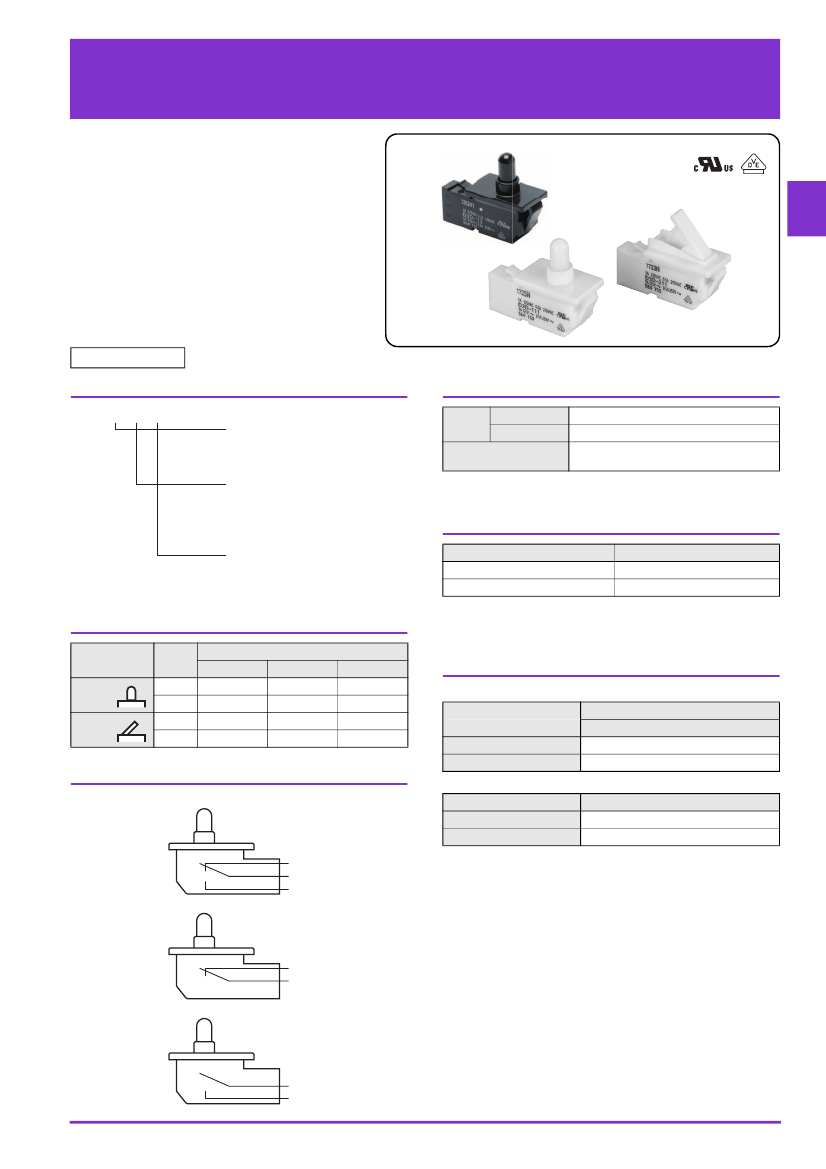

Choose from plunger or lever as the actuator type.
●
Crimp-type connector offers an easy wiring work
and efficiency.
●
Snap-fit attachment for easy installation.
●
Providing long stroke with its unique mechanism.
●
Variety of color models available.
RoHS Compliant
D
3
D
Model Number Legend
1
D3D-
@
2 3
@@
1. Actuator
1: Plunger
2: Lever
2. Contact form
1: SPDT
2: SPST-NC
3: SPST-NO
3. Housing color
1: White
3: Black
Contact Specifications
Contact
Specification
Material
Crossbar
Gold alloy
5 VDC 1 mA
Minimum applicable load
(reference value) *
*
Please refer to "●Using
Micro Loads"
in "Precautions" for more
information on the minimum applicable load.
Ratings
Rated voltage
125 VAC
250 VAC
Resistive load
1A
0.5 A
List of Models
Actuator
Plunger
Lever
Housing
color
White
Black
White
Black
Contact form
SPDT
D3D-111
D3D-113
D3D-211
D3D-213
SPST-NC
D3D-121
D3D-123
D3D-221
D3D-223
SPST-NO
D3D-131
D3D-133
D3D-231
D3D-233
Note. The above rating values apply under the following test conditions.
(1) Ambient temperature: 20±2°C
(2) Ambient humidity: 65±5%
(3) Operating frequency: 30 operations/min
Approved Safety Standards
UL (UL1054/CSA C22.2 No.55)
Model
Rated voltage
125 VAC
250 VAC
Item
D3D
Resistive load
1A
0.5 A
Contact Form
●SPDT
VDE (EN61058-1)
Rated voltage
125 VAC
250 VAC
NC
COM
NO
Model
D3D
1A
0.5 A
Testing conditions: 5E4 (50,000 operations) T55 (0°C to 55°C)
●SPST-NC
NC
COM
●SPST-NO
COM
NO
1
D3D
Characteristics
Permissible operating speed
Permissible
operating frequency
Insulation resistance
Contact resistance (initial value)
Between terminals of the
same polarity
Mechanical
Electrical
7.5 mm to 500 mm/s
120 operations/min
20 operations/min
100 MΩ min. (at 500 VDC with insulation tester)
100 mΩ max.
1,000 VAC 50/60 Hz 1 min
1,500 VAC 50/60Hz 1 min
1,500 VAC 50/60Hz 1 min
10 to 55Hz, 1.5 mm double amplitude
490 m/s
2
{approx. 49G} max.
300 m/s
2
{approx. 30G} max.
300,000 operations min. (60 operations/min)
50,000 operations min. (20 operations/min)
IEC IP00
Class I
250
−30°C
to
+60°C
(at ambient humidity 60% max.)
(with no icing or condensation)
85% max. (for
+5
to
+35°C)
Approx. 4g
Miniature Door Switch
D
3
D
Dielectric strength
Between current-carrying metal
parts and ground
Between each terminals and
non-current-carrying metal parts
Vibration resistance
*1
Shock resistance *1
Durability *2
Degree of protection
Malfunction
Durability
Malfunction
Mechanical
Electrical
Degree of protection against electric shock
Proof tracking index (PTI)
Ambient operating temperature
Ambient operating humidity
Weight
Note. The given values are initial values.
*1. Close or open circuit of the contact is 1 ms max.
*2. For testing conditions, consult your OMRON sales
representative.

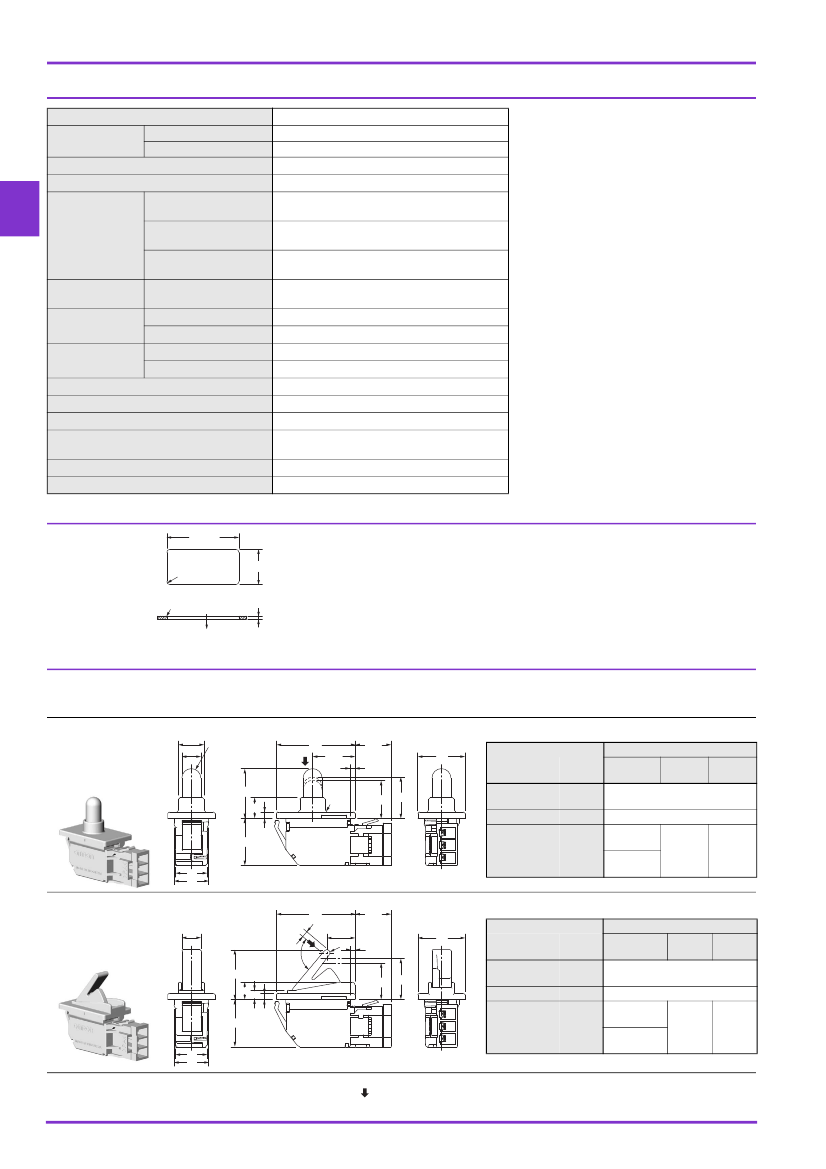

Mounting Holes
(Unit: mm)
0
22.9
-0.1
R1 MAX.
11.2
+0.1
0
R Direction of switch insertion
t
t=0.8~1.5mm
Dimensions
(Unit: mm)
and Operating Characteristics
The illustrations are for models with white housing as a representative. The
@
is replaced with the code for the housing color that you
need. See the "List of Models" for available combinations of models.
●Plunger
Models
D3D-11@
D3D-12@
D3D-13@
8.1 dia.
6 dia. R3
A
25
13.5
11.4
15
1.5
Type
Operating
Characteristics
Operating Force
Total Travel Force
Total Travel
NC
COM
NO
Plunger model
D3D-11@
D3D-12@
2.0 N {204 gf}
3.5 N {357 gf}
9.0 mm (reference value)
OP1 (NC-OFF)
13 mm
OP2 (NO-ON)
12 mm
D3D-13@
Model
OF Max.
TTF Max.
TT
Min.
15.75
±0.2
R0.5
6.5
2
15
OP2 OP1
Operating Position OP
13 mm
(NC-OFF)
12 mm
(NO-ON)
10
11
●Lever
Models
D3D-21@
D3D-22@
D3D-23@
25
6
2
（90°）
A
15.7
±0.5
5.5
3
2
15
9
±0.5
R1
11.4
Type
15
1.5
Lever model
D3D-21@
D3D-22@
2.0 N {204 gf}
2.5 N {245 gf}
9.7 mm (reference value)
OP1 (NC-OFF)
13 mm
OP2 (NO-ON)
11.5 mm
D3D-23@
Operating
Characteristics
Operating Force
Total Travel Force
Total Travel
NC
COM
NO
Model
OF Max.
TTF Max.
TT
Min.
OP2 OP1
Operating Position OP
13 mm
(NC-OFF)
11.5 mm
(NO-ON)
10
11
Note 1. Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions.
Note 2. The operating characteristics are for operation in the A direction ( ).
2
D3D
Precautions
★Please
refer to "Common Precautions" for correct use.
Miniature Door Switch
Correct Use
●Mounting
This product does not have a waterproof or drip-proof
construction. Ensure that water does not enter the interior of the
Switch.
In particular, do not use the Switch in locations where water may
be spilt or flow over the Switch. Doing so may result in
deterioration of the insulation.
●Wiring
Do not use the Switch with Connector mounted and weight load
applied to the Connector and lead wire, otherwise it may rattle or
may result in connection failure.
●Using
Micro Loads
●Operating
Stroke
In order to ensure stable contact force for NO contacts, set the
total stroke at least 5 mm.
Even when using the Switch within the operating range, if there
3
D
are inrush currents or surges, it may decrease the durability of the
Switch. If necessary, insert a contact protection circuit.
D
Connector
• The terminals connect to JST’s HL Connector.
Contact: SSF-21T-P1.4
Housing: HLP-03V
• OMRON does not sell the HL Connector.
• Contact JST Mfg. for more information on the connectors.
J.S.T. Manufacturing Co.,Ltd.
http://www.jst-mfg.com/index_e.php
•
Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product.
•
Consult your OMRON representative before using the product under conditions which are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if used improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and be sure to provide the system or equipment with double safety mechanisms.
Note: Do not use this document to operate the Unit.
