Product data sheet
Characteristics

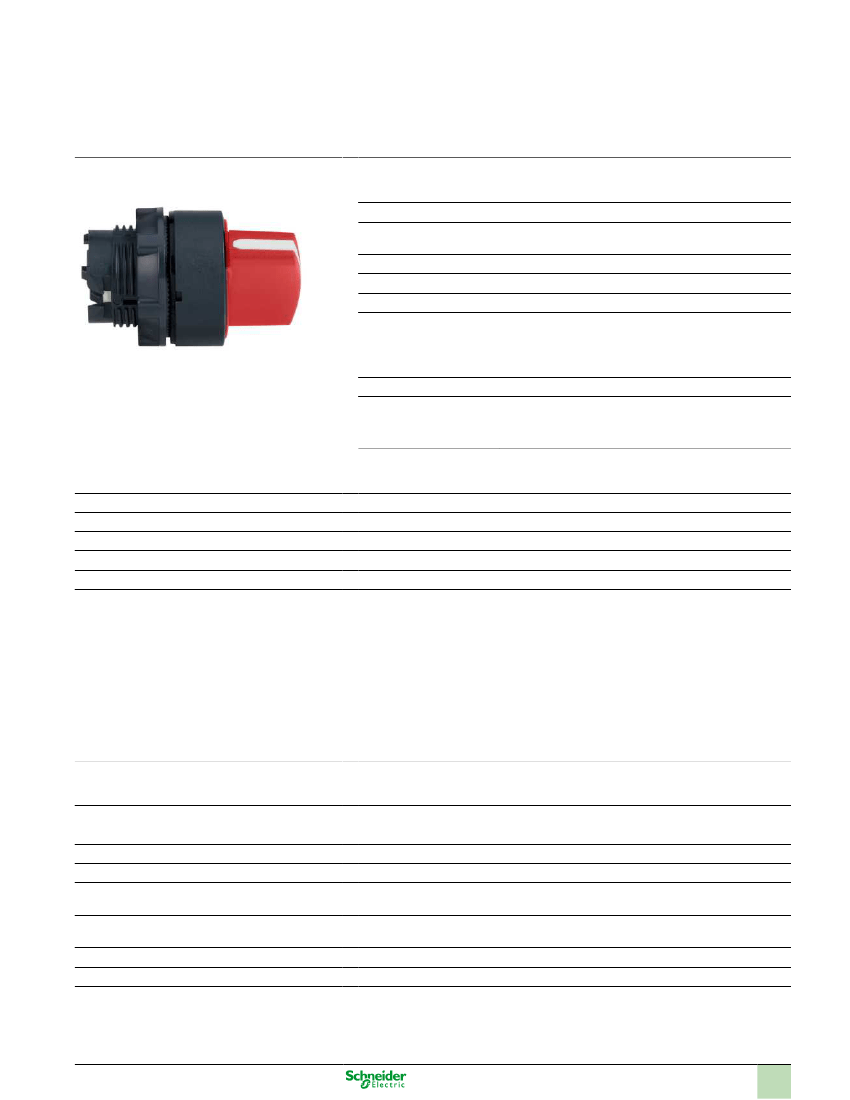

ZB5AD204
red selector switch head Ø22 2-position stay put
Main
Range of product
Product or component
type
Device short name
Bezel material
Mounting diameter
Sale per indivisible
quantity
Shape of signaling unit
head
Type of operator
Operator profile
Operator position infor-
mation
Harmony XB5
Head for selector switch
ZB5
Plastic
22 mm
1
Round
Stay put
Red standard handle
2 positions 90°
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Complementary
CAD overall width
CAD overall height
CAD overall depth
Product weight
Mechanical durability
Station name
Electrical composition code
29 mm
29 mm
46 mm
0.017 kg
1000000 cycles
XALK 2...5 cut-outs
XALD 1...5 cut-outs
SR1 for <= 3 contacts using single blocks in rear mounting
SF1 for <= 3 contacts using single blocks in front mounting
C15 for 1 contacts using single blocks in front mounting
C11 for <= 3 contacts using single blocks in front mounting
C8 for <= 4 contacts using single and double blocks in front mounting
C7 for <= 4 contacts using single blocks in front mounting
C6 for <= 5 contacts using single and double blocks in front mounting
C5 for <= 5 contacts using single blocks in front mounting
C4 for <= 6 contacts using single and double blocks in front mounting
C3 for <= 6 contacts using single blocks in front mounting
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
Resistance to high pressure washer
IK degree of protection
TH
-40...70 °C
-25...70 °C
Class II conforming to IEC 60536
IP69K conforming to IEC 60529
IP66 conforming to IEC 60529
NEMA 4X
NEMA 13
7000000 Pa at 55 °C,distance: 0.1 m
IK06 conforming to IEC 50102
Mar 26, 2014
1
Standards
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
UL 508
CSA C22.2 No 14
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27
30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-27
Product certifications
Vibration resistance
Shock resistance
2
Product data sheet
Mounting and Clearance
ZB5AD204

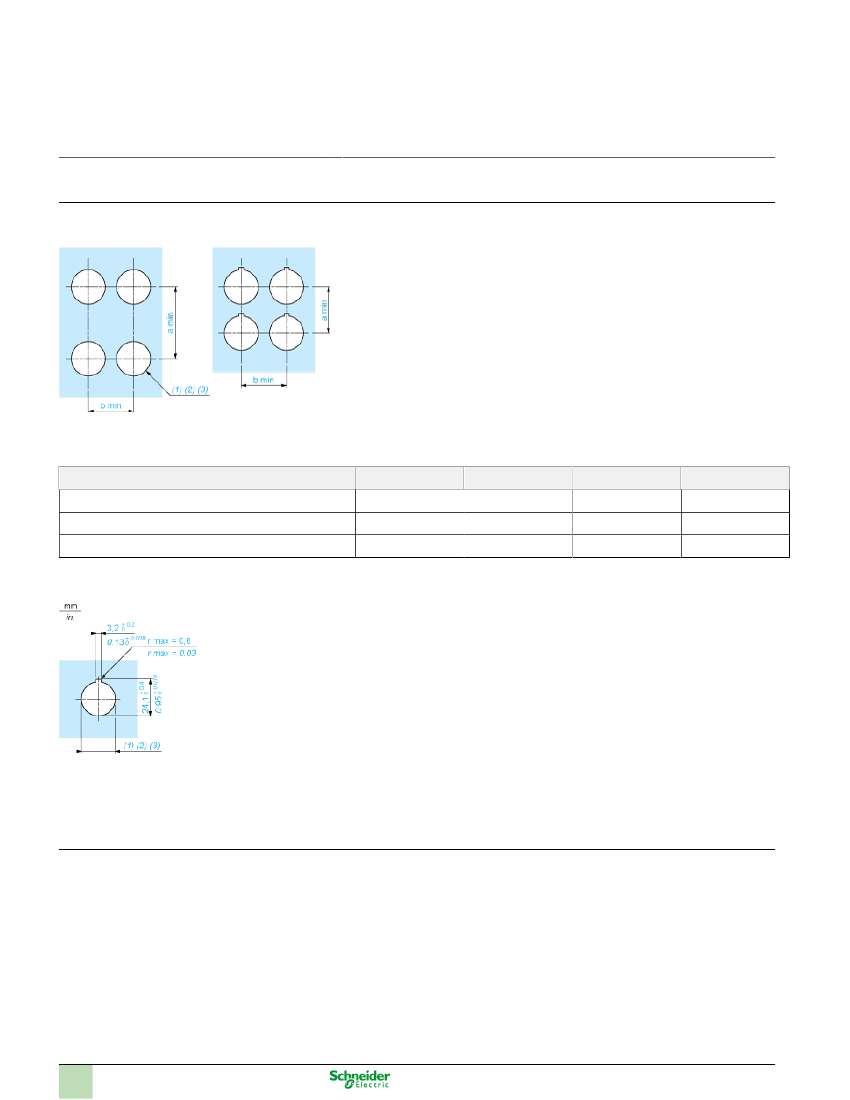

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board
(1)
(2)
(3)
Diameter on finished panel or support
For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.
+0.4
+0.016
Ø22.5 mm recommended (Ø22.3
0
) / Ø0.89 in. recommended (Ø0.88 in.
0
)
a in mm
40
45
30
a in in.
1.57
1.77
1.18
b in mm
30
32
30
b in in.
1.18
1.26
1.18
Connections
By screw clamp terminals or plug-in connector
By Faston connectors
On printed circuit board

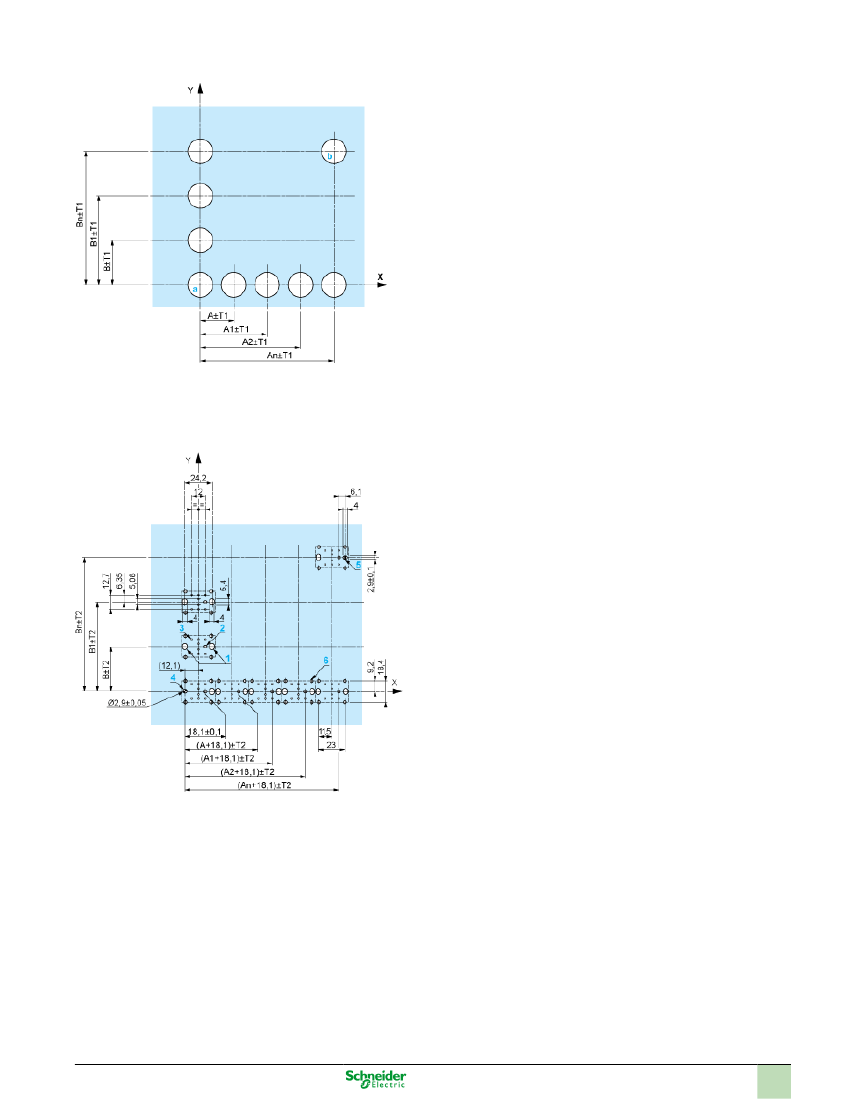

Detail of Lug Recess
(1)
(2)
(3)
Diameter on finished panel or support
For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.
+0.4
+0.016
Ø22.5 mm recommended (Ø22.3
0
) / Ø0.89 in. recommended (Ø0.88 in.
0
)
Pushbuttons, Switches and Pilot Lights for Printed Circuit Board Connection
4
