ZB4BJ2

Description
switch actuators sel switch
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size53KB,2 Pages
ManufacturerAll Sensors
Download Datasheet Parametric View All

ZB4BJ2 Online Shopping

Suppliers Part Number Price MOQ In stock
ZB4BJ2 - - View Buy Now

ZB4BJ2 Overview

switch actuators sel switch

ZB4BJ2 Parametric

Parameter NameAttribute value
ManufactureSchneider Electric
Product CategorySwitch Actuators
TypeHead
For Use WithXB4 Series
Designed f22 mm Selector Switches
Cap ColBlack
Operating Temperature Range- 25 C to + 70 C
ProducActuators

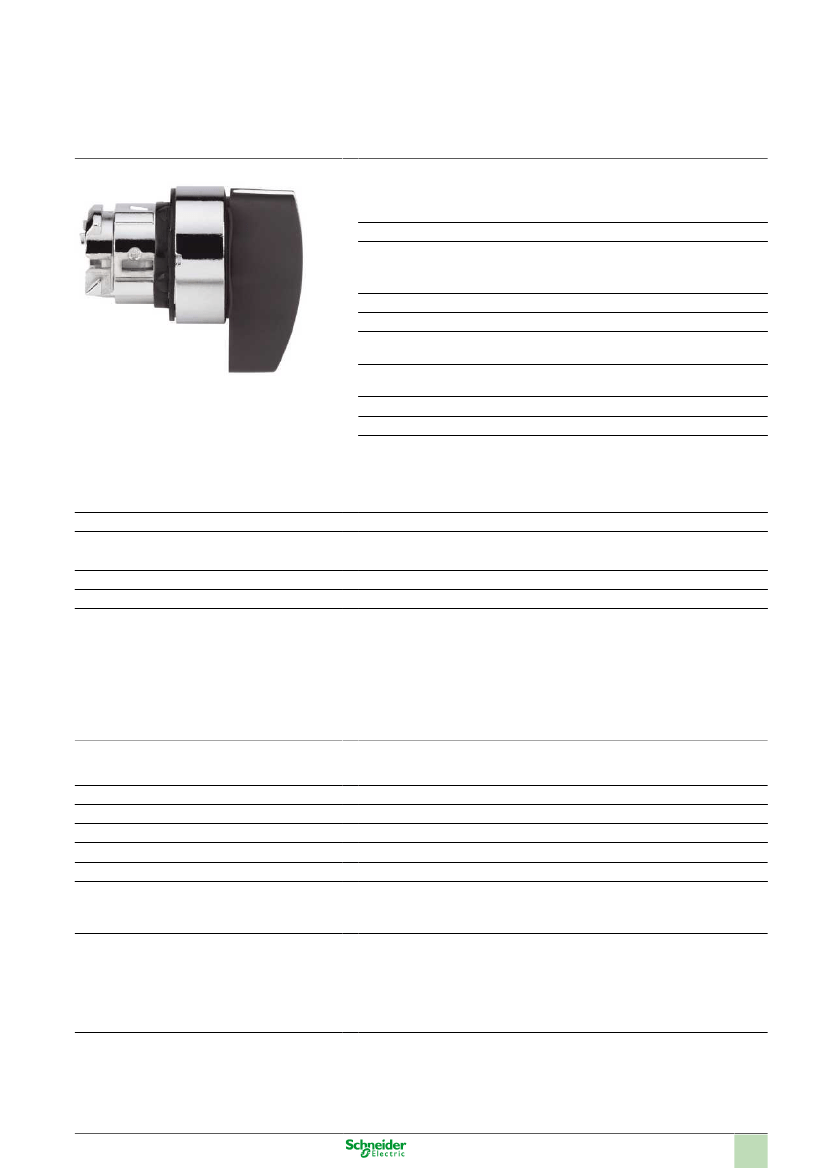

Product data sheet
Characteristics
ZB4BJ2
black selector switch head Ø22 2-position stay
put
Product availability: Stock - Normally stocked in distribution facility
Main
Commercial Status
Range of product
Product or component
type
Device short name
Bezel material
Mounting diameter
Sale per indivisible
quantity
Shape of signaling unit
head
Type of operator
Operator profile
Operator position
information
Commercialised
Harmony XB4
Head for selector switch
ZB4
Chromium plated metal
0.87 in (22 mm)
1
Round
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Stay put
Black long handle
2 positions 90°
Complementary
CAD overall width
CAD overall height
CAD overall depth
Product weight
Resistance to high pressure washer
Mechanical durability
Electrical composition code
1.14 in (29 mm)
1.5 in (38 mm)
1.73 in (44 mm)
0.09 lb(US) (0.04 kg)
1015.26 psi (7000000 Pa) at 131 °F (55 °C),distance: 0.1 m
1000000 cycles
C15 for 1 contacts using single blocks in front mounting
C11 for <= 3 contacts using single blocks in front mounting
C8 for <= 4 contacts using single and double blocks in front mounting
C7 for <= 4 contacts using single blocks in front mounting
C6 for <= 5 contacts using single and double blocks in front mounting
C5 for <= 5 contacts using single blocks in front mounting
C4 for <= 6 contacts using single and double blocks in front mounting
C3 for <= 6 contacts using single blocks in front mounting
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
IK degree of protection
Standards
TH
-40...158 °F (-40...70 °C)
-13...158 °F (-25...70 °C)
Class I conforming to IEC 60536
IP69K conforming to IEC 60529
NEMA 4X
NEMA 13
IK06 conforming to IEC 50102
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508
CSA C22.2 No 14
Mar 25, 2014
1
