Screw clamp terminals: <= 2 x 1.5 mm² with cable
end conforming to EN 60947-1
Screw clamp terminals: >= 1 x 0.22 mm² without ca-
ble end conforming to EN 60947-1
Complementary
CAD overall width
CAD overall height
CAD overall depth
Terminals description ISO n°1
Product weight
Additional information
Contacts usage
Positive opening
Operating travel
Operating force
Operating torque
Mechanical durability
Tightening torque
Shape of screw head
30 mm
42 mm
32 mm
(13-14)NO
0.021 kg
With body/fixing collar
Standard contacts
Without positive opening
4.3 mm (total travel)
2.6 mm (NO changing electrical state)
2.3 N (NO changing electrical state)
0.05 N.m (NO changing electrical state)
5000000 cycles
0.8...1.2 N.m conforming to EN 60947-1
Cross head compatible with pozidriv No 1 screwdriver
Slotted head compatible with flat Ø 5.5 mm screwdriver
Slotted head compatible with flat Ø 4 mm screwdriver
Cross head compatible with Philips no 1 screwdriver
Silver alloy (Ag/Ni)
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
10 A conforming to EN/IEC 60947-5-1
600 V (degree of pollution: 3) conforming to EN 60947-1
6 kV conforming to EN 60947-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
Contacts material
Short circuit protection
[Ith] conventional free air thermal current
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
[Ie] rated operational current
Feb 8, 2012
1
Electrical durability
1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor:
0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC
60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC
60947-5-4
Electrical reliability IEC 60947-5-4
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
IP degree of protection
Standards
TH
-40...70 °C
-25...70 °C
IP20 conforming to IEC 60529
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-1
CSA C22-2 No 14
JIS C 4520
UL 508
EN/IEC 60947-5-5
GL
BV
RINA
DNV (Det Norske Veritas)
UL
LROS (Lloyds register of shipping)
CSA
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27
30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-27
Product certifications
Vibration resistance
Shock resistance
2
Product data sheet
Dimensions Drawings
ZB5AZ101
Dimensions of Bodies for Pushbuttons and Switches
Screw Clamp Terminal Connections
ZB5 AZ10•, ZB5 AZ141
Spring Terminal Connections
ZB5 AZ10•5
Plug-in Connector
ZB5 AZ10•4, ZB5 AZ1414
High Power Switching with Screw Clamp Terminal Connections
ZB5 50• block + ZB5 AZ009 body
3
Product data sheet
Mounting and Clearance
ZB5AZ101

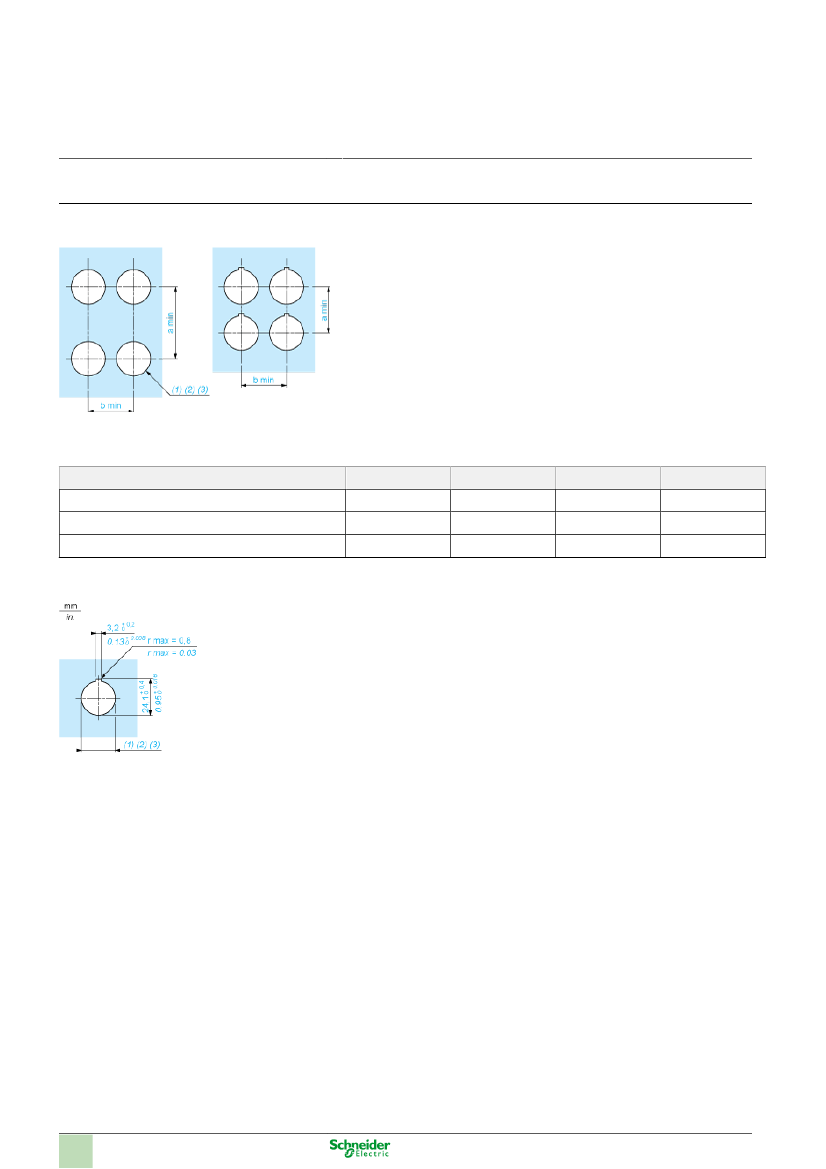

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board
(1)
(2)
(3)
Diameter on finished panel or support
For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5 AZ902 is recommended.
+0.4
+0.016
Ø22.5 mm recommended (Ø22.3
0
) / Ø0.89 in. recommended (Ø0.88 in.
0
)
a in mm
40
45
30
a in in.
1.57
1.77
1.18
b in mm
30
32
30
b in in.
1.18
1.26
1.18
Connections
By screw clamp terminals or plug-in connector
By Faston connectors
On printed circuit board
Detail of Lug Recess
(1)
(2)
(3)
Diameter on finished panel or support
For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5 AZ902 is recommended.
