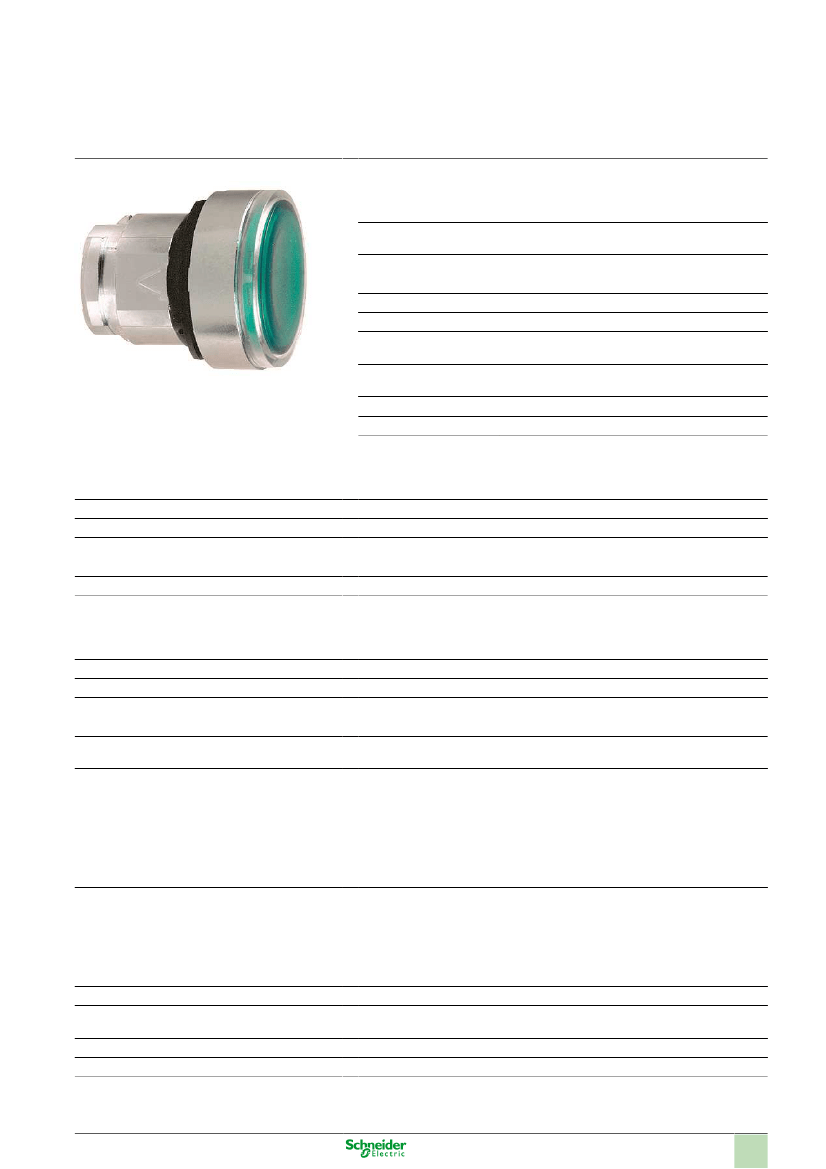

Push-push
Green flush unmarked
Complementary
CAD overall width
CAD overall height
CAD overall depth
Product weight
Resistance to high pressure washer
Mechanical durability
29 mm
29 mm
30 mm
0.026 kg
7000000 Pa at 55 °C,distance: 0.1 m
500000 cycles
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
IK degree of protection
Standards
TH
-40...70 °C
-25...70 °C
Class I conforming to IEC 60536
IP66 conforming to IEC 60529
NEMA 13
NEMA 4X
IK05 conforming to IEC 50102
CSA C22-2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-27
50 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27
Compliant
0646
Product certifications
Vibration resistance
Shock resistance
RoHS EUR status
RoHS EUR conformity date
26/12/2011
1
Product data sheet
Dimensions Drawings
ZB4BH033
Dimensions of Heads for Illuminated “Push-Push to Release” Pushbuttons
ZB4 BH0•3
ZB4 BH•3
2
Product data sheet
Mounting and Clearance
ZB4BH033
Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals or Plug-in Connectors or on
Printed Circuit Board
Connection by Faston Connectors
(1)
(2)
(3)
(4)
(5)
(6)
Diameter on finished panel or support
40 mm min. / 1.57 in. min.
30 mm min. / 1.18 in. min.
+0.4
+0.016
Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm
0
/ 0.88 in.
0
)
45 mm min. / 1.78 in. min.
32 mm min. / 1.26 in. min.
Pushbuttons, Switches and Pilot Lights for Printed Circuit Board Connection

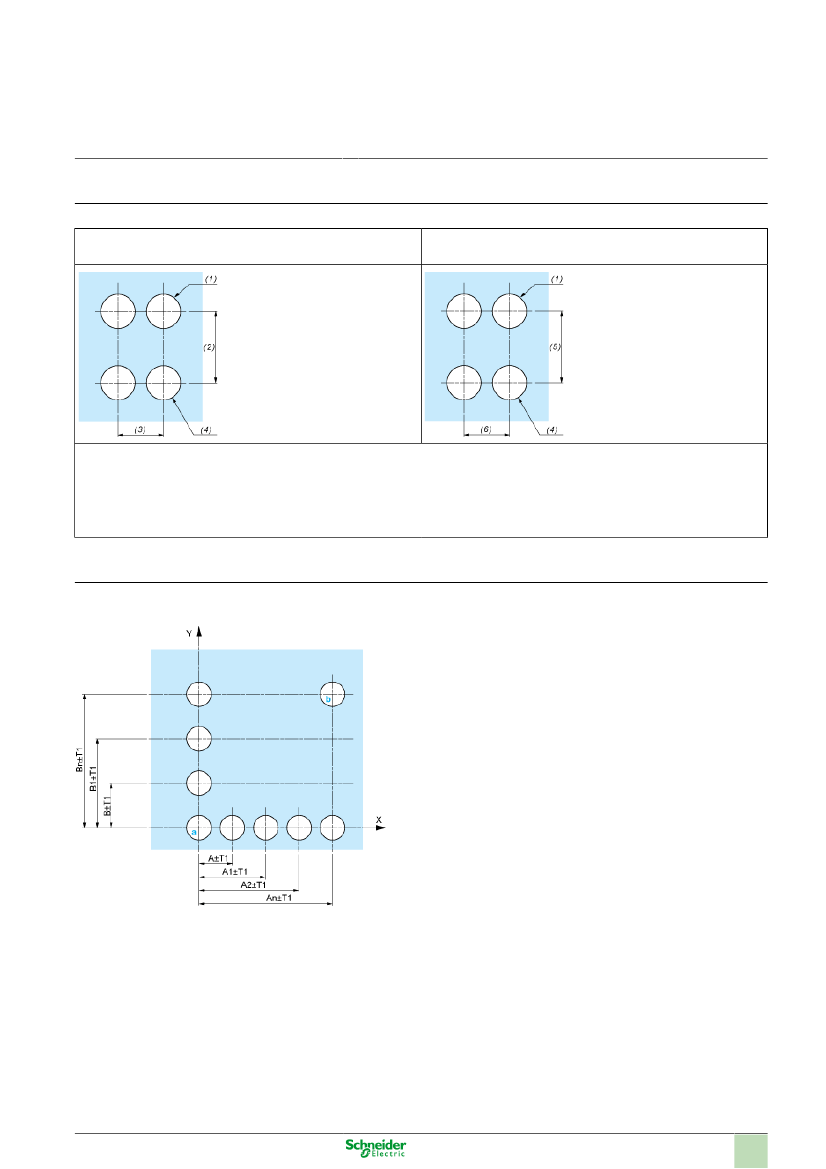

Panel Cut-outs (Viewed from Installer’s Side)
A:
B:
30 mm min. / 1.18 in. min.
40 mm min. / 1.57 in. min.
3

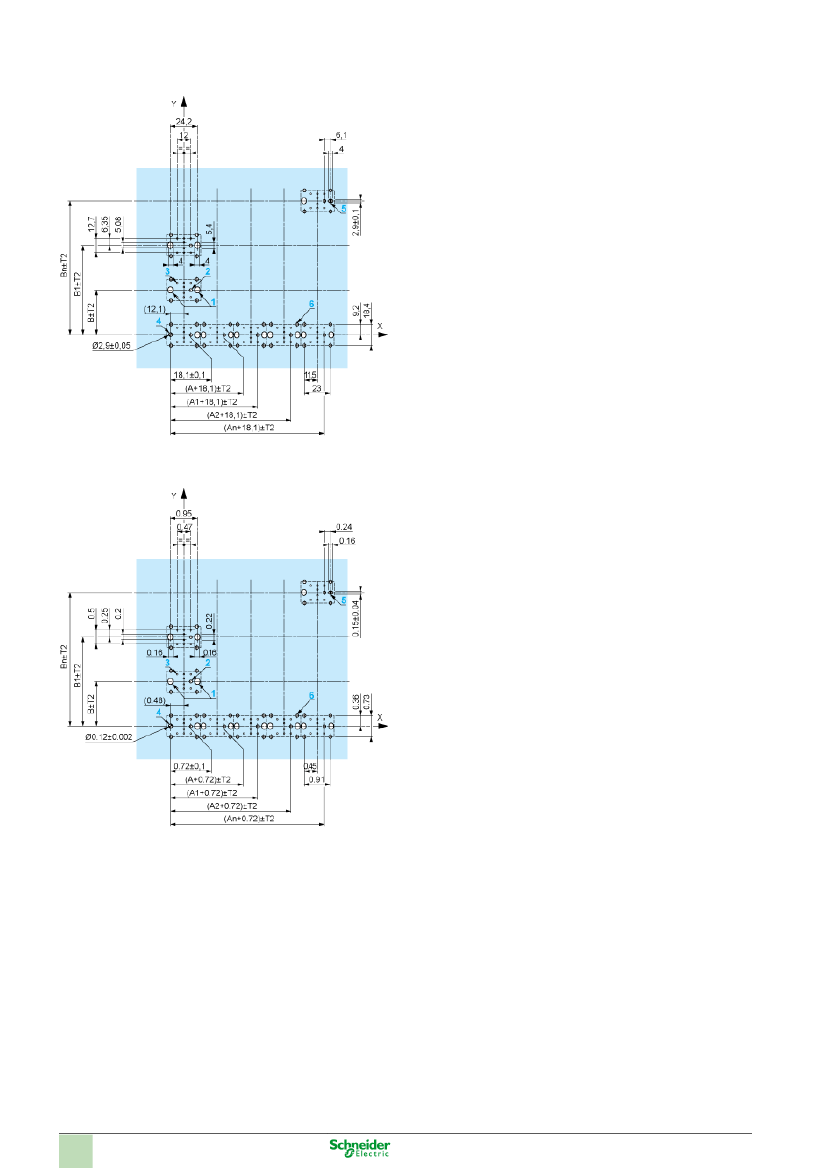

Printed Circuit Board Cut-outs (Viewed from Electrical Block Side)
Dimensions in mm
A:
B:
30 mm min.
40 mm min.
Dimensions in in.
A:
B:
1.18 in. min.
1.57 in. min.
General Tolerances of the Panel and Printed Circuit Board
The cumulative tolerance must not exceed 0.3 mm / 0.012 in: T1 + T2 = 0.3 mm max.
Installation Precautions
● Minimum thickness of circuit board: 1.6 mm / 0.06 in.
● Cut-out diameter: 22.4 mm ± 0.1 / 0.88 in. ± 0.004
● Orientation of body/fixing collar ZB4 BZ009: ± 2
