Part Number

Search

505-70B

Description
magnetic / reed switches micro contact brown N.O. for N.C. loop
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size294KB,1 Pages
ManufacturerAMS
Websitehttps://ams.com/zh
Download Datasheet Parametric View All

505-70B Online Shopping

Suppliers Part Number Price MOQ In stock
505-70B - - View Buy Now

505-70B Overview

magnetic / reed switches micro contact brown N.O. for N.C. loop

505-70B Parametric

Parameter NameAttribute value
ManufactureAMSECO
Product CategoryMagnetic / Reed Switches
RoHSN
Switch TypeMagnetic Contac
Contact Form1 Form A (SPST-NO)
Contact Rating10 VA at 250 V
Operating G2 i
Magnet TypeAlnico 5
ColBrow
Termination StyleScrew
MountingScrew
A
Brand

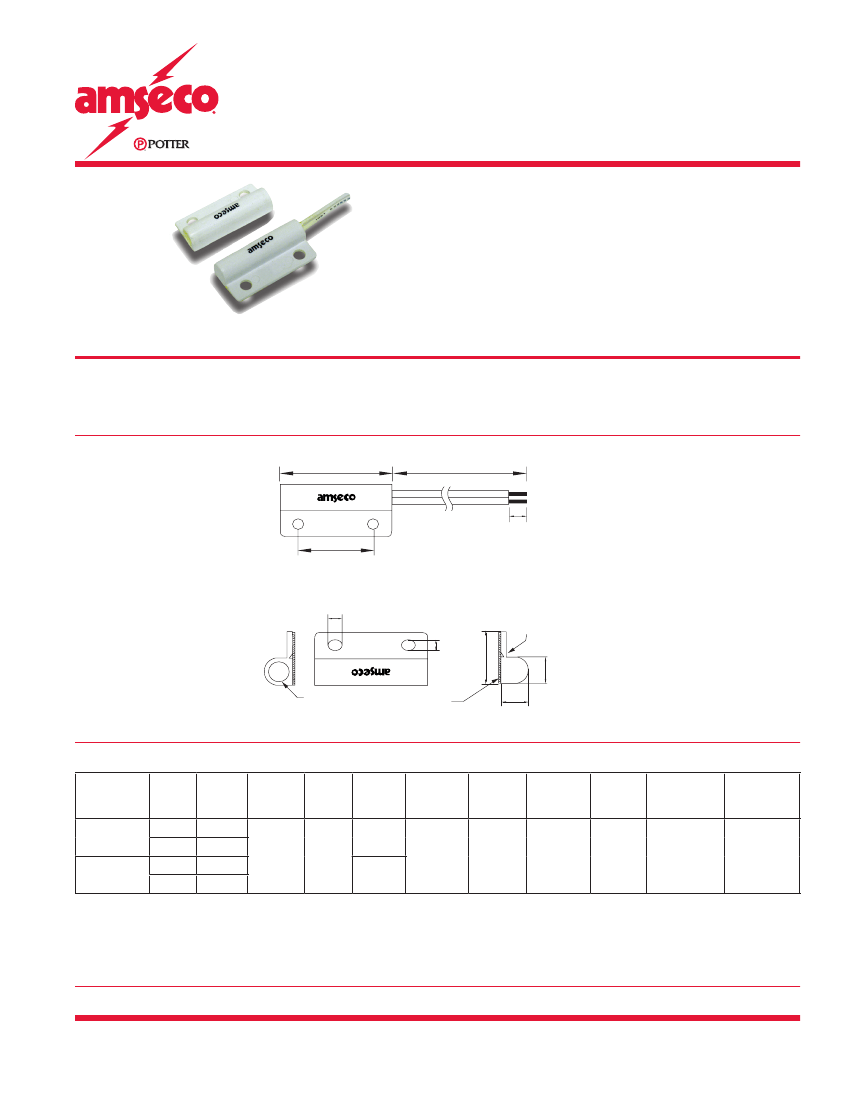

MINI SURFACE/PRESS FIT
MAGNETIC CONTACT
• UL Listed
• ¾” operating gap
• Surface mount or press fit
• Alnico 5 magnet
• AMS-7 available in white or brown,
AMS-7D available in white or black
AMS-7 SERIES
Application
The AMS-7 Series Mini Surface/Press Fit Magnetic Contact is designed for installations where space is severely limited. The unique break-off
tabs allows for field selection of surface mount or press-fit, recessed mount installations. The size and flexibility of the AMS-7 make it a must
have on every technicians vehicle.
Dimensions
1-1/8 (28)
12 (304)
15/64 (6)
3/4 (18.9)
9/64 (3.5)
1/8
(3)
1/2
(12.8)
Ø 5.0
adhesive tape
tab
1/4
(6.5)
12 (304)
Specifications
Model
AMS-7
AMS-7D
Color
White
Brown
White
Black
Stock
Number
4350220
4350219
4350231
4350221
22AWG
12” Lead
10VA
Contact
Contact
Rating
Contact
Type
Form A
N.O
Form B
N.C.
Max. Carry
Current
Max.
Switching
Current
Breakdown
Voltage
Operating
Gap
Mounting
Method
Operating
Temperature
Range
32°F to 120°F
(0°C to 49°C)
1.0 Amp
.5 Amp
200VDC
¾”
Surface mount
or Press fit
Potter Electric Signal Co., LLC • St. Louis, MO • Cust Service: 866-240-1870 • Tech Support: 866-956-1211 • Canada 888-882-1833 • www.pottersignal.com
PRINTED IN USA
MKT. #8880122 - REV B
2/10
PAGE 1 OF 1
