basic / snap action switches snap action switch hvyduty 20a snap act

14-124 Parametric

Parameter Name	Attribute value
Manufacture	ITW Switches
Product Category	Basic / Snap Action Switches
RoHS	Yes
Operating Force	0.5 N
Factory Pack Quantity	140

Preview

Download Datasheet

View All

S

NAP

A

CTION

S

WITCHES

H

EAVY

D

UTY

20

AMP

D

OUBLE

-B

REAK

S

WITCHES

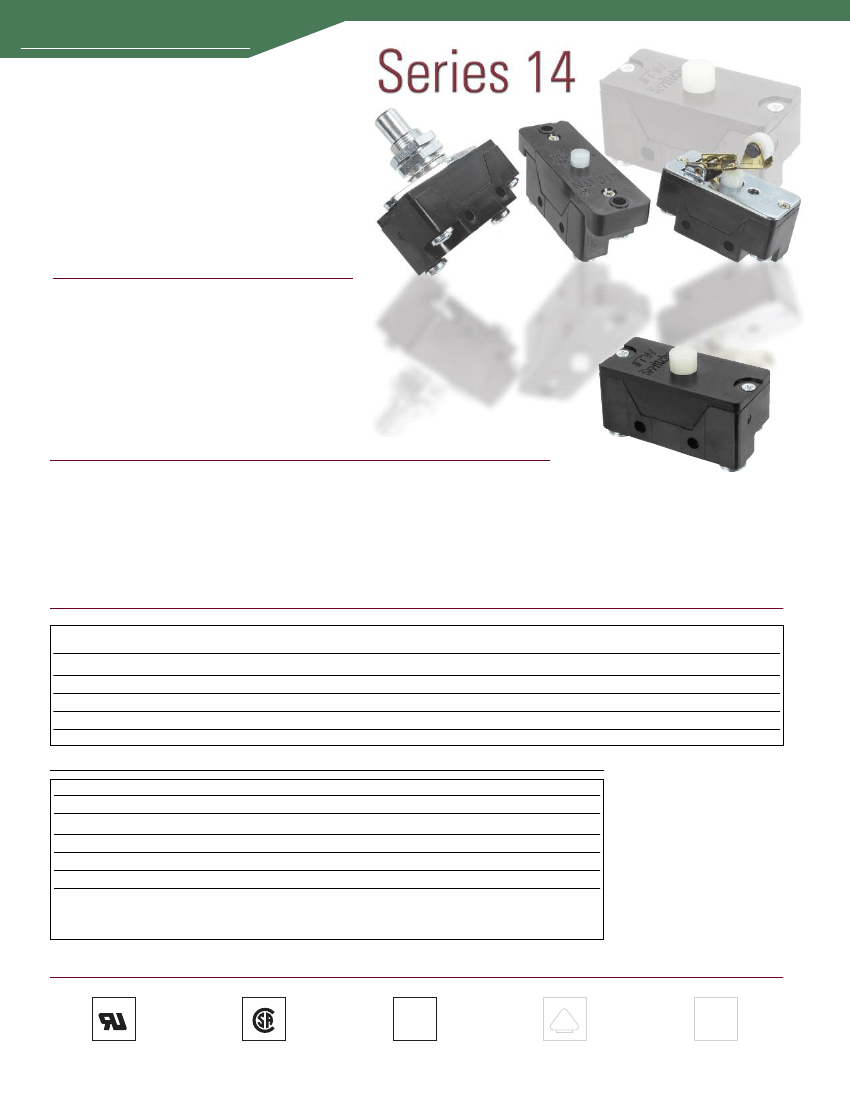

This rugged single-pole double-break Butterfly

®

switch will handle up to 20 amps. Ideal for high-

current applications which require long life and

reliability.

A

PPLICATIONS

•

Train car door operators

Bus door operators

Pendant controls

Lift trucks

Heavy industrial machinery

K

EY

F

EATURES

:

•

Available in standard or heavy duty

mounting

•

Semirefactory contacts and offset

#6 screw terminals with cup

washers are standard

•

Sealed button actuator is available

•

Button, overtravel plunger or pivot-

ed lever actuator are available

•

UL recognized and CSA certified

A

CTUAL

S

IZE

O

RDERING

I

NFORMATION

:

Part

Number

14-124

14-12404

14-324

14-724

Mounting

Standard

Heavy Duty

Standard

Operating

Force

12 ± 3 oz

5 ± 2 oz

Release

Force

4 oz min

2 oz min

Pretravel

.074 max

.156 max

Overtravel

.030 min

.219 min

.060 min

Movement

Differential

.020 ± .007

.021 ± .007

.020 ± .007

.046 ± .017

Operating

Point

.808 ± .013

.090 ± .053

.830 ± .036

1.406 ± .034

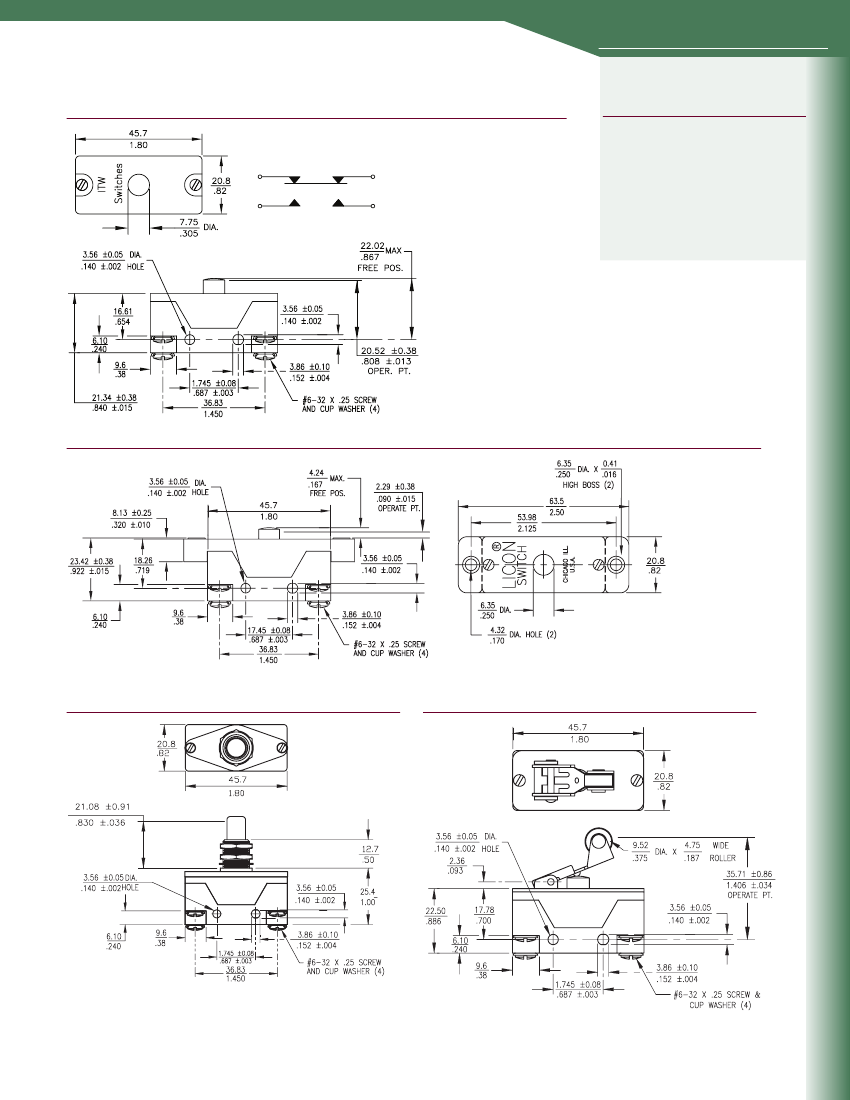

Actuator Style

Standard Button Actuator

Overtravel Panel Mount

Roller Lever Actuator

Electrical Ratings:

AC

Circuitry

SPDT-DB(Form Z)

Volts

28

125

250

480

Steady

20

In-Rush

80

50

SPDT

10.0

—

DC

SPST

25.0

—

UL recognized. Amps @ 125/250/480 VAC 78-80%PF and CSA Certified File No. 16388.

1 HP 125 VAC, 2 HP 250 VAC. Materials recognized by UL for use at temperatures not exceeding 105° C (220° F)

S

TANDARDS

/ A

GENCY

/ R

ATINGS

:

®

RoHS

COMPLIANT

2002 / 95 / EC

V

D E

IEC

IP67

COMPLIANT

www.itwswitches.com

48

Contact an Authorized Distributor or Factory for Pricing
