Accessories
https://www.schurter.com /PGZ01

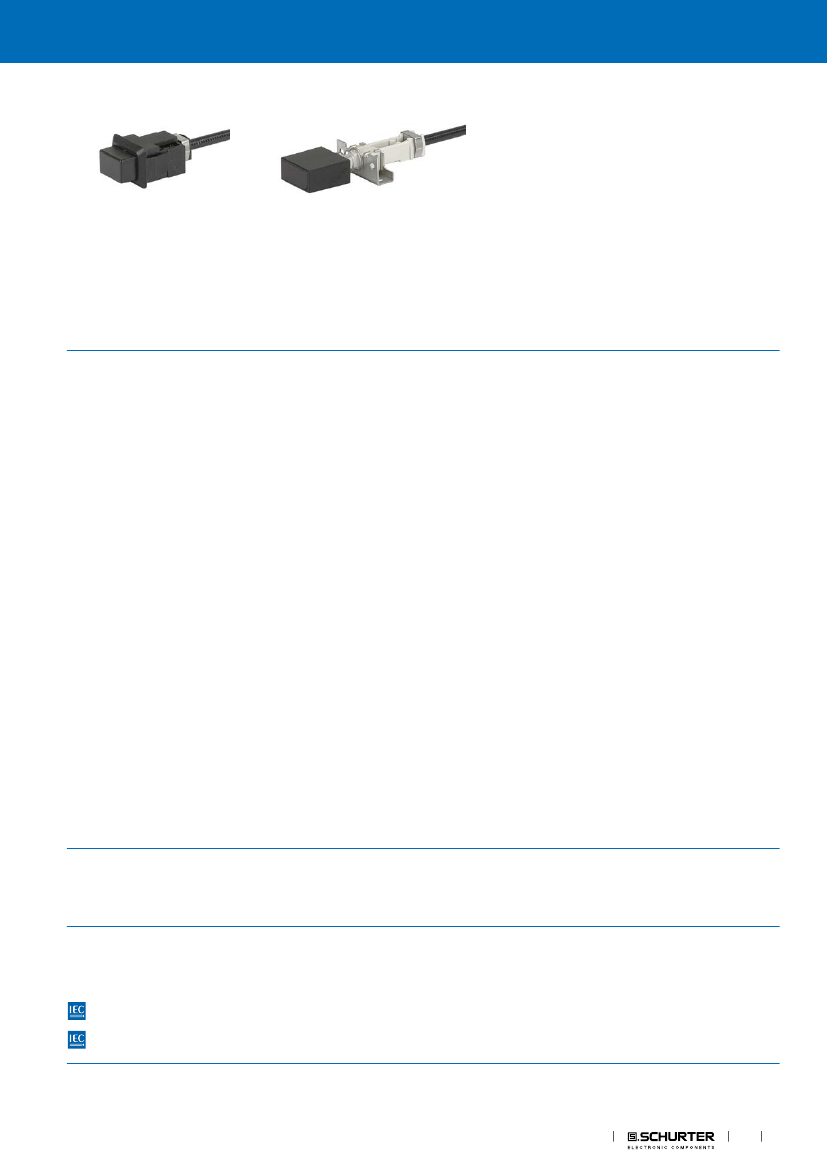

Bowdencables incl. accessory
Bowden Cable for Power Entry Modules
Type A (Snap-in mounting)
Phase-out
Last Order date: 30.06.2017
Last delivery date: 30.09.2017
Type B (Screw-on mounting)
Phase-Out
Last order date: 31.03.2015
Description
- Component :
Snap-in mounting from front side
- Approved together with power entry module
Ra/
b/
c/
PH
A
Approvals and Compliances
Application standards
Organization
Ordering example:
The following 3 positions are necessary to place an order:
1. Order No. socket KD14.4199.151
2. Order No. fuse drawer 4303.2024.03
3. Bowden cable (type of mounting /dimensions in mm) *R a/200 b/180 c/40
* The Order No. for a customer specific Bowden cable youll get with the acknowledgment. Delivery time for a customer specific Bowden cable sam-
ple approx. 2 weeks. Standard Bowden cable sample, Order No. 0886.0101, ex stock
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Application standards where the product can be used
Design
SE
S
a/
b/
c/
Remote Actuator Technology
The remote actuator cable assembly consists of a wire cable inside of a plastic insulated spiral wire casing. Identifying a proper outing of the cable
assembly is important. Deviations from line to line placement will require bends in the cable with resulting losses in the overall assembly. These inef-
ficiencies show up as friction losses and lost motion. Frictional losses are increases in actuation force due to losses in the assembly. Lost motion is
an undesirable difference between the input end of the assembly and the output end. The principle element of lost motion is backlash and deflection.
Backlash is caused by the wire cable moving inside the casing with the change in direction of motion. It is the function of clearance between the wire
cable and casing, plus the number of degrees of bend in the cable assembly. Deflection of the cable assembly, while usually low, can be minimized by
anchoring the casing.
This is especially true in those applications of cable assemblies with long lengths and/or large degrees of bend in the system.
All of these losses and resulting inefficiencies can be reduced by the equipment designer through minimizing the total degress of bend in the assem-
bly. Because of the number of variables effecting proper operation of any remotely actuated switch assembly, it is important that the ordering instruc-
tions be used to determine proper cable length and to provide samples for customer approval.
Consult figure for minimum information required to describe cable assembly application.
How to specify length of a Bowden cable:
R
Mounting parallel to direction of actuation
S
Mounting 90° to direction of actuation
B1
Actuating part
B1
Actuating part
B2
Power entry module
B2
Power entry module
____________________________
_____________________________
Standard
IEC/UL 60950
IEC 60601-1
Designed for applications acc.
Designed for applications acc.
-O
UT
Approvals and Compliances
Characteristics
References
Weblinks
- Designed for universal industrial applications
Fits to type:
CD-Bowdencable; CG-Bowdencable; KD-Bowdenca-
ble; KG-Bowdencable
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Connectors
1
Bowdencables incl. accessory
Compliances
The product complies with following Guide Lines
Identification
Details
RoHS
REACH
Initiator
SCHURTER AG
SCHURTER AG
Description
https://www.schurter.com /PGZ01
Accessories
EU Directive RoHS 2011/65/EU
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Suitable for use in medical equipment according to IEC/UL 60601-1
Medical Equipment
SCHURTER AG

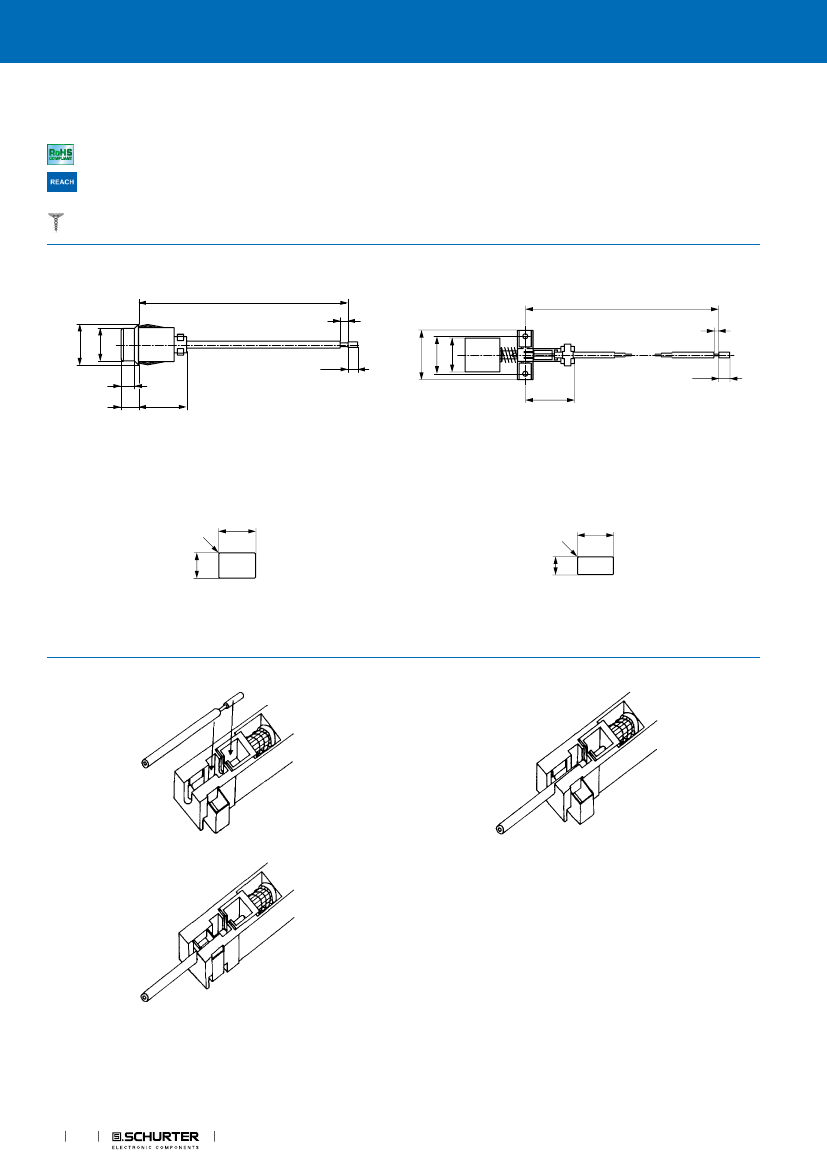

Dimension [mm]
A
B
13.8
20
4.6
-0.10
6.5
8.5
23.5
0
Type A (Snap-in mounting)
Dimension A will be evaluated and defined in trials by SCHURTER based on custo-
mer information a, b and c. (See Type R and Type S diagram below.)
>
R = 0.5
12.3
±0.1
18
±0.1
Panel cut-out for snap-in version
Assembly Instructions
PH
A
Drop bowden barrel into seat of switch
Bowden cable locked into assembly
2
SE
Connectors
Panel cut-out for screw version
Slide clamp around cable
8.7
min
.
-O
UT
A
B
24
18
17
4.6
-0.1
0
24.1
Type B (Screw-on mounting)
Dimension A will be evaluated and defined in trials by SCHURTER based on custo-
mer information a, b and c. (See Type R and Type S diagram below.)
>
R = 0.2
17.5
min.
Accessories
https://www.schurter.com /PGZ01
Bowdencables incl. accessory
Type R
Type S
a
b
Type S
S Mounting 90° to direction of actuation
B1 Actuating part
B2 Power entry module
Dimensions in mm (center of mounting Ø [B1], outer surface to center of mounting
Ø [B2], outer surface)
Packaging unit
50 Pcs
PH
A
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
SE
Connectors
3
23.11.2017
-O
UT
a
b
Type R
R Mounting parallel to direction of actuation
B1 Actuation part
B2 Power entry module
Dimensions in mm (center of mounting Ø [B1], outer surface to center of mounting
Ø [B2] outer surface)
c
c
