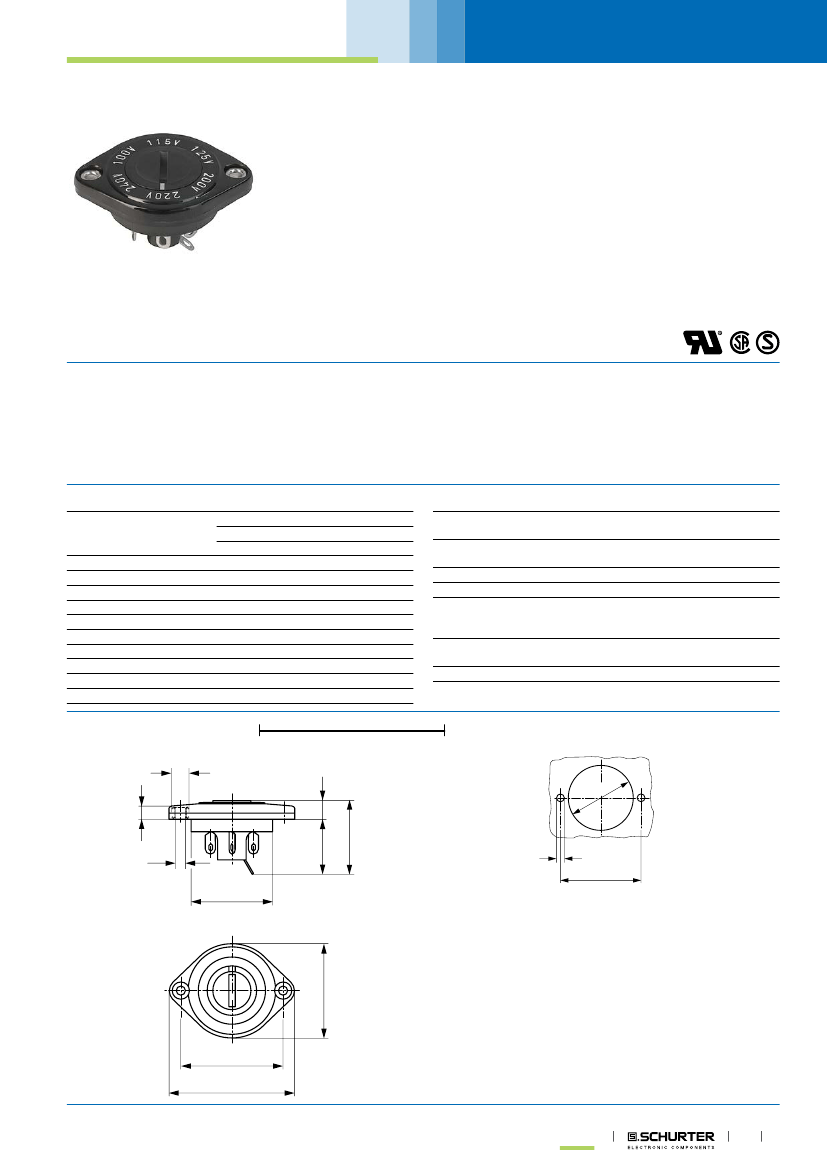

Voltage Selector
www.schurter.com/PG04
Voltage selector switch, 6 stages, step switch, panel mounting
SWP
Description
- Voltage Selector, 6 stages
- Step switch
- Solder terminals
Weblinks
Standards
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, REACH, e-Shop,
SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-Drawings,
Detailed request for product
- IEC 61058-2-5
- UL 508
- CSA C22.2 no. 55
Technical Data
Ratings
␣
␣
Mounting
Fastening
Terminal
Number of Stages
Lifetime
Degree of Protection
Allowable Operation Temp.
Climatic Category
Material: Socket
Weight
IEC: 6.3 A / 250 VAC; 50 Hz
UL: 10 A / 250 VAC; 60 Hz
CSA: 8 A / 250 VAC; 60 Hz
Panel Mount from front side
Screw-on mounting
Solder
6
300 operating cycles (without load)
IP 40
-40 °C to 85 °C
25/85/21 acc. to IEC 60068-1
Thermoplastic, black, UL 94V-0
16.5 g
Solderability
Resistance to Soldering Heat
Insulation Resistance
Contact Resistance
Dielectric Strength
350 °C / 2 sec acc. to IEC 60068-2-20,
Test Ta, method 2
350 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 2
> 10'000MΩ (500VDC; 1min)
< 10 mΩ at 20 mV
> 2.5kVAC between L-N
> 4kVAC between L/N-PE
(1min; 50Hz)
> 5mm
> 8mm between L/N-PE
acc. to IEC 60068-2-6, test Fc
Clearance and Creepage Di-
stance
Resistance to Vibration
Dimension
ø 6.4
Panel mounting hole
.2
±0
47 mm
30
6.7
22
28.7
5
ø 3.2
ø 29.5
3.6
38
125V
V
15
11
0
0V
0V
25
38
47
35
20
0V
220V
Fuses
1
SWP
Diagrams
Voltage Selector
www.schurter.com/PG04
1
6
5
4
2
3
All Variants
Letterings
Stage 1
110 V
␣
100 V
100 V
100 V
100 V
␣
Stage 2
125 V
␣
115 V
115 V
115 V
115 V
100 V
Stage 3
145 V
␣
127 V
120 V
200 V
125 V
115 V
Stage 4
160 V
␣
␣
220 V
220 V
200 V
220 V
Stage 5
220 V
␣
220 V
240 V
230 V
220 V
240 V
Stage 6
250 V
␣
240 V
␣
240 V
240 V
␣
0033.1101
0033.1104
0033.1108
0033.1109
0033.1110
0033.1113
0033.1118
Order Number
100 V
100 V
110 V
100 V
100 V
100 V
4
Ω
110 V
100
100
100
1
█
Most Popular.
110 V
110 V
115 V
120 V
110 V
110 V
8
Ω
220 V
120
120
115
2
120 V
220 V
130 V
200 V
120 V
120 V
16
Ω
230 V
200
200
230
3
200 V
240 V
200 V
220 V
127 V
125 V
␣
␣
230
208
240
4
220 V
␣
230 V
230 V
220 V
230 V
␣
␣
0
230
␣
5
240 V
␣
␣
240 V
240 V
240 V
␣
␣
0
0
␣
0
0033.1119
0033.1120
0033.1125
0033.1127
0033.1128
0033.1130
0033.1133
0033.1134
0033.1135
0033.1136
0033.1137
0033.1140
█
Availability for all products
can be searched real-
time:http://www.schurter.
com/en/Stock-Check/
Stock-Check-SCHURTER
Packaging Unit
25 Pcs
2
Fuses
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
22.07.2014
