KMR442G LFS Overview

tactile switches tact

KMR442G LFS Parametric

Parameter Name	Attribute value
Manufacture	C&K Components
Product Category	Tactile Switches
RoHS	Yes
Operating Force	4 N
Actu	Oval
Current Rating	50 mA
Voltage Rating DC	32 V
Power Rating	1 VA
Ground Terminal	Yes
Contact Form	SPST
Switch Functi	OFF - (ON)
Mounting Style	SMD/SMT
Factory Pack Quantity	6000
Termination Style	Gull Wing Lead

Preview

Download Datasheet

View All

KMR 4 Series

Microminiature SMT Top Actuated

Features/Benefits

•

Long Life version

•

4 actuation forces

•

Optional ground pin

•

Ultra low current capabilities

•

Excellent tactile feel

Typical Applications

•

Automotive

•

Cellular phones

•

Industrial electronics

•

Medical equipment

Specification

FUNCTION: momentary action

CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.

TERMINALS: Gullwing type for SMT

Electrical

MAXIMUM POWER:

MAXIMUM VOLTAGE:

MINIMUM VOLTAGE:

MAXIMUM CURRENT:

MINIMUM CURRENT:

DIELECTRIC STRENGTH:

CONTACT RESISTANCE:

INSULATION RESISTANCE:

BOUNCE TIME:

Tactile Switches

Silver

1 VA

32 VDC

20 mVDC

50 mA

1 mA*

≥

250 Vrms

≤

100 mΩ

≥

1GΩ

≤

3 ms

Gold

0.2 VA

32 VDC

20 mVDC

10 mA

1 mA*

Mechanical

Type G and NG

(except gold

version G only)

See description

below

KMR421 LFS

KMR431 LFS

KMR431 ULC LFS

KMR432 LFS

KMR432 ULC LFS

KMR441 LFS

KMR441 ULC LFS

KMR442 LFS

KMR442 ULC LFS

Operating

force

N (grs)

2.0

3.0

4.0

(200)

(300)

(400)

0.50

0.75

1.00

Operating

life

(cycles)

200

150

300

100

200

000

Travel (mm)

*For ULC version minimum current is 1µA at 1.8 VDC

0.25

0.30

0.35

0.1

Environmental

OPERATING TEMPERATURE:

STORAGE TEMPERATURE:

Silver

-40˚C to 85˚C

-55˚C to 85˚C

Gold

-40˚C to 125˚C

-55˚C to 125˚C

Process

Infrared Reflow Soldering in accordance with IEC61760-1

Packaging

In reels of 6,000 pieces for KMR 4

External diameter 330 mm ± 2 mm

NOTE:

Specifications listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

TACTILE FEELING: for KMR 4 series:

≥

25%

Part Number Description

For any part number different from those listed above, please consult your local representative.

Total height

2,5 mm

LFS

Lead free compatible, silver plated

LFG

Lead free compatible, gold plated

Actuation Force

2 N (200 grams)

3 N (300 grams)

4 N (400 grams)

Low Current capability

Void

Under standard specification

ULC

Low current

Grounding option

Ground pin

No Ground pin

Contact Material

Silver

Silver long life

Gold

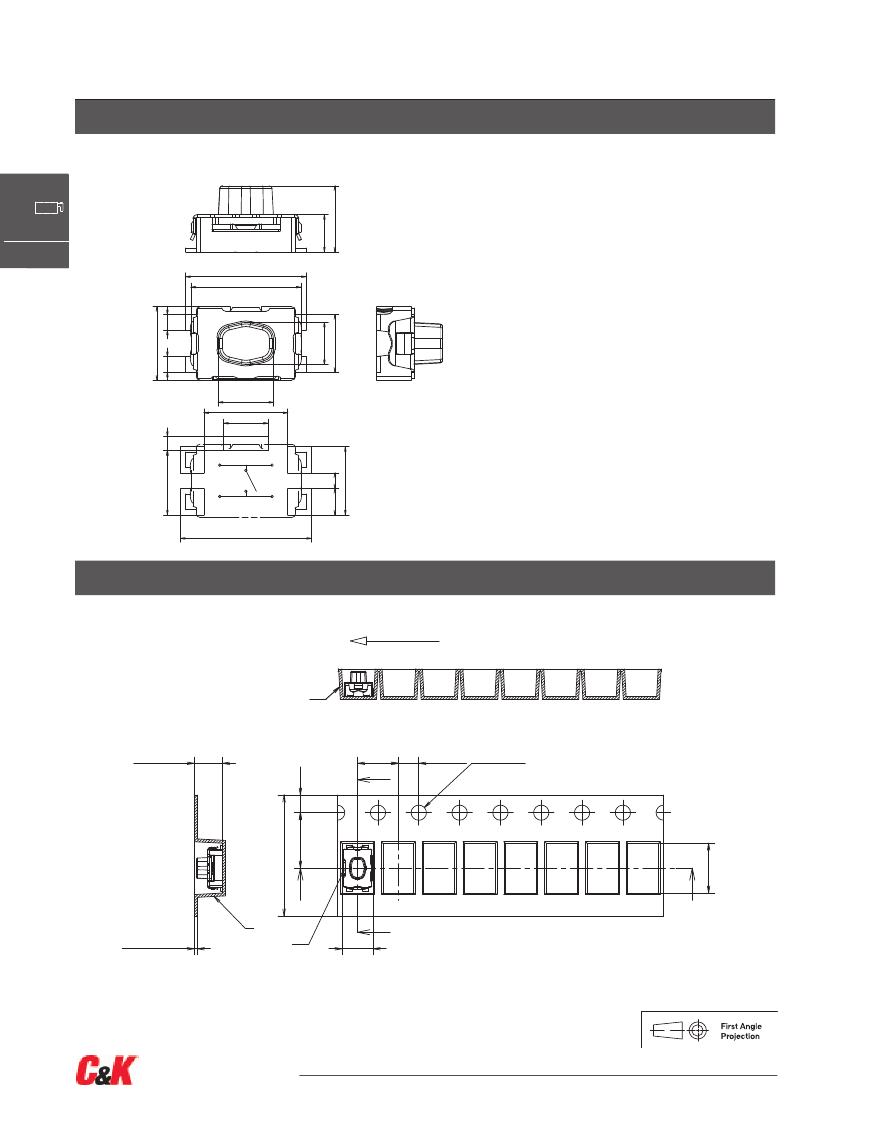

Dimensions are shown: mm

Specifications and dimensions subject to change

B–11

www.ck-components.com
