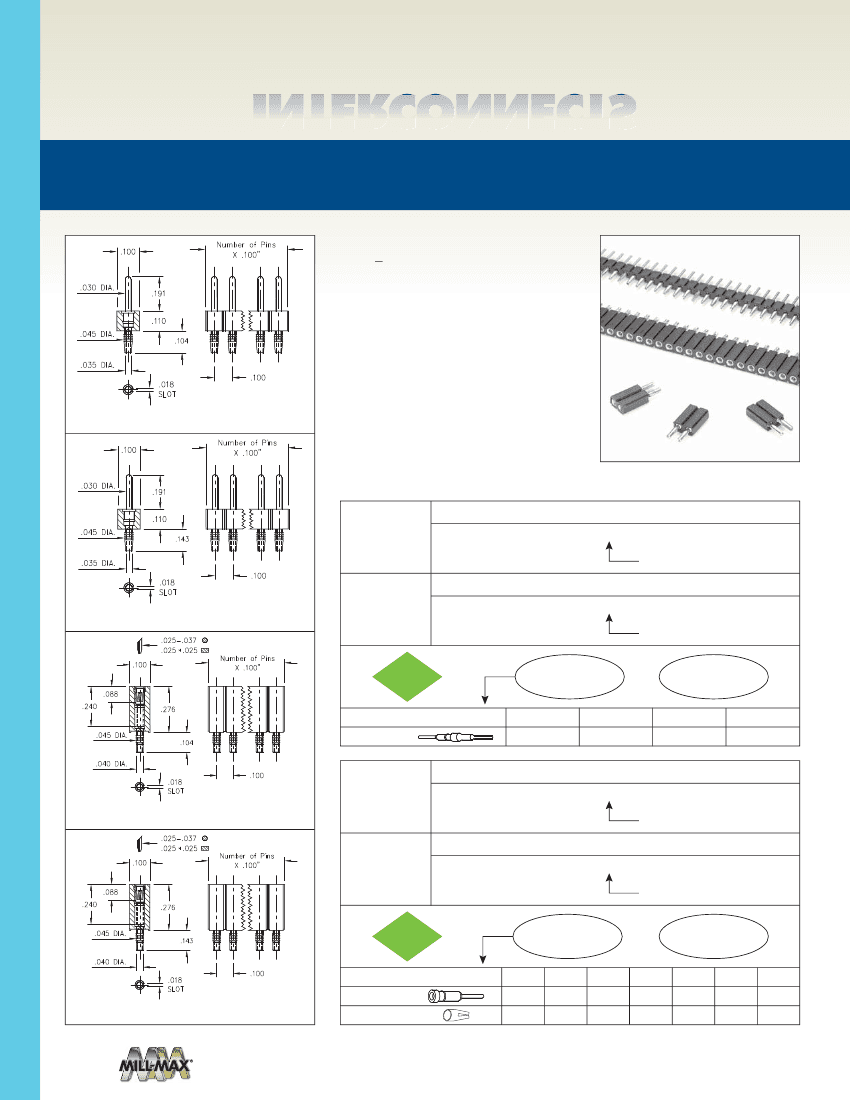

INTERCONNECTS
SERIES 800 & 801 • .100” GRID (.030” DIA. PINS),
SOLDERLESS PRESS-FIT • SINGLE ROW STRIPS
•
The unique compliant tail pins conform to
.040”+ .003” finished hole without stressing
inner layers. Patent No. 4,799,904
•
Headers and sockets are available for board
thicknesses of .060” - .010” and .090” - .130”.
See ordering information for details
•
Series 800 pin headers use MM #5601 and
#5602 compliant tail pins featuring a .030”
dia. mating lead. See page 220 for details
•
Series 801 sockets MM #4614 or #4615 use
FIG. 1
Hi-Rel, 6-finger BeCu #47 contact rated at
4.5 amps. Receptacles accept .030” diameter
pins & .025” square pins. See pg. 256 for details
•
Insulators are high temperature thermoplastic
ORDERING INFORMATION
Compliant Tail Pin Header for .060” - .100” Thick Boards
FIG. 1
800-XX-0_ _-61-001000
Specify number of pins
01-64
Compliant Tail Pin Header for .090” - .130” Thick Boards
FIG. 2
FIG. 2
800-XX-0_ _-62-001000
Specify number of pins
01-64
For
Electrical, Mechanical
& Enviromental Data,
See page 264
2002/95/EC
RoHS
XX=Plating Code
See Below
10
10
”
Au
SPECIFY PLATING CODE XX=
Pin Plating
90
200
”
Sn/Pb
40
200
”
Sn
Compliant Tail Socket for .060” - .100” Thick Boards
FIG. 3
FIG. 3
PAGE 56 | INTERCONNECTS
801-XX-0_ _-61-001000
Specify number of pins
01-50
Compliant Tail Socket for .090” - .130” Thick Boards
FIG. 4
801-XX-0_ _-62-001000
Specify number of pins
01-50
For
Electrical, Mechanical
& Enviromental Data,
See page 264
2002/95/EC
RoHS
XX=Plating Code
See Below
91
10
”
Au
SPECIFY PLATING CODE XX=
Sleeve (Pin)
93
99
41
43
200
”
Sn
30
”
Au
200
”
Sn/Pb 200
”
Sn/Pb 200
”
Sn/Pb
200
”
Sn
FIG. 4
Contact (Clip)
30
”
Au
100
”
Sn/Pb
10
”
Au
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
