MCX Miniature Coaxial Connectors
Mating Interfaces

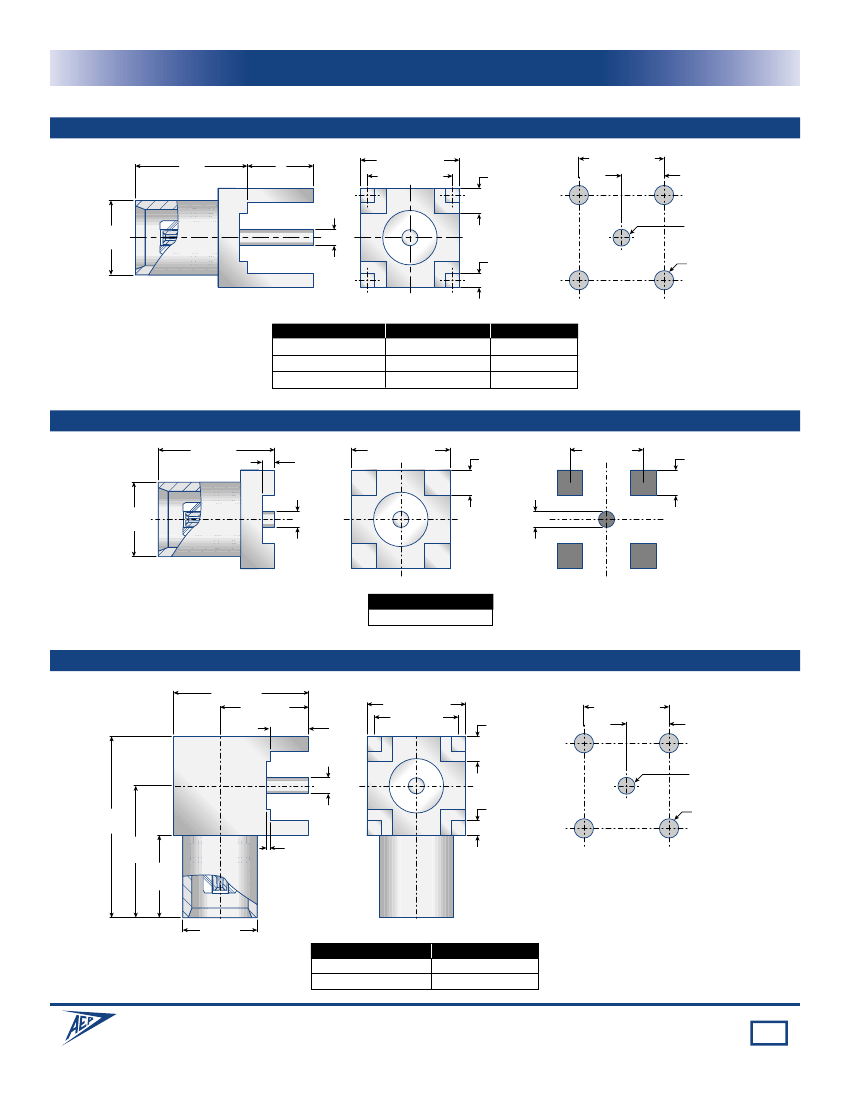

Plug interface dimensions
Reference Plane
D
E
20
˚
D
Jack interface dimensions
Reference Plane
E
ø
A
ø
I
ø
C
ø
C
ø
H
ø
I
ø
A
B
H
K
F
F
K
B
Dimension Min. inches (mm) Max. inches (mm)
A
*
*
B
.006 (0,15)
—
C
.018 (0,48)
.021 (0,53)
D
.163 (4,15)
—
E
—
.029 (7,4)
F
.110 (2,80)
.126 (3,20)
H
—
.012 (0,30)
I
.079 (2,00)
—
K
.110 (2,80)
—
*Dimension to meet engagement and disengagement forces.
Dimension
A
B
C
D
E
F
H
I
K
Min. inches (mm)
.142 (3,60)
.000
.150 (3,80)
.157 (4,00)
.030 (0,75)
.091 (2,3)
.135 (3,42)
—
.102 (2,60)
Max. inches (mm)
.148 (3,75)
—
—
.162 (4,12)
.033 (0,85)
.110 (2,80)
.137 (3,48)
.078 (1,98)
.110 (2,80)
Specifications
(MIL-PRF-39012 as applicable)
Electrical:
Impedance:
50Ω.
Frequency range:
DC–6 GHz.
Voltage Rating:
250VRMS (RG-178 cable); 335 VRMS (RG-316 cable).
Insulation Resistance:
1,000 megohms minimum.
Contact Resistance:
Center contact:
5.0 milliohms maximum.
Outer contact:
2.5 milliohms maximum.
VSWR:
Frequency
Straight connector
Right angle connector
1 GHz
1.22:1 max.
1.35:1 max.
6 GHz
1.35:1 max.
1.50:1 max.
Environmental (MIL-STD-202):
Temperature range:
-65˚ C to +165˚ C.
Thermal shock:
Method 107, condition C.
Corrosion:
Method 101, condition B, 5% salt solution.
Vibration (Method 204):
Condition D.
Moisture resistance:
Method 106.
Materials:
Plug spring fingers, female center contacts:
Beryllium copper per ASTM B196, Condition HT.
Crimp sleeves:
Seamless copper tube per ASTM B75, type C12000, temper: light anneal 050.
Other metal parts:
Brass per ASTM B16, Alloy 360,
1
⁄
2
hard.
Insulators:
Teflon (TFE) per ASTM D1710.
Finish:
Center contacts:
Gold plated per MIL-G-45204 Type II, Class 0, Grade C, over .00010 to .00020
sulfamate nickel per QQ-N-290.
Other metal parts:
Gold or nickel plated to meet MIL-PRF-39012 corrosion requirements.
Mechanical:
Force to engage:
6 pounds max.
Force to disengage:
1.8 pounds min.
Contact retention:
2.3 pounds min axial force.
Durability:
500 mating cycles.
Contents
Right Angle Cable Plugs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Straight and Right Angle P. C. Board Jacks
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cable Assembly Instructions and Tooling
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
About AEP; other AEP Product LInes
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
4
5
6
APPLIED ENGINEERING PRODUCTS
104 John W. Murphy Drive • P.O. Box 510 • New Haven, CT 06513
(203) 776-2813
• FAX (203) 776-8294
www.aepconnectors.com • e-mail: aepsales@aepconnectors.com
2
MCX Miniature Coaxial Connectors
Click on part number to go directly to cable assembly instructions

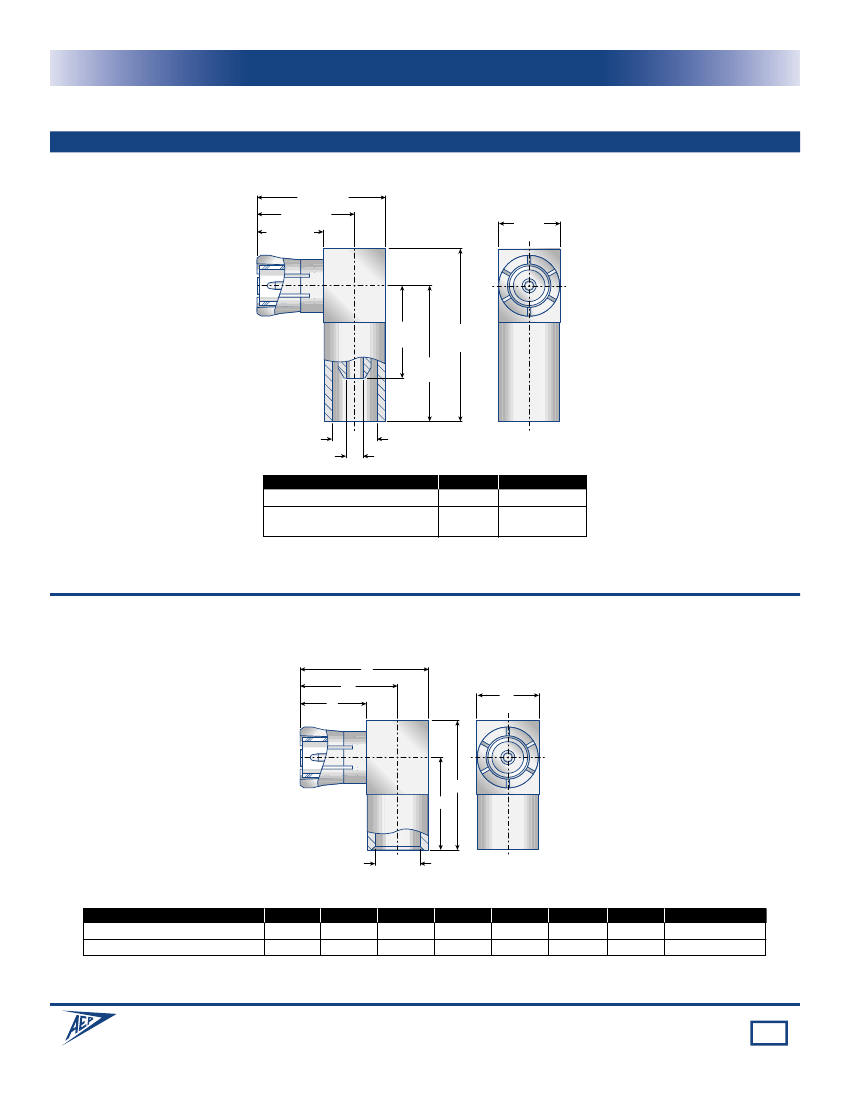

Right Angle Cable Plugs
Crimp type for flexible cable
.321 (8,2)
.243 (6,2)
.165 (4,2)
.156
(4,0)
.234
(5,9)
.344
(8,7)
.437
(11,1)
ø
.122 (3,1)
ø
A
CABLE TYPES
RG178, RG196, M17/93, M17/169
RG174, RG316, M17/113,
M17/119, M17/172, M17/189
Dim. A
.040 (1,0)
.067 (1,7)
AEP P/N
8955-1521-002
8955-1521-003
Direct solder for semi-rigid cable
D
E
F
G
C
B
ø
A
CABLE TYPES
.085" semi-rigid, RG405, M17/133
.141" semi-rigid, RG402, M17/130
Dim. A Dim. B
.089 (2,3) .210 (5,3)
.144 (3,1) .242 (6,1)
Dim. C
.303 (7,7)
.335 (8,5)
Dim. D
.321 (8,2)
.359 (9,1)
Dim. E
.243 (6,2)
.266 (6,8)
Dim. F
.165 (4,2)
.172 (4,4)
Dim. G
.156 (4,0)
.187 (4,7)
AEP P/N
8955-1561-010
8955-1561-009
APPLIED ENGINEERING PRODUCTS
(203) 776-2813 • FAX (203) 776-8294
www.aepconnectors.com • aepsales@aepconnectors.com
3
MCX Miniature Coaxial Connectors
Straight P.C. Board Jacks •
Through-hole legs with standoff
.245
(6,2)
A
.235 (5,9) sq.
.200 (5,1) typ.
.200 (5,1) typ.
.060 (1,5)
sq. typ.
.100 (2,5) typ.
ø
.177
(4,5)
ø
.046 (1,2)
ø
.038
(1,0)
.035 (0,9)
sq. typ.
ø
.067(1,7)
4 places
Mounting hole drilling
LEG LENGTH (A) BODY PLATING
.155
GOLD
.068
GOLD
.068
NICKEL
AEP P/N
8959-1511-000
8959-1511-002
8959-7511-002
Straight P.C. Board Jack •
Surface mount
.245(6,2)
.030
(0,8)
.235 (5,9) sq.
.060 (1,5)
sq. typ.
.200 (5,1)
typ.
.080 (2,0)
sq. typ.
ø
.177
(4,5)
ø
.038
(1,0)
ø
.068
(1,68)
Solder pads for mounting
AEP P/N
8959-1511-003
Right Angle P.C. Board Jack •
Through-hole legs with standoff
.304 (7,7)
.192 (4,9)
.068
(1,7)
.235 (5,9) sq.
.200 (5,1)
typ.
.200 (5,1) typ.
.060 (1,5)
sq. typ.
.100 (2,5) typ.
ø
.046 (1,2)
.371
(9,4)
.254
(6,5)
.136
(3,5)
ø
.038
(1,0)
.01 (2,5)
.035 (0,9)
sq. typ.
ø
.067(1,7)
4 places
Mounting hole drilling
ø
.177
(4,5)
BODY PLATING
GOLD
NICKEL
AEP P/N
8960-1511-001
8960-7511-001
APPLIED ENGINEERING PRODUCTS
(203) 776-2813 • FAX (203) 776-8294
www.aepconnectors.com • aepsales@aepconnectors.com
4
MCX Miniature Coaxial Connectors

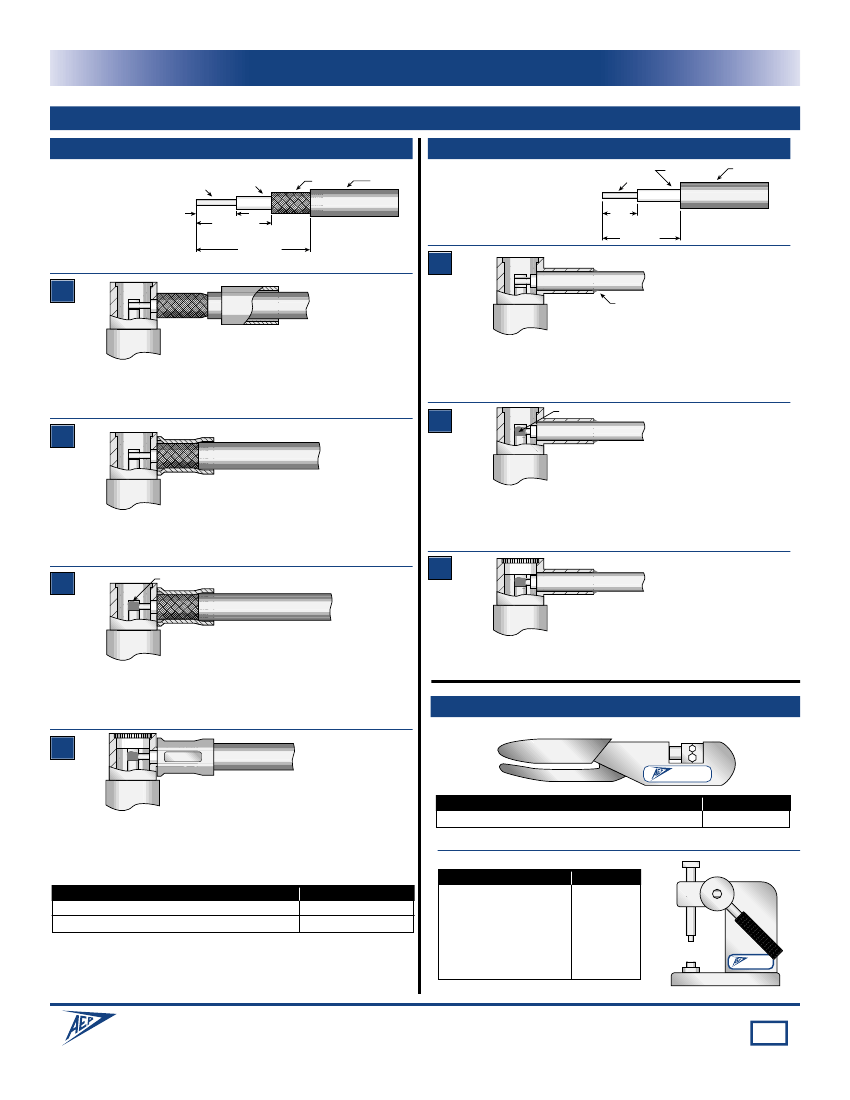

Assembly Instructions
