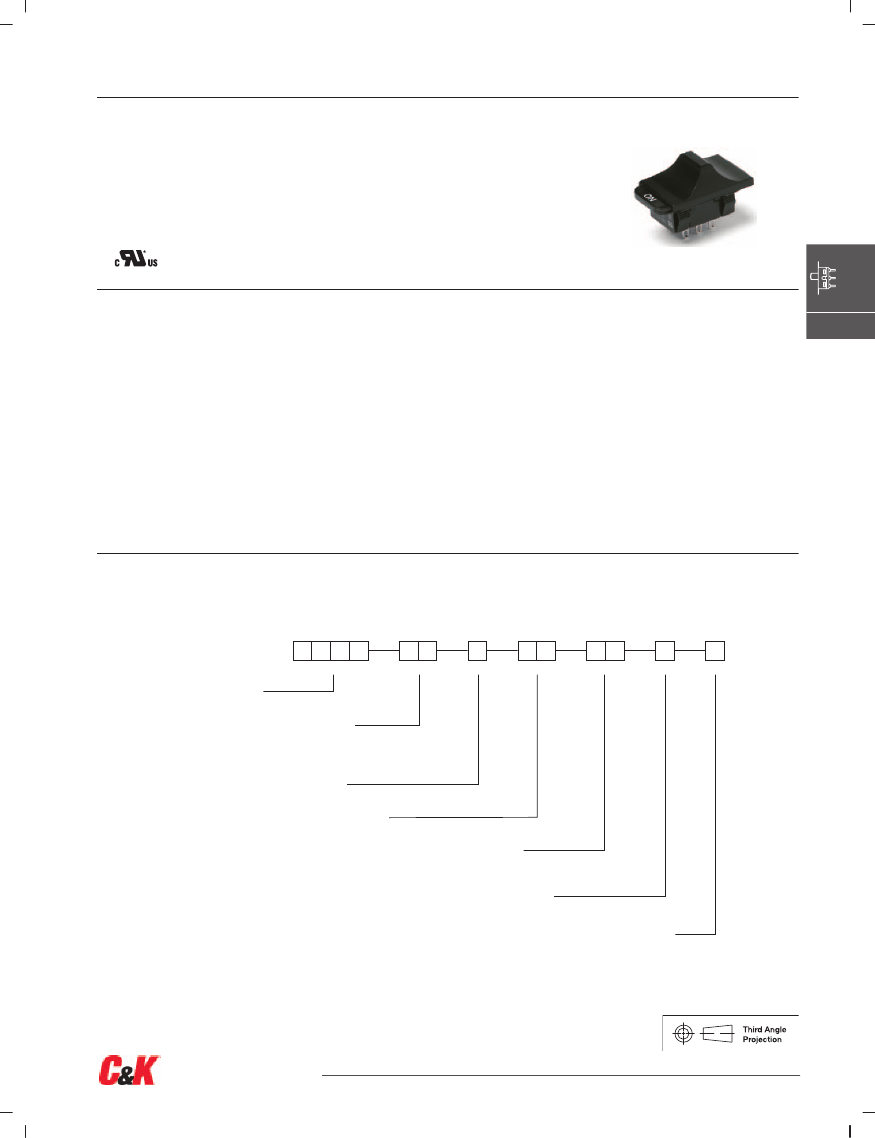

LP Series
Miniature Snap-in Slide Switches
Features/Benefits
•
6 to 11 AMPS available
•
Easy assembly—Snap-in mounting
•
Contamination resistant—extended actuator
•
Positive detent
•
RoHS compliant
Typical Applications
•
Small appliances
•
Outdoor appliances
•
Portable tools
Models Available
Specifications
CONTACT RATING: Q contact material (LP0X, LP2X Models: 6 AMPS
@ 125 V AC or 28 V DC; 3 AMPS @ 250 V AC (UL/CSA).
(LP7X, LP8X Models): 11 AMPS @ 125/250 V AC (UL/CSA).
See page I-27 for additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial
@ 2-4 V DC, 100 mA, for both silver and gold plated contacts.
OPERATING TEMPERATURE: -30ºC to +65ºC
STORAGE TEMPERATURE: -30ºC to +85ºC
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Materials
HOUSING: 6/6 nylon (UL94V-2), black.
ACTUATOR: Glass filled acetal, UV and petroleum resistant,
black.
CONTACTS: Q contact material: Copper, silver plated. See page
I-27 for additional contact materials.
TERMINALS: Q contact material: Copper, silver plated. See page
I-27 for additional contact materials.
CONTACT SPRING: Music wire or stainless steel.
TERMINAL SEAL: Epoxy.
I
Slide
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages I–26 and I–27. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
LP22
DPDT, 6 AMP
LP02
SPDT, 6 AMP
LP81
DPST, 11 AMP
LP82
DPDT, 11 AMP
Actuator
C2
Black cap
C1
Whitecap
C3
Red cap
Detent
1
With detent
Mounting Style
T2
Snap-in panel with tabs
(D, L, N markings only)
Terminations
03
Solder lug with hole
Housing Markings
NONE
No markings
D
ON-OFF
Contact Material
Q
Silver
B
Gold
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
I–25
www.ck-components.com
LP Series
Miniature Snap-in Slide Switches

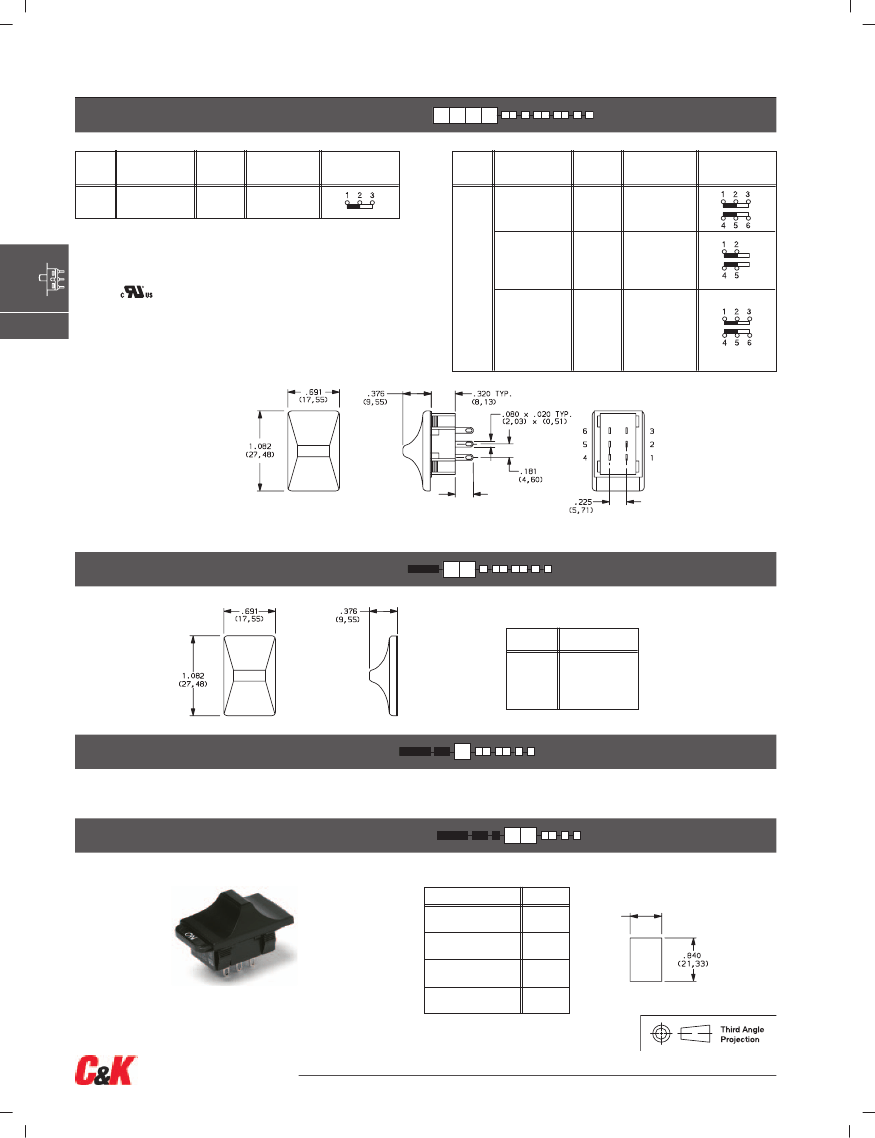

SWITCH FUNCTION
NO.
POLES
SP
MODEL
NO.
AMP
RATING*
6
SWITCH
FUNCTION
SPDT
NO.
POLES
MODEL
NO.
AMP
RATING*
SWITCH
FUNCTION
SCHEMATIC
SCHEMATIC
LP02
LP22
6
DPDT
LP81
DP
All models
with all options when ordered with ‘Q’ contact material.
11
DPST
Contacts make on side actuator thrown.
I
Slide
* For complete contact ratings, see CONTACT MATERIALS Section, page I-27.
LP82
11
DPDT
.200
(5,08)
Terminal Nos.
For Reference Only
Part number shown: LP22C21S203Q
ACTUATOR
C1; C2; C3
OPTION
CODE2
ACTUATOR CAP
COLOR
BLACK
WHITE
RED
NOTE:
Actuator finish: gloss.
Other colors available,
consult Customer Service Center.
C2
C1
C3
DETENT
1
WITH DETENT
MOUNTING STYLE
T2
SNAP-IN PANEL WITH TABS
PANEL THICKNESS
.030–.045
(0,76) (1,14)
.046–.059
(1,17) (1,50)
.060–.089
(1,52) (2,26)
Mounting style T2 suitable for markings.
See HOUSING MARKINGS options.
.090–.120
(2,29) (3,05)
DIM ‘A’
.578
(14,68)
.585
(14,86)
.598
(15,19)
.610
(15,49)
PANEL MOUNTING
DIM. ‘A’
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
I–26
www.ck-components.com
LP Series
Miniature Snap-in Slide Switches
TERMINATIONS
03
SOLDER LUG WITH HOLE
.200
(5,08)
HOUSING MARKINGS
NONE
NO MARKINGS
D
I
ON-OFF
Slide
NOTE:
Housing markings are available with ‘T2’ mounting style only. The marking color
on all housings with marking options ‘D’ is white, standard. Other marking colors are
available, consult Customer Service Center.
Orientation of actuator
and terminals.
CONTACT MATERIAL
OPTION
CODE
CONTACT
MATERIAL
RATINGS
Q
SILVER
2
POWER
LP0X, LP2X MODELS: 6 AMPS @ 125 V AC or 28 V DC;
3 AMPS @ 250 V AC (UL/CSA).
LP7X, LP8X MODELS: 11 AMPS @ 125/250 V AC (UL/CSA).
B
GOLD
1
LOW LEVEL/DRY
CIRCUIT
0.4 VA MAX. @20 V AC OR DC MAX.
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1
2
3
CONTACTS & TERMINALS: Copper, with gold plate over nickel plate.
CONTACTS & TERMINALS: Copper, silver plated (standard with all termination options).
CONTACTS & TERMINALS: Copper, with gold plate over nickel plate over silver plate.
NOTE:
Any models supplied with Q or B contact material are RoHS compliant.
All models
with all when ordered with ‘Q’ contact material.
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
I–27
www.ck-components.com
