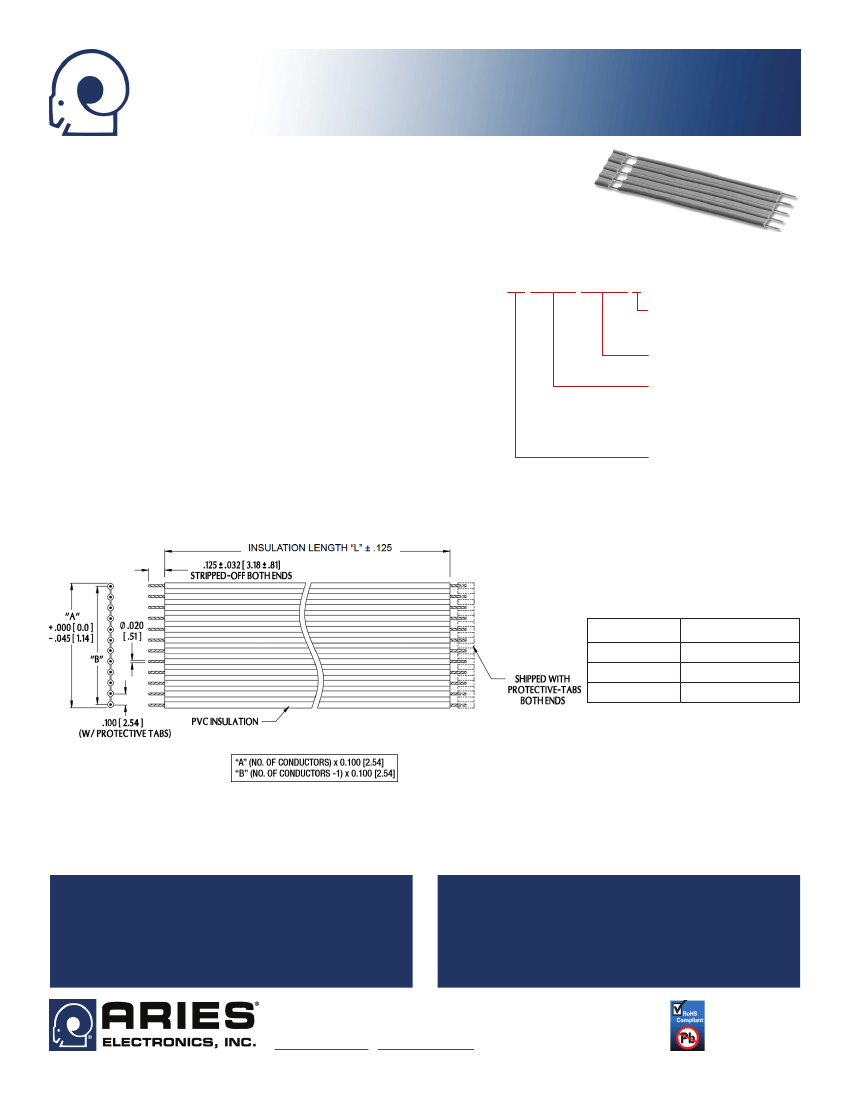

Series 152FB
Fusion-Bonded Cable Jumpers
FEATURES
• Flexible Fusion-bonded Jumpers Plug Directly into PC Boards or Sockets
• Stranded Wire Conductors Fusion-bonded with an Overcoat of Sn for Easy Soldering or Socketing
• Jumpers Shipped with Protective Tabs on Ends to Maintaining Proper Conductor Spacing
GENERAL SPECIFICATIONS
•
INSULATION: UL VW-1, Style 2651 Polyvinyl Chloride (PVC) with optional Polar-
ization Stripe on one side
•
NOMINAL INSULATION THICKNESS:
0.009 [0.23]
•
CONDUCTORS: 26-gauge, 7-strand Cu with Sn fusion-bonded overcoat
•
OPERATING TEMPERATURE:
-4°F to 221°F [-20°C to 105°C]
•
VOLTAGE RATING:
300Vrms
•
DIELECTRIC WITHSTANDING VOLTAGE:
1500Vrms
•
INSULATION RESISTANCE:
10,000 mΩ per 10 feet [3.05 meters]
•
RESISTANCE:
40.3Ω per 1000 feet [304.8 meters]
•
PROPAGATION DELAY: 1.3ns/ft.
ORDERING INFORMATION
XX-XXXXX-152FB1 X
Option
P = Polarization Strip, along
one edge of cable*
Jumper Series
11 = Au over Ni
Cable Length
2" = 002
2.5" = 002.5
2.25" = 002.25
2.125" = 002.125
No. of Conductors
4 thru 22
* Aries reserves the right to ship with or without unless
specified by customer.
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE:
0.033 ±0.002 [0.84 ±0.05] dia.
# Conductors
4 thru 8
9 and 10
11 thru 22
Min. Insulation Length
1.000 [25.40]
1.250 [31.75]
1.500 [38.10]
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
ALL CABLES SHIP WITH Pb-FREE MATERIAL UNLESS CUSTOMER SPECIFIED
WHEN ORDERING
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
11001
Rev. 1.2
1 of 1
